CHASSIS AND BODY DIMENSIONS
77-1-16 BODY DIMENSIONS
Rear end information
Gaps
The tolerance for gap 'k' and 'l' is
± 1.0 (0.039), and for gap 'm' is ± 2.0 (0.078).
Section Gap Description Dimension
K-K k Taildoor to body side panel 7.0 (0.275)
L-L l Taildoor to body side panel 7.0 (0.275)
M-M m Taildoor to roof 23.0 (0.905)

PANEL REPAIRS
REPLACEMENT PANELS 77-2-1
PANEL REPAIRS REPLACE ME NT PA NELS
Replacement panels
Front end outer panels
1Bonnet assembly
2Front wing
3Wing support bracket

PANEL REPAIRS
77-2-2 REPLACEMENT PANELS
Front end inner panels
1Bonnet locking platform
2Headlamp mounting panels
3Front crossmember
4Front bulkhead assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-3
Valance panels
1Reinforcement valance outer
2Valance upper assembly
3Headlamp closing panel
4Front valance assembly

PANEL REPAIRS
77-2-4 REPLACEMENT PANELS
Body side panels
1Dash side assembly
2'A' post assembly
3'B/C' post assembly
4Sill inner assembly
5Sill outer assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-5

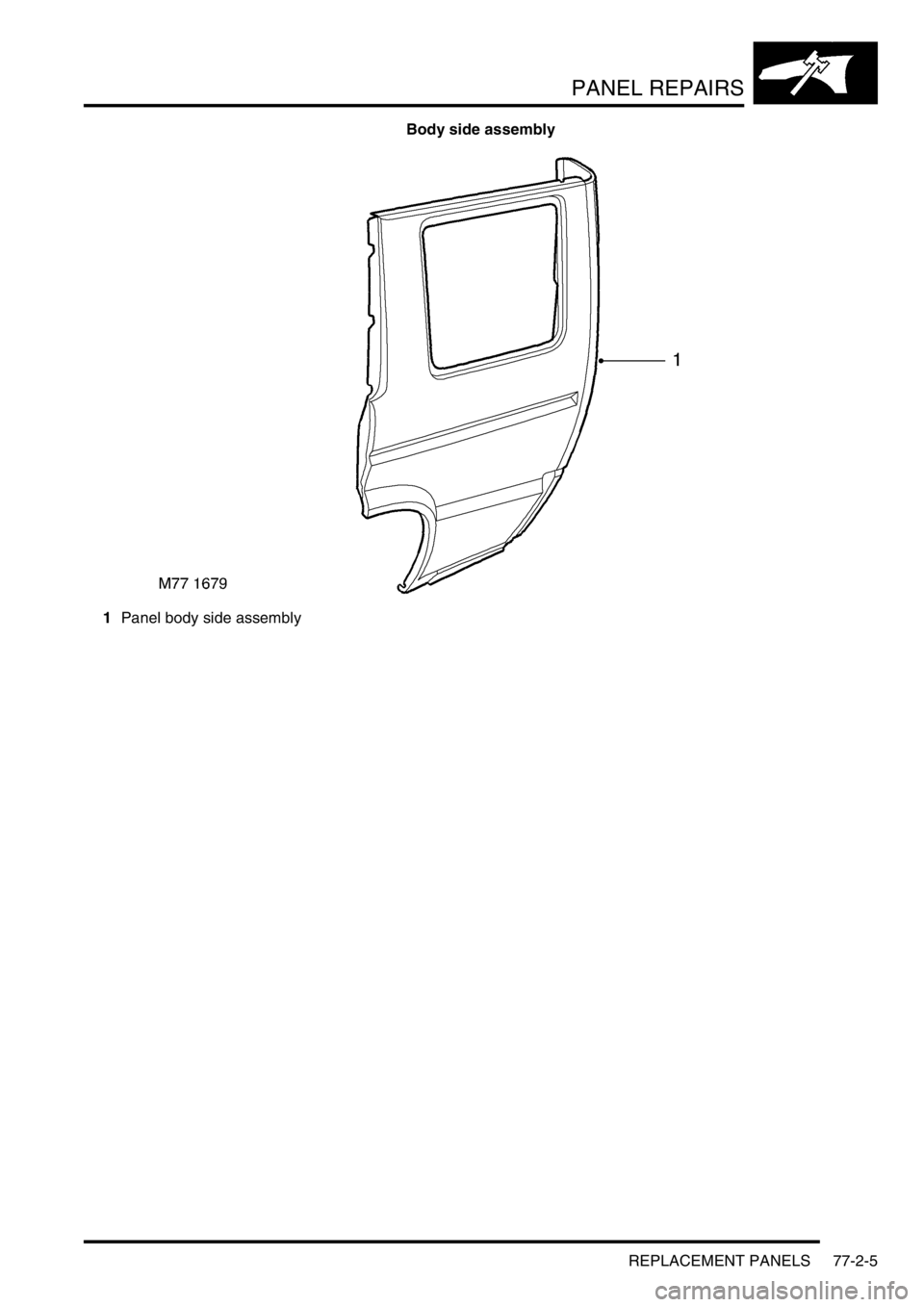

Body side assembly
1Panel body side assembly

PANEL REPAIRS
77-2-6 REPLACEMENT PANELS

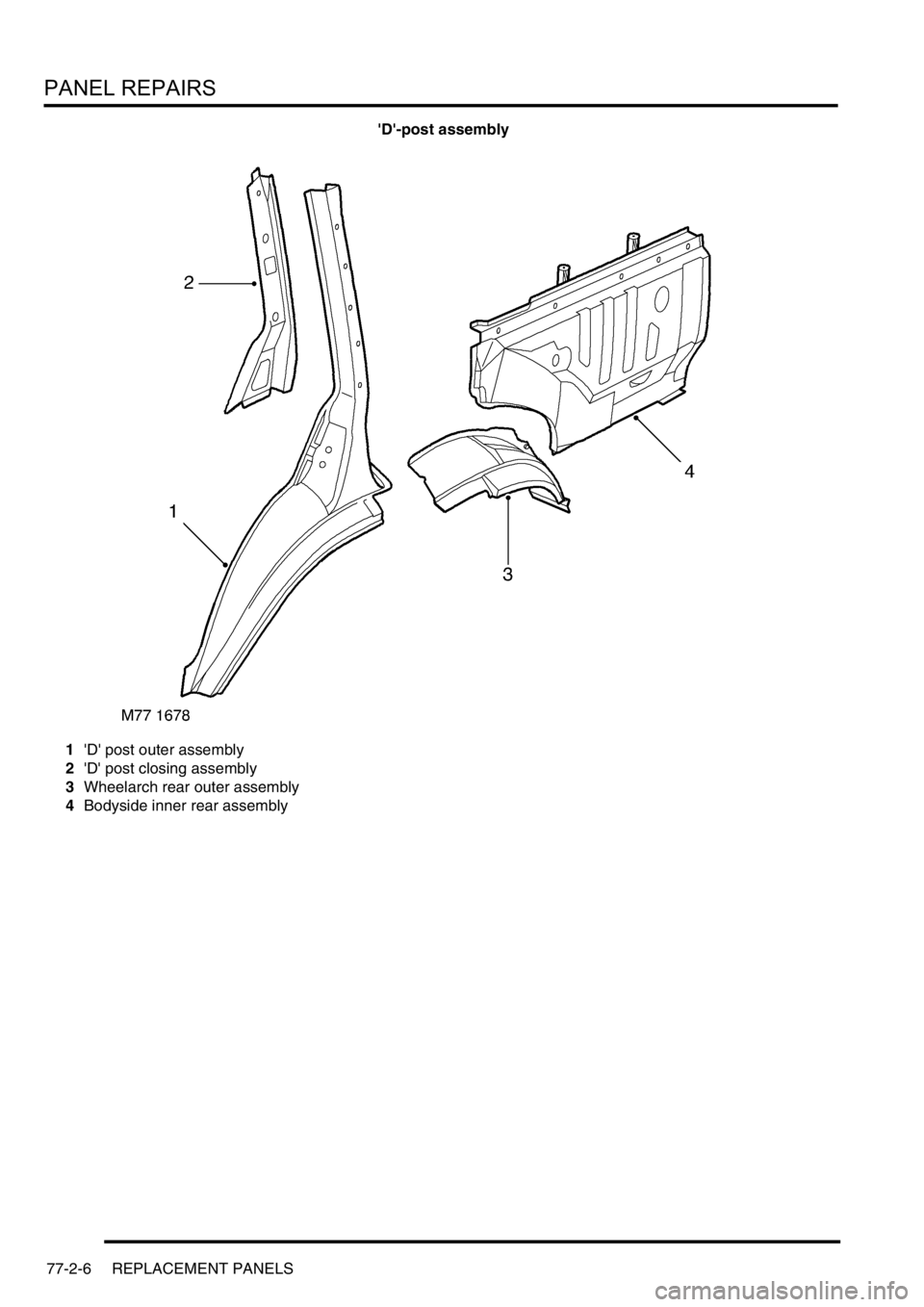

'D'-post assembly
1'D' post outer assembly
2'D' post closing assembly
3Wheelarch rear outer assembly
4Bodyside inner rear assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-7
Rear floor assembly.
1Rear floor assembly
M77 1673C
