2001 NISSAN X-TRAIL Combination

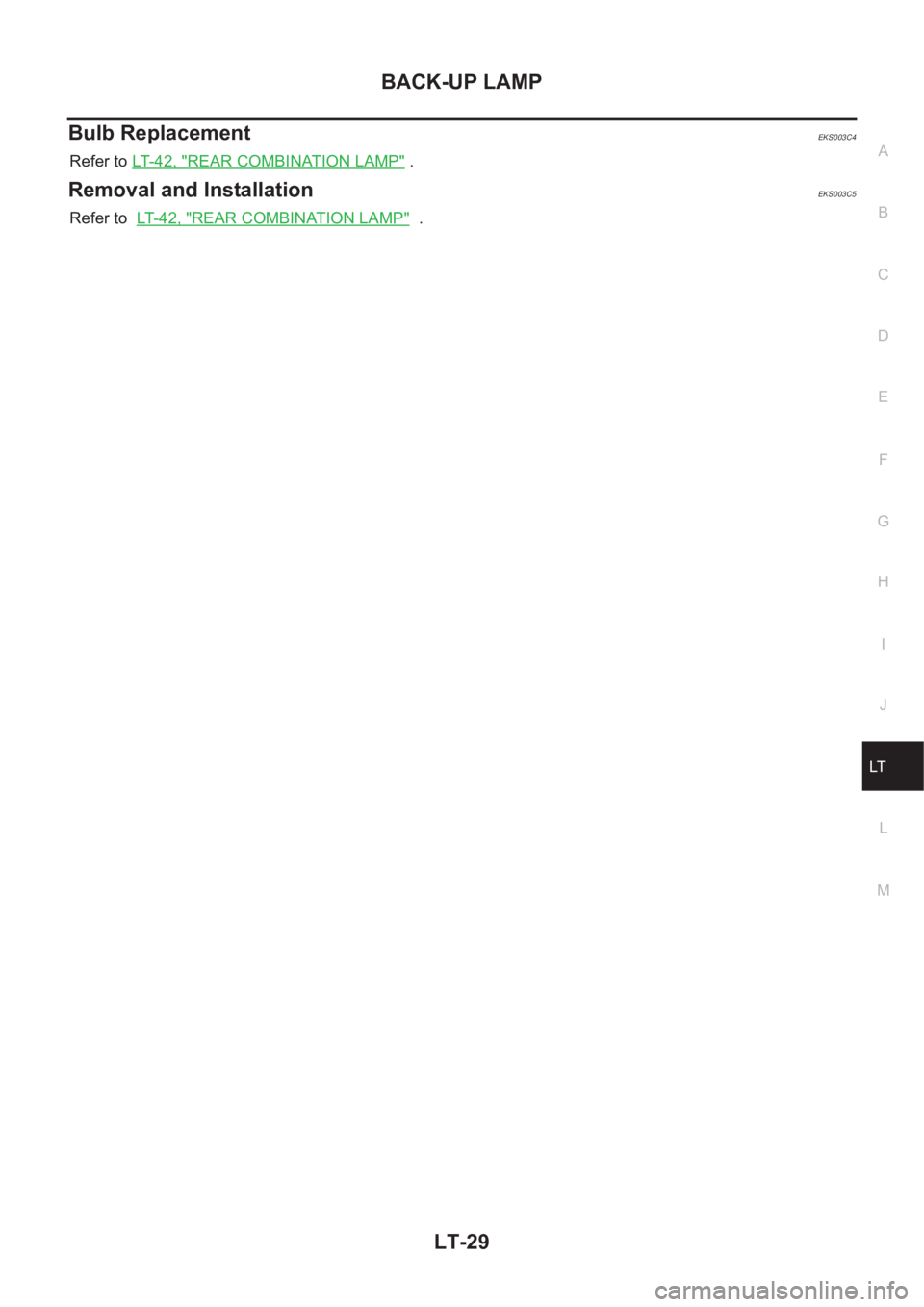

BACK-UP LAMP
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb Replacement EKS003C4
Refer to LT- 4 2 , "REAR COMBINATION LAMP" .
Removal and Installation EKS003C5
Refer to LT- 4 2 , "REAR COMBINATION LAMP" .

LT-32
PARKING, LICENSE PLATE AND TAIL LAMPS
Bulb Replacement
EKS003C1
PARKING AND TAIL LAMPS
Refer to LT-42, "REAR COMBINATION LAMP" .
LICENSE PLATE LAMP
1. Remove lens of license plate lamp.
2. Turn bulb socket, then remove it.
Removal and Installation EKS003C2
PARKING AND TAIL LAMPS
Refer toLT- 4 2 , "REAR COMBINATION LAMP"
LICENSE PLATE LAMP
Removal
1. Remove the license lamp finisher. Refer to EI-22, "LICENSE
LAMP FINISHER" in “EXTERIOR & INTERIOR (EI)” section.
2. Remove the harness from installation pawl for harness.
3. Remove license plate lamp mounting screws (2 each, RH and
LH).
4. Pull out license plate lamp from licence lamp finisher.
Installation
●Install license plate lamp in the reverse order of removal, observing the tightening torque shown below.
License plate lamp mounting screwsLicense plate lamp : 12 V 5 W
SKIA4169E
Tightening torque :1.0 - 1.8 N-m (0.10 - 0.19 kg-m,9-
16 in-lb)

FRONT FOG LAMP
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT
FRONT FOG LAMP PFP:00011
System Description EKS003DF
DESCRIPTION
Power is supplied at all times to fog lamp relay terminal 3
●through 15A fuse (No. 42, located in the fuse and fusible link box).
With the lighting switch in the 2ND position and LOW (“B”) position, power is supplied
●through 10A fuse (No. 31, located in the fuse and fusible link box).
●to lighting switch terminal 11
●through terminal 12 of the lighting switch
●to fog lamp switch terminal 32
●through terminal 31 of the fog lamp switch
●to fog lamp relay terminal 2.
FOG LAMP OPERATION
The fog lamp switch is built into the combination switch. The lighting switch must be in the 1st or 2nd position
for fog lamp operation.
With the fog lamp switch in the ON position, ground is supplied
●to fog lamp relay terminal 1
●through the fog lamp switch and body grounds E24 and E50.
The fog lamp relay is energized and power is supplied
●from fog lamp relay terminal 5
●to terminal 1 of each fog lamp.
Ground is supplied to terminal 2 of each fog lamp through body grounds E24 and E50.
With power and ground supplied, the fog lamps illuminate.

LT-40
CLEARANCE LAMP/TAIL LAMP
CLEARANCE LAMP/TAIL LAMP
PFP:26010
Bulb Replacement (Clearance Lamp)EKS001UR
Refer to LT- 4 , "HEADLAMP"
Bulb Replacement (Taillamp)EKS001US
Refer to LT-42, "REAR COMBINATION LAMP"
Removal and Installation of Clearance LampEKS001UT
Refer to LT- 4 , "HEADLAMP"
Removal and Installation of TaillampEKS001UU
Refer to LT-42, "REAR COMBINATION LAMP"

LT-42
REAR COMBINATION LAMP
REAR COMBINATION LAMP
PFP:26554
Wiring Diagram —STOP/L— EKS003C6
TKWA0067E

REAR COMBINATION LAMP
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb ReplacementEKS00164
1. Remove rear combination lamp mounting bolts (2).
2. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
Removal and InstallationEKS00165
REMOVAL
1. Remove luggage-side lower finisher. Refer to EI-26, "BODY
SIDE TRIM" in "EI EXTERIOR& INTERIOR" section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts (2).
4. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
5. From outside the vehicle, pull harness grommet rearward, and
remove harness.
INSTALLATION
Install in the reverse order of removal, paying attention to the following. Stop/taillight : 12V 21/5W
Rear turn signal lamp : 12V 21W
Backup lamp : 12V 21W
SKIA0057E
SKIA0058E
Rear combination lamp
mounting bolts
Tightening torque : 4.4 - 6.4 N-m (0.45 -
0.65 kg-m, 39-56 in-lb)

LT-44
COMBINATION SWITCH
COMBINATION SWITCH
PFP:25567
Removal and InstallationEKS001V6
Refer to SRS-33, "SPIRAL CABLE" in "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)" section for details.
Switch Circuit InspectionEKS001V7
Refer to LT- 2 4 , "Switch Circuit Inspection" in "LIGHTING AND TURN SIGNAL SWITCH" section, and WW-7,
"Terminal and Reference Values for Combination Switch" , WW-15, "Terminal and Reference Values for Com-
bination Switch" in“ WW Wiper/Washer Horn” section for details.

ILLUMINATION
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT
ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times
●through 10A fuse [No. 31, located in the fuse and fusible link box]
●to lighting switch terminal 11.
The lighting switch must be in the 1ST or 2ND position for illumination.
The following chart shows the power and ground connector terminals for the components included in the illu-
mination system.
Component Connector No. Power terminal Ground terminal
Headlamp washier switch M23 3 4
Headlamp aiming switch M24 3 4
Door mirror remote control
switchM26 10 1
ESP off switch M25 3 4
Hazard switch M51 7 8
4WD mode switch M39 4 3
Rear window defogger switch M50 5 6
A/C auto amp. M52 12 11
Combination meter
(LHD models)M46 56 66
Combination meter
(RHD models)M46 45 56
Audio M42 2 1
CD auto changer M82 34 35
Heater control panel M55 2 6
A/T device M58 3 4
Cigarette lighter M56 3 2
Heated seat switch LH
(LHD models)B131 5 6
Heated seat switch RH
(LHD models)B132 5 6
Heated seat switch LH
(RHD models)B35 5 6
Heated seat switch RH
(RHD models)B34 5 6
