Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year)
YD25DDTi ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary, C = Clean D = Check filter and drain water
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference pages Perform on a kilometer basis, but
on an annual basis when driving
less than 20,000 km (12,000
miles) per year.km x 1,000
(miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Engine compartment and under vehicle
Engine oil (For 2WD or 4WD
appearance 2WD models, use
API CF-4 oil)HRRRRRR3012
Engine oil (For 4WD use API
CF-4 oil)HReplace every 10,000 km (6,000 miles) or 12 months 3012
Engine oil filter (Use Eco filter or
equivalent)HSee NOTE (1)RRRRRR3013
Drive beltsIIIIII3011
Cooling systemIIIIII3016
Engine anti-freeze coolant (Use
genuine NISSAN Anti-freeze
Coolant (L250) or equivalent)See NOTE
(2)I R 3014
Air cleaner filter (Viscous paper
type)HR R R 3019
Air cleaner filter (Dry paper
type)HCRCRCR3019
Cyclone pre-air cleanerHIIIIII3019
Intake & exhaust valve clear-
anceSee NOTE
(3)*1
Fuel lines I I I 3019
Injection nozzlesSee NOTE
(4)*2
Fuel filterHDRDRDR3018
NOTE: (1) Oil filter element assembly (Part No. 15208 AD200) and O-ring seal (Part No. 15226 AD200) are replacement parts.
(2) First replace at 100,000 km (60,000 miles)/60 months, then every 60,000 km (36,000 miles)/36 months. After first
replacement, perform ªIº (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle
of replacement interval.
(3) If valve noise increases, check valve clearance.
(4) If engine power decreases, black exhaust smoke is emitted or engine noise increases, check injection nozzles and
if necessary, replace injection nozzle assembly.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
*1: ªValve Clearance Inspection and Adjustmentº in EM section
*2: ªInjection Tube and Injection Nozzleº in EC section
PERIODIC MAINTENANCE
MA-3003

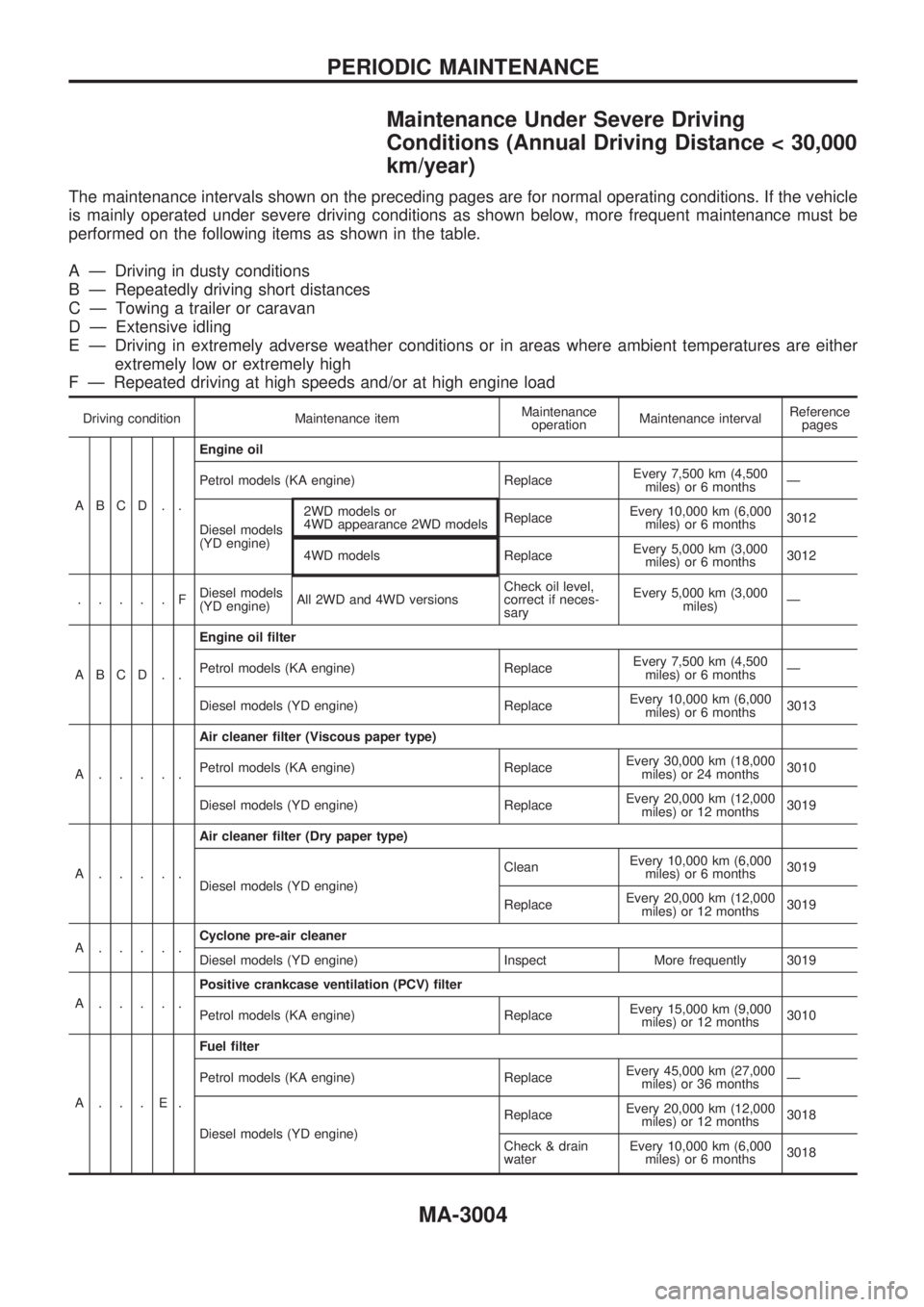

Maintenance Under Severe Driving
Conditions (Annual Driving Distance < 30,000
km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be
performed on the following items as shown in the table.
A Ð Driving in dusty conditions
B Ð Repeatedly driving short distances
C Ð Towing a trailer or caravan
D Ð Extensive idling
E Ð Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F Ð Repeated driving at high speeds and/or at high engine load
Driving condition Maintenance itemMaintenance
operationMaintenance intervalReference
pages
ABCD . .
Engine oil
Petrol models (KA engine) ReplaceEvery 7,500 km (4,500
miles) or 6 monthsÐ
Diesel models
(YD engine)2WD models or
4WD appearance 2WD modelsReplaceEvery 10,000 km (6,000
miles) or 6 months3012
4WD models ReplaceEvery 5,000 km (3,000
miles) or 6 months3012
.....FDiesel models
(YD engine)All 2WD and 4WD versionsCheck oil level,
correct if neces-
saryEvery 5,000 km (3,000
miles)Ð
ABCD . .Engine oil filter
Petrol models (KA engine) ReplaceEvery 7,500 km (4,500
miles) or 6 monthsÐ
Diesel models (YD engine) ReplaceEvery 10,000 km (6,000
miles) or 6 months3013
A.....Air cleaner filter (Viscous paper type)
Petrol models (KA engine) ReplaceEvery 30,000 km (18,000
miles) or 24 months3010
Diesel models (YD engine) ReplaceEvery 20,000 km (12,000
miles) or 12 months3019
A.....Air cleaner filter (Dry paper type)
Diesel models (YD engine)CleanEvery 10,000 km (6,000
miles) or 6 months3019
ReplaceEvery 20,000 km (12,000
miles) or 12 months3019
A.....Cyclone pre-air cleaner
Diesel models (YD engine) Inspect More frequently 3019
A.....Positive crankcase ventilation (PCV) filter
Petrol models (KA engine) ReplaceEvery 15,000 km (9,000
miles) or 12 months3010
A...E.Fuel filter
Petrol models (KA engine) ReplaceEvery 45,000 km (27,000
miles) or 36 monthsÐ
Diesel models (YD engine)ReplaceEvery 20,000 km (12,000
miles) or 12 months3018
Check & drain
waterEvery 10,000 km (6,000
miles) or 6 months3018
PERIODIC MAINTENANCE
MA-3004

Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year)
KA24DE ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis only.km x 1,000
(miles x 1,000)15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
Engine compartment and under vehicle
Engine oil (Use SG, SH or SJ oil)HRRRRRRRRÐ
Engine oil filter (Use NISSAN genu-
ine part or equivalent)HRRRRRRRRÐ
Drive beltsIIIIIIIIÐ
Cooling systemIIIIÐ
Engine anti-freeze coolant (Use
genuine NISSAN Anti-Freeze Cool-
ant (L250) or equivalent)See NOTE (1) I R I Ð
Air cleaner filter (Viscous paper
type)HR R 3010
Positive crankcase ventilation (PCV)
filterHR R 3010
Intake & exhaust valve clearance See NOTE (2)Ð
Fuel and EVAP vapor lines I I Ð
Spark plugsRRRRÐ
Ignition wiresIÐ
Fuel filterHRÐ
NOTE: (1) First replace at 90,000 km (54,000 miles), then every 60,000 km (36,000 miles). Perform ªIº (checking the mixture
ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
PERIODIC MAINTENANCE
MA-3005

Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year)
YD25DDTi ENGINE
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary, C = Clean D = Check filter and drain water
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis only.km x 1,000
(miles x 1,000)20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Engine compartment and under vehicle
Engine oil (For 2WD models or
4WD appearance 2WD models,
use API CF-4 oil)HRRRRRR3012
Engine oil (For 4WD models, use
API CF-4 oil)HReplace every 10,000 km (6,000 miles) 3012
Engine oil filter (Use Eco filter or
equivalent)HSee NOTE (1)RRRRRR3013
Drive beltsIIIIII3011
Cooling systemIIIIII3016
Engine anti-freeze coolant (Use
genuine NISSAN Anti-Freeze Cool-
ant (L250) or equivalent)See NOTE (2) I R 3014
Air cleaner filter (Viscous paper
type)HR R 3019
Air cleaner filter (Dry paper type)HCRCRCR3019
Cyclone pre-air cleanerHIIIIII3019
Intake & exhaust valve clearance See NOTE (3)*1
Fuel linesI I 3019
Injection nozzles See NOTE (4)*2
Fuel filterHDDRDDR3018
NOTE: (1) Oil filter element assembly (Part No. 15208 AD200) and O-ring seal (Part No. 15226 AD200) are replacement parts.
(2) First replace at 100,000 km (60,000 miles), then every 60,000 km (36,000 miles). After first replacement, perform
ªIº (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement inter-
val.
(3) If valve noise increases, check valve clearance.
(4) If engine power decreases, black exhaust smoke is emitted or engine noise increases, check injection nozzles and
if necessary, replace injection nozzle assembly.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driv-
ing Conditionsº.
*1: ªValve Clearance Inspection and Adjustmentº in EM section
*2: ªInjection Tube and Injection Nozzleº in EC section
PERIODIC MAINTENANCE
MA-3006

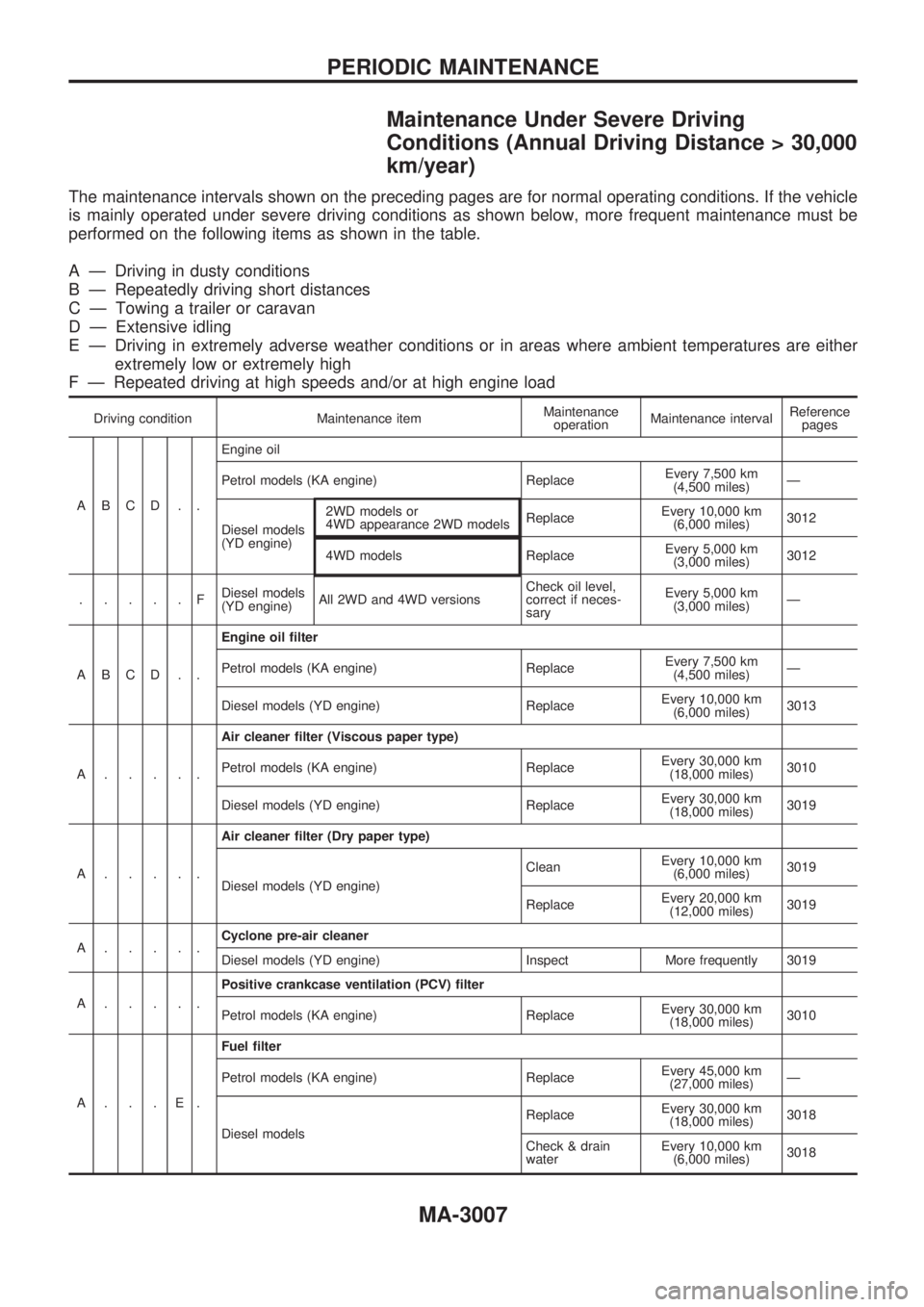

Maintenance Under Severe Driving
Conditions (Annual Driving Distance > 30,000
km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be
performed on the following items as shown in the table.
A Ð Driving in dusty conditions
B Ð Repeatedly driving short distances
C Ð Towing a trailer or caravan
D Ð Extensive idling
E Ð Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F Ð Repeated driving at high speeds and/or at high engine load
Driving condition Maintenance itemMaintenance
operationMaintenance intervalReference
pages
ABCD ..
Engine oil
Petrol models (KA engine) ReplaceEvery 7,500 km
(4,500 miles)Ð
Diesel models
(YD engine)2WD models or
4WD appearance 2WD modelsReplaceEvery 10,000 km
(6,000 miles)3012
4WD models ReplaceEvery 5,000 km
(3,000 miles)3012
.....FDiesel models
(YD engine)All 2WD and 4WD versionsCheck oil level,
correct if neces-
saryEvery 5,000 km
(3,000 miles)Ð
ABCD ..Engine oil filter
Petrol models (KA engine) ReplaceEvery 7,500 km
(4,500 miles)Ð
Diesel models (YD engine) ReplaceEvery 10,000 km
(6,000 miles)3013
A.....Air cleaner filter (Viscous paper type)
Petrol models (KA engine) ReplaceEvery 30,000 km
(18,000 miles)3010
Diesel models (YD engine) ReplaceEvery 30,000 km
(18,000 miles)3019
A.....Air cleaner filter (Dry paper type)
Diesel models (YD engine)CleanEvery 10,000 km
(6,000 miles)3019
ReplaceEvery 20,000 km
(12,000 miles)3019
A.....Cyclone pre-air cleaner
Diesel models (YD engine) Inspect More frequently 3019
A.....Positive crankcase ventilation (PCV) filter
Petrol models (KA engine) ReplaceEvery 30,000 km
(18,000 miles)3010
A...E.Fuel filter
Petrol models (KA engine) ReplaceEvery 45,000 km
(27,000 miles)Ð
Diesel modelsReplaceEvery 30,000 km
(18,000 miles)3018
Check & drain
waterEvery 10,000 km
(6,000 miles)3018
PERIODIC MAINTENANCE
MA-3007

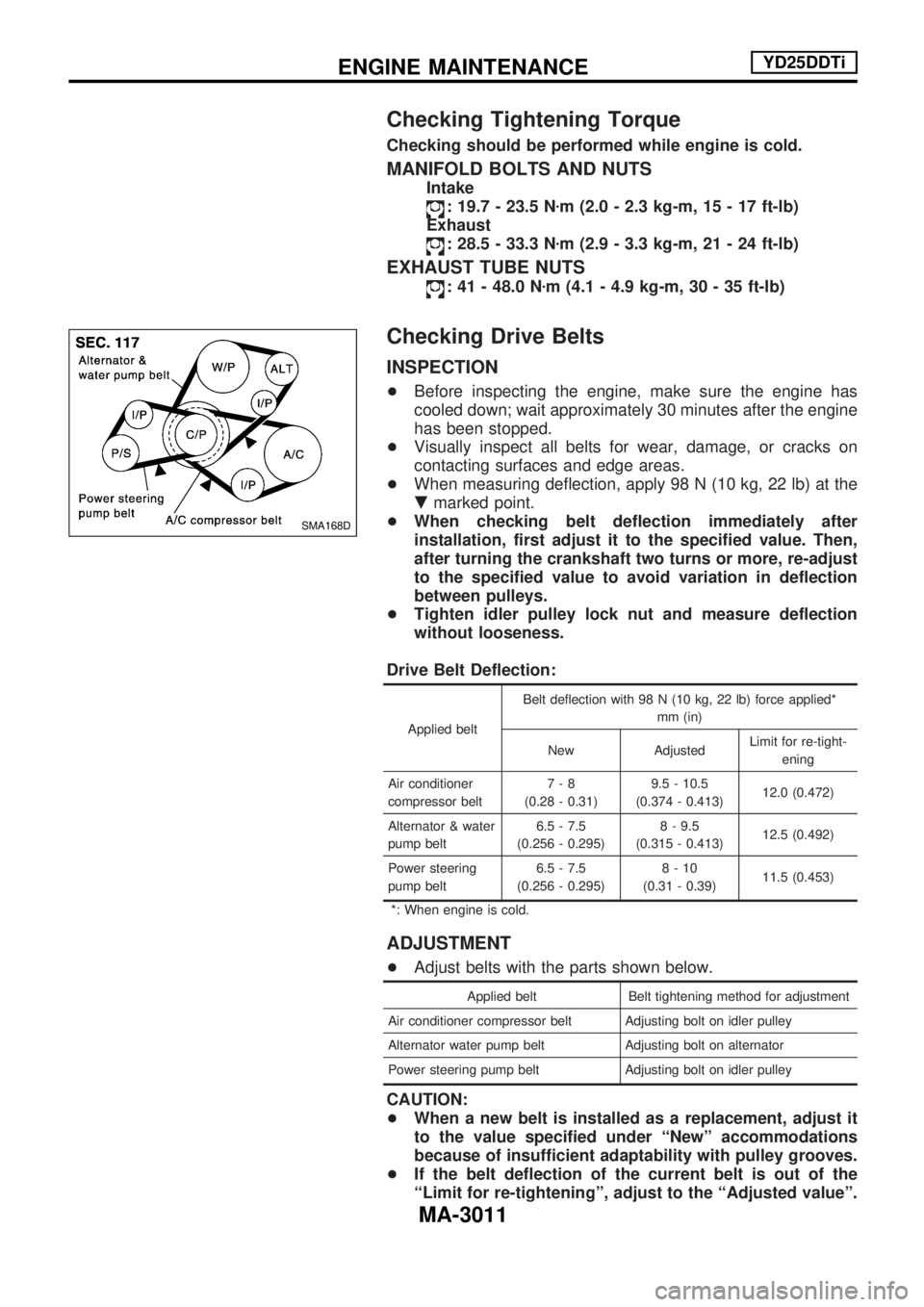

Checking Tightening Torque
Checking should be performed while engine is cold.
MANIFOLD BOLTS AND NUTS
Intake
: 19.7 - 23.5 Nzm (2.0 - 2.3 kg-m, 15 - 17 ft-lb)
Exhaust
: 28.5 - 33.3 Nzm (2.9 - 3.3 kg-m, 21 - 24 ft-lb)
EXHAUST TUBE NUTS
: 41 - 48.0 Nzm (4.1 - 4.9 kg-m, 30 - 35 ft-lb)
Checking Drive Belts
INSPECTION
+Before inspecting the engine, make sure the engine has
cooled down; wait approximately 30 minutes after the engine
has been stopped.
+Visually inspect all belts for wear, damage, or cracks on
contacting surfaces and edge areas.
+When measuring deflection, apply 98 N (10 kg, 22 lb) at the
.marked point.
+When checking belt deflection immediately after
installation, first adjust it to the specified value. Then,
after turning the crankshaft two turns or more, re-adjust
to the specified value to avoid variation in deflection
between pulleys.
+Tighten idler pulley lock nut and measure deflection
without looseness.
Drive Belt Deflection:
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied*
mm (in)
New AdjustedLimit for re-tight-
ening
Air conditioner
compressor belt7-8
(0.28 - 0.31)9.5 - 10.5
(0.374 - 0.413)12.0 (0.472)
Alternator & water
pump belt6.5 - 7.5
(0.256 - 0.295)8 - 9.5
(0.315 - 0.413)12.5 (0.492)
Power steering
pump belt6.5 - 7.5
(0.256 - 0.295)8-10
(0.31 - 0.39)11.5 (0.453)
*: When engine is cold.
ADJUSTMENT
+Adjust belts with the parts shown below.
Applied belt Belt tightening method for adjustment
Air conditioner compressor belt Adjusting bolt on idler pulley
Alternator water pump belt Adjusting bolt on alternator
Power steering pump belt Adjusting bolt on idler pulley
CAUTION:
+When a new belt is installed as a replacement, adjust it
to the value specified under ªNewº accommodations
because of insufficient adaptability with pulley grooves.
+If the belt deflection of the current belt is out of the
ªLimit for re-tighteningº, adjust to the ªAdjusted valueº.
SMA168D
ENGINE MAINTENANCEYD25DDTi
MA-3011

+When checking belt deflection immediately after
installation, first adjust it to the specified value. Then,
after turning crankshaft two turns or more, re-adjust it to
the specified value to avoid variation in deflection
between pulleys.
+Make sure the belts are fully fitted into the pulley
grooves during installation.
+Handle with care to avoid smearing the belts with oil or
cooling water etc.
+Do not twist or bend the belts with strong force.
Air conditioner compressor belt and power steering
pump belt
1. Loosen idler pulley lock nut (A).
2. Turn adjusting bolt (B) to adjust.
+Refer to MA-3011, ªInspectionº for adjustment values.
3. Tighten lock nut (A).
Nut A:
: 30.4 - 39.2 Nzm (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
Alternator & water pump belt
1. Loosen adjuster lock nut (C).
2. Loosen alternator fixing nut (D) (Rear).
3. Turn adjusting bolt (E) to adjust.
+Refer to MA-3011, ªInspectionº for adjustment values.
4. Tighten nut (C) and nut (D) in this order.
Nut C:
: 19.6 - 23.4 Nzm (2.0 - 2.3 kg-m, 15 - 17 ft-lb)
Bolt D:
: 45.1 - 59.7 Nzm (4.6 - 6.0 kg-m, 34 - 44 ft-lb)
Changing Engine Oil
WARNING:
+Be careful not to burn yourself, as the engine oil is hot.
+Prolonged and repeated contact with used engine oil
may cause skin cancer; try to avoid direct skin contact
with used oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Put vehicle horizontally.
2. Warm up engine, and check for oil leakage from engine com-
ponents.
3. Stop engine and wait more than 10 minutes.
4. Remove drain plug and oil filler cap.
5. Drain oil and refill with new engine oil.
Oil Specification and Viscosity:
+API CD, CE, CF or CF-4 (Except for Europe)
+API CF-4 or ACEA 98-B1 (For Europe)
Refer to MA-3008, ªRECOMMENDED FLUIDS AND LUBRI
CANTSº.
SMA169D
SMA157D
ENGINE MAINTENANCEYD25DDTi
Checking Drive Belts (Cont'd)
MA-3012

Refill oil capacity (Approximately):
Unit:!(Imp qt)
Item 2WD * 4WD
Drain and refillWithout oil filter
change5.3 (4-5/8) 4.0 (4-1/4)
With oil filter
change5.6 (4-7/8) 4.3 (4-1/2)
Dry engine (engine overhaul) 6.3 (5-1/2) 5.0 (4-3/4)
* : Including 4WD appearance 2WD models.
CAUTION:
+Be sure to clean drain plug and install with new washer.
Drain plug:
:29-39Nzm (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
+The refill capacity depends on the oil temperature and
drain time. Use these specifications for reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.
6. Check oil level as follows.
a. Start engine and check area around drain plug and oil filter
for oil leakage.
b. Run engine for a few minutes, then turn it off. After more than
10 minutes, check oil level.
Changing Oil Filter
SMA158D
SMA155D
SMA159D
ENGINE MAINTENANCEYD25DDTi
Changing Engine Oil (Cont'd)
MA-3013
