Connector
Name/NumberColor Location Fig.
Passenger Door
Lock MotorGY At Motor 18
Right Front Side
Marker LampNAT At Lamp 5
Right Front
Wheel Speed
SensorGY RT Fender Side
Shield5
Right Headlamp BK At Lamp 5
Right Instrument
Panel SpeakerBK At Speaker N/S
Right Park/Turn
Signal LampBK At Lamp 5
Right Power
MirrorGY At Mirror 18
Right Rear Door
Lock MotorBK At Motor 18
Right Rear
SpeakerBK At Speaker 20
Right Rear
Wheel Speed
SensorGY RT Rear Frame
RailN/S
Right Tail/Stop
Turn Signal
LampBK At Lamp 24
Seat Belt Switch BK LT B-Pillar N/S
Right Headlamp
Leveling MotorBK Rear of Right
HeadlampN/S
Solid State Fan
RelayBK Behind Left
Headlamp7
Stop Lamp
SwitchGY Top of Brake
Pedal2
Sunroof Slide
SwitchBL Front of
Windshield
Header11
Connector
Name/NumberColor Location Fig.
Sunroof Vent
SwitchYL Front of
Windshield
Header11
Throttle Position
SensorNAT On Throttle
Body9
Torque Converter
Clutch SolenoidBK Front of
Transmission4
Trunk Lamp BK At Lamp 21
Turn Signal/
Hazard SwitchBK Rear of Switch 12
Underhood Lamp BK Right Rear
Cowel PanelN/S
Upstream
Heated Oxygen
SensorGY Rear of Engine 8
Vapor Canister
Leak DetectorBK RT Front Fender 5
Vehicle Speed
Control ServoBK Side of Battery
TrayN/S
Vehicle Speed
Control SwitchNAT Rear of
ClockspringN/S
Vehicle Speed
SensorBK Rear of
Transmisison4
Wipe/Wash
SwitchNAT Rear of Switch 12
WIndshield
Washer Pump
MotorBK Bottom of
Reservior7
Wiper Motor BK Center of Cowl
Panel10
8W - 90 - 4 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

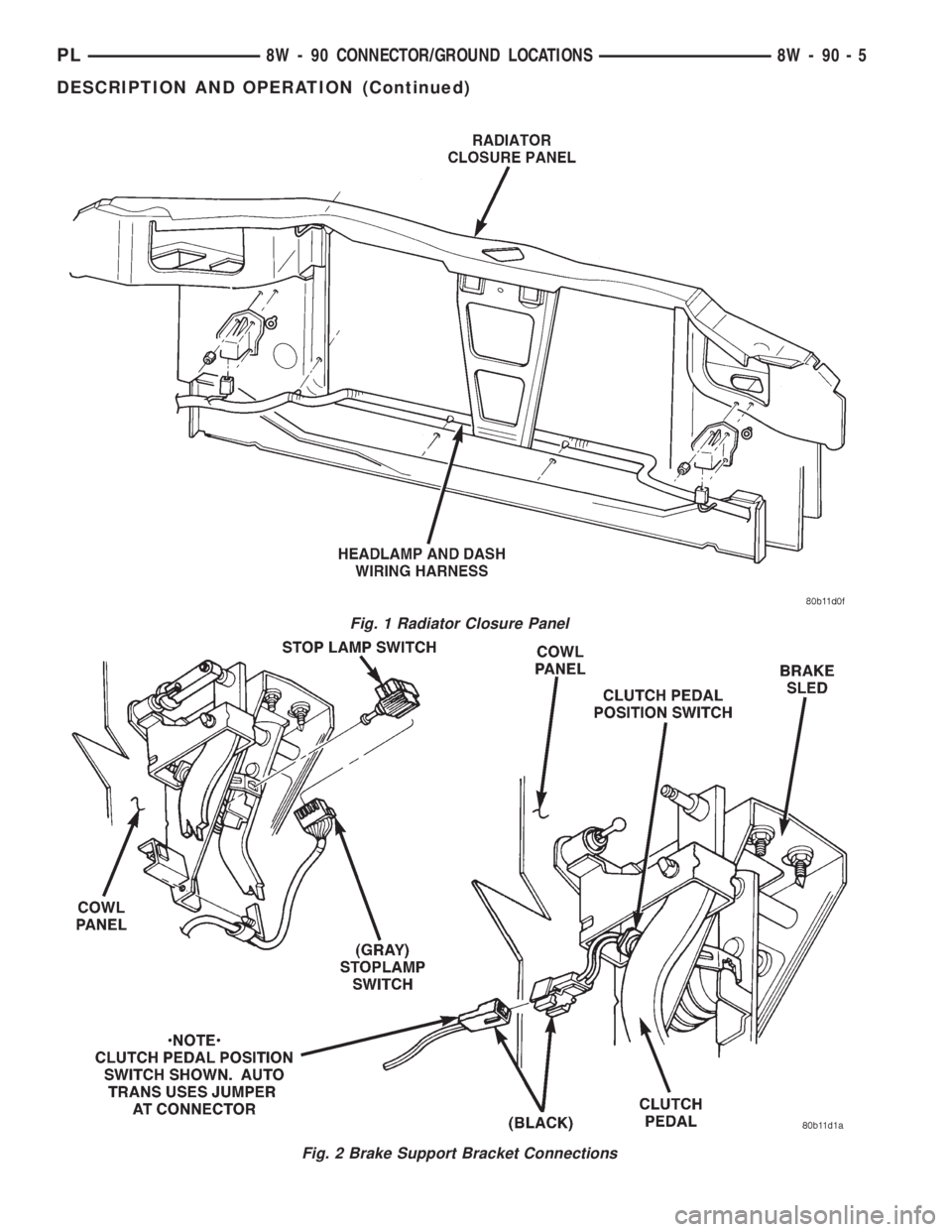

Fig. 1 Radiator Closure Panel
Fig. 2 Brake Support Bracket Connections
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 5
DESCRIPTION AND OPERATION (Continued)

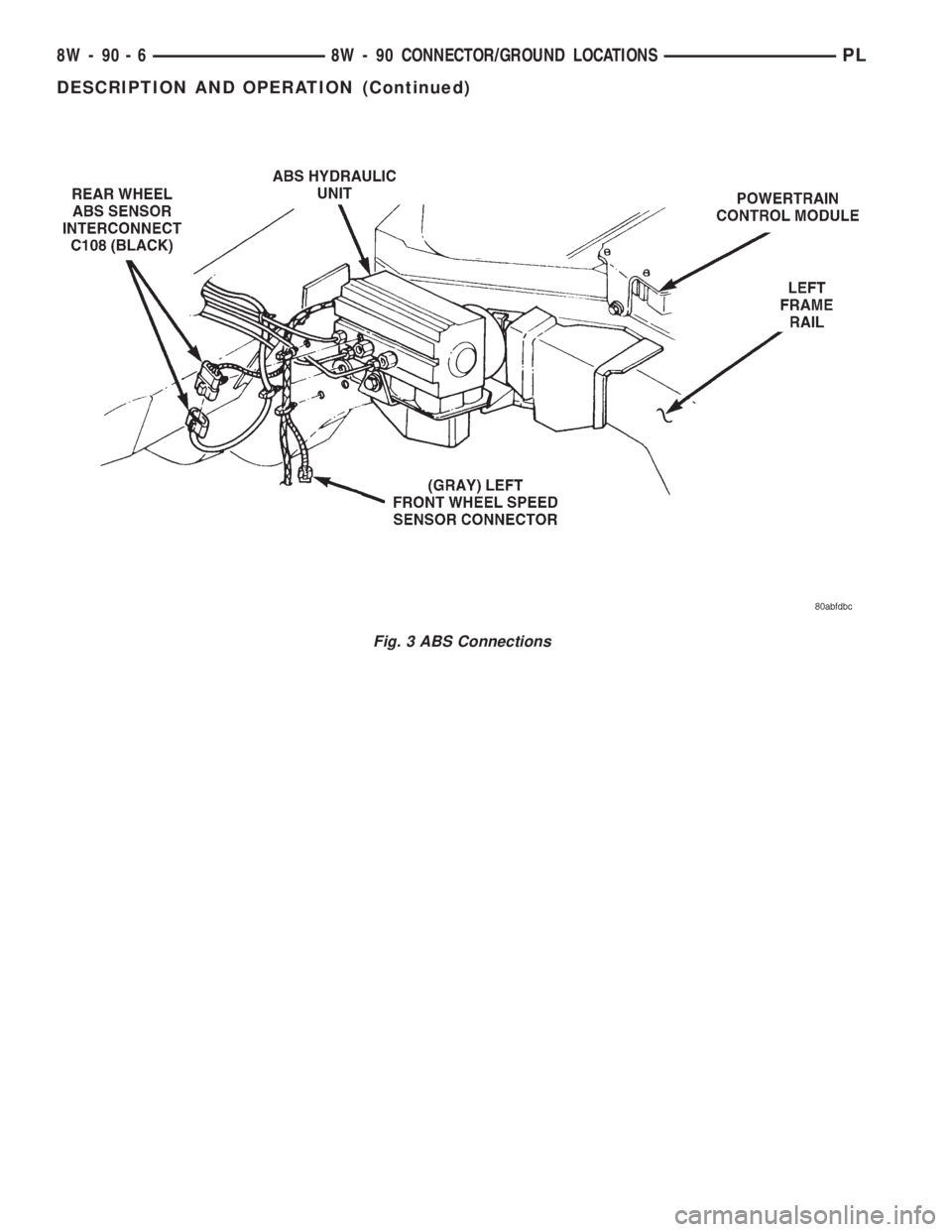

Fig. 3 ABS Connections
8W - 90 - 6 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

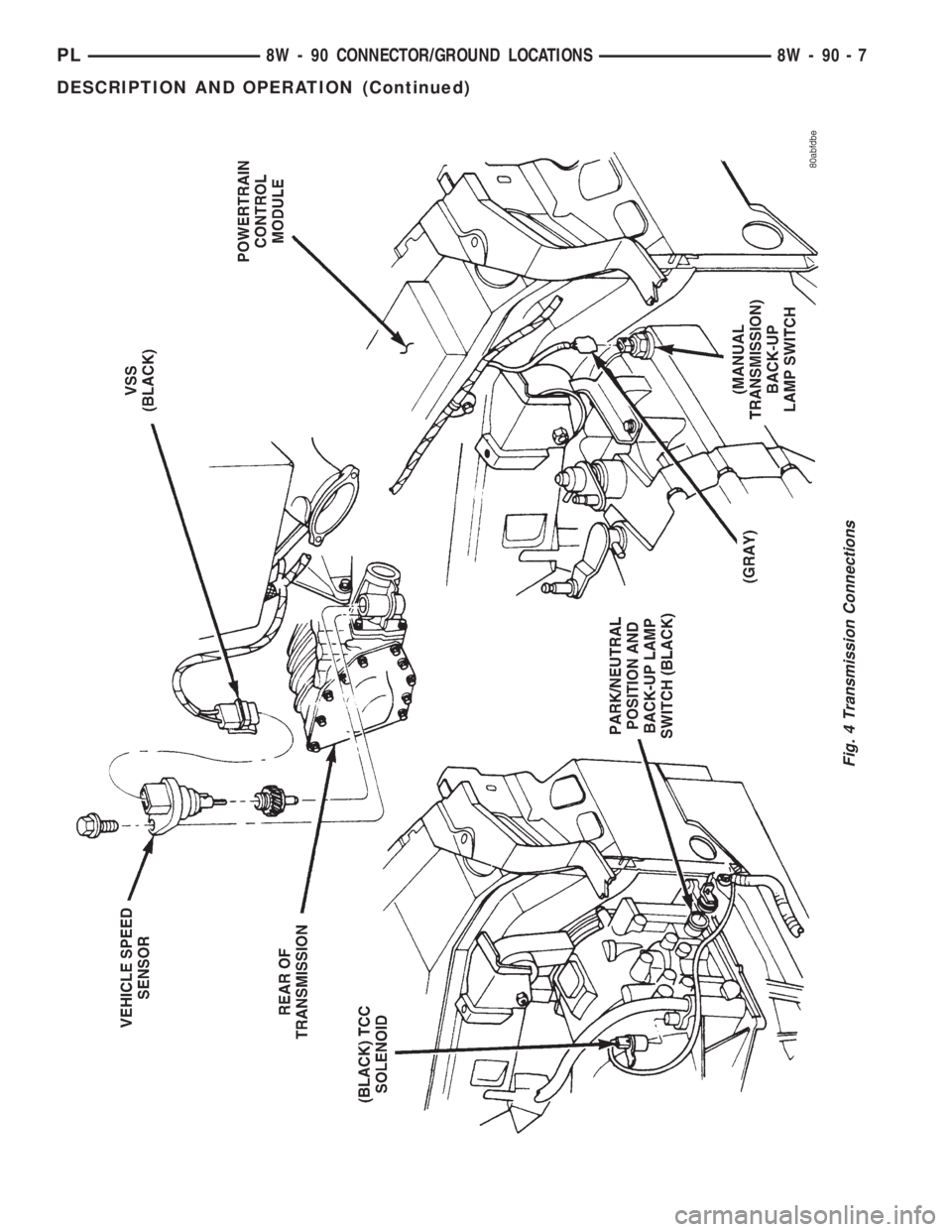

Fig. 4 Transmission Connections
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 7
DESCRIPTION AND OPERATION (Continued)

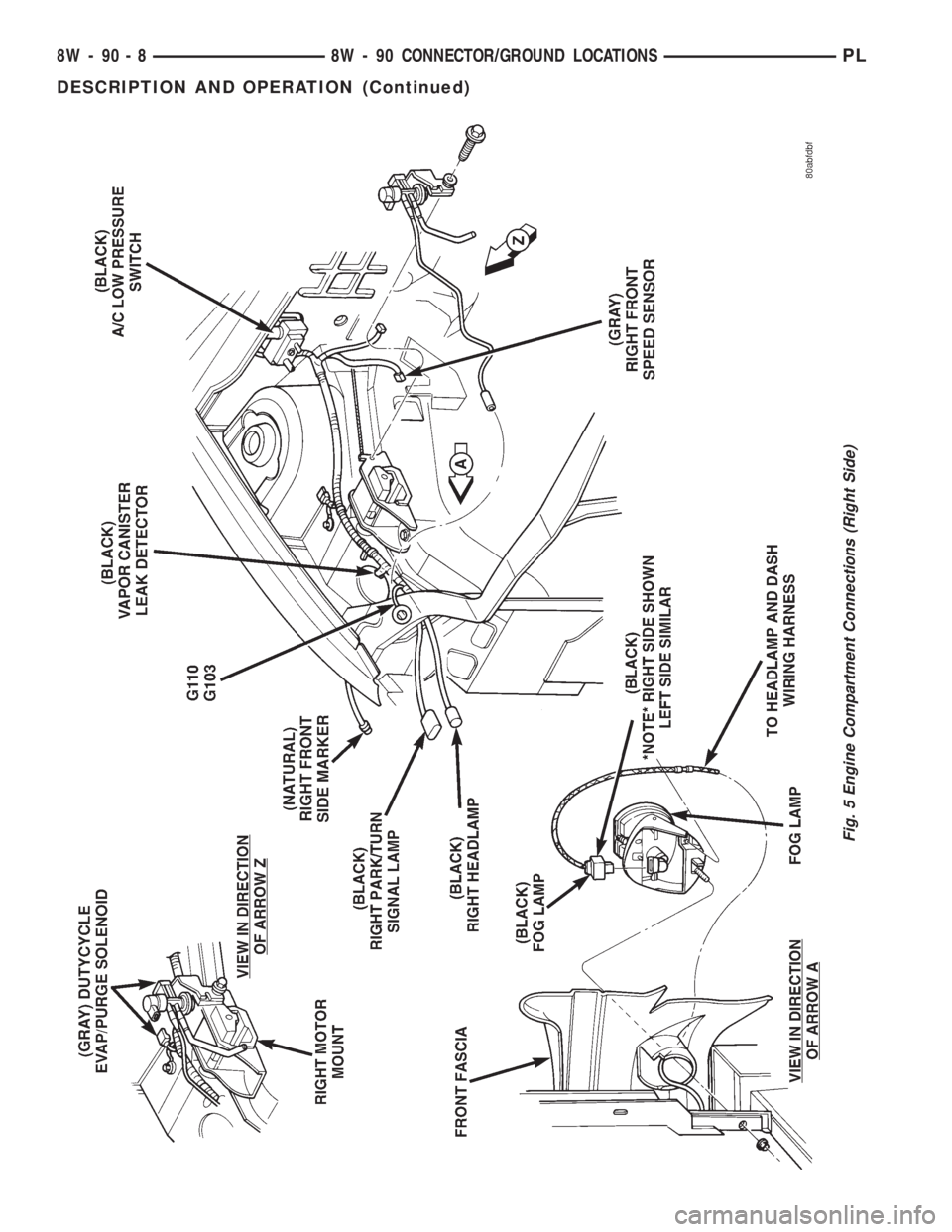

Fig. 5 Engine Compartment Connections (Right Side)
8W - 90 - 8 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

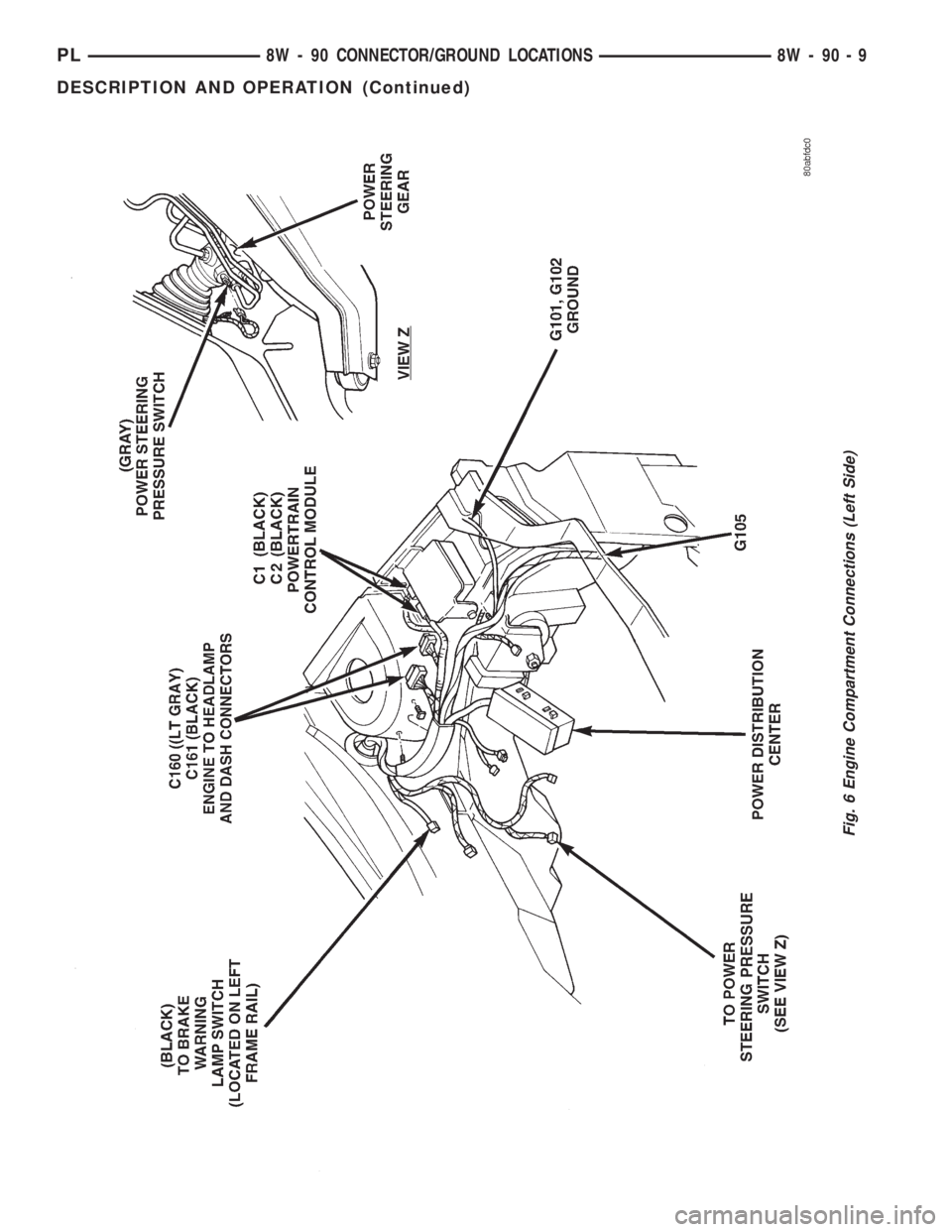

Fig. 6 Engine Compartment Connections (Left Side)
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 9
DESCRIPTION AND OPERATION (Continued)

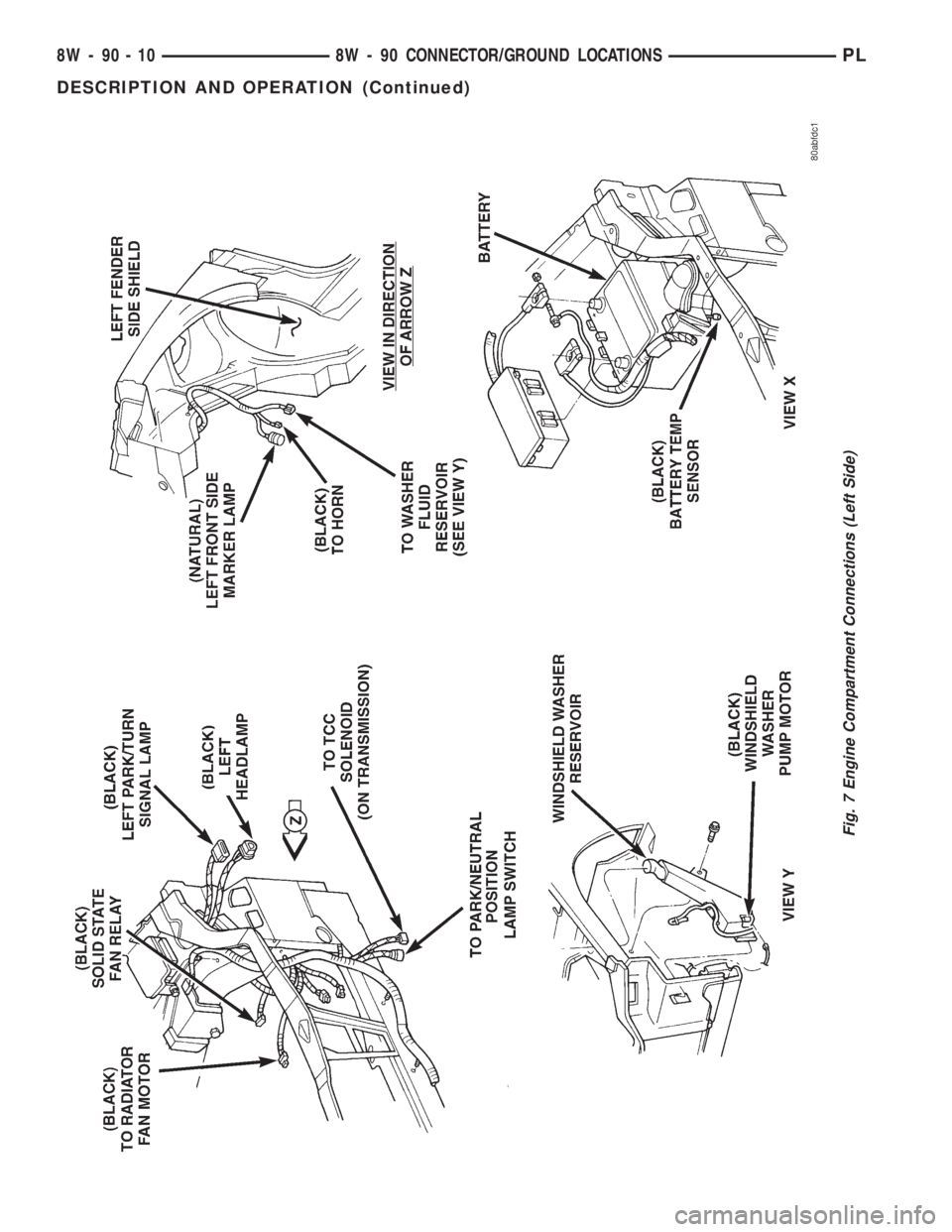

Fig. 7 Engine Compartment Connections (Left Side)
8W - 90 - 10 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

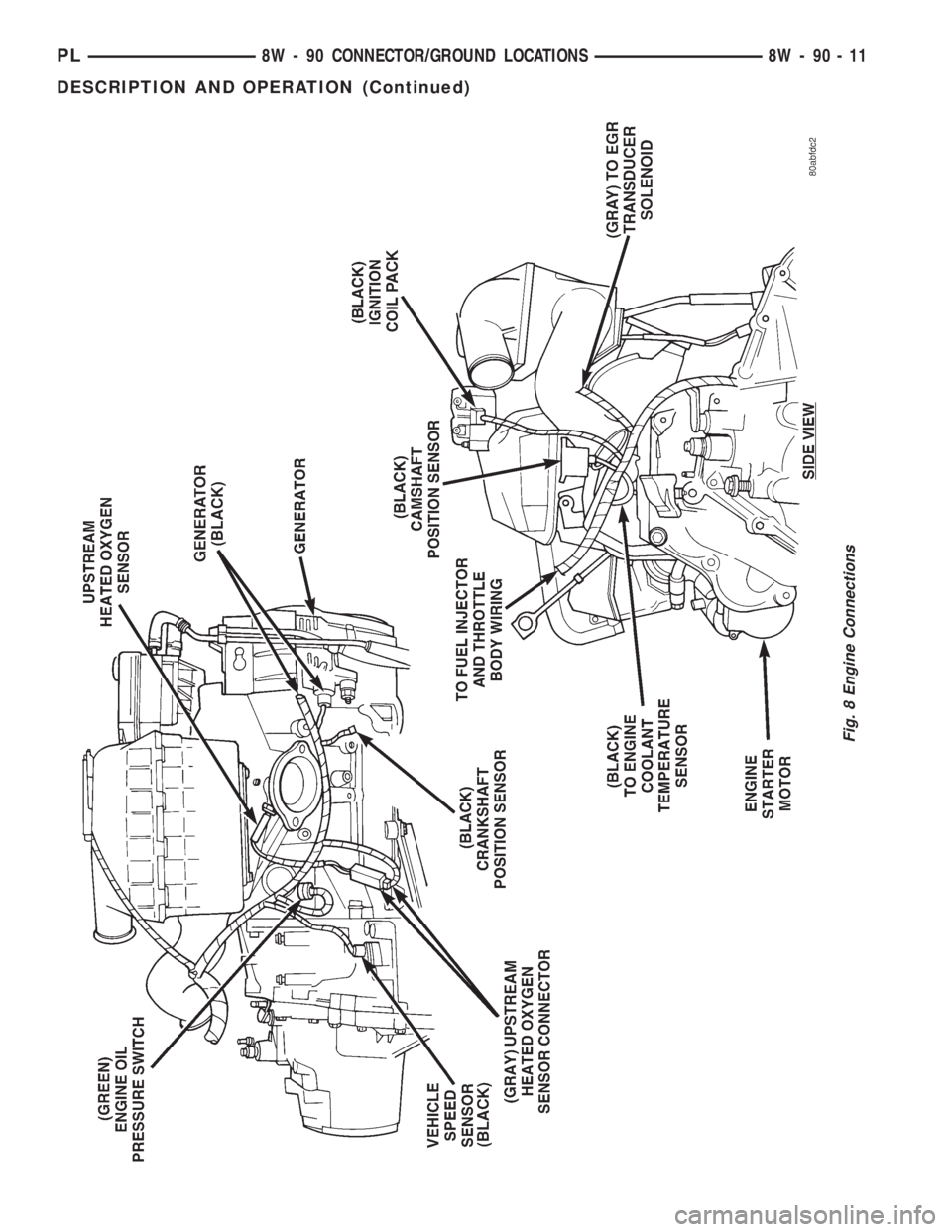

Fig. 8 Engine Connections
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 11
DESCRIPTION AND OPERATION (Continued)
