INSTALLATION
(1) Replace any damaged or missing push±in fas-
teners with original equipment push-in fasteners.
(2) Place trim panel near door.
(3) Engage wire connectors to power lock switch,
mirror switch, and power window switch, if equipped.
(4) Insert latch rod into inside latch release.
(5) Engage clip holding door latch linkage to back
of inside door handle.
(6) Engage trim panel into retainer channel at top
of door and push down to seat.
(7) Locate door trim panel to inner door panel by
aligning locating pins on backside of trim panel to
mating holes in inner door panel. Gently shift panel
forward or rearward if necessary.
(8) Engage hidden push±in fasteners holding trim
panel to door from around perimeter of trim panel.
(9) With the window in the down position, orien-
tate the window regulator crank handle appropri-
ately. Install the right handle at the 10 o'clock
position and the left handle at the 2 o'clock position,
if equipped.
(10) Install screw holding trim panel to door from
behind inside latch release handle.
(11) Install screw inside pull cup holding door trim
panel to bracket.
FRONT DOOR WATER SHIELD
REMOVAL
(1) Remove door trim panel.
(2) Remove Door speaker, if equipped.
(3) Remove door trim pull cup mount bracket.
(4) Disengage clip holding lock linkage to lock but-
ton bell crank.
(5) Peel water shield away from adhesive around
perimeter of inner door panel (Fig. 34).
INSTALLATION
(1) Insure that enough adhesive remains to
securely retain the watershield. Replace as necessary.
(2) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(3) Engage clip holding lock linkage to lock button
bell-crank.
(4) Install door trim pull cup mount bracket.
(5) Install door speaker, if equipped.
(6) Install door trim panel.
FRONT DOOR WEATHERSTRIP
REMOVAL
(1) Using a fork-type prying tool, disengage
push-in fasteners holding weatherstrip to door (Fig.
35).
(2) Separate weatherstrip from door.
INSTALLATION
Reverse the preceding operation.
Fig. 33 Door Trim Panel
Fig. 34 Water Shield
Fig. 35 Front Door Weatherstrip

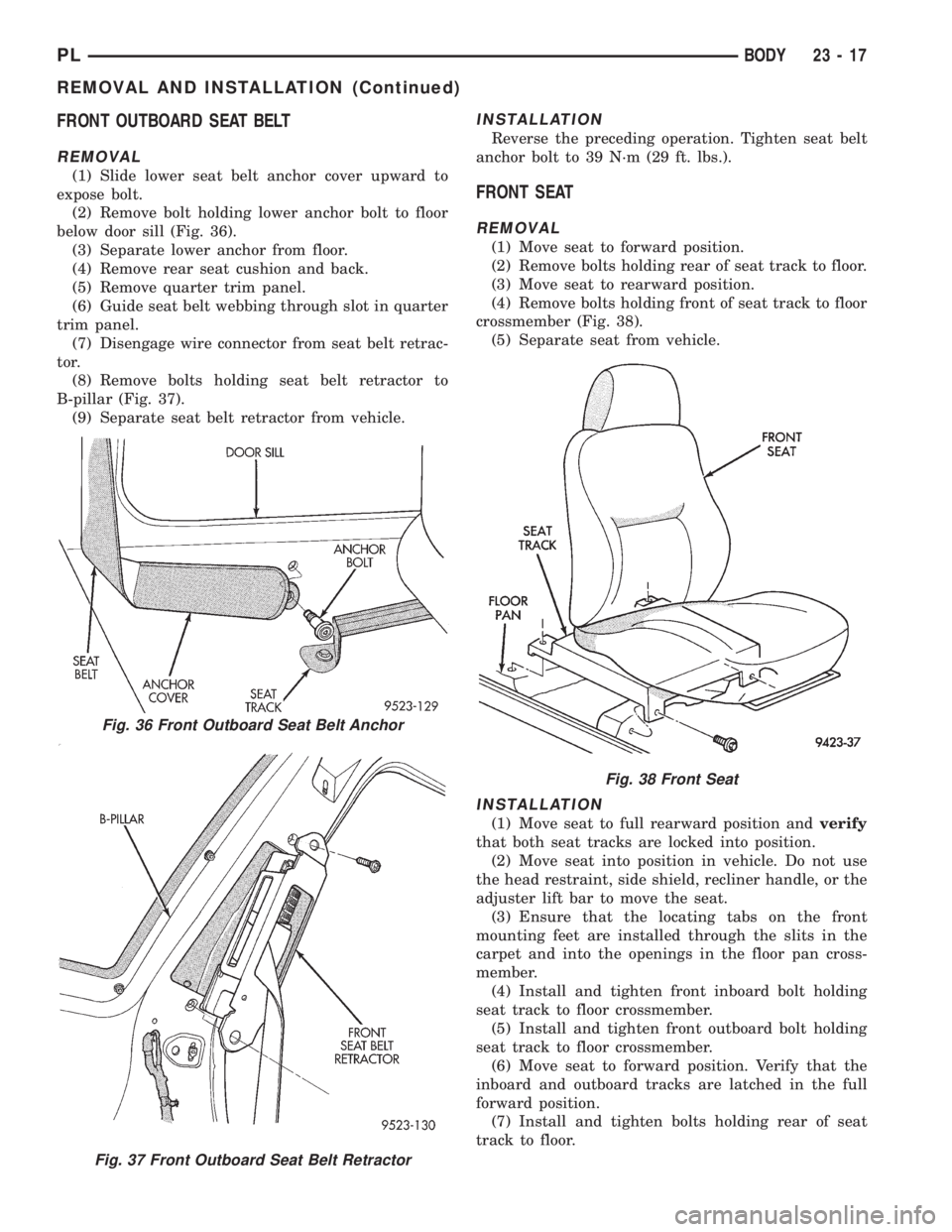

23 - 16 BODYPL
REMOVAL AND INSTALLATION (Continued)

FRONT OUTBOARD SEAT BELT
REMOVAL
(1) Slide lower seat belt anchor cover upward to
expose bolt.
(2) Remove bolt holding lower anchor bolt to floor
below door sill (Fig. 36).
(3) Separate lower anchor from floor.
(4) Remove rear seat cushion and back.
(5) Remove quarter trim panel.
(6) Guide seat belt webbing through slot in quarter
trim panel.
(7) Disengage wire connector from seat belt retrac-
tor.
(8) Remove bolts holding seat belt retractor to
B-pillar (Fig. 37).
(9) Separate seat belt retractor from vehicle.
INSTALLATION
Reverse the preceding operation. Tighten seat belt
anchor bolt to 39 N´m (29 ft. lbs.).
FRONT SEAT
REMOVAL
(1) Move seat to forward position.
(2) Remove bolts holding rear of seat track to floor.
(3) Move seat to rearward position.
(4) Remove bolts holding front of seat track to floor
crossmember (Fig. 38).
(5) Separate seat from vehicle.
INSTALLATION
(1) Move seat to full rearward position andverify
that both seat tracks are locked into position.
(2) Move seat into position in vehicle. Do not use
the head restraint, side shield, recliner handle, or the
adjuster lift bar to move the seat.
(3) Ensure that the locating tabs on the front
mounting feet are installed through the slits in the
carpet and into the openings in the floor pan cross-
member.
(4) Install and tighten front inboard bolt holding
seat track to floor crossmember.
(5) Install and tighten front outboard bolt holding
seat track to floor crossmember.
(6) Move seat to forward position. Verify that the
inboard and outboard tracks are latched in the full
forward position.
(7) Install and tighten bolts holding rear of seat
track to floor.
Fig. 36 Front Outboard Seat Belt Anchor
Fig. 37 Front Outboard Seat Belt Retractor
Fig. 38 Front Seat

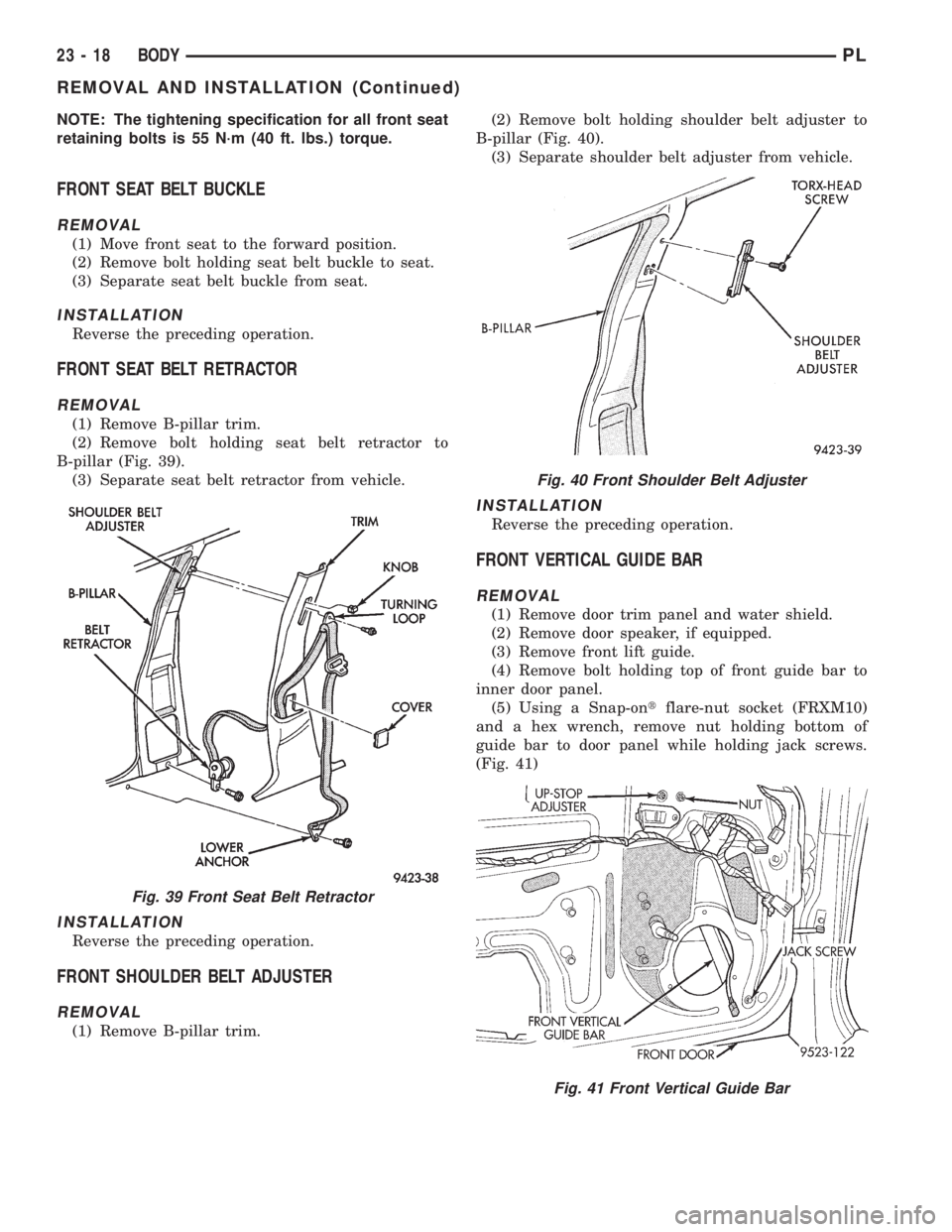

PLBODY 23 - 17
REMOVAL AND INSTALLATION (Continued)

NOTE: The tightening specification for all front seat
retaining bolts is 55 N´m (40 ft. lbs.) torque.
FRONT SEAT BELT BUCKLE
REMOVAL
(1) Move front seat to the forward position.
(2) Remove bolt holding seat belt buckle to seat.
(3) Separate seat belt buckle from seat.
INSTALLATION
Reverse the preceding operation.
FRONT SEAT BELT RETRACTOR
REMOVAL
(1) Remove B-pillar trim.
(2) Remove bolt holding seat belt retractor to
B-pillar (Fig. 39).
(3) Separate seat belt retractor from vehicle.
INSTALLATION
Reverse the preceding operation.
FRONT SHOULDER BELT ADJUSTER
REMOVAL
(1) Remove B-pillar trim.(2) Remove bolt holding shoulder belt adjuster to
B-pillar (Fig. 40).
(3) Separate shoulder belt adjuster from vehicle.
INSTALLATION
Reverse the preceding operation.
FRONT VERTICAL GUIDE BAR
REMOVAL
(1) Remove door trim panel and water shield.
(2) Remove door speaker, if equipped.
(3) Remove front lift guide.
(4) Remove bolt holding top of front guide bar to
inner door panel.
(5) Using a Snap-ontflare-nut socket (FRXM10)
and a hex wrench, remove nut holding bottom of
guide bar to door panel while holding jack screws.
(Fig. 41)
Fig. 39 Front Seat Belt Retractor
Fig. 40 Front Shoulder Belt Adjuster
Fig. 41 Front Vertical Guide Bar
23 - 18 BODYPL
REMOVAL AND INSTALLATION (Continued)

(6) Remove front vertical guide bar through
speaker hole in inner door panel (Fig. 42).
INSTALLATION
Reverse the preceding operation. Verify door glass
alignment, adjust if necessary.
GRILLE
REMOVAL
(1) Release hood latch, open and support hood on
prop rod.
(2) Remove screws holding grille to parking lamps
(Fig. 43).
(3) Remove screw holding grille to radiator closure
panel.
(4) Separate grille from vehicle.
INSTALLATION
(1) Place grille into position on vehicle.
(2) Install screw holding grille to radiator closure
panel.
(3) Install screws holding grille to parking lamps.
HEADLINING
REMOVAL
(1) Remove screws holding sun visors to roof
header panel.
(2) Disengage wire connector from lighted vanity
mirror, if so equipped.
(3) Separate sun visors from vehicle.
(4) Remove A-pillar trim covers.
(5) Remove B-pillar trim panels, if vehicle is a 4
door.
(6) Remove (upper) quarter panel trim panels.
(7) Remove assist handles, if so equipped.
(8) Remove sun visor hooks.
(9) Remove coat hooks, if vehicle is a 4 door.
(10) If vehicle is equipped with a sunroof;
(a) Open sunroof.
(b) Remove trim welt around sunroof opening
(Fig. 44).
(c) Remove sunroof switch pod.
(d) Disconnect sunroof switch pod wire connec-
tors.
(e) Remove screw holding switch pod retainer to
roof.
(11) Remove push±in fastener at rear of headlin-
ing.
(12) Disengage dome lamp wire connector, at rear
of headlining.
(13) Remove push±in fastener holding wiring to
C±pillar.
Fig. 42 Front Guide
Fig. 43 Grille

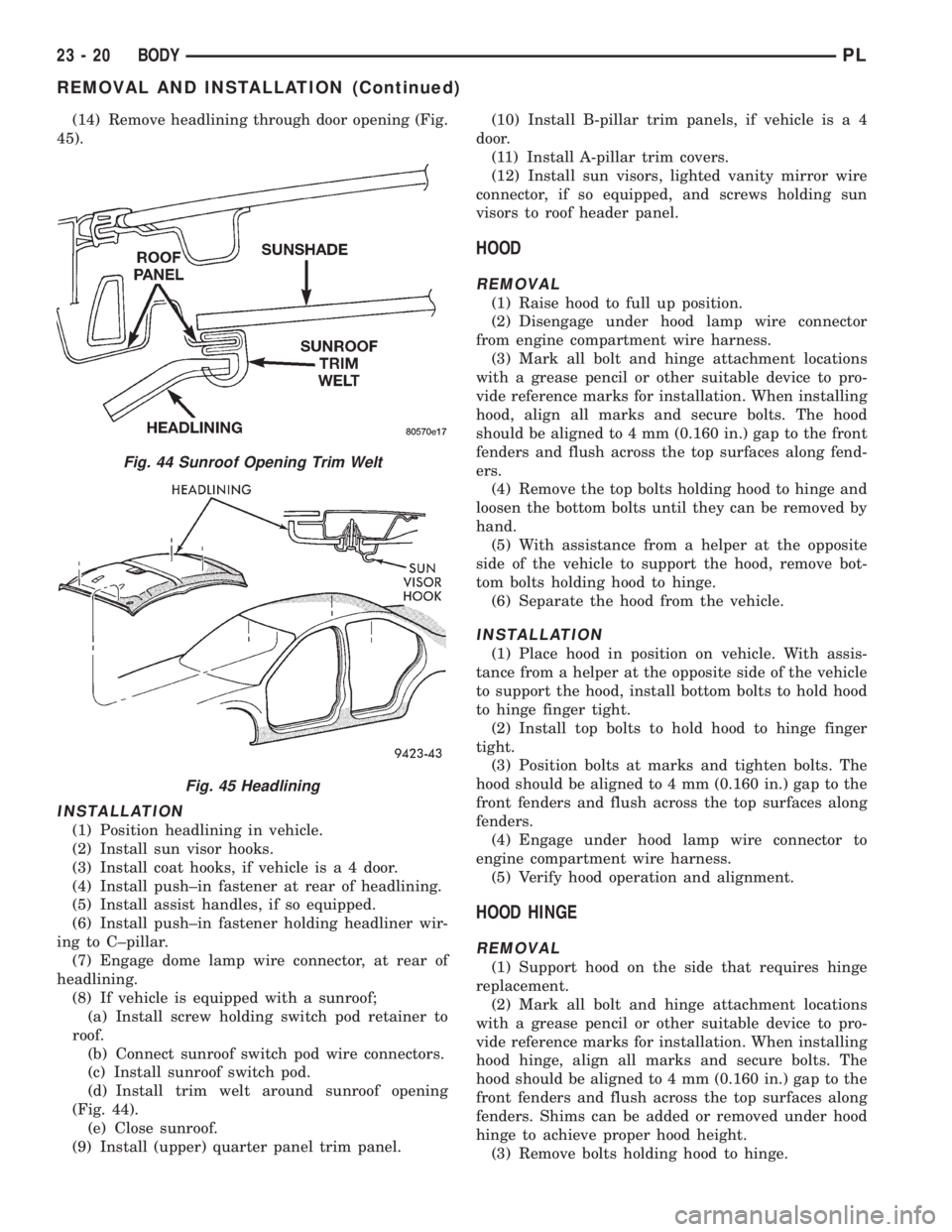

PLBODY 23 - 19
REMOVAL AND INSTALLATION (Continued)

(14) Remove headlining through door opening (Fig.
45).
INSTALLATION
(1) Position headlining in vehicle.
(2) Install sun visor hooks.
(3) Install coat hooks, if vehicle is a 4 door.
(4) Install push±in fastener at rear of headlining.
(5) Install assist handles, if so equipped.
(6) Install push±in fastener holding headliner wir-
ing to C±pillar.
(7) Engage dome lamp wire connector, at rear of
headlining.
(8) If vehicle is equipped with a sunroof;
(a) Install screw holding switch pod retainer to
roof.
(b) Connect sunroof switch pod wire connectors.
(c) Install sunroof switch pod.
(d) Install trim welt around sunroof opening
(Fig. 44).
(e) Close sunroof.
(9) Install (upper) quarter panel trim panel.(10) Install B-pillar trim panels, if vehicle is a 4
door.
(11) Install A-pillar trim covers.
(12) Install sun visors, lighted vanity mirror wire
connector, if so equipped, and screws holding sun
visors to roof header panel.
HOOD
REMOVAL
(1) Raise hood to full up position.
(2) Disengage under hood lamp wire connector
from engine compartment wire harness.
(3) Mark all bolt and hinge attachment locations
with a grease pencil or other suitable device to pro-
vide reference marks for installation. When installing
hood, align all marks and secure bolts. The hood
should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers.
(4) Remove the top bolts holding hood to hinge and
loosen the bottom bolts until they can be removed by
hand.
(5) With assistance from a helper at the opposite
side of the vehicle to support the hood, remove bot-
tom bolts holding hood to hinge.
(6) Separate the hood from the vehicle.
INSTALLATION
(1) Place hood in position on vehicle. With assis-
tance from a helper at the opposite side of the vehicle
to support the hood, install bottom bolts to hold hood
to hinge finger tight.
(2) Install top bolts to hold hood to hinge finger
tight.
(3) Position bolts at marks and tighten bolts. The
hood should be aligned to 4 mm (0.160 in.) gap to the
front fenders and flush across the top surfaces along
fenders.
(4) Engage under hood lamp wire connector to
engine compartment wire harness.
(5) Verify hood operation and alignment.
HOOD HINGE
REMOVAL
(1) Support hood on the side that requires hinge
replacement.
(2) Mark all bolt and hinge attachment locations
with a grease pencil or other suitable device to pro-
vide reference marks for installation. When installing
hood hinge, align all marks and secure bolts. The
hood should be aligned to 4 mm (0.160 in.) gap to the
front fenders and flush across the top surfaces along
fenders. Shims can be added or removed under hood
hinge to achieve proper hood height.
(3) Remove bolts holding hood to hinge.
Fig. 44 Sunroof Opening Trim Welt
Fig. 45 Headlining

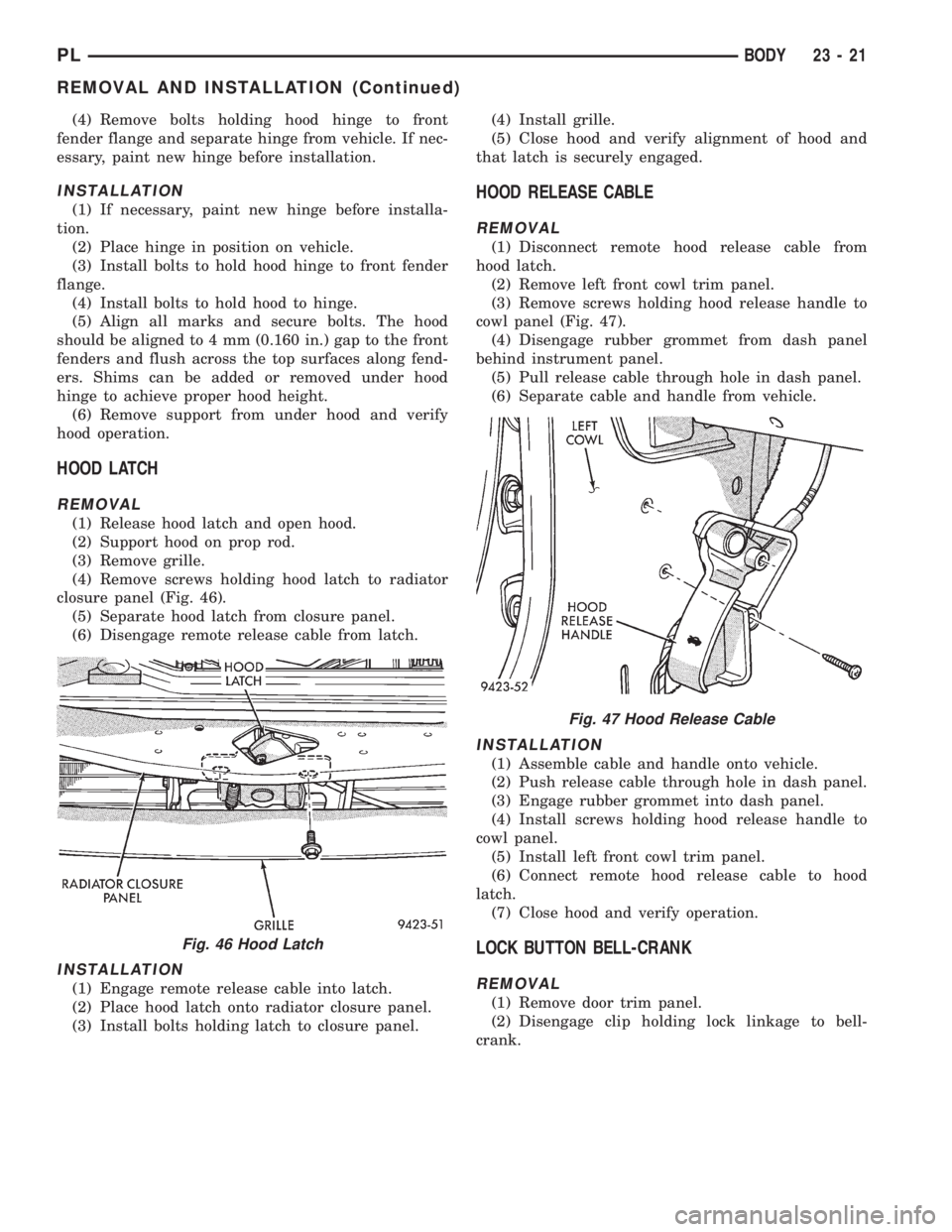

23 - 20 BODYPL
REMOVAL AND INSTALLATION (Continued)

(4) Remove bolts holding hood hinge to front
fender flange and separate hinge from vehicle. If nec-
essary, paint new hinge before installation.
INSTALLATION
(1) If necessary, paint new hinge before installa-
tion.
(2) Place hinge in position on vehicle.
(3) Install bolts to hold hood hinge to front fender
flange.
(4) Install bolts to hold hood to hinge.
(5) Align all marks and secure bolts. The hood
should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers. Shims can be added or removed under hood
hinge to achieve proper hood height.
(6) Remove support from under hood and verify
hood operation.
HOOD LATCH
REMOVAL
(1) Release hood latch and open hood.
(2) Support hood on prop rod.
(3) Remove grille.
(4) Remove screws holding hood latch to radiator
closure panel (Fig. 46).
(5) Separate hood latch from closure panel.
(6) Disengage remote release cable from latch.
INSTALLATION
(1) Engage remote release cable into latch.
(2) Place hood latch onto radiator closure panel.
(3) Install bolts holding latch to closure panel.(4) Install grille.
(5) Close hood and verify alignment of hood and
that latch is securely engaged.
HOOD RELEASE CABLE
REMOVAL
(1) Disconnect remote hood release cable from
hood latch.
(2) Remove left front cowl trim panel.
(3) Remove screws holding hood release handle to
cowl panel (Fig. 47).
(4) Disengage rubber grommet from dash panel
behind instrument panel.
(5) Pull release cable through hole in dash panel.
(6) Separate cable and handle from vehicle.
INSTALLATION
(1) Assemble cable and handle onto vehicle.
(2) Push release cable through hole in dash panel.
(3) Engage rubber grommet into dash panel.
(4) Install screws holding hood release handle to
cowl panel.
(5) Install left front cowl trim panel.
(6) Connect remote hood release cable to hood
latch.
(7) Close hood and verify operation.
LOCK BUTTON BELL-CRANK
REMOVAL
(1) Remove door trim panel.
(2) Disengage clip holding lock linkage to bell-
crank.
Fig. 46 Hood Latch
Fig. 47 Hood Release Cable

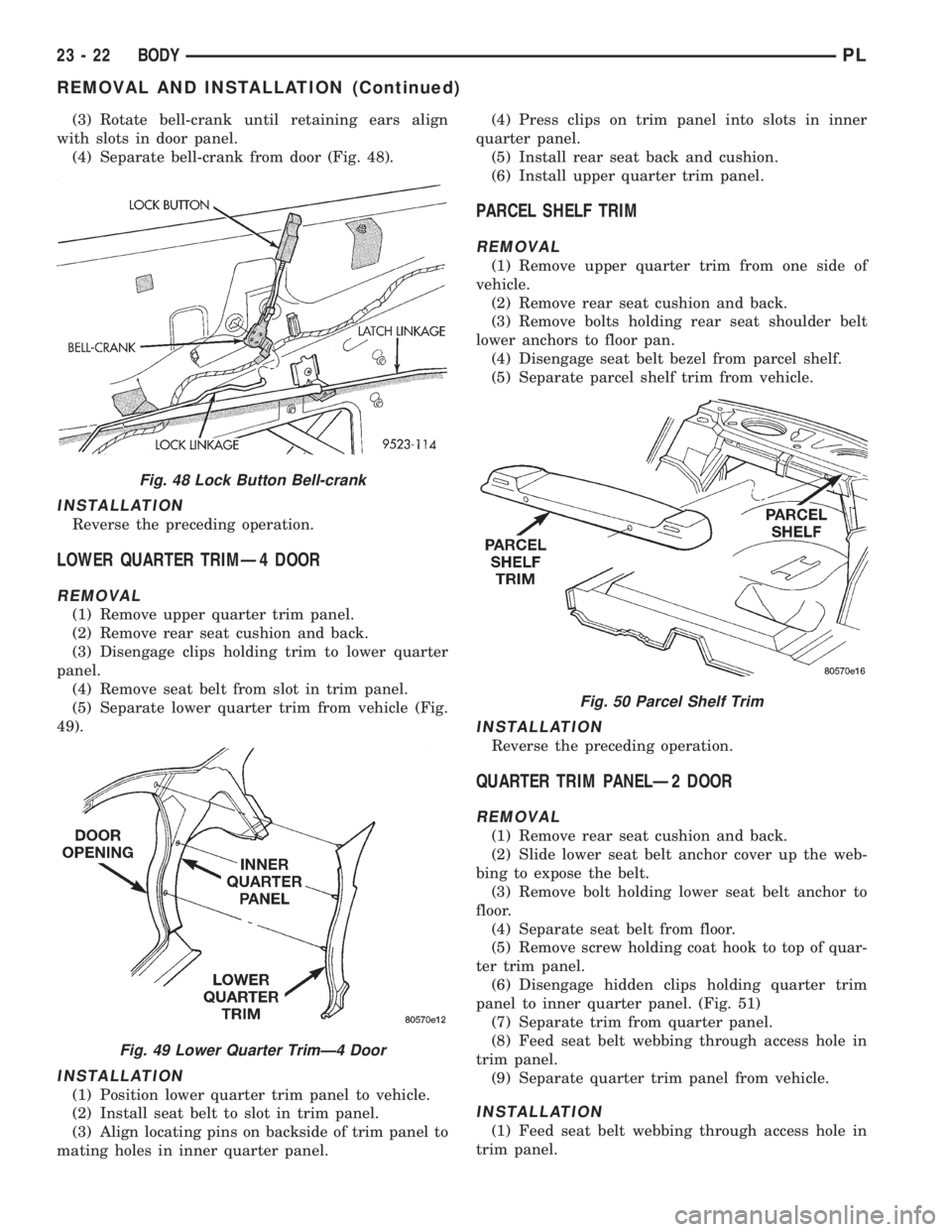

PLBODY 23 - 21
REMOVAL AND INSTALLATION (Continued)

(3) Rotate bell-crank until retaining ears align
with slots in door panel.
(4) Separate bell-crank from door (Fig. 48).
INSTALLATION
Reverse the preceding operation.
LOWER QUARTER TRIMÐ4 DOOR
REMOVAL
(1) Remove upper quarter trim panel.
(2) Remove rear seat cushion and back.
(3) Disengage clips holding trim to lower quarter
panel.
(4) Remove seat belt from slot in trim panel.
(5) Separate lower quarter trim from vehicle (Fig.
49).
INSTALLATION
(1) Position lower quarter trim panel to vehicle.
(2) Install seat belt to slot in trim panel.
(3) Align locating pins on backside of trim panel to
mating holes in inner quarter panel.(4) Press clips on trim panel into slots in inner
quarter panel.
(5) Install rear seat back and cushion.
(6) Install upper quarter trim panel.
PARCEL SHELF TRIM
REMOVAL
(1) Remove upper quarter trim from one side of
vehicle.
(2) Remove rear seat cushion and back.
(3) Remove bolts holding rear seat shoulder belt
lower anchors to floor pan.
(4) Disengage seat belt bezel from parcel shelf.
(5) Separate parcel shelf trim from vehicle.
INSTALLATION
Reverse the preceding operation.
QUARTER TRIM PANELÐ2 DOOR
REMOVAL
(1) Remove rear seat cushion and back.
(2) Slide lower seat belt anchor cover up the web-
bing to expose the belt.
(3) Remove bolt holding lower seat belt anchor to
floor.
(4) Separate seat belt from floor.
(5) Remove screw holding coat hook to top of quar-
ter trim panel.
(6) Disengage hidden clips holding quarter trim
panel to inner quarter panel. (Fig. 51)
(7) Separate trim from quarter panel.
(8) Feed seat belt webbing through access hole in
trim panel.
(9) Separate quarter trim panel from vehicle.
INSTALLATION
(1) Feed seat belt webbing through access hole in
trim panel.
Fig. 48 Lock Button Bell-crank
Fig. 49 Lower Quarter TrimÐ4 Door
Fig. 50 Parcel Shelf Trim
23 - 22 BODYPL
REMOVAL AND INSTALLATION (Continued)

(2) Position trim panel near inner quarter panel.
(3) Align locating pins on backside of trim panel to
mating holes in inner quarter panel.
(4) Push clips on trim panel into slots in inner
quarter panel starting with the clips located near
locating pins.
(5) Install screw holding coat hook to top of quar-
ter trim panel.
(6) Install bolt securing seat belt anchor to floor.
(7) Slide lower seat belt anchor cover down to
cover anchor bolt.
(8) Install rear seat cushion and seat back.
REAR DOOR GLASS
REMOVAL
(1) Remove door trim panel and water shield.
(2) Remove inner door belt weatherstrip.
(3) Loosen door glass jounce bumper.
(4) Lower door glass to bottom of door.
(5) Remove nuts holding door glass to window reg-
ulator lift plate (Fig. 52).
(6) Disengage door glass from regulator.
(7) Lift door glass upward out of the opening at
the top of door.
INSTALLATION
(1) Lower door glass through opening in top of
door and into position in the window regulator.
(2) Install nuts holding door glass to window reg-
ulator lift plate.
(3) Raise glass and tighten window inner belt sta-
bilizer.
(4) Install inner door belt weatherstrip, water-
shield, and door trim panel.
(5) Operate window and check for interference.
Adjust glass as necessary.
REAR DOOR INNER BELT WEATHERSTRIP
REMOVAL
(1) Remove door trim panel.
(2) Pull weatherstrip from top of door panel (Fig.
53).
(3) Separate weatherstrip from door.
INSTALLATION
(1) Place inner belt weatherstrip in position on
door.
(2) Push down on weatherstrip to engage channel
to door panel.
(3) Install door trim panel.
Fig. 51 Quarter Trim PanelFig. 52 Rear Door Glass
Fig. 53 Rear Door Inner Belt Weatherstrip
PLBODY 23 - 23
REMOVAL AND INSTALLATION (Continued)
