1999 DODGE NEON Service Repair Manual

Fig. 13 Instrument Panel Connections (Left Side)
8W - 90 - 36 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 14 Instrument Panel Connections (Right Side)
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 37
DESCRIPTION AND OPERATION (Continued)

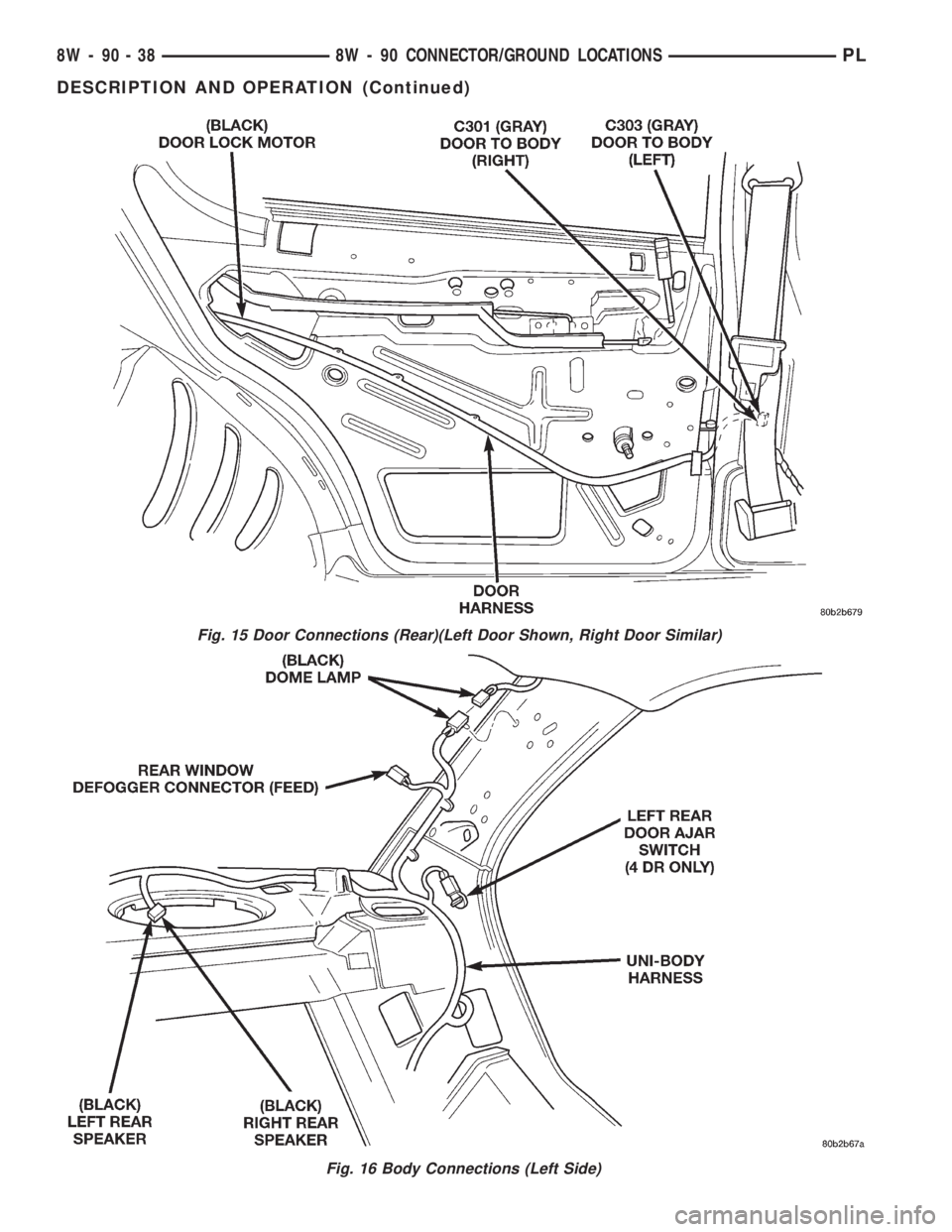

Fig. 15 Door Connections (Rear)(Left Door Shown, Right Door Similar)
Fig. 16 Body Connections (Left Side)
8W - 90 - 38 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

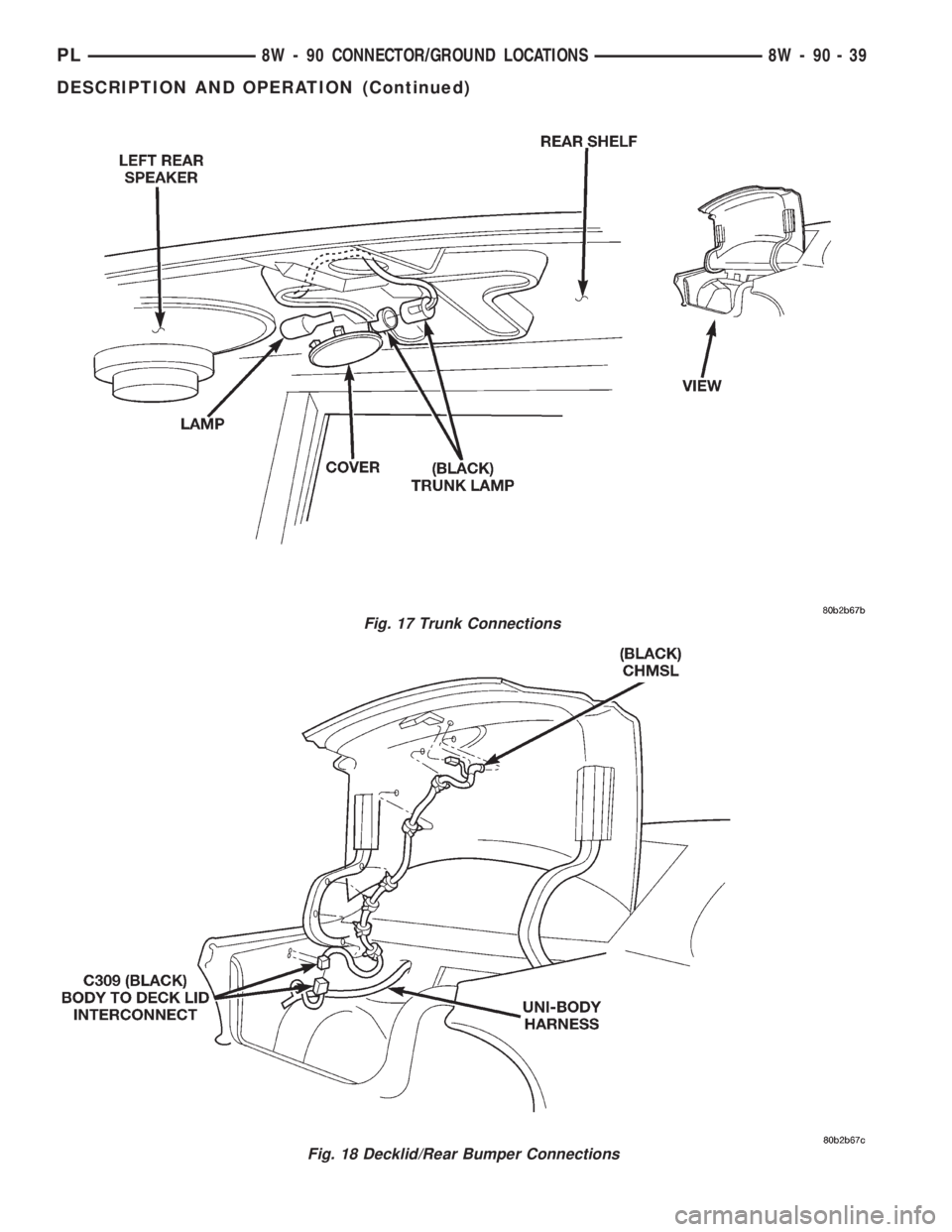

Fig. 17 Trunk Connections
Fig. 18 Decklid/Rear Bumper Connections
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 39
DESCRIPTION AND OPERATION (Continued)

Fig. 19 Fuel Tank Connections
Fig. 20 Rear Lighting Connections
8W - 90 - 40 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

8W-95 SPLICE LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for proper splice number.
SPLICE LOCATIONS (LHD)
The following index covers all splices shown in the
wiring diagrams. If a splice is not shown in this sec-
tion, a N/S will be in the Fig. column.
Spllice Location Fig.
S101 Near Dat Link T/O 1
S104 Left Strut Tower 1
S105 Left Strut Tower 1
S106 Near PCM T/O 1
S107 Before T/O for Left
Headlamp2
S108 Before T/O for Left
Headlamp2
S109 Before T/O for Left
Headlamp2
S110 In PCM T/O 1
S111 Near T/O for Radiator Fan
Motor2
S112 Near T/O for Left Headlamp 2
S113 Near T/O for Left Headlamp 2
S114 Near T/O for Left Headlamp 2
S115 Neat T/O for Radiator Fan
Motor2
S116 Near T/O for Radiator Fan
Motor2
S117 Near EVAP/Purge Sol T/O 2
S118 Between VSS and Crank
Sensor T/O3
S119 Between Crank Sensor and
VSS T/O3
S120 Near INJ #4 3
S121 Between INJ #2 and #3 T/O 3
S122 Near T/O for VSS and
Engine Oil Pressure Switch3
S123 Near T/O for O2S 3
S124
SOHCNear Cam Sensor and Coil
T/O'sN/S
S124
DOHCNear TP Sensor T/O 3Spllice Location Fig.
S125 Near Starter N/S
S126 In PCM T/O N/S
S127 Near Left Headlamp T/O 2
S131 Near T/O for PCM 1
S133 In Left Headlamp Leveling
T/ON/S
S139 In Ignition Coil 3
S201 Near T/O for Center Console 5
S202 Near T/O for PAB 4
S203 Near T/O for Passenger Air
Bag4
S204 Near HVAC Connector 4
S205 Near Center Stack T/O 4
S206 Near Center Stack T/O 4
S207 Top Center of I.P. 5
S208 Top Center of I.P. 5
S209 Top Center of I.P. 5
S210 Top Center of I.P. 5
S211 Between RT and LT Cluster
T/O's5
S212 Between RT and LT Cluster
T/O's5
S213 Near T/O for Left Cluster 4
S214 Near T/O for Fuseblock 4
S216 Near STRG Column T/O 4
S217 Near T/O for Fuse Block 4
S218 Between RT and LT Cluster
T/O's4
S219 In T/O for RKE Module 5
S221 In T/O for Body Wiring 4
S222 Near T/O for Fuse Block 4
S223 Top Center of I/P 4
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 1

Spllice Location Fig.
S224 In T/O for Headlamp Switch 4
S301 Near LT B-Pillar T/O 6
S302 Near LT B-Pillar T/O 6
S303 Near LT B-Pillar T/O 6
S304 Near Fuel Tank T/O 6
S306
Except
Built-Up-
ExportNear Fuel Tank T/O 7
S306
Built-Up-
ExportNear Fuel Tank T/O 6
S307
Except
Built-Up-
ExportBetween RR Body Ground
and RT Tail Lamp T/O7
S307
Built-Up-
ExportNear Rear Fog Lamp T/O N/SSpllice Location Fig.
S308 Near LR Body Ground 6
S309 Near Top of A-Pillar, Left
Side8
S310 Near DR/LK SW and PWR
Mirro T/O8
S313 Near T/O for Sunroof Slide
SW8
S314 Near T/O for Sunroof Slide
Switch8
S315
Built-Up-
ExportNear Rear Fog Lamp T/O N/S
S316 Near Fuel Tank T/O 6
S317 Near Fuel Tank T/O 6
8W - 95 - 2 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 1 Engine Compartment Splices
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 3
DESCRIPTION AND OPERATION (Continued)
