1999 DODGE NEON Service Repair Manual

Fig. 3 Transmission Connections
8W - 90 - 28 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 4 Engine Compartment Connections(Right Side)
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 29
DESCRIPTION AND OPERATION (Continued)

Fig. 5 Engine Compartment Connections (Left Side)
8W - 90 - 30 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 6 Engine Compartment Connections (Left Side)
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 31
DESCRIPTION AND OPERATION (Continued)

Fig. 7 Engine Connections
8W - 90 - 32 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 8 Engine Connections
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 33
DESCRIPTION AND OPERATION (Continued)

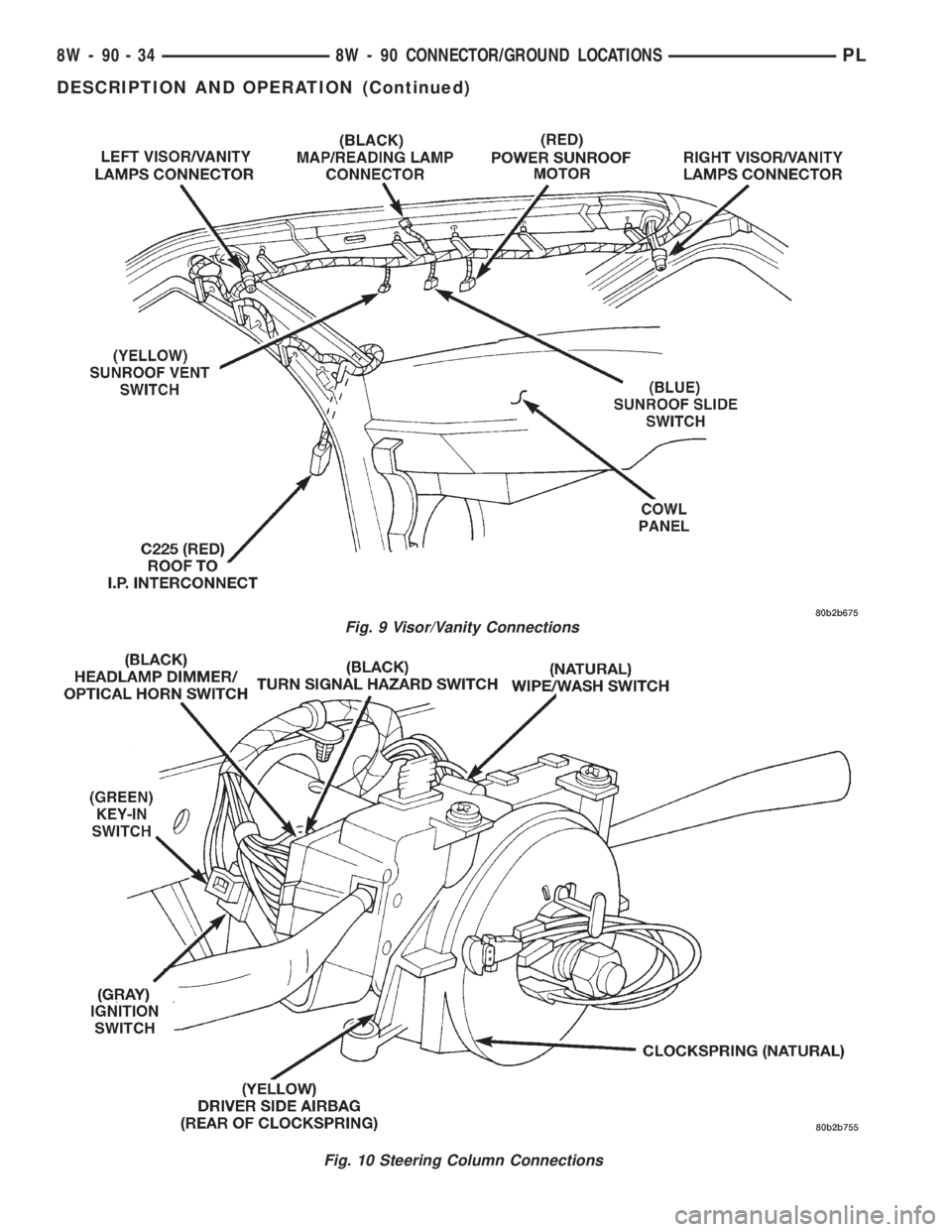

Fig. 9 Visor/Vanity Connections
Fig. 10 Steering Column Connections
8W - 90 - 34 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

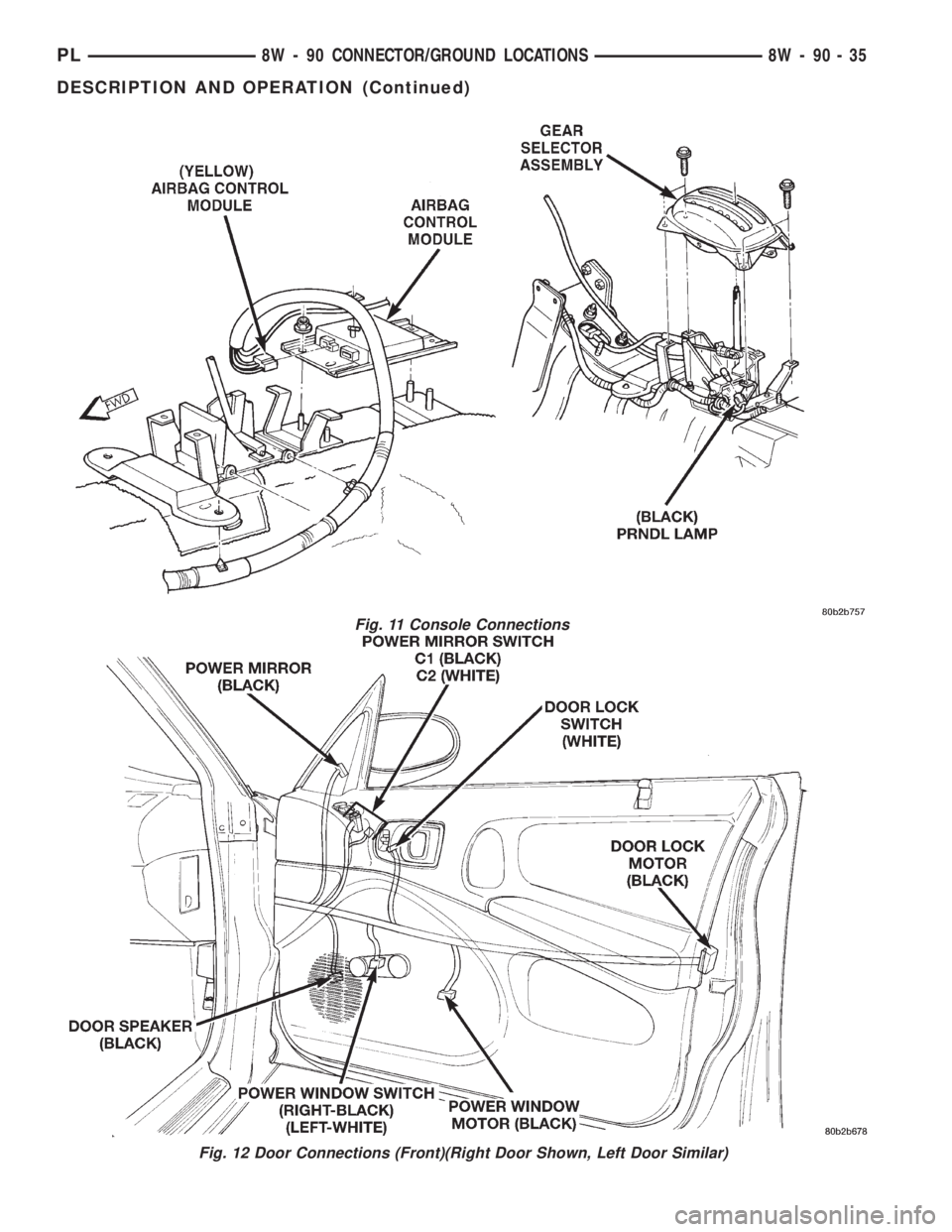

Fig. 11 Console Connections
Fig. 12 Door Connections (Front)(Right Door Shown, Left Door Similar)
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 35
DESCRIPTION AND OPERATION (Continued)
