1997 RENAULT KANGOO Sheet Metal Work Workshop Manual

SIDE OPENING ELEMENTS
Side door stiffener
47F
PRB4710
INTRODUCTION
The replacement of this part is a complementary
operation to the side door panel.
In the operation described below there are only
descriptions of the joints specific to the part
concerned.
Information concerning other parts will be dealt
with in the respective section.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part only.
JOINTS WITH:
Door box section
Stiffener
PARTS CONCERNED (thickness in mm):
1Door box section 0.8
2Stiffener 1.2
3Rail roller reinforcement 1.2
47-14

SIDE OPENING ELEMENTS
Side door stiffener
47F
13608R
CAA11538R7
A
1
2
CAB11539-1R1
B
32
47-15

NON-SIDE OPENING ELEMENTS
Bonnet
REFITTING
Refit in the opposite way to removal and refer to
section 40 (opening clearances) to correctly make
adjustments.
ADJUSTMENT
The height adjustment is carried out using strut
mounting bolts (B) on the headlight carrier panel.
The front and rear adjustments are carried out
using mounting nuts (A) on the bonnet .
REMOVAL
48A
PRB4808
13238R
Remove the bonnet nuts (A) (operation must be
carried out by two people).
48-1

NON-SIDE OPENING ELEMENTS
Bonnet hinges
48B
PRB4809
REFITTING
Refer to the preceding section, to make adjus-
tments to the bonnet.
REMOVAL
13238R
Remove:
- the bonnet nuts at (A) (operation must be car-
ried out by two people),
- the bonnet,
- the strut mounting bolts (B) on the headlight
carrier panel.
48-2

NON-SIDE OPENING ELEMENTS
Rear opening doors
48C
13101R
Remove the mounting bolts (A) on the door edges
(this operation should be carried out using two
people).
REMOVAL
PRB4810
REFITTING
Refit in the opposite way to removal and refer to
section 40 (opening clearances) to correctly make
adjustments.
ADJUSTMENT
The height and clearance adjustment is carried
out by means of the mounting bolts (A).
The tilt adjustment is carried out using a a B.H.A.
type clip from Z International, by deforming at (B)
the welded hinges on the rear pillar.
48-3

NON-SIDE OPENING ELEMENTS
Tailgate
48D
13474R
REFITTING
Refit in the opposite way to removal and refer to
section 40 (opening clearances) to make correct
adjustments.
ADJUSTMENT
Height and tilt adjustment are made by fitting
shims under the mounting bolts (A).
Clearance adjustment is carried out by adjusting
the play of the same bolts in their mounting holes.
REMOVAL
PRB4811
After removal of trim and wiring, remove the ba-
lancers then the mounting bolts (A) from the roof
rear cross member (this operation should be car-
ried out with two people).
48-4

NON-SIDE OPENING ELEMENTS

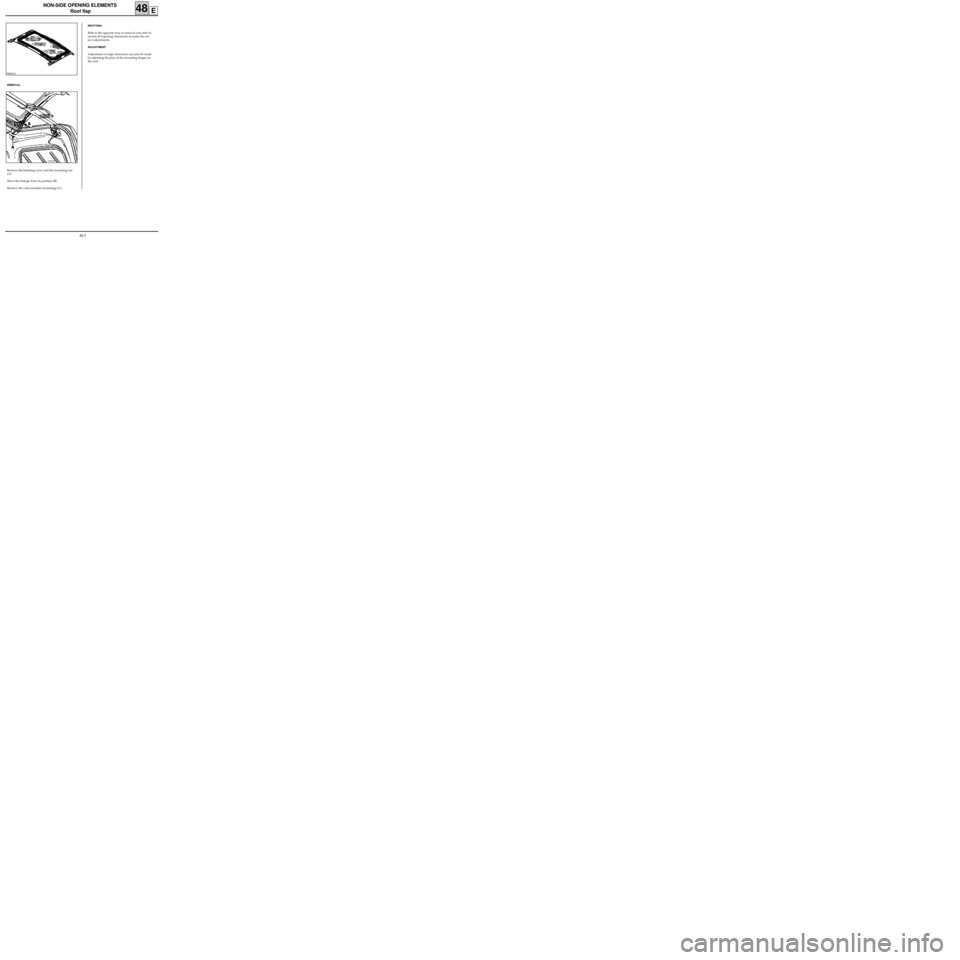

Roof flap
48E
PRB4812
REFITTING
Refit in the opposite way to removal and refer to
section 40 (opening clearances) to make the cor-
rect adjustments.
ADJUSTMENT
Adjustment of edge clearances can only be made
by adjusting the play of the mounting hinges on
the roof.
REMOVAL
13247R
Remove the blanking cover and the mounting nut
(A).
Move the linkage from its position (B) .
Remove the cross member mountings (C).
48-5
