Contents
GENERAL

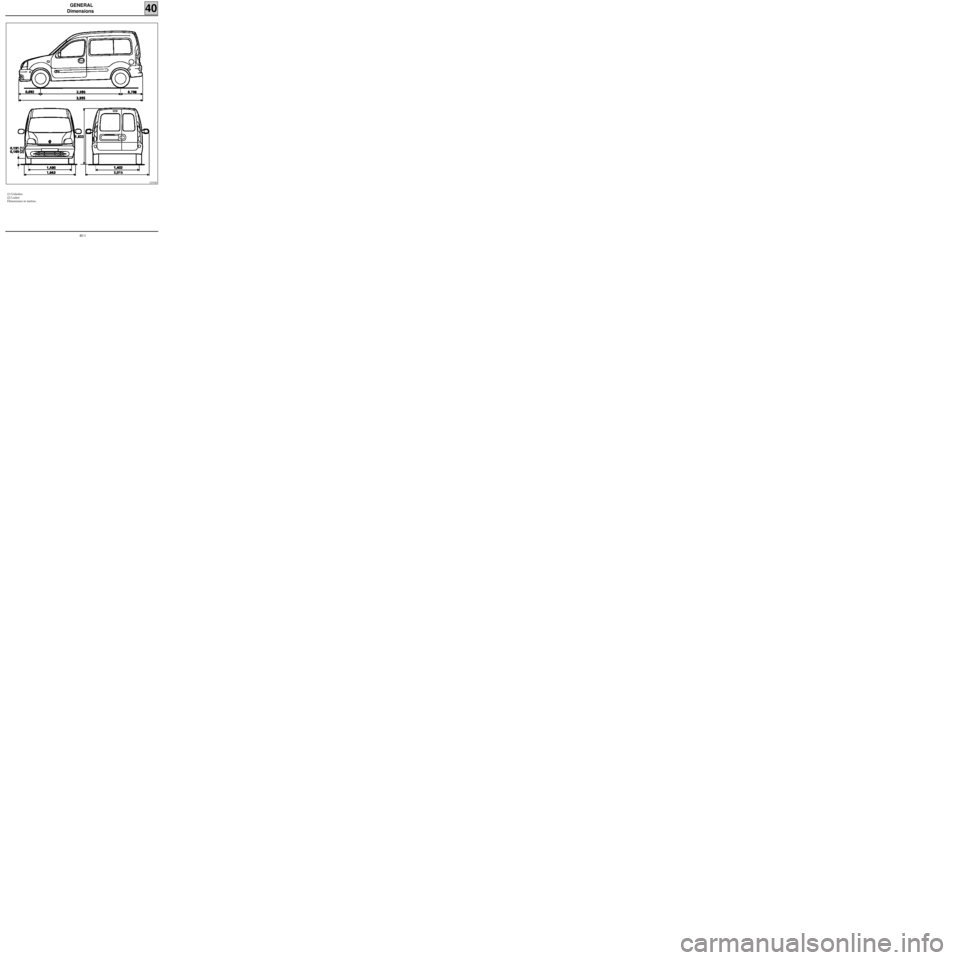

Dimensions
Engine and equipment
Identification
Means of lifting
Towing
Using symbols
Key to symbols
Description of Parts (exploded)
Opening clearances
Collision fault finding
Sub- frame dimensions
Repair bench
Special tooling
Part Number of special tooling40-1
40-2
40-4
40-6
40-8
40-9
40-11
40-12
40-15
40-22
40-25
40-27
40-38
40-38
LOWER STRUCTURE
41- 1
41- 5
41-10
41-13
41-17
41-21
41-26
41-29
41-33
41-36
41-39
41-41
41-44
41-51
41-53
41-55
41-58
41-60
41-62
41-63
41-67
41-68
41-71UPPER FRONT STRUCTUREPage Page40
41
42
Sheet metal work
UPPER SIDE STRUCTURE43
AFront end lower cross member
BFront side member, front section
CFront side member closure panel
DFront half unit
EFront side cross member
FFront side member, rear section
GFront mounting of sub frame
HSill panel closure panel
ICross member under front seat
JSide floor
KTunnel
LRear floor, front section
MRear floor, rear section (part
section)
NFront cross member of rear floor,
front section
ORear floor stiffener
PRear end cross member
QRear absorber reinforcement
RRear side member extension
SRear side member, part section
TComplete rear side member
URear floor centre cross member
VSeat anchoring reinforcement
WRear floor unit42-1
42-2
42-5
42-8
42-12
42-17
42-24
42-28
42-32
42-34 AFront wing
BHeadlight carrier panel
CCowl side panel (pillar lining)
part section
DUpper reinforcement of cowl side
panel
EWheel arch, front section
FWheel arch
GPlenum chamber
HWindscreen aperture lower cross
member
ISteering column mounting
JBulkhead
43-1
43-6
43-9
43-14
43-19
43-23
43-25 AFront pillar
BWindscreen pillar
C Front pillar lining/Cowl side panel
DCentre pillar / sill panel
ECentre pillar lower reinforcement /
door pillar
FSill panel reinforcement
GLeft hand side sill panel
UPPER REAR STRUCTURE
44
44-1
44-9
44-17
44-26
44-30
44-33
44-38
44-41 ARear wing panel
BSide panel
CSide panel lining
DRoof stretcher lining
ERear inner wheel arch
FLights mounting side panel rain
channel
GRear wing panel extension
HRear end panel
GENERAL
Sub-frame dimensions
40
DESCRIPTION X Y ZDIAMETER SLOPE %
A Front sub-frame rear mounting 205 402.5 71 18.5 0
B Rear axle assembly front mounting 1 999.3 657 71.3 20×20 X : 8°20
C Front left sub-frame front mounting - 418 447 13010×10
(squared)0
Front right sub-frame front mounting - 418 465 13010×10
(squared)0
E Rear shock absorber upper mounting 2 333.13 545.75 184 12.5 0
F Front shock absorber upper mounting 18.5 545.50 657 48X : 3°02
Y : 1°
G1 Rear section of front left side member 600 - 375 020×20
(squared)0
Rear section of front right side member 600 351.6 020×20
(squared)0
J Rear point of rear side member 2 918 497.5 151 12.2×16.2 X : 3°
K Front end cross member 575 315 280 14.25X : 4°30
Z : 5°
L Rear end cross member (end panel) 3 121 - 497.5 151 M8 0
P Front engine mounting - 247 483.5 514 M10 0
Rear engine mounting - 113 483.5 514 M10 0
40-25
