Seating and Safety Restraints
177
[SS21575(ALL)01/96]3.

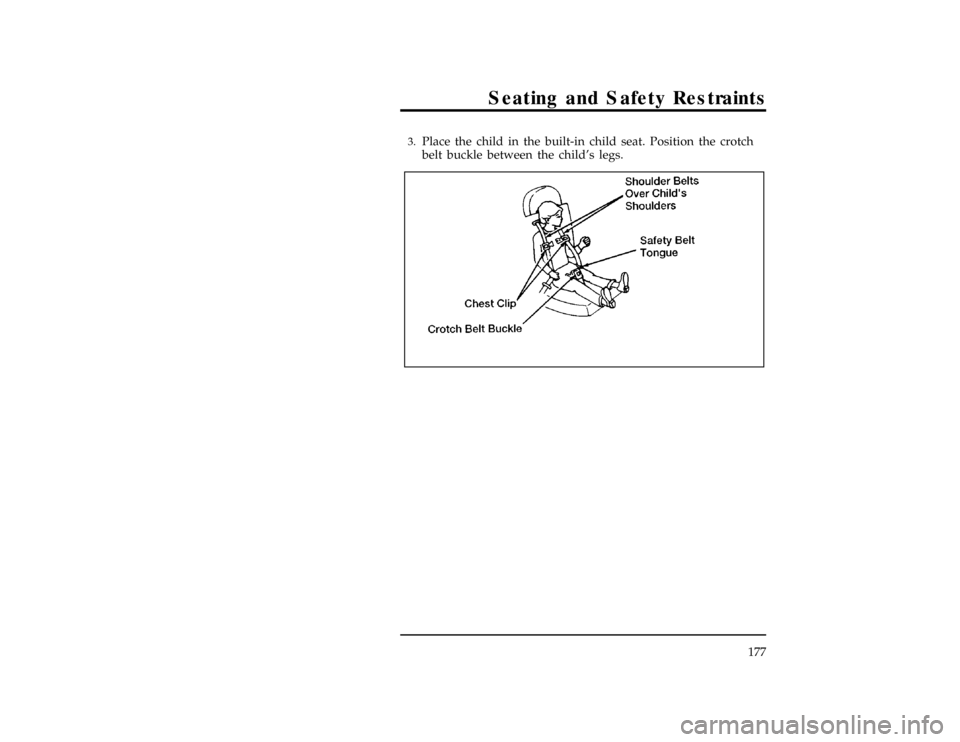

Place the child in the built-in child seat. Position the crotch
belt buckle between the child's legs.
[SS21600(ALL)01/96]
13-1/2 pica
art:0040323-AFile:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

178
[SS21625(ALL)01/96]4.

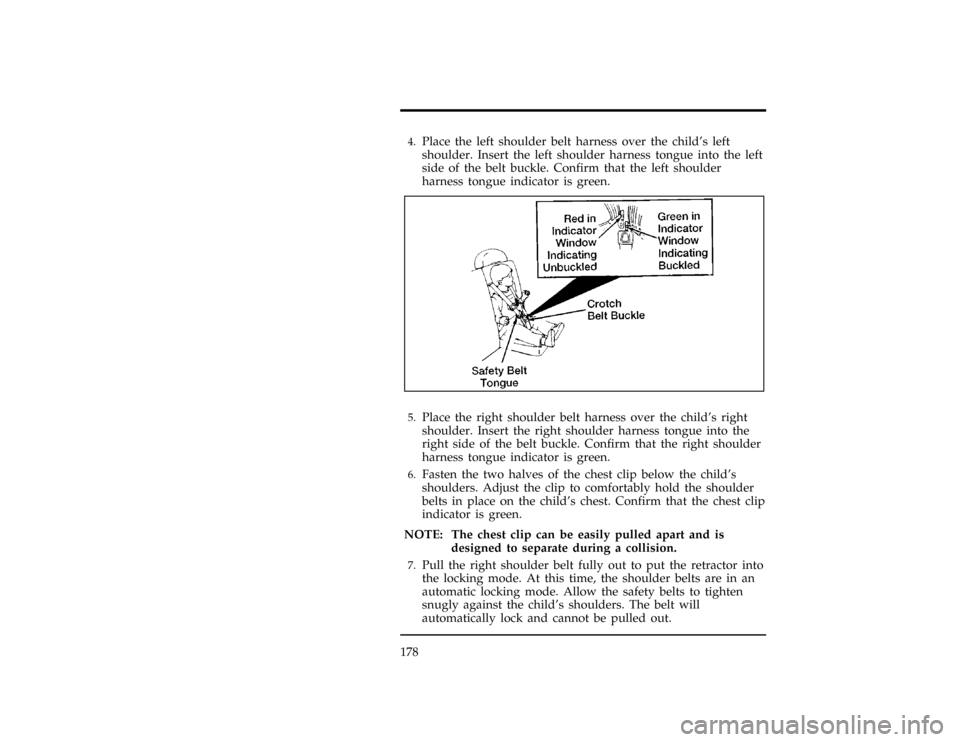

Place the left shoulder belt harness over the child's left
shoulder. Insert the left shoulder harness tongue into the left
side of the belt buckle. Confirm that the left shoulder
harness tongue indicator is green.
[SS21650(ALL)01/96]
13-1/2 pica
art:0040324-A[SS21675(ALL)01/96]5.
Place the right shoulder belt harness over the child's right
shoulder. Insert the right shoulder harness tongue into the
right side of the belt buckle. Confirm that the right shoulder
harness tongue indicator is green.
[SS21700(ALL)01/96]6.
Fasten the two halves of the chest clip below the child's
shoulders. Adjust the clip to comfortably hold the shoulder
belts in place on the child's chest. Confirm that the chest clip
indicator is green.
[SS21725(ALL)01/96]
NOTE: The chest clip can be easily pulled apart and is
designed to separate during a collision.
[SS21750(ALL)01/96]7.

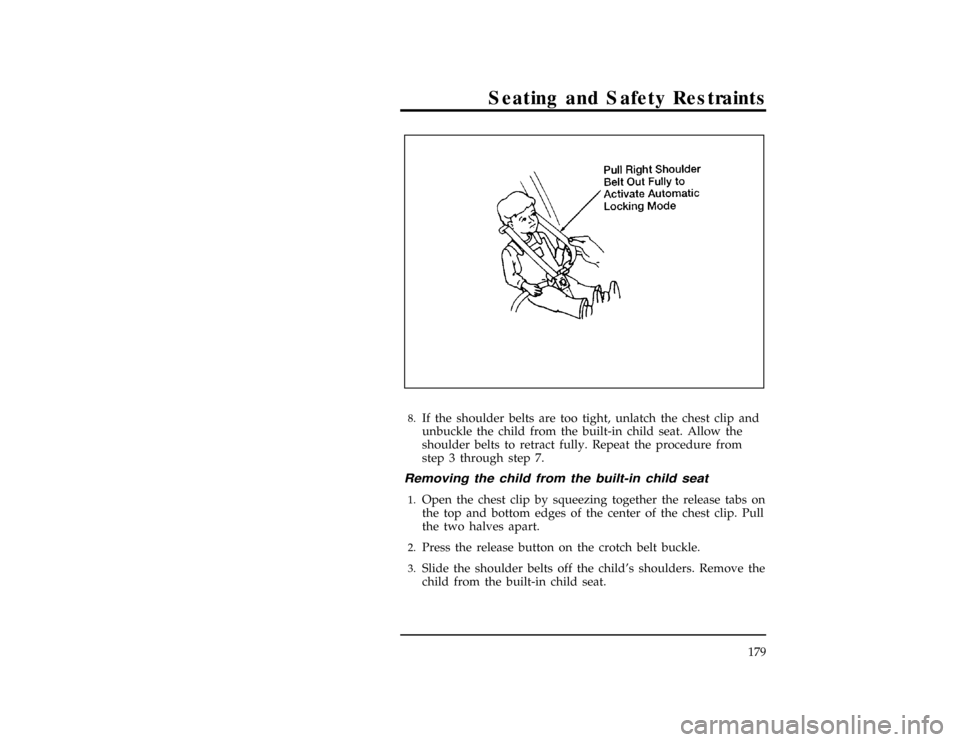

Pull the right shoulder belt fully out to put the retractor into
the locking mode. At this time, the shoulder belts are in an
automatic locking mode. Allow the safety belts to tighten
snugly against the child's shoulders. The belt will
automatically lock and cannot be pulled out.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
179
[SS21775(ALL)01/96]
17-1/2 pica
art:0040325-A[SS21800(ALL)01/96]8.
If the shoulder belts are too tight, unlatch the chest clip and
unbuckle the child from the built-in child seat. Allow the
shoulder belts to retract fully. Repeat the procedure from
step 3 through step 7.
[SS21825(ALL)01/96]
Removing the child from the built-in child seat
[SS21850(ALL)01/96]1.

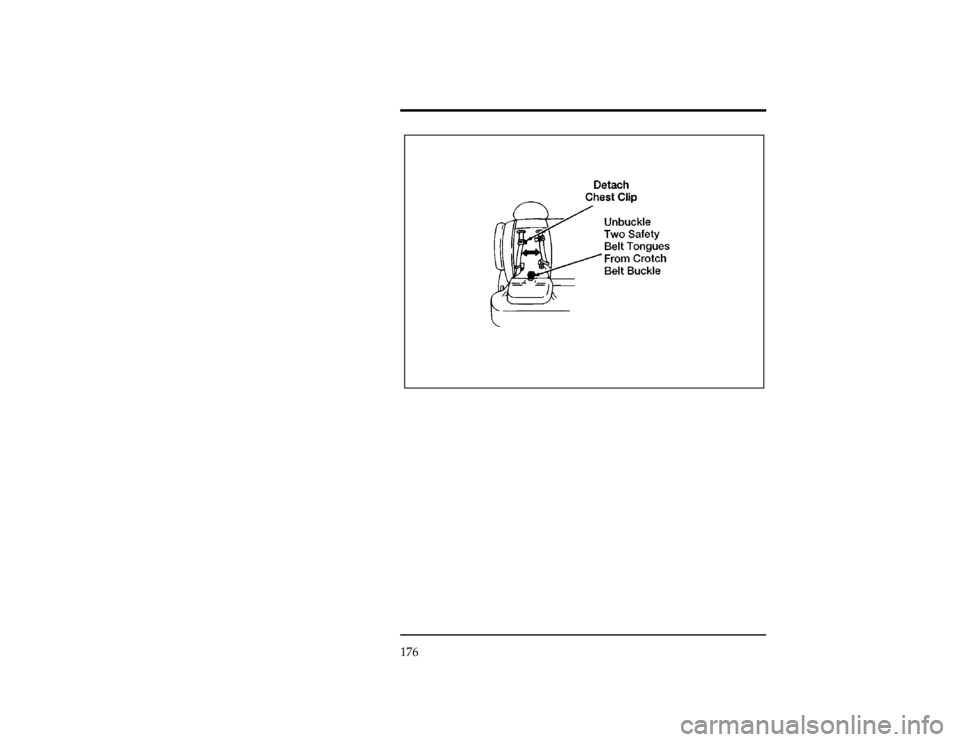

Open the chest clip by squeezing together the release tabs on
the top and bottom edges of the center of the chest clip. Pull
the two halves apart.
[SS21860(ALL)01/96]2.
Press the release button on the crotch belt buckle.
[SS21875(ALL)01/96]3.
Slide the shoulder belts off the child's shoulders. Remove the
child from the built-in child seat.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

180
[SS21925(ALL)01/96]4.
Confirm that the shoulder belts are fully retracted and
resting inside the built-in child seat recess. It is unnecessary
to reconnect the shoulder harness and belt buckle prior to
storing the built-in child seat.
[SS21950(ALL)05/96]5.

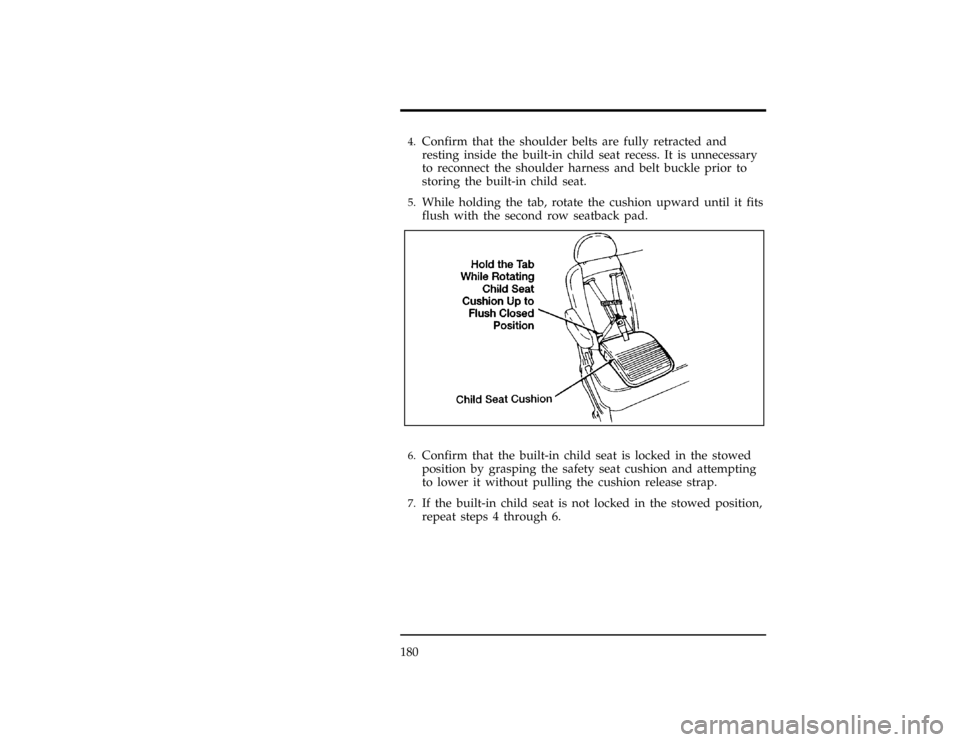

While holding the tab, rotate the cushion upward until it fits
flush with the second row seatback pad.
[SS21975(ALL)01/96]
13-1/2 pica
art:0040326-A[SS22000(ALL)01/96]6.
Confirm that the built-in child seat is locked in the stowed
position by grasping the safety seat cushion and attempting
to lower it without pulling the cushion release strap.
[SS22025(ALL)01/96]7.
If the built-in child seat is not locked in the stowed position,
repeat steps 4 through 6.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

181
Adjustable Rear Seating
[RR00900(ALL)04/94]
The removable and adjustable seats are a convenient feature of
your vehicle. Reading this chapter will help you learn about the
various ways the seats in your vehicle can be arranged to suit
your different needs.
[RR01000(ALL)05/96]
Your vehicle is a five or seven-passenger vehicle. As a
seven-passenger vehicle, it will have either a two-passenger
bench seat or two second-row bucket seats and the sliding
three-passenger bench seat in the third row. Read the section
that describes the type of second-row seat in your vehicle. To
make your vehicle a five-passenger vehicle, remove the
second-row seats.
[RR01100(ALL)09/95]
NOTE: When adjusting or moving any of the seats in your
vehicle, do not use any of the buckles, tongues, or
safety belt webbing to carry or move the seats. Lifting
the seats by any of the safety restraint equipment
could decrease their effectiveness.
[RR01200(ALL)09/95]
NOTE: Your vehicle has five different kinds of floor mats:
front seat mats, a cargo area mat, a sliding door area
mat, and second and third row passenger area mats.
Whenever you remove the mats to remove or adjust
any of the seats always remember that the mats must
be reinstalled before passengers ride in your vehicle.
The floor mats are specifically designed to keep
objects out of the seat tracks.
[RR01300(ALL)01/93]
RWARNING
It is important to replace the floor mats whenever they
are removed for any reason. The floor mats are intended
to help prevent the possibility that high-heeled shoes
might become stuck in the seat tracks. Failure to replace
the floor mats might result in personal injury.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

182
*
[RR01400(ALL)12/95]
Floor Mats
[RR01500(ALL)02/94]
17-1/2 pica
art:0040142-B
The removable floor mats
[RR01600(ALL)01/93]
Removable Floor Mats
[RR01700(ALL)06/94]
Whenever you remove the mats to remove or adjust any of the
seats, always remember that the mats must be reinstalled before
passengers ride in your vehicle. The floor mats are specifically
designed to keep objects out of the seat tracks.
[RR01800(ALL)01/93]
Be sure to keep the seat tracks clear of debris by cleaning them
periodically.
[RR01900(ALL)04/95]
Vacuum any particles from the inside of the tracks where the
roller units are enclosed using a small crevice tool attached to a
high-powered vacuum. This will ensure that the sliding seat will
continue to slide properly during the life of your vehicle.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

Adjustable Rear Seating
183
[RR02000(ALL)01/93]

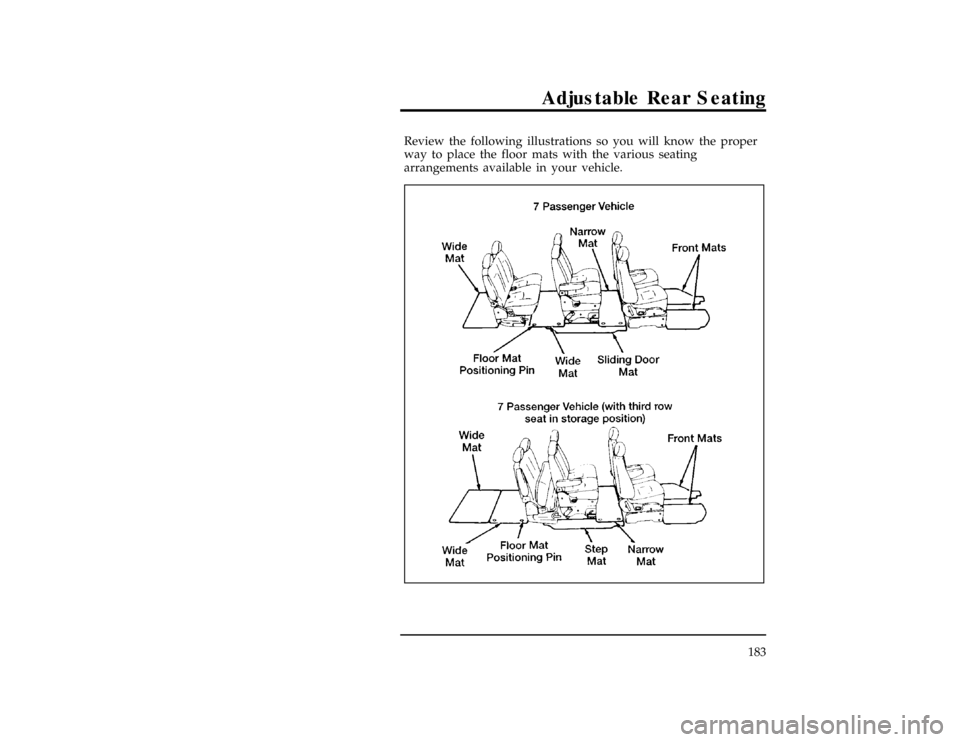

Review the following illustrations so you will know the proper
way to place the floor mats with the various seating
arrangements available in your vehicle.
[RR02100(ALL)06/95]
27-1/2 pica
art:0040158-BFile:07vxrrn.ex
