1997 Mercury Villager Owner's Manuals

184
[RR02200(ALL)05/96]
33-1/2 pica
art:0040159-DFile:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

Adjustable Rear Seating
185
[RR02300(ALL)09/95]

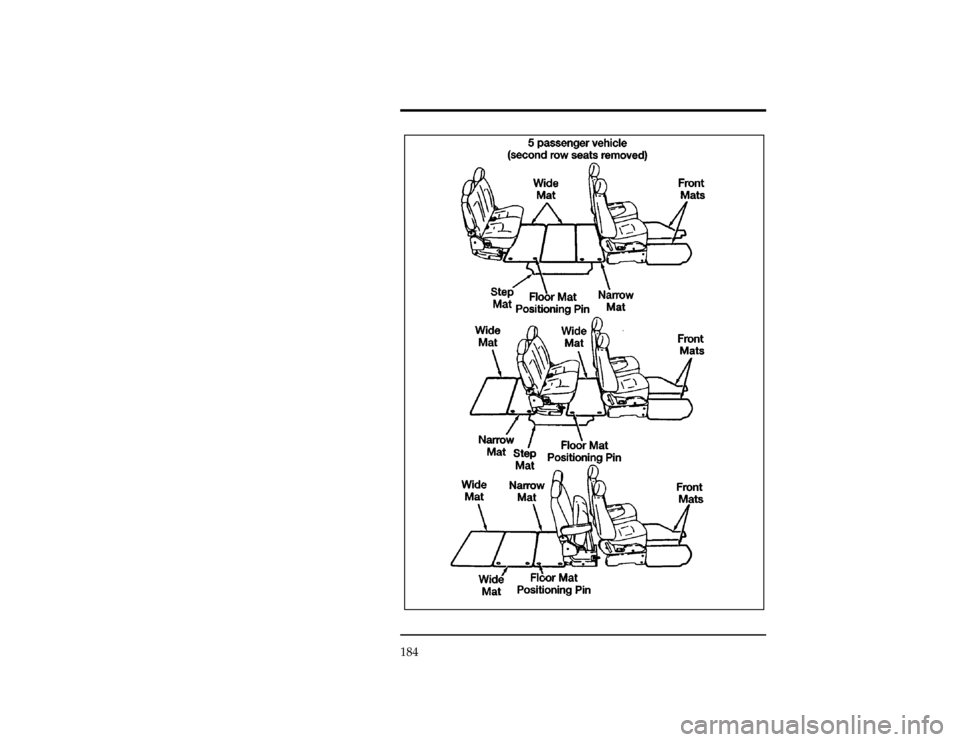

NOTE: The step mat should be placed neatly in the cargo
area when not in use.
[RR02400(ALL)01/93]
Positioning pins are included with your floor mats to secure
them to the seat tracks. Push the positioning pins through the
plastic loops in the floor mats and into the seat tracks.
[RR02500(ALL)09/93]
10-1/2 pica
art:0040152-A

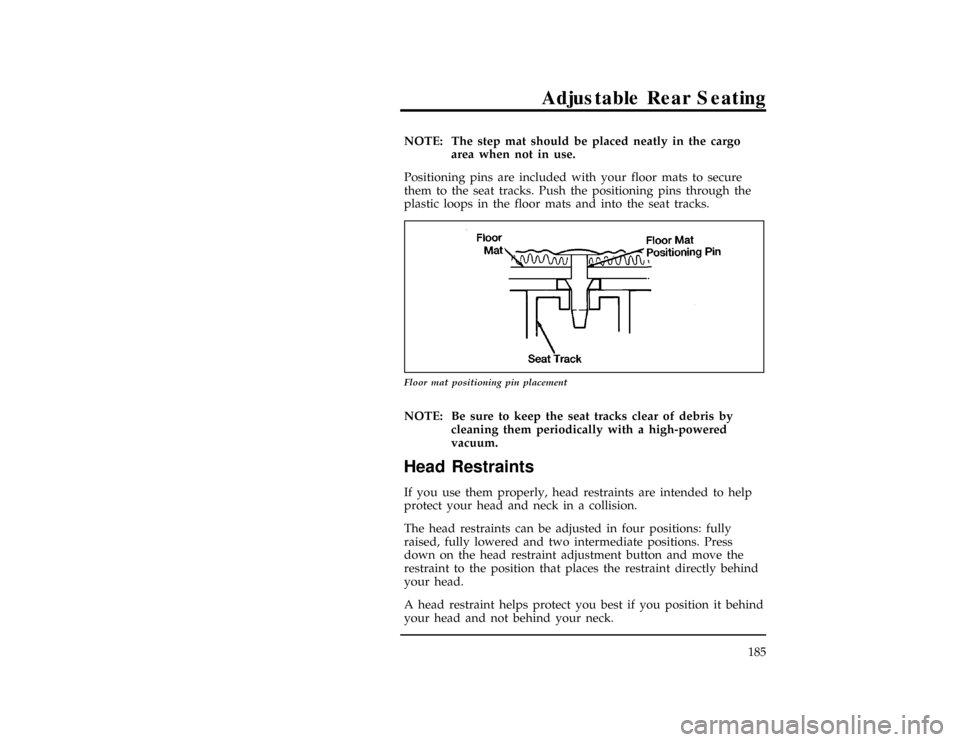

Floor mat positioning pin placement
[RR02600(ALL)09/95]
NOTE: Be sure to keep the seat tracks clear of debris by
cleaning them periodically with a high-powered
vacuum.
[RR02700(ALL)04/95]
Head Restraints
*
[RR02750(ALL)05/96]
If you use them properly, head restraints are intended to help
protect your head and neck in a collision.
[RR02800(ALL)01/96]
The head restraints can be adjusted in four positions: fully
raised, fully lowered and two intermediate positions. Press
down on the head restraint adjustment button and move the
restraint to the position that places the restraint directly behind
your head.
*
[RR02900(ALL)01/96]
A head restraint helps protect you best if you position it behind
your head and not behind your neck.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

186
[RR02950(ALL)06/95]
NOTE: If your vehicle is equipped with the optional
two-passenger bench seat with built-in child seats, the
head restraints on the two-passenger bench seat are
not adjustable.
[RR03000(ALL)01/96]
17-1/2 pica
art:0040136-A
The adjustable head restraint
[RR03100(ALL)07/93]
It is not necessary to remove the head restraints from the seats
when removing seats from the vehicle. However, you can
remove the head restraints by pressing the adjustment button at
the base of the head restraint and pulling the head restraint
upward. Remember to replace them when the seat is
re-installed.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

Adjustable Rear Seating
187
[RR03200(ALL)01/93]
RWARNING
The head restraints should be stored outside of the
vehicle (with the removed seat) to prevent them from
damaging the vehicle or injuring passengers in the case
of sudden braking or a collision.
[RR03300(ALL)01/93]
Two-Passenger Bench Seat
[RR03400(ALL)09/95]
NOTE: The two-passenger bench seat has a unique safety
restraint system. If your vehicle has the two-passenger
bench seat it is very important that the unique safety
belt system is used properly. Please read the section
in theSafety Restraintschapter that explains the
unique safety belt system and be sure you understand
it before anyone rides in the two-passenger bench
seat.
[RR03500(ALL)04/94]
If your vehicle has the second row two-passenger bench seat,
you can remove it if you need extra cargo space. With the
second-row seat removed, the third-row bench seat can be
moved up to a second-row seating or storage position for
additional rear cargo area room.
[RR03600(ALL)02/94]
To help prevent personal injury, at least two people are needed
to remove the seat.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

188
[RR03700(ALL)01/93]
Removing the Two-Passenger Bench Seat
[RR03800(ALL)04/94]1.
Remove the floor mats. Lift the seatback release lever and
fold down the back of the seat to the fully folded position.
[RR03900(ALL)09/93]
24 pica art:0040131-B

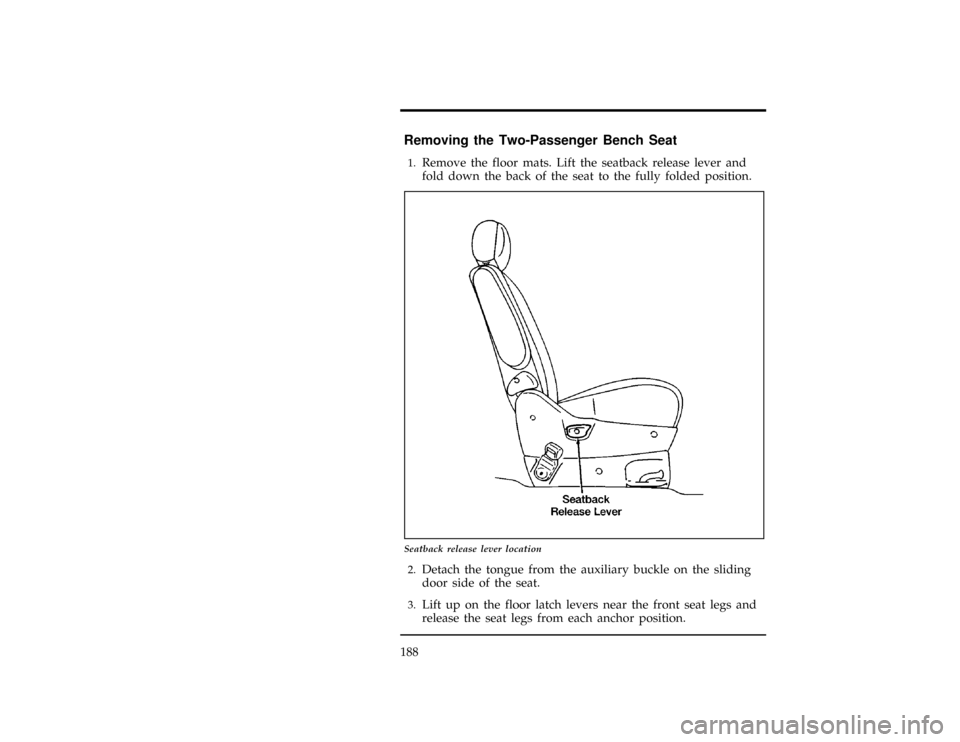

Seatback release lever location
[RR04000(ALL)05/96]2.
Detach the tongue from the auxiliary buckle on the sliding
door side of the seat.
[RR04100(ALL)01/93]3.
Lift up on the floor latch levers near the front seat legs and
release the seat legs from each anchor position.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

Adjustable Rear Seating
189
[RR04200(ALL)09/93]
24 pica art:0040147-B

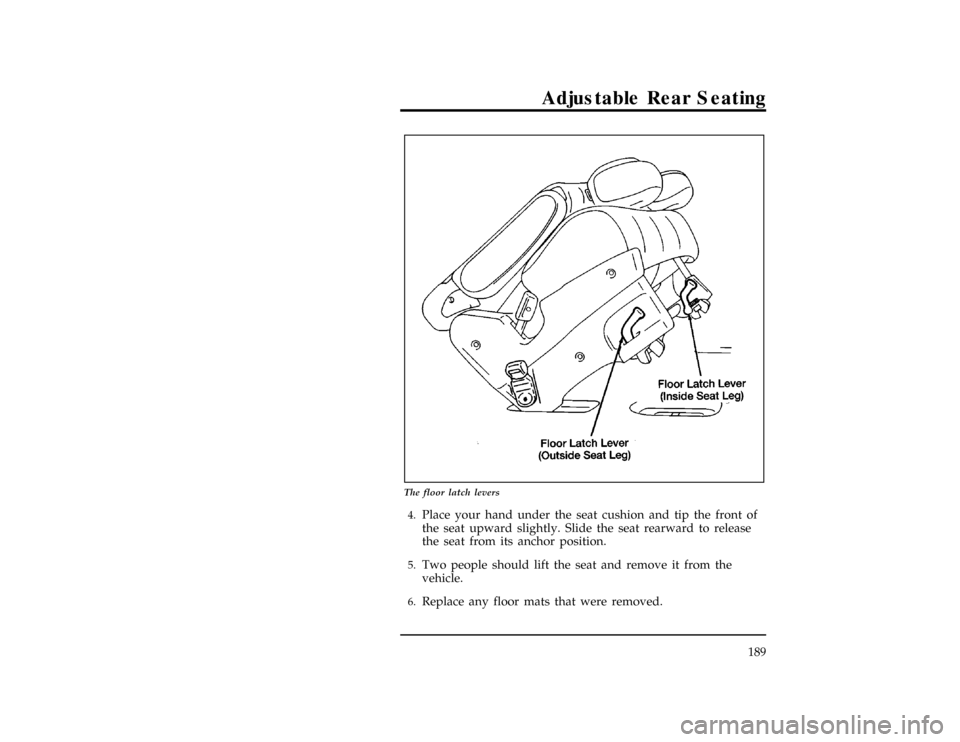

The floor latch levers
[RR04300(ALL)01/93]4.
Place your hand under the seat cushion and tip the front of
the seat upward slightly. Slide the seat rearward to release
the seat from its anchor position.
[RR04400(ALL)01/93]5.
Two people should lift the seat and remove it from the
vehicle.
[RR04450(ALL)06/95]6.
Replace any floor mats that were removed.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

190
[RR04500(ALL)01/93]
If you decide to move the three-passenger bench seat forward to
the second row position, passengers riding in the seat will use
the second row safety belts.
[RR04600(ALL)04/95]
Installing the Two-Passenger Bench Seat
[RR04700(ALL)01/93]
To replace the bench seat in its original position:
[RR04800(ALL)07/95]1.
Make sure the area around the floor anchor positions is free
from obstruction.
[RR04900(ALL)01/93]2.
With the seatback folded down, two people should lift the
seat into the vehicle.
[RR05000(ALL)01/93]3.
Place the seat slightly behind the floor anchor positions and
catch the rear leg anchors into each anchor position.
[RR05100(ALL)01/93]4.
Press down on the front of the seat to secure the front legs
to the two floor latch locks. Place the seatback in the upright
position.
[RR05200(ALL)01/93]5.
Try to move the seat to be sure that it is securely fastened.
[RR05300(ALL)05/96]6.
Always reattach the tongue into the auxiliary buckle
mounted to the sliding door side of the seat.
[RR05400(ALL)01/93]
Labels have been provided on the side of the seat to remind
you of important safety precautions.
[RR05700(ALL)01/93]7.
Replace any floor mats that were removed.
[RR05800(ALL)01/93]
RWARNING
Keep foreign objects out of the floor anchors. Objects in
the floor anchors could prevent front and rear seat legs
from engaging properly.
File:07vxrrn.ex
Update:Thu May 30 09:53:21 1996

Adjustable Rear Seating
191
[RR05900(ALL)01/93]
RWARNING
Before sitting in the removable seats, make sure that the
seat legs are securely attached by the floor anchors.
[RR06100(ALL)09/93]
Bucket Seats (If equipped)
[RR06200(ALL)01/93]
Quick-Release Bucket Seat
[RR06300(ALL)01/93]
The quick-release bucket seat option allows the bucket seat
nearest the sliding door to slide forward allowing easier entry
and exit to the third-row seats. Pull up on the seat adjustment
lever and slide the seat forward.
[RR06400(ALL)09/93]
17-1/2 pica
art:0040143-B

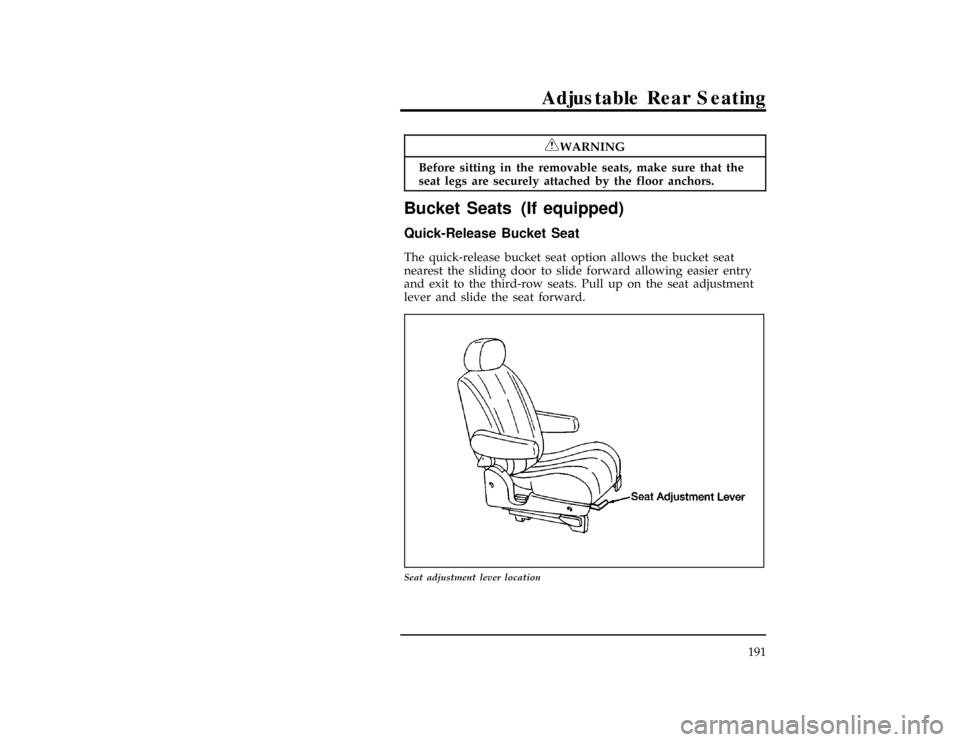

Seat adjustment lever location
