Instrumentation
[IS00300(ALL)01/96]
Warning Lights and Gauges
[IS00350(ALL)01/96]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. The illustrations on the following
pages show the major parts of the instrument panel described in
this chapter. Some items shown may not be on all vehicles.
[IS00440(ALL)01/96]
In your vehicle, the warning lights and gauges are grouped
together on the instrument panel. We call this grouping a
cluster. Your vehicle may have a mechanical cluster or an
electronic cluster.
*
[IS00450(ALL)01/96]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

8
[IS00600(ALL)05/96]
33-1/2 pica art:0040049-I

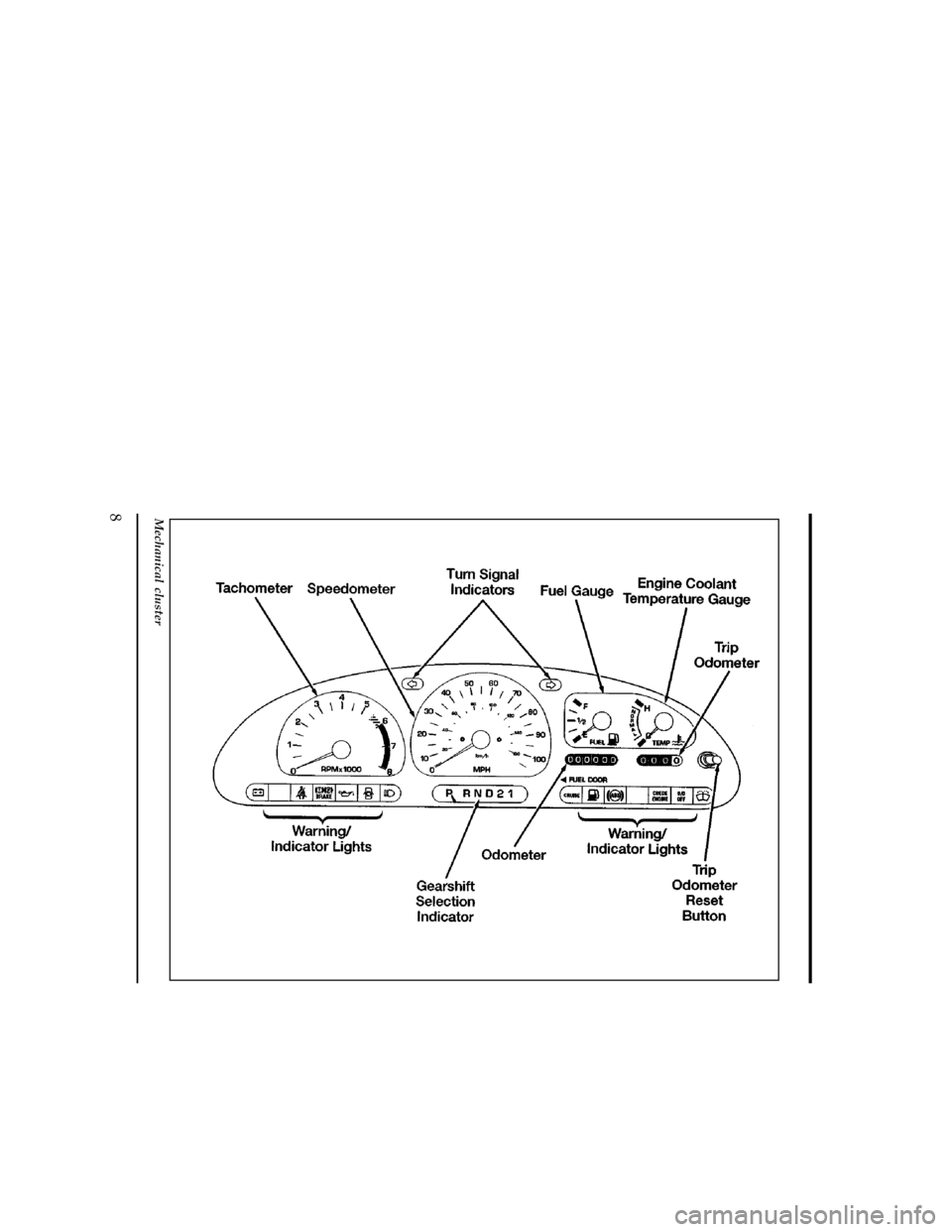

Mechanical cluster
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Instrumentation
9
[IS00800(ALL)01/96]
The following warning lights and gauges are on the mechanical
cluster. All of the warning lights and gauges alert you to
possible problems with your vehicle. Some of the lights listed
are optional. The following section explains what each of these
indicators means.
%*
[IS00850(ALL)04/96]
Indicator Lights and Chimes
%*
[IS00900(ALL)01/96]
Brake System Warning Light
*
[IS01000(ALL)03/96]
The warning light for the brakes can show two things Ð that
the parking brake is not fully released, or that the brake fluid
level is low in the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by your dealer or a
qualified service technician.
[IS01100(ALL)01/96]
6 pica art:0040050-A
Brake system and parking brake light
[IS01200(ALL)03/96]
The BRAKE light normally illuminates when you turn the
ignition key to the ON position to verify that the indicator bulb
is working. If the light stays on or comes on when the engine is
running and after you have released the parking brake fully,
have the hydraulic brake system serviced.
*
[IS01300(ALL)03/96]
RWARNING
The BRAKE light indicates that the brakes may not be
working properly. Have the brakes checked immediately.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

10
%*
[IS01400(ALL)05/96]
Anti-Lock Brake System Warning Light (If Equipped)
*
[IS01500(ALL)01/96]
To check the anti-lock brake warning light, turn the ignition key
to the ON position. The ABS warning light should glow
momentarily.
*
[IS01600(ALL)01/96]
NOTE: If it does not glow at all or stays on for a long time,
have your vehicle's electrical system checked
immediately.
[IS01700(ALL)01/96]
6 pica art:0040051-B
Anti-lock brake system warning light
*
[IS01800(ALL)03/96]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
*
[IS01810(ALL)03/96]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Instrumentation
11
%*
[IS01900(ALL)03/96]
Safety Belt Warning Light and Chime
[IS02005(ALL)01/96]
This warning light and chime remind you to fasten your safety
belt.
[IS02010(ALL)05/96]
n
If the safety belt is not buckled when the ignition is turned
to the ON position, the chime will sound for four (4) to eight
(8) seconds and the light will remain on until the safety belt
is fastened.
*
[IS02025(ALL)01/96]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and chime will turn off.
[IS02035(ALL)05/96]
n
If the safety belt is buckled before the ignition is turned to
the ON position, the chime does not sound, and the warning
light will not illuminate.
[IS02100(ALL)01/96]
6 pica art:0040052-A
Safety belt warning light
%*
[IS02125(ALL)03/96]
Air Bag Readiness Light
[IS02140(ALL)05/96]
The supplemental air bag system uses a readiness light to
indicate the condition of the system. If the system is functioning
properly, the light will illuminate for about six (6) seconds when
the ignition switch is turned to the ON position.
[IS02145(ALL)01/96]
If there is a problem with the system, the readiness light may
fail to illuminate, continue to flash, or remain on. If any of these
conditions occur, have the system serviced as soon as possible.
Unless the system is serviced, the supplemental air bag system
may not function properly in the event of a collision.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

12
[IS02150(ALL)04/96]
A problem with the system is indicated by one or more of the
following: the readiness light will either flash or stay lit, or it
will not light, or a group of five beeps will be heard.
*
[IS02160(ALL)05/96]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
[IS02180(ALL)01/96]
6 pica art:0040262-A
Supplemental air bag readiness light
%*
[IS02200(ALL)03/96]
Check Engine Warning Light
*
[IS02300(ALL)03/96]
This light illuminates when the electronic engine control system
is not working properly. This is the computer that controls the
operating conditions of the engine.
[IS02400(ALL)01/96]
6 pica art:0040053-A
Check engine warning light
[IS02500(ALL)05/96]
This light illuminates briefly when you turn the ignition key to
ON, but should turn off when the engine starts. If the light does
not come on when you turn the ignition to ON or if it
illuminates and stays on when you are driving, have your
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Instrumentation
13 vehicle serviced as soon as possible. This indicates a possible
problem with one of the engine's emission control systems. You
do not need to have your vehicle towed.
%*
[IS02700(ALL)01/96]
Charging System Light
*
[IS02800(ALL)04/96]
This light indicates that your battery is not being charged and
that you need to have the electrical system checked.
[IS02900(ALL)01/96]
6 pica art:0040054-A
Charging system light
[IS03000(ALL)04/96]
This light illuminates every time you turn your ignition key to
the ON or START position. The light should go off when the
engine starts and the alternator begins to charge.
*
[IS03100(ALL)03/96]
If the light stays on or illuminates when the engine is running,
have the electrical system checked as soon as possible.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

14
%*
[IS03200(ALL)01/96]
Engine Oil Pressure Warning Light
[IS03300(ALL)05/96]
The oil pressure light is represented by an oil can symbol. It
indicates the engine's oil pressure, not oil level. However, if
your engine's oil level is low, it could affect the oil pressure.
The oil pressure light will flash if the oil pressure drops below
the normal operating level. When you turn the key to the ON
position, the light will illuminate.
[IS03400(ALL)01/96]
6 pica art:0040060-A
Oil pressure light
[IS03500(ALL)01/96]
The light should turn off after a few seconds. If the light stays
on or illuminates when the engine is running Ð you have lost
oil pressure and continued operation will cause severe engine
damage.
*
[IS03550(ALL)05/96]
If you lose engine oil pressure:
*
[IS03600(ALL)04/96]1.
Pull off the road as soon as safely possible.
*
[IS03700(ALL)03/96]2.
Turn off the engine. If you do not stop the engine as soon as
safely possible, severe engine damage could result.
[IS03800(ALL)01/96]3.
Check the oil level following the instructions on checking
and adding engine oil in this owner guide. (SeeEngine oilin
the index.) Make sure your vehicle is on level ground.
[IS03900(ALL)01/96]4.
If the level is low, add as much oil as necessary before you
drive your vehicle again. Do not drive your vehicle if the oil
pressure light is on, even if the oil level is correct. For more
information about adding oil, seeEngine oil, checking and
addingin the Index.
