1997 Mercury Villager Owner's Manuals

128
%*
[SS00168(ALL)05/96]
Storage Compartments
*
[SS00170(ALL)01/96]
Underseat Storage Compartment (If equipped)
[SS00172(ALL)01/96]
The underseat storage compartment is located underneath the
front passenger seat. It can be opened by pulling it toward the
instrument panel.
[SS00174(ALL)01/96]
24 pica art:0040107-C

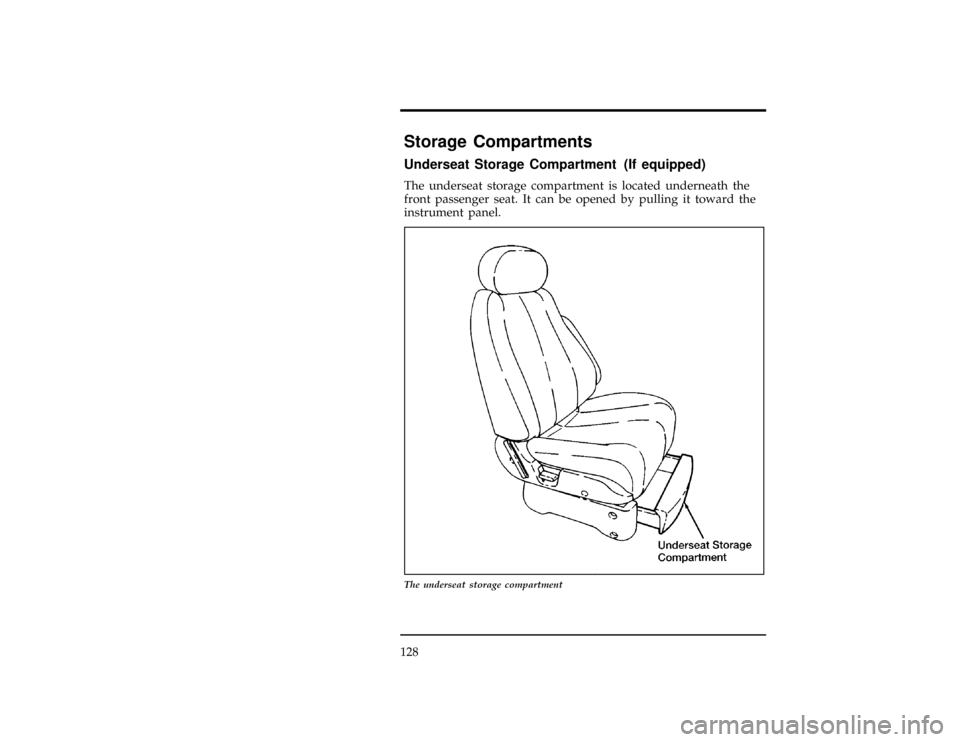

The underseat storage compartment
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
129
[SS00182(ALL)01/96]
Front Seat Cupholders
[SS00184(ALL)01/96]
The front seat cupholders are located on the side of the
passenger's seat. Find the indented ledge and pull it down,
away from the side of the seat, toward the driver's seat. When
the cupholder is not in use, push the cupholders into the cover
and lift the cover into its fully stored position.
[SS00186(ALL)01/96]
24 pica art:0040116-D
Using the front seat cupholders
*
[SS00188(ALL)04/96]
NOTE: Do not place heavy objects in the cupholders.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

130
[SS00190(ALL)01/96]
Rear Seat Cupholders (available on some models)
[SS00192(ALL)01/96]
Your vehicle may also have rear seat cupholders built into the
side panels.
[SS00194(ALL)01/96]
RWARNING
Objects stored on the ledges below the rear side
windows can become dangerous projectiles during a
sudden stop or collision. Put small objects only in the
storage compartments.
[SS00196(ALL)01/96]
Third Row Seat Storage Compartment (If equipped)
[SS00198(ALL)01/96]
Your vehicle may come equipped with a folding
cupholder/storage tray/storage compartment built into the
passenger's side of the third row seat. Find the indented ledge
on the right of the cupholder and pull it up to reveal the
storage compartment.
[SS00200(ALL)01/96]
Power Point Electrical Outlet (If equipped)
[SS00202(ALL)01/96]
Your vehicle may be equipped with a 12 volt power point
outlet located just below the rear seat audio controls. The power
point can be used in place of the cigarette lighter for optional
electrical accessories.
[SS00204(ALL)05/96]
NOTE: Do not plug the cigarette lighter into this power point
electrical outlet. Use the cigarette lighter.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
131
%*
[SS00600(ALL)02/96]
Important Safety Belt Information
*
[SS00700(ALL)05/96]
The use of safety belts helps to restrain you and your
passengers in case of a collision. In most states and in Canada,
the law requires their use.
*
[SS00800(ALL)02/96]
Safety belts provide best restraint when:
*
[SS00900(ALL)02/96]
n
the seatback is upright
*
[SS01000(ALL)02/96]
n
the occupant is sitting upright (not slouched)
*
[SS01100(ALL)02/96]
n
the lap belt is snug and low on the hips
*
[SS01200(ALL)02/96]
n
the shoulder belt is snug against the chest
*
[SS01300(ALL)02/96]
n
the knees are straight forward
*
[SS01400(ALL)02/96]
To help you remember to fasten your safety belt, a warning
light may come on and a chime may sound. SeeSafety Belt
Warning Light and Chimein theInstrumentationchapter.
*
[SS01900(ALL)02/96]
See the following sections in this chapter for directions on how
to properly use these safety belts. Also seeSafety Restraints for
Childrenin this chapter for special instructions about using
safety belts for children.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

132
*
[SS02000(ALL)02/96]
RWARNING
Always drive and ride with your seatback upright and
the lap belt snug and low across the hips.
*
[SS02050(ALL)05/96]
RWARNING
Each seating position in your vehicle has a specific safety
belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the
shoulder belt on the outside shoulder only. Never wear
the shoulder belt under the arm. 2) Never swing it
around your neck over the inside shoulder. 3) Never use
a single belt for more than one person.
*
[SS02100(ALL)01/96]
RWARNING
Never drive or ride with a twisted or jammed safety belt.
If you cannot untwist or unjam the safety belt, see the
nearest qualified technician immediately.
*
[SS02200(ALL)05/96]
RWARNING
Children should always ride with the seatback in the
fully upright position.
*
[SS02700(ALL)02/96]
RWARNING
Lock the doors of your vehicle before driving to lessen
the risk of the door coming open in a collision.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
133
%*
[SS10000(ALL)02/96]
Combination Lap and Shoulder Belts
[SS10050(ALL)01/96]
While your vehicle is in motion, the combination lap and
shoulder belt adjusts to your movement. However, if you brake
hard, turn hard, or if your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt locks and helps to
reduce your forward movement.
*
[SS10200(ALL)01/96]
After you get into your vehicle, close the door and lock it. Then
adjust the seat to the position that suits you best.
[SS10400(ALL)01/96]
To fasten the belt, pull the combination lap and shoulder belt
from the retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt is not twisted.
If it is, remove the twist. Insert the belt tongue into the proper
buckle until you hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by pulling on tongue.
[SS10420(ALL)01/96]
10-1/2 pica
art:0040315-A

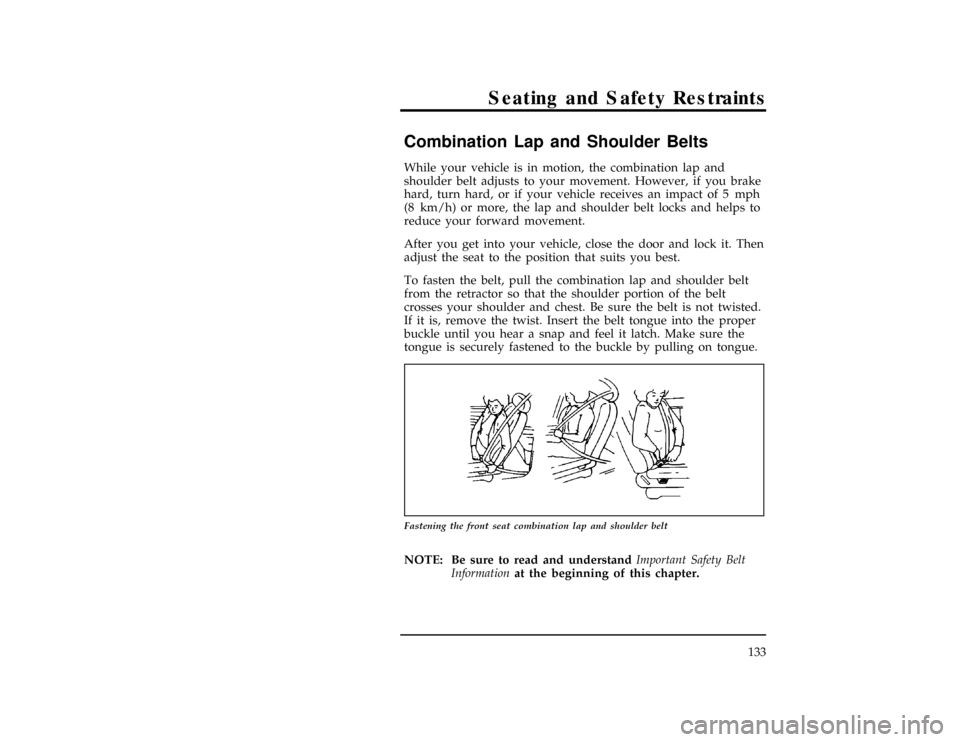

Fastening the front seat combination lap and shoulder belt
[SS10430(ALL)01/96]
NOTE: Be sure to read and understandImportant Safety Belt
Informationat the beginning of this chapter.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

134
[SS10450(ALL)01/96]
7-1/2 pica art:0040314-A

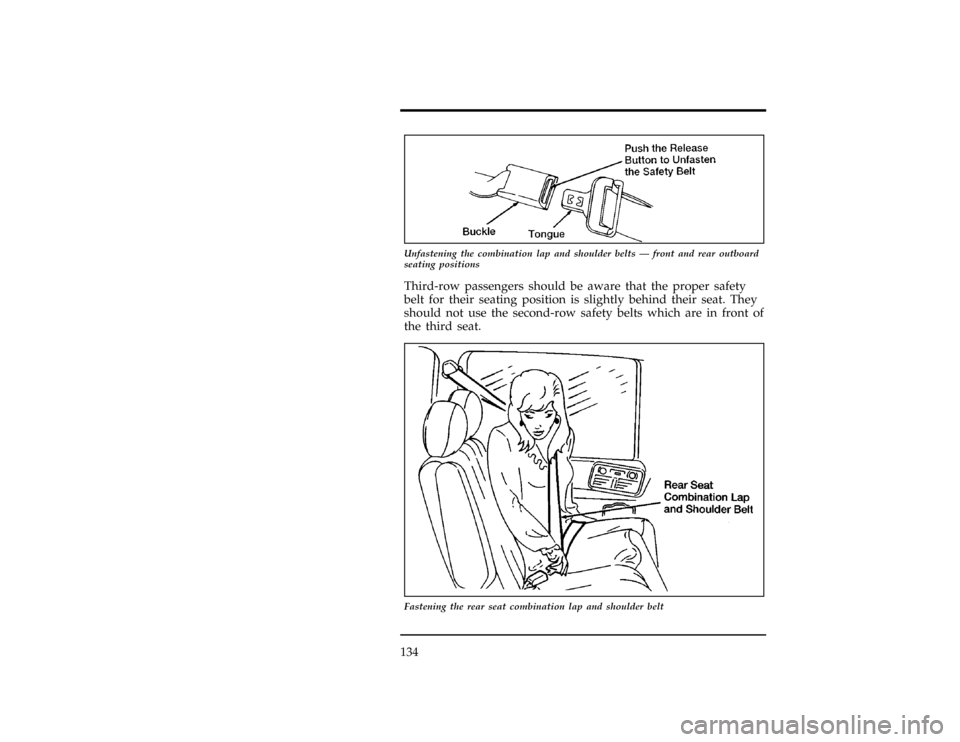

Unfastening the combination lap and shoulder belts Ð front and rear outboard
seating positions
[SS10500(ALL)01/96]
Third-row passengers should be aware that the proper safety
belt for their seating position is slightly behind their seat. They
should not use the second-row safety belts which are in front of
the third seat.
[SS10600(ALL)01/96]
17-1/2 pica
art:0040004-A
Fastening the rear seat combination lap and shoulder belt
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
135
*
[SS10800(ALL)01/96]
To tighten the lap portion of the belt, pull up on the shoulder
belt until it fits you snugly. The belt should rest as low on your
hips as possible.
[SS10850(ALL)01/96]
The passenger seated near the sliding door in the
three-passenger bench seat can route the safety belt webbing
under the guide located on the head restraint. This safety belt
guide is designed to help keep the safety belt webbing properly
positioned across the passenger's chest for maximum comfort.
This guide is only needed when the two-passenger second row
bench seat is removed and the three-passenger bench seat is
moved up to the second-row position.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996
