1997 Mercury Villager Owner's Manuals

Controls and Features
95
%*
[CF25900(ALL)05/96]
Resetting the Speed Control
[CF25950(ALL)01/96]
To reset at a higher speed, use one of the following methods:
[CF26000(ALL)01/96]
n
Press the accelerator pedal. When the speedometer indicates
the desired speed, push and release the COAST/SET button.
[CF26100(ALL)01/96]
n
Push and hold the RESUME/ACCEL button. When the
vehicle attains the speed you desire, release the switch.
[CF26200(ALL)01/96]
n
Push, then quickly release the RESUME/ACCEL button. Each
time you do this, the set speed will increase by about 1 mph
(1.6 km/h).
[CF26300(ALL)01/96]
To reset at a lower speed, use one of the following methods:
[CF26400(ALL)01/96]
n
Lightly tap the brake pedal. When the speedometer indicates
the desired speed, push the COAST/SET button and release
it.
[CF26500(ALL)01/96]
n
Push and hold the COAST/SET button. Release the button
when the vehicle slows down to the desired speed.
[CF26600(ALL)05/96]
n
Push, then quickly release the COAST/SET button. Each time
you do this, the set speed will decrease by about 1 mph
(1.6 km/h).
%*
[CF26700(ALL)05/96]
Resuming a Set Speed
[CF26800(ALL)01/96]
To resume the preset speed, push and release the
RESUME/ACCEL button. The vehicle will resume the last set
speed as long as the vehicle is traveling at a speed over 30 mph
(48 km/h).
[CF26810(ALL)01/96]
Information About the Speed Control System
[CF26820(ALL)01/96]
If the speed control system malfunctions, it will cancel
automatically. The CRUISE indicator in the instrument cluster
will then blink to warn the driver.
[CF26830(ALL)01/96]
When the CRUISE indicator blinks, press the speed control OFF
switch and have the system checked by your Ford or
Lincoln-Mercury dealer.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

96
[CF26840(ALL)05/96]
The CRUISE indicator light may blink if the CRUISE CONT.
ON switch is pressed while pushing the RESUME/ACCEL,
COAST/SET, or CANCEL buttons located on the left side of the
steering wheel.
[CF27000(ALL)01/96]
Power Sunroof (If equipped)
[CF27100(ALL)01/96]
The power sunroof controls are found in the overhead console.
The power sunroof operates with the ignition in the ON
position.
[CF27200(ALL)01/96]
7-1/2 pica art:0040103-A
Power sunroof controls
[CF27300(ALL)01/96]
To open the sunroof, press and hold the OPEN side of the
switch. Release the switch when the sunroof reaches the desired
position. To close the sunroof, press the CLOSE side of the
switch.
[CF27400(ALL)01/96]
When the sunroof panel is closed, you can raise the sunroof to
the vent position by pressing the UP side of the switch. To
lower the sunroof from the vent position, press the DOWN side
of the switch.
*
[CF27500(ALL)01/96]
RWARNING
Do not let children play with the moon roof. They may
seriously hurt themselves.
[CF27600(ALL)01/96]
Remove any snow, water or other foreign matter from the
sunroof before you open it.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
97
*
[CF27700(ALL)01/96]
Sliding Shade
[CF27800(ALL)01/96]
The sunroof has a sliding shade you can manually open or close
to block the sun when the glass panel is shut. To close the
sliding shade, pull the shade toward the front of the vehicle.
The shade automatically opens when the sunroof is opened.
%*
[CF28000(ALL)02/96]
Doors
*
[CF28100(ALL)01/96]
For information on the liftgate refer to theLiftgatesection later
in this chapter.
[CF28200(ALL)01/96]
Exterior Locks
[CF28300(ALL)01/96]
To unlock the door with the key, place the key in the door lock
cylinder and turn it toward the rear of the vehicle. To unlock all
the doors, turn the key toward the rear of the vehicle a second
time within 2-3 seconds (if equipped). To lock the door with the
key, turn it toward the front of the vehicle. Return the key to
the neutral position (straight up in the lock cylinder) to remove
it.
[CF28400(ALL)01/96]
13-1/2 pica
art:0040118-C
The exterior door lock Ð passenger side doors shown
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

98
[CF28500(ALL)01/96]
Automatic Door Lock
[CF28600(ALL)01/96]
If your vehicle is equipped with the optional power door locks,
locking the driver's door with the key or with the manual
rocker switch will also lock all other doors. However, when the
driver's door is unlocked, with the key or with the manual
rocker switch, other doors remain locked.
[CF28700(ALL)01/96]
Anti-Lockout
[CF28800(ALL)01/96]
Your vehicle is equipped with an anti-lockout feature which
prevents the driver's side door from being locked while the key
is in the ignition. To lock the driver's side door, remove the key
from the ignition and then use either the manual rocker switch
or the door lock cylinder.
[CF28900(ALL)01/96]
Accessory Delay (If equipped)
[CF29000(ALL)01/96]
Accessory Delay is a feature that allows vehicles equipped with
power windows and the power sunroof to operate all power
windows and the power sunroof for 15 minutes after the
ignition is turned to OFF or until the driver's door is opened
(after ignition is turned to OFF).
*
[CF29100(ALL)01/96]
Sliding Door
*
[CF29200(ALL)01/96]
The sliding door allows rear seat passengers to enter and exit
easily.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
99
[CF29300(ALL)01/96]
13-1/2 pica
art:0040122-B

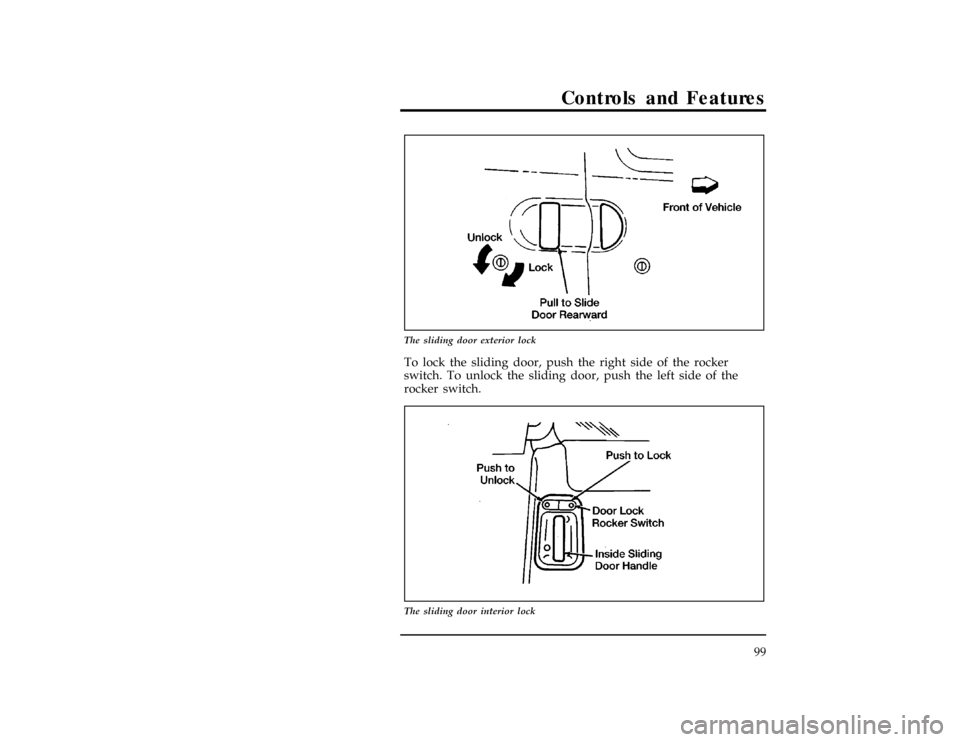

The sliding door exterior lock
[CF29400(ALL)01/96]
To lock the sliding door, push the right side of the rocker
switch. To unlock the sliding door, push the left side of the
rocker switch.
[CF29500(ALL)01/96]
13-1/2 pica
art:0040094-B
The sliding door interior lock
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

100
[CF29600(ALL)01/96]
To open the sliding door from inside or outside of the vehicle,
pull the handle toward the rear of the vehicle. The door will
stay open if you slide it all the way back until the catch at the
bottom of the door engages.
[CF29700(ALL)01/96]
To release the catch and close the door, pull the handle toward
the front of the vehicle. Be sure it is fully closed.
%*
[CF29800(ALL)01/96]
Childproof Lock for the Sliding Door
%*
[CF29900(ALL)01/96]
Your vehicle has a childproof lock for the sliding door. If you
set the childproof lock, the sliding door cannot be opened from
inside the vehicle.
*
[CF30000(ALL)01/96]
This lock will keep children from opening the door from the
inside; the door can still be opened from the outside if the door
is unlocked.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
101
[CF30100(ALL)01/96]
24 pica art:0040120-C

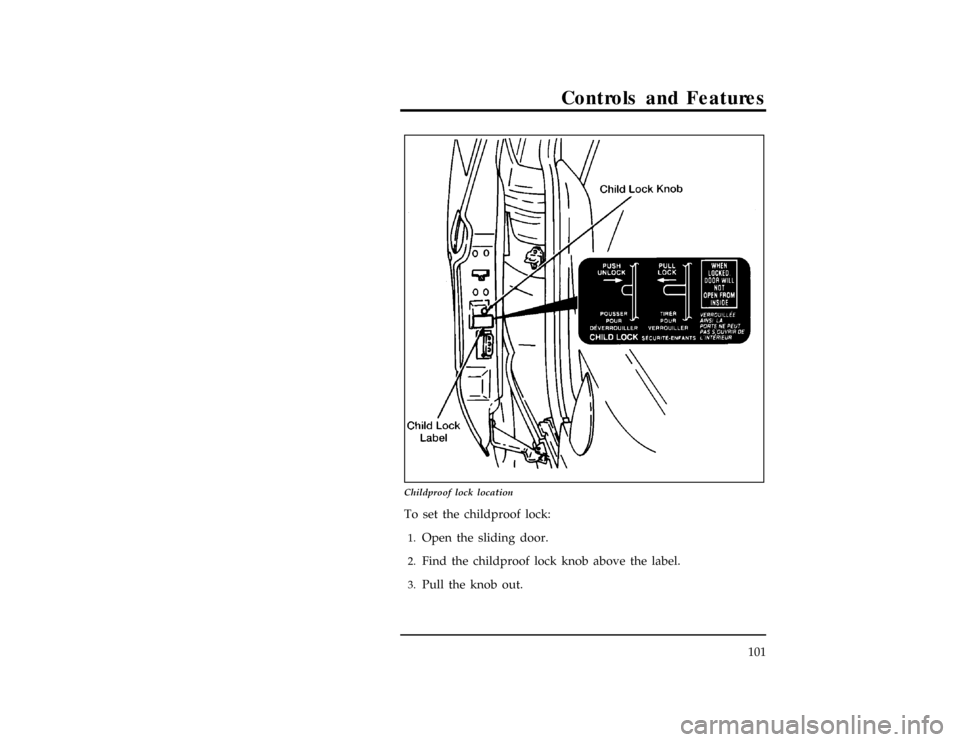

Childproof lock location
*
[CF30200(ALL)01/96]
To set the childproof lock:
*
[CF30300(ALL)01/96]1.
Open the sliding door.
[CF30350(ALL)01/96]2.
Find the childproof lock knob above the label.
[CF30400(ALL)01/96]3.
Pull the knob out.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

102
*
[CF30450(ALL)01/96]
To release the childproof lock:
*
[CF30500(ALL)01/96]1.
Open the sliding door from the outside.
[CF30550(ALL)01/96]2.
Push the childproof lock knob in.
%*
[CF30600(ALL)01/96]
Power Door Locks (If equipped)
[CF30700(ALL)01/96]
The power door lock control switches are located in the panels
of the front doors. They control the locks on both front doors,
the sliding door and the liftgate.
[CF30800(ALL)05/96]
13-1/2 pica
art:0040095-H

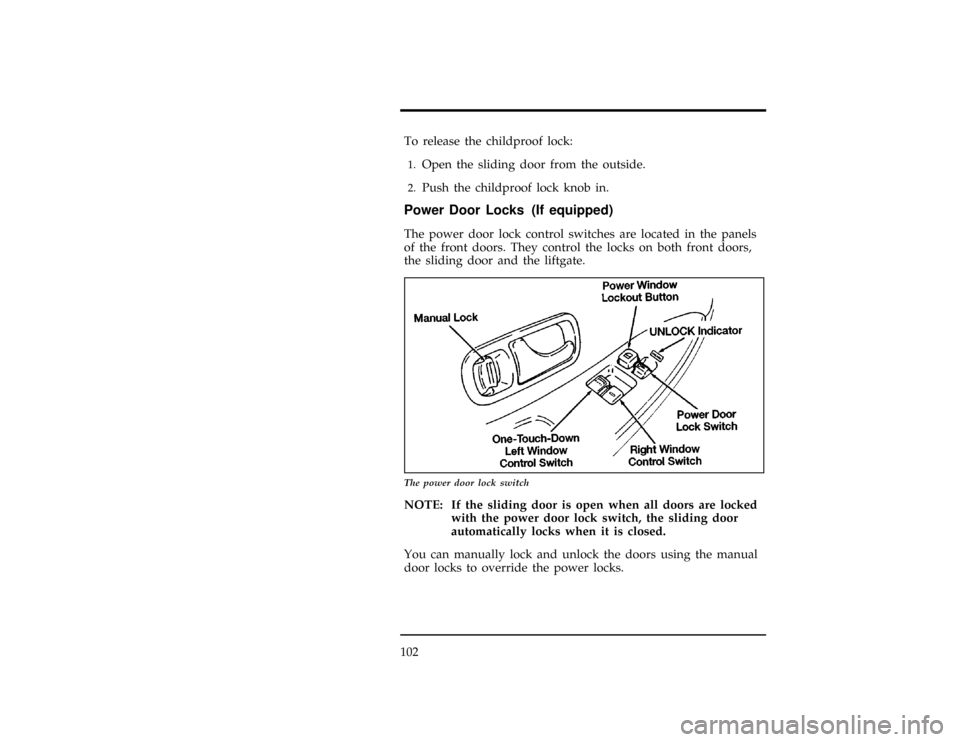

The power door lock switch
*
[CF30900(ALL)01/96]
NOTE: If the sliding door is open when all doors are locked
with the power door lock switch, the sliding door
automatically locks when it is closed.
*
[CF31000(ALL)01/96]
You can manually lock and unlock the doors using the manual
door locks to override the power locks.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996
