Roadside Emergencies
251
[ER00244(ALL)01/96]4.
Use the fuse puller tool to remove the blown fuse and
replace the fuse with one that has the right amperage rating
(see the fuse panel cover for amperage ratings).
*
[ER00246(ALL)01/96]
RWARNING
Always replace a fuse with one that has the specified
amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a
fire.
*
[ER00248(ALL)01/96]5.
Put the fuse panel cover back on.
*
[ER00250(ALL)04/96]
Even after you replace a fuse, it may continue to blow if you do
not find what caused the overload. If the fuse continues to
blow, have your electrical system checked.
*
[ER00252(ALL)01/96]
The following chart indicates the colors and amperage ratings of
standard fuses.
[ER00254(ALL)01/96]
twelve pica
chart:0040237-AFile:10vxern.ex
Update:Thu May 30 09:55:50 1996

252
%*
[ER00256(ALL)01/96]

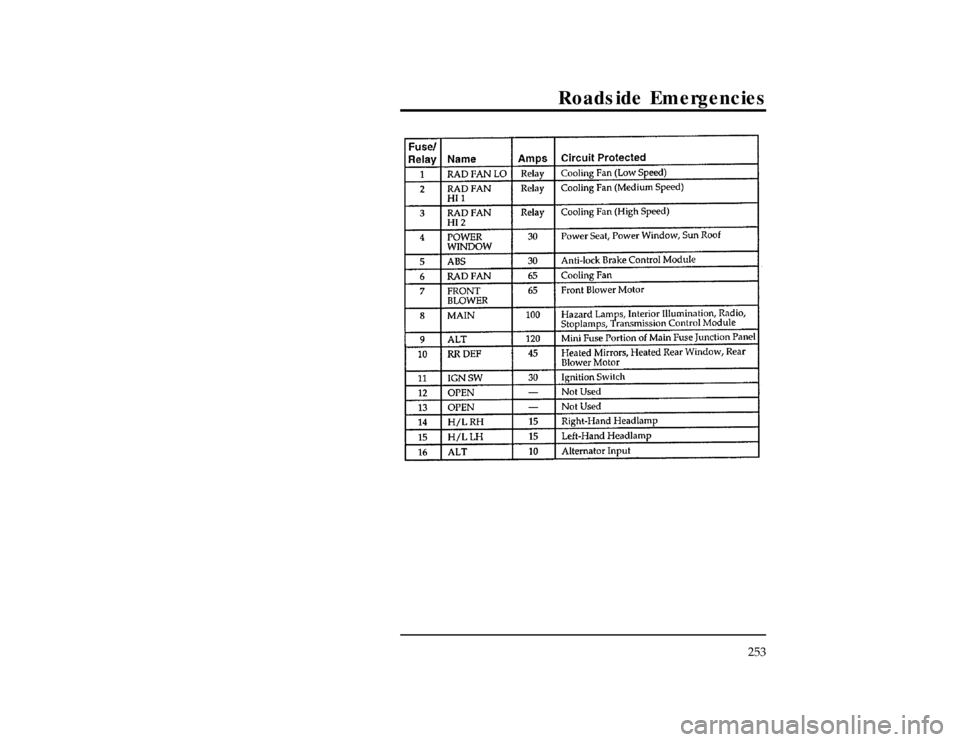

Engine Compartment Main Fuse Panel
[ER00258(ALL)01/96]
10-1/2 pica
art:0040303-A
Engine compartment main fuse panel
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

Roadside Emergencies
253
[ER00260(ALL)01/96]
twenty-two pica
chart:0040241-DFile:10vxern.ex
Update:Thu May 30 09:55:50 1996

254
[ER00262(ALL)01/96]
eighteen pica
chart:0040328-B%*
[ER00264(ALL)01/96]
Circuit Breakers
[ER00266(ALL)01/96]
If you need to check a circuit breaker that is on the fuse panel,
seeFuses, checking and replacingin the Index to find out how to
locate the fuse panel.
[ER00268(ALL)01/96]
Since you need diagnostic equipment to check whether a circuit
breaker works and such equipment comes with instructions, we
do not discuss how to check circuit breakers. If you have
questions about circuit breakers or how to check them, see your
Lincoln-Mercury dealer.
*
[ER00270(ALL)01/96]
However, you should know that the circuit breakers will reset
themselves and allow the electrical parts to work again once the
overload on the circuit is removed. If the circuit breakers
continue to cut off electricity, have your vehicle's electrical
system checked.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

Roadside Emergencies
255
[ER00272(ALL)01/96]
If you replace a circuit breaker, use one with the same
amperage rating. To remove a circuit breaker mounted by the
fuse panel, grip it with your finger and thumb and pull it
straight out of its socket.
%*
[ER00274(ALL)01/96]
Relays
[ER00275(ALL)01/96]
Relays are devices which receive signals from components or
systems. After receiving signals, relays transfer these signals to
activate or deactivate other components or systems. A relay box
is located near the windshield washer fluid reservoir.
[ER00276(ALL)01/96]
10-1/2 pica art:0040207-F
The relay box
[ER00278(ALL)01/96]
ten pica chart:0040243-EFile:10vxern.ex
Update:Thu May 30 09:55:50 1996

256
%*
[ER00500(ALL)01/96]
Changing a Flat Tire
*
[ER00505(ALL)02/96]
If you get a flat tire while you are driving, do not apply the
brake heavily. Instead, gradually decrease the speed. Hold the
steering wheel firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off the ignition, set
the parking brake, and turn on the hazard flashers.
%*
[ER00510(ALL)02/96]
The Temporary Spare Tire
*
[ER00515(ALL)01/96]
Your vehicle has a temporary spare tire (unless you ordered the
optional full-size spare tire). This spare tire is smaller than a
regular tire and is designed for emergency use only. Use it only
when you get a flat tire and replace it as soon as you can. This
spare tire is marked with the words TEMPORARY USE ONLY
so that you can easily identify it.
*
[ER00520(ALL)02/96]
RWARNING
If you use the temporary spare tire continuously or do
not follow these precautions, the tire could fail, causing
you to lose control of the vehicle, possibly injuring
yourself or others.
*
[ER00525(ALL)01/96]
When you drive with the temporary spare tire, DO NOT:
*
[ER00530(ALL)01/96]
n
exceed 50 mph (80 km/h) under any circumstances
*
[ER00535(ALL)01/96]
n
load your vehicle so that it is heavier than the maximum
vehicle load rating listed on the tire decal
*
[ER00540(ALL)01/96]
n
tow a trailer
*
[ER00545(ALL)01/96]
n
use tire chains
*
[ER00550(ALL)01/96]
n
try to repair the temporary spare tire or remove it from its
wheel
*
[ER00555(ALL)01/96]
n
use the wheel for any other type of vehicle
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

Roadside Emergencies
257
*
[ER00560(ALL)01/96]
n
drive through an automatic car wash. Because the temporary
spare tire is smaller than a conventional tire, it reduces the
ground clearance. Your vehicle may get caught in the rails
and it could be damaged.
%*
[ER00565(ALL)02/96]
Spare Tire Location
[ER00570(ALL)01/96]
The spare tire is stored underneath your vehicle.
%*
[ER00575(ALL)03/96]
To remove the spare tire:
*
[ER00580(ALL)01/96]1.
Open the liftgate and find the plastic hex nut cover in the
carpeting of the cargo area. Lift the cover to expose the hex
nut.
[ER00585(ALL)01/96]
17-1/2 pica
art:0040171-A
The spare tire hex nut
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

258
*
[ER00590(ALL)05/96]2.
Find the lug wrench in the tool kit located behind the jack in
the right cargo area side panel.
*
[ER00595(ALL)01/96]3.
Fit the hex-shaped end of the lug wrench over the hex nut
in the floor of the cargo area. Turn counterclockwise until
the cable extends far enough to lower the spare tire to the
ground.
*
[ER00600(ALL)01/96]
10-1/2 pica
art:0040172-B
The spare tire in the lowered position
*
[ER00605(ALL)01/96]4.
Continue to turn the hex nut counterclockwise until the
spare tire retainer can be seen for removal.
*
[ER00610(ALL)01/96]5.
Remove the retainer from the center of the wheel. It may be
necessary to lift one end of the tire to disengage the retainer.
