1997 FORD MUSTANG Owners Manual

203
*
[ER21600( ALL)02/96]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
[ER21700( ALL)02/96]

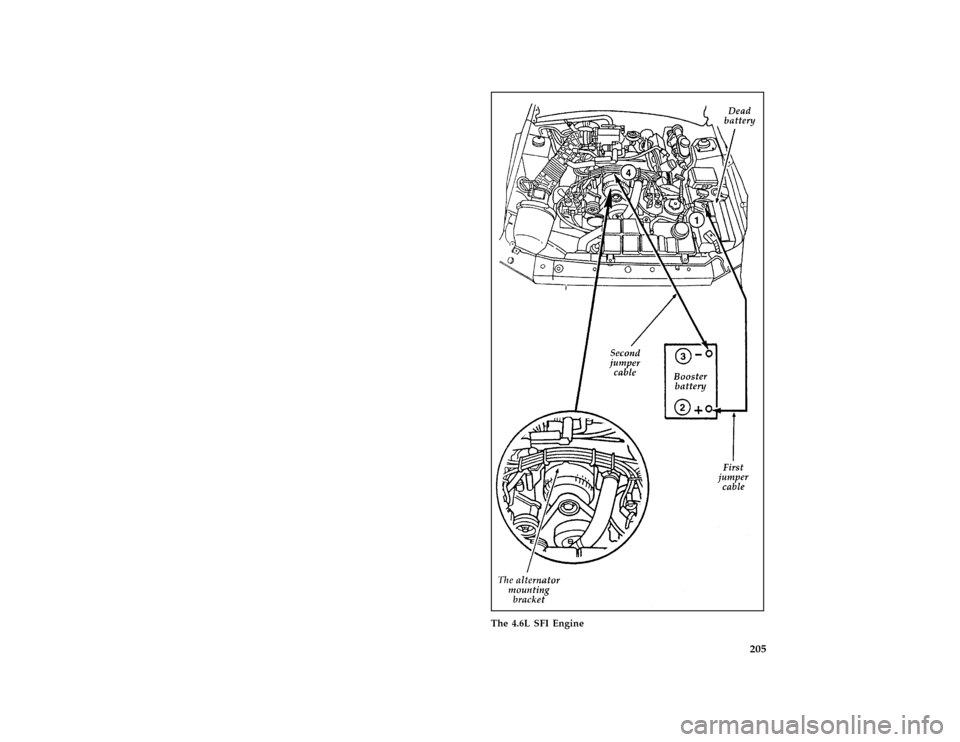

4. Connect the other end of that cable to a
good metallic surface on the engine or frame
of the disabled vehicle making sure it is
clear of any rotating engine components. The
following illustrations show where you can
find a metallic surface.
*
[ER21800( ALL)02/96]
WARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

204 [ER21900(M )02/96]
full page art:0010332-FThe 3.8L SFI engine
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

205 [ER22105(M)04/96]
full page art:0011393-A
The 4.6L SFI Engine
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

206
*
[ER22300( ALL)02/96]
Jump-Starting
*
[ER22400( ALL)02/96]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[ER22500( ALL)02/96]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[ER22600( ALL)02/96]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[ER22700( ALL)02/96]
Removing jumper cables
*
[ER22800( ALL)02/96]
1.Always remove the jumper cables in the
reverse order.Remove the negative (S) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[ER22900( ALL)03/96]
2. Remove the negative (S) cable from the
booster battery.
*
[ER23000( ALL)02/96]
3. Remove the positive (+) cable from the
booster battery.
*
[ER23100( ALL)02/96]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[ER23200( ALL)02/96]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.ºYou may need to
use a battery charger to fully recharge the
battery.
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

207
%*
[ER23500( ALL)04/96]
Towing Your Vehicle
*
[ER23600( ALL)01/96]
If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.
[ER23670(M )04/96]
Mustang/Mustang GT
[ER23675(M )04/96]

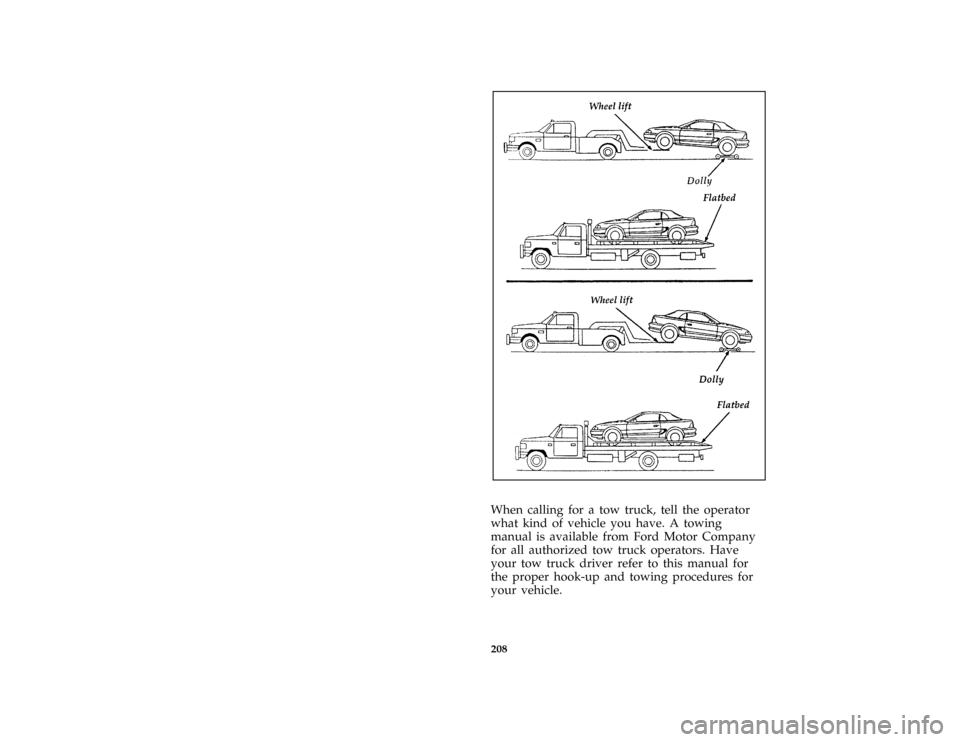

It is recommended that your vehicle be towed
with wheel lift or flatbed equipment. If slingbelt
equipment must be used, the towbar will deform
the soft fascia (bumper). However, it will return
to an acceptable shape.
[ER23680(M )04/96]
Mustang Convertible
[ER23685(M )04/96]
DO NOT TOW WITH SLINGBELT
EQUIPMENT. Ford Motor Company has not
developed or approved a T-hook sling-type
procedure. Use wheel lift or flatbed equipment.
If your vehicle is to be towed from the rear
using wheel lift equipment, the front wheels
must be placed on a dolly to prevent damage to
the front fascia (bumper).
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

208 [ER23690(M )03/96]
three fourths page art:0011387-B
*
[ER23800( ALL)01/96]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
File:10rcerm.ex
Update:Tue Mar 4 10:01:28 1997

209
Maintenance and Care
%*
[MC00200( ALL)01/96]
Service Made Easy
*
[MC00300( ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00400( ALL)01/96]
1. When we can, we design parts that do not
need to be serviced.
*
[MC00500( ALL)01/96]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[MC00600( ALL)01/96]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[MC00700( ALL)03/96]
q
When possible, we design parts that can be
replaced without tools.
*
[MC00800( ALL)02/96]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedulebooklet.
*
[MC00900( ALL)01/96]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[MC01000( ALL)01/96]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[MC01100( ALL)02/96]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedulebooklet be performed for
the proper operation of your vehicle. In addition
to the conditions listed in theOwner Maintenance
Checklist, be alert for any unusual noise,
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

210vibration, or other indication that your vehicle
may need service. If you do notice something
unusual, see that your vehicle is serviced
promptly.
*
[MC01200( ALL)01/96]
Use only recommended fuels, lubricants, fluids,
and service parts conforming to Ford
specifications. Motorcraft parts are designed and
built to provide the best performance in your
vehicle. Using these parts for replacement is
your assurance that Ford-built quality stays in
your vehicle.
%*
[MC01300( ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[MC01400( ALL)01/96]
Precautions When Servicing Your
Vehicle
*
[MC01500( ALL)01/96]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
%*
[MC01600(MBC )01/96]
q
Do not work on a hot engine. The engine
cooling fan may come on unexpectedly.
Always turn the engine off and let it cool.
*
[MC01700(MBC )05/96]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
*
[MC01800( ALL)01/96]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997
