1997 FORD MUSTANG Owners Manual

22 [IS21800(M )01/96]
one third page art:0010577-CBattery voltage gauge
%*
[IS22100(M GV)04/96]
Engine Oil Pressure Gauge
[IS22200(M )04/96]
This gauge indicates the engine oil pressure, not
the oil level. However, if your engine's oil level
is low, it could affect the oil pressure. With the
engine running, the pointer should move into
the NORMAL band. If the pointer drops below
the NORMAL band while the engine is running,
you have lost oil pressure and continued
operation will cause severe engine damage.
[IS22300(M )01/96]
one third page art:0011145-B
Engine oil pressure gauge
File:03rcism.ex
Update:Thu Apr 3 07:38:50 1997

23
*
[IS22500(M GV)04/96]
If you lose engine oil pressure:
*
[IS22600(M GV)04/96]
1. Pull off the road as soon as safely possible.
*
[IS22700(M GV)04/96]
2. Shut off the engine immediately or severe
engine damage could result.
[IS22800(M GV)04/96]
3. Check the engine's oil level, following the
instructions on checking and adding engine
oil, see theEngine Oilin the Index. If you do
not follow these instructions, you or others
could be injured. To assure an accurate
reading, your car should be on level ground.
[IS22900(M )04/96]
4. If the level is low, add oil as necessary
before you start the engine again. Do not
overfill. Do not operate the engine if the
pointer in the oil pressure gauge is below
the NORMAL band, regardless of the oil
level. Contact your nearest dealer for further
service actions.
[IS23000(M GV)04/96]
For more information about adding oil, see
Engine Oil Recommendationsin the Index.
File:03rcism.ex
Update:Thu Apr 3 07:38:50 1997

25
Electronic Sound Systems
% [AS21350(MBC )04/96]

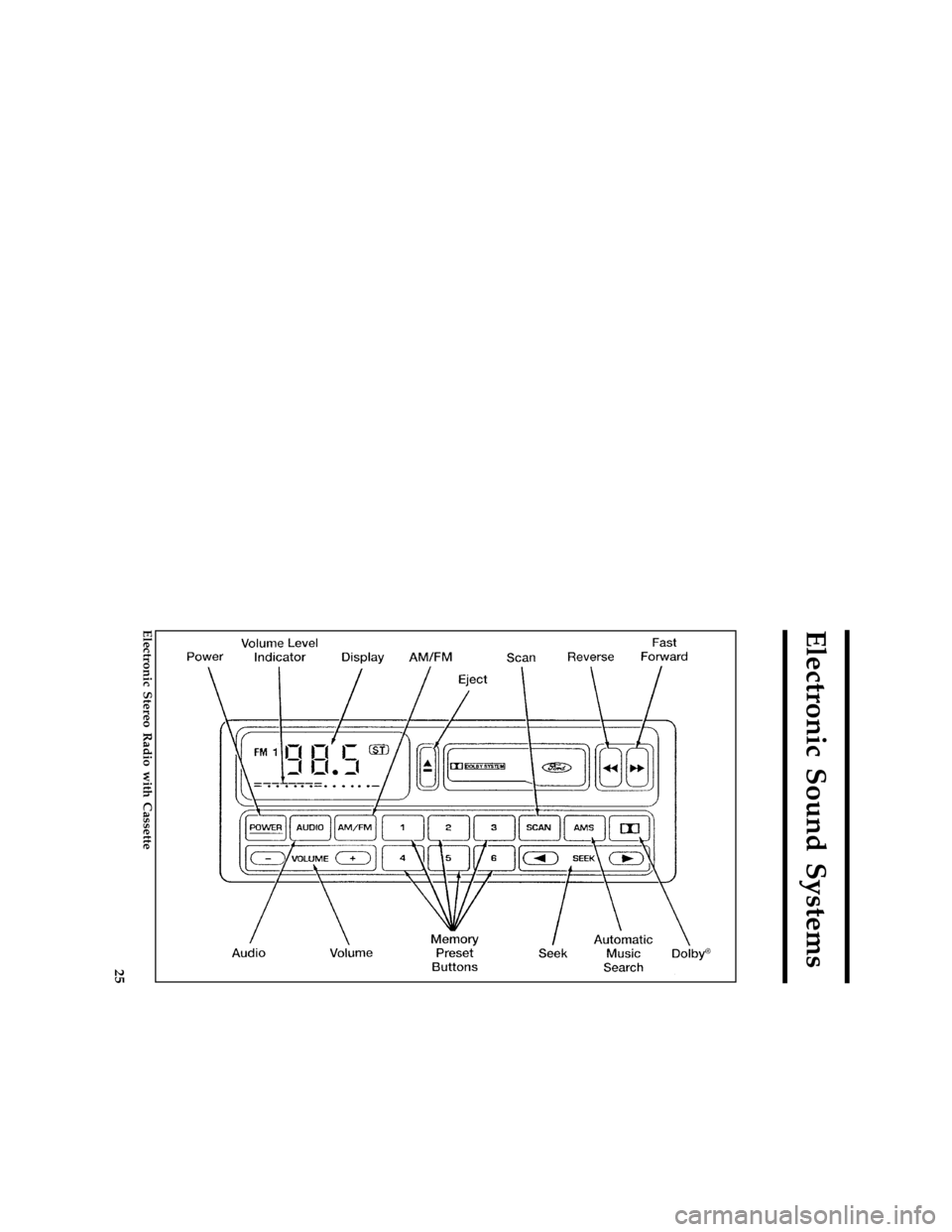

full page art:0060654-B
Electronic Stereo Radio with Cassette
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

26
% [AS21370(MBC )06/95]
Electronic Stereo Cassette Radio
*
[AS21400(MBC )03/96]
Using the Controls on Your New Radio
*
[AS21500(MBC )08/95]
How to turn the radio on and adjust the
volume
*
[AS22050(MBC )10/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS22060(MBC )02/96]
Press the right (+) side of the ªVOLUMEº
button to increase the volume. Press the left (S)
side of the button to decrease the volume.
Illuminated bars in the display show the relative
volume level.
*
[AS22070(MBC )02/96]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off, the volume will
remain in the position it was set at
when radio power was switched off.
*
[AS22100(MBC )03/96]
Selecting the AM or FM frequency band
*
[AS22250(MBC )02/95]
Push the ªAM/FMº button to select the desired
frequency band or to stop/store cassette tape
(when in cassette mode). Pushing the button
more than once will alternate between AM, FM1
and FM2. These functions are used with the
station memory buttons described underHow to
tune radio stations.
%*
[AS22300(MBC )03/96]
How to tune radio stations
[AS22425(MBC )06/95]
There are four ways for you to tune in to a
particular station. You can manually locate the
station by using the Automatic Music Search
(ªAMSº) button, ªSEEKº the station, ªSCANº to
the station or select the station by using the
memory buttons, which you can set to any
desired frequency.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

27 [AS22450(MBC )05/95]
q
Using the ªAMSº function to manually tune
your radio
[AS22650(MBC )03/95]
You can change the frequency up or down
one increment at a time by first pressing the
ªAMSº button, (display shows ªTUNEº) then
pressing and releasing either the right
aor
left
bside of the ªSEEKº button. To change
frequencies quickly, press andhold down
either the right or left side of the ªSEEKº
button.
*
[AS22700(MBC )03/96]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS22800(MBC )04/96]
q
Using the ªSEEKº function
*
[AS22900(MBC )09/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
a
side of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the left
bside of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
*
[AS23150(MBC )04/96]
q
Using the ªSCANº function
*
[AS23175(MBC )06/95]
Press the ªSCANº button to enter the scan
mode. The radio will begin scanning up the
frequency band, stopping on each listenable
station for approximately a five-second
sampling. This continues until you press the
ªSCANº button a second time. The display
flashes ªAMº or ªFM.º
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

28
*
[AS23200(MBC )02/96]
q
Setting the Station Memory Preset buttons
*
[AS23300(MBC )10/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2).
*
[AS23400(MBC )08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS23500(MBC )03/96]
1. Select a band, then select a frequency.
*
[AS23700(MBC )10/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS23800(MBC )10/95]
3. Follow the two steps above for each station
memory preset button you want to set.
[AS23900(MBC )09/95]
NOTE: If the vehicle's battery is disconnected,
the station memory preset buttons will
need to be reset.
*
[AS24000(MBC )10/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS24100(MBC )02/96]
q
Increasing or decreasing bass response
*
[AS24250(MBC )02/96]
Push the ªAUDIOº button repeatedly until
the display reads ªBASS.º Push the right (+)
side of the ªVOLUMEº button to increase
bass (more ªlowsº), and push the left (S)
side to decrease bass (less ªlowsº).
*
[AS24300(MBC )02/96]
q
Increasing or decreasing treble response
[AS24450(MBC )06/95]
Push the ªAUDIOº button repeatedly until
the display reads ªTREB.º Push the right (+)
side of the ªVOLUMEº button to increase
treble (more ªhighsº), and push the left (S)
side to decrease treble (less ªhighsº).
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

29
*
[AS24500(MBC )02/96]
Speaker features and operation
*
[AS24600(MBC )02/96]
q
Adjusting speaker balance
*
[AS24750(MBC )02/96]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBAL.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the right
speakers, and push the left (S) side to shift
the sound to the left speakers.
*
[AS24800(MBC )04/96]
q
Adjusting speaker fader
*
[AS24950(MBC )02/96]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªFADE.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the front
speakers, and push the left (S) side to shift
the sound to the rear speakers.
*
[AS24960(MBC )10/95]
NOTE: Illuminated bars in the display show
relative levels of bass and treble, and
positions of speaker balance and fader
functions (left to right, front to rear).
%*
[AS25000(MBC )04/96]
Using the Controls of Your Cassette Tape
Player
*
[AS25400(M )09/95]
NOTE: Radio power must be on to use the
cassette tape player.
*
[AS25500(MBC )08/95]
How to insert a tape
*
[AS25600(MBC )08/95]
Insert a cassette (with the open edge to the
right) firmly into the tape door opening, making
sure the cassette is completely in and ªseated.º
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

30
*
[AS25700(MBC )12/95]
How to locate a desired track on the tape
*
[AS25800(MBC )06/95]
NOTE: The tape track or side number
indicated in the display does not
necessarily correspond to the tape track
or side number on the cassette label. It
is used only to indicate when the tape
mechanism reverses tracks.
[AS25830(M )07/94]
q
Using the Automatic Music Search
*
[AS25850(MBC )03/96]
Press and hold the ªAMSº button (ªAMSº will
appear in the display). Then, push the left
h
button to rewind to the beginning of the current
selection or press the right
gbutton to fast
forward to the beginning of the next selection.
*
[AS25950(M )09/95]
q
Fast forwarding the tape
*
[AS26000(MBC )04/96]
Push the right
gbutton to fast forward
the tape.
*
[AS26150(M )08/95]
q
Rewinding the tape
*
[AS26200(MBC )04/96]
Push the left
hbutton to rewind the tape.
*
[AS26900(MBC )08/95]
q
How to change the side of the tape being
played
*
[AS27000(MBC )02/96]
The alternate track (other side) of the tape
can be selected at any time by pushing both
fast-wind buttons
hand
gat the same
time.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997
