1997 FORD MUSTANG Owners Manual

63
%*
[CF21800(M )05/96]
Power Point Electrical Outlet
[CF21900(M )12/95]
The power point outlet is located on the console
to the right of the shift lever. This outlet should
be used in place of the cigarette lighter for
optional electrical accessories.
[CF22100(M )12/95]
NOTE: Do not plug optional electrical
accessories into the cigarette lighter.
Electrical system damage could occur.
[CF22300(M )04/96]
half page art:0011193-B

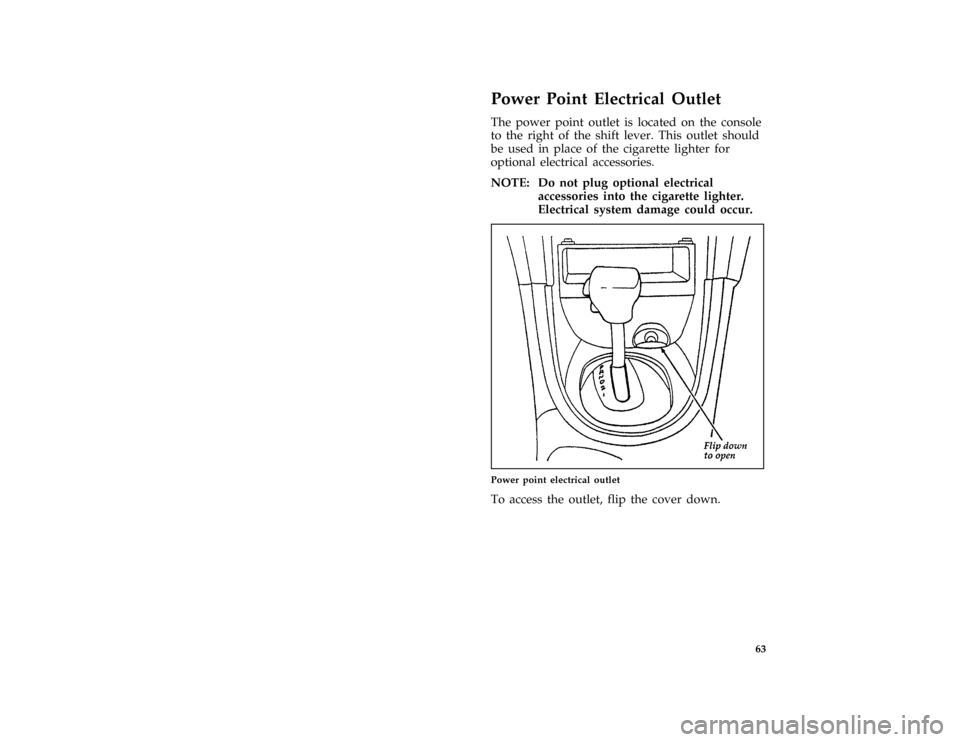

Power point electrical outlet
[CF22500(M )12/95]
To access the outlet, flip the cover down.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

64
*
[CF22700(M GV)03/96]
Your vehicle may have several small storage
compartments:
[CF22900(M )04/96]
q
a glove compartment that locks (if equipped).
[CF23000(M )12/95]
q
coin holders located behind the ashtray. These
are deleted if fog lamps or convertible top are
ordered.
% [CF23300( ALL)03/96]
Using the Remote Control for the
Trunk (If equipped)
[CF23400(M )12/95]
You can use the remote control inside your
glove compartment to unlock and open the
trunk. If equipped, you can also use your remote
entry system to open the trunk.
[CF23700(M )12/95]
quarter page art:0010286-A

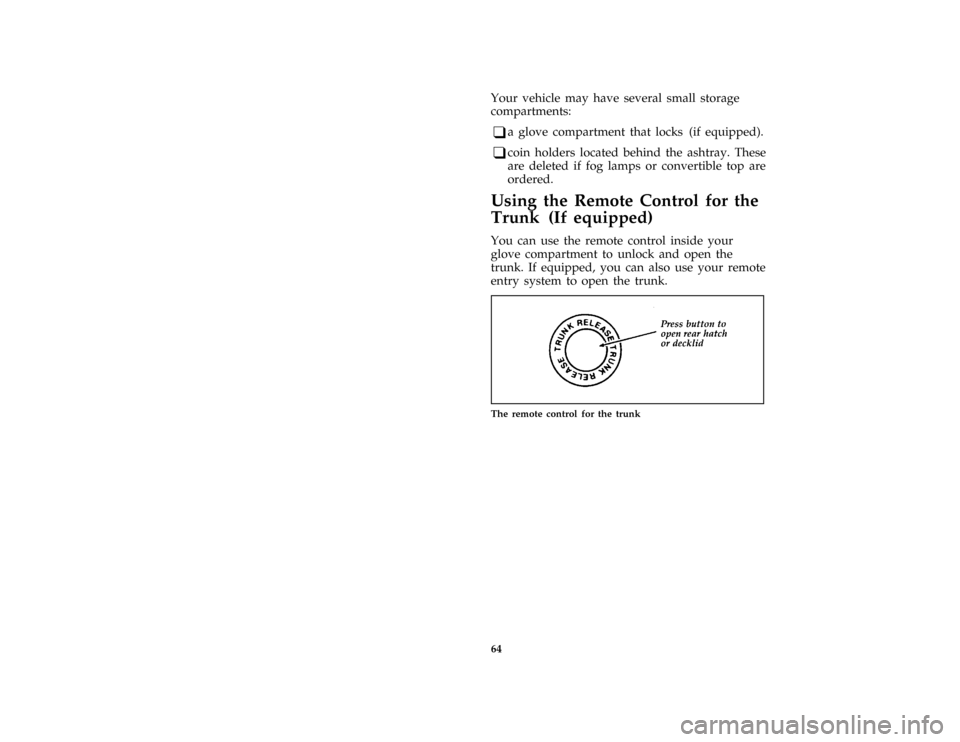

The remote control for the trunk
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

65
*
[CF24100( ALL)01/96]
Ignition
%*
[CF24200( ALL)01/96]
Understanding the Positions of the Ignition
[CF24300( ALL)12/95]
quarter page art:0010035-B
The positions of the key in the ignition
% [CF24400(M )04/96]
ACC allows some of your vehicle's electrical
accessories such as the radio and the windshield
wipers to operate while the engine is not
running. You must push the key release button
to turn to the ACC position if your vehicle has a
manual transmission.
% [CF24600( ALL)12/95]
LOCK locks the steering wheel. It also locks the
automatic transmission gearshift lever.
*
[CF24700( ALL)01/96]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
*
[CF24800( ALL)01/96]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
*
[CF24900( ALL)01/96]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
*
[CF25000( ALL)01/96]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

66 %
*
[CF25100( ALL)03/96]
Removing the Key From the Ignition
[CF25300(M )12/95]
1. Put the gearshift in P (Park) (automatic
transmission) or 1 (First) (manual
transmission).
*
[CF25400( ALL)01/96]
2. Set the parking brake fully.
[CF25600(M )12/95]
3. Turn the ignition to the OFF (manual
transmission) or LOCK (automatic
transmission).
[CF25800(M )12/95]
4. Push in the key release button until it
catches and stays in (manual transmission
only).
[CF25900(M )12/95]
quarter page art:0010619-B
Key release button (manual transmission only)
[CF26000(M )12/95]
5. Turn the key to LOCK (manual
transmission).
*
[CF26100(M )03/96]
6. Remove the key.
[CF26200(M )12/95]
NOTE: If your vehicle has an automatic
transmission, the gearshift lever must
be in the P (Park) position to remove
the key from the ignition.
%*
[CF26400( ALL)01/96]
If the key is stuck in the LOCK position, move
the steering wheel left or right until the key
turns freely.
%*
[CF26500( ALL)12/95]
If the driver's door is open while the key is still
in the ignition, a warning chime sounds.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

67
*
[CF26600(M )03/96]
RWARNING
Always set the parking brake fully and
make sure that the gearshift is latched in
P (Park) (automatic transmission) or 1
(First) (manual transmission).
*
[CF26800( ALL)03/96]
RWARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%
*
[CF26900( ALL)02/96]
The Turn Signal Lever
*
[CF27000( ALL)02/96]
You can use the turn signal lever on the left side
of the steering column to:
[CF27100( ALL)04/96]
q
operate the turn signals
*
[CF27200( ALL)03/96]
q
turn the high beams on/off
*
[CF27300( ALL)03/96]
q
flash the lamps
*
[CF27400( ALL)03/96]
q
turn the windshield wipers and washer
on/off
[CF27600( ALL)12/95]
one third page art:0011292-A
The turn signal lever
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

68 %
*
[CF27700( ALL)01/96]
Turn Signals
*
[CF27800( ALL)01/96]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[CF27900( ALL)01/96]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[CF28000( ALL)01/96]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
%*
[CF28200( ALL)01/96]
High Beams
*
[CF28300( ALL)01/96]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[CF28400( ALL)01/96]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
[CF28600(M )12/95]
NOTE: The fog lamps will turn off if you put
high beams on while fog lamps are on.
%*
[CF28700( ALL)01/96]
Flashing the Lights
*
[CF28800( ALL)01/96]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

69
%*
[CF28900( ALL)01/96]
Windshield Wipers and Washer
*
[CF29000( ALL)04/96]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[CF29100( ALL)12/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
[CF29200( ALL)04/96]
To turn the wipers off, turn the knob toward
you to the OFF position.
%*
[CF29300( ALL)01/96]
Variable Interval Wipers
*
[CF29400( ALL)12/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
[CF29500( ALL)12/95]
one third page art:0011293-A
The variable interval wiper on the turn signal lever
[CF29600( ALL)04/96]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

70
*
[CF29700( ALL)01/96]
Windshield Washer
*
[CF29800( ALL)12/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if the wipers were OFF) or
returning to HI, LO, or the interval setting
selected.
*
[CF29900( ALL)03/96]
If the washer does not work, check the washer
fluid level and fill it if it is low. See the
Maintenance and Carechapter. If there is enough
fluid, consult your nearest Ford or
Lincoln-Mercury dealer.
*
[CF30000( ALL)08/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
[CF30050(M )04/96]
NOTE: The addition of shields to the front of
the vehicle, as used to deflect bugs,
may also adversely affect the washer
system from delivering fluid to the
windshield. Devices such as bug
shields are not recommended.
*
[CF30100( ALL)01/96]
RWARNING
Always warm up the windshield with the
defroster before you use the washer fluid.
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision.
*
[CF30200( ALL)03/96]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
