1997 FORD MUSTANG Owners Manual

39
*
[AS42101(M )04/96]
NOTE: The use of optical instruments with
this product will increase eye hazard as
the laser beam used in this compact
disc player is harmful to the eyes. Do
not attempt to disassemble the case.
Refer servicing to qualified personnel
only.
*
[AS42201(M )08/95]
Common Operating Conditions of Your
CD Player
*
[AS42301(M )04/96]
The following information is designed to help
you recognize typical situations that could be
mistakenly interpreted as mechanical
malfunctions of the disc player.
*
[AS42401(M )04/96]
q
A disc is already loaded.
*
[AS42501(M )04/96]
q
The disc is inserted with the label surface
downward.
*
[AS42601(M )04/96]
q
The disc is dusty or defective.
*
[AS42701(M )04/96]
q
The player's internal temperature is above
167ÊF (75ÊC).Allow the player to cool off
before operating.
*
[AS42801(M )08/95]
q
Different manufacturers of compact discs may
produce discs with different dimensions or
tolerances, some of which may not be within
industry standards or in accordance with the
CD format. Because of this, a new disc that is
free of dust and scratches could be defective
and may not play on your Ford Compact
Disc Player.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

40
*
[AS42901(M )04/96]
If play does not begin after the CD button is
pushed:
*
[AS43001(M )04/96]
q
The radio is not on.
*
[AS43101(M )04/96]
q
The unit is in the stop mode.
*
[AS43201(M )04/96]
q
Moisture may have condensed on the lenses
within the unit. If this occurs, remove the
disc and wait approximately an hour until the
moisture evaporates.
*
[AS43301(M )04/96]
If the sound skips:
*
[AS43401(M )04/96]
q
Badly scratched discs or extremely rough
roads will cause the sound to skip. Skipping
will not damage the disc player or scratch the
discs.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

41 % [AS43457(M )05/94]

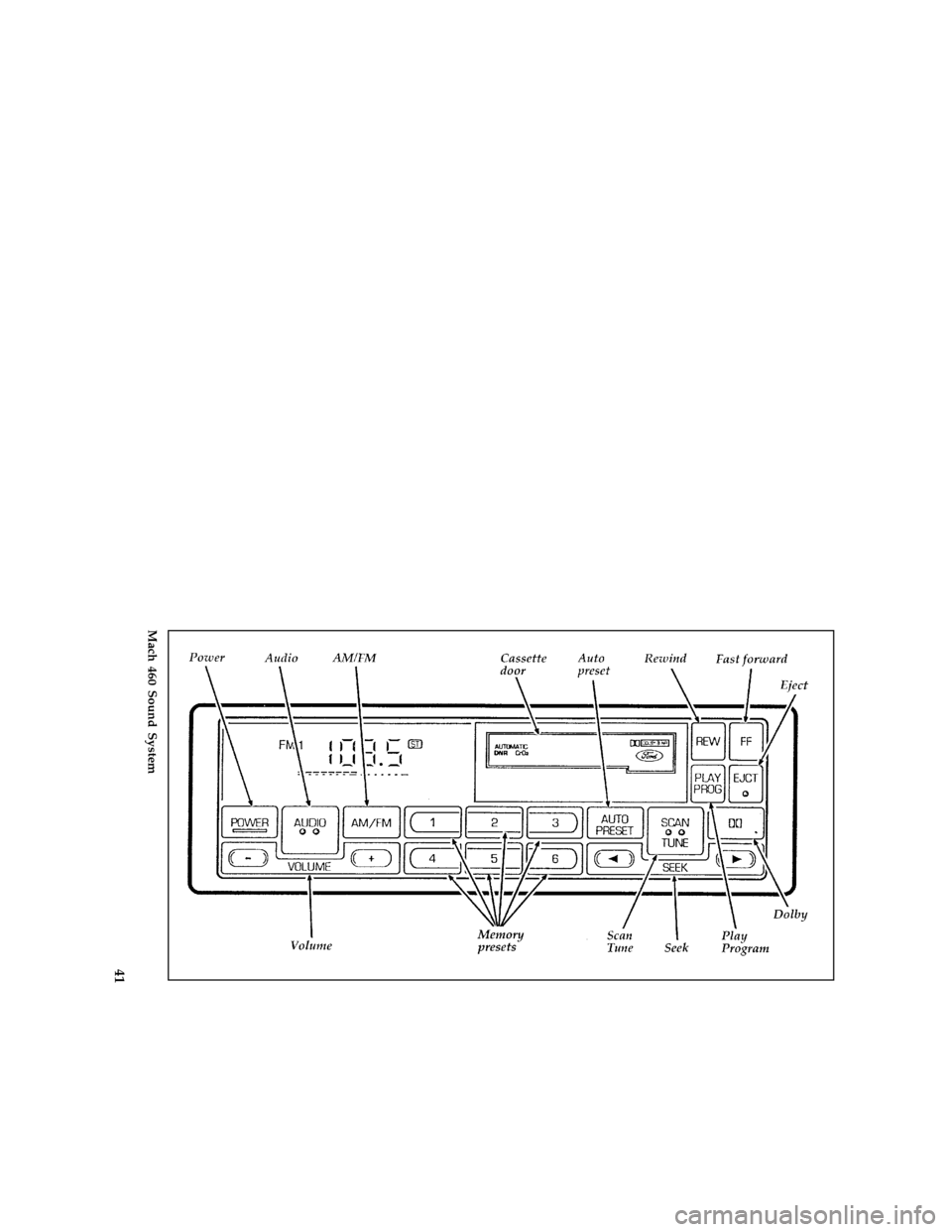

full page art:0060575-C
Mach 460 Sound System
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

42
[AS43459(M )03/95]
Mach 460 Sound System
*
[AS43460(MBC )03/96]
Using the Controls on Your New Radio
*
[AS43470(MBC )03/96]
How to turn the radio on and off
*
[AS43480(MBC )10/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS43500(MBC )03/96]
How to adjust the volume
[AS43510(MBC )06/95]
Press theR/Sside of the ªVOLUMEº button to
increase/decrease volume. Bars illuminate in the
display to show the relative volume level.
*
[AS43520(MBC )02/96]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off, the volume will
remain in the position it was set at
when radio power was switched off.
*
[AS43530(MBC )03/96]
Selecting the AM or FM frequency band
*
[AS43540(MBC )02/95]
Push the ªAM/FMº button to select the desired
frequency band or to stop/store cassette tape
(when in cassette mode). Pushing the button
more than once will alternate between AM, FM1
and FM2. These functions are used with the
station memory buttons described underHow to
tune radio stations.
%*
[AS43550(MBC )03/96]
How to tune radio stations
*
[AS43560(MBC )10/95]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

43
*
[AS43570(MBC )03/96]
q
Using the ªTUNEº function
*
[AS43580(MBC )03/96]
You can change the frequency up or down
one increment at a time (FM changes in
increments of 200 kHz; AM changes in
increments of 10 kHz) by first pressing the
ªSCAN/TUNEº button twice (display shows
ªTUNEº), then Ðwithin approximately five
secondsÐpressing and releasing either the
right
aor left
bside of the ªSEEKº button.
To change frequencies quickly, press and
hold downeither the right or left side of the
ªSEEKº button.
*
[AS43590(MBC )03/96]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS43600(MBC )04/96]
q
Using the ªSEEKº function
*
[AS43610(MBC )09/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
a
side of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the left
bside of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

44
*
[AS43630(MBC )04/96]
q
Using the ªSCANº function
*
[AS43640(MBC )03/96]
Pressing the ªSCAN/TUNEº button once
enters the scan mode (display will indicate
ªSCNº). Pushing the right
aside of the
ªSEEKº button will begin the scan mode up
the frequency band, stopping on each
listenable station for approximately a
five-second sampling. Pushing the left
bside
of the ªSEEKº button will begin the scan
mode down the frequency band, again
stopping on each listenable station for
approximately a five-second sampling.
*
[AS43650(MBC )03/96]
To stop the scan mode on the presently
sampled station, press the ªSCAN/TUNEº
button again.
*
[AS43670(MBC )02/96]
q
Setting the Station Memory Preset buttons
*
[AS43680(MBC )10/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2).
*
[AS43690(MBC )08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS43700(MBC )03/96]
1. Select a band, then select a frequency.
*
[AS43720(MBC )10/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS43730(MBC )10/95]
3. Follow the two steps above for each station
memory preset button you want to set.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

45
*
[AS43750(MBC )10/95]
q
Using the Automatic Memory Load feature
*
[AS43760(MBC )10/95]
If no stations are in memory preset, you can
activate theAuto Memory Loadfeature by
pressing and holding the ªAUTO PRESETº
buttonfor approximately three seconds.
Auto Memory Load sets all memory buttons
in AM, FM1 and FM2 sequentially by seeking
out the first six strong stations for the
respective band and storing them in memory
buttons 1-5. (FM2 will store the second set of
strong stations from the FM band.)
*
[AS43770(MBC )02/96]
With Auto Memory Store, you can continually
set strong stations into your memory buttons
without losing your existing memory presets,
which is especially handy while traveling. Your
radio will automatically set your memory
buttons to the strong local stations so you don't
have to continually manually tune to existing
stations.
*
[AS43780(MBC )02/96]
Activate Auto Memory Store by pushing the
ªAUTO PRESETº button once. Your radio will
set the first five strong stations of the band you
are in (AM, FM1 or FM2) into the memory
buttons. The display will show ªAUTO,º then
run through the frequencies, stopping
momentarily on the stations being set into the
memory buttons. The radio is now in the
ªAUTOº mode and the display will show
ªAUTOº each time a preset is activated.
*
[AS43790(MBC )10/95]
NOTE: If there are fewer than five strong
stations in the frequency band, the
remaining unfilled buttons will store
the last strong station detected on the
band.
*
[AS43800(MBC )03/96]
After all stations have been filled, the radio will
begin playing the station stored on memory
button 1.
File:04rcasm.ex
Update:Mon Feb 24 10:13:07 1997

46
*
[AS43810(MBC )02/96]
To deactivate the Auto Memory Store mode and
return to the manually-set memory button
stations (or those stations set using Auto
Memory Load), simply push the ªAUTO
PRESETº button. Display will show ªAUTOº
then ªOFF.º The next time Auto Memory Store
is activated on that band, the radio will store the
next set of five strong stations.
*
[AS43830(MBC )10/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS43850(MBC )02/96]
q
Increasing or decreasing bass response
*
[AS43860(MBC )02/96]
Push the ªAUDIOº button repeatedly until
the display reads ªBASS.º Push the right (+)
side of the ªVOLUMEº button to increase
bass (more ªlowsº), and push the left (S)
side to decrease bass (less ªlowsº).
*
[AS43870(MBC )02/96]
q
Increasing or decreasing treble response
[AS43880(MBC )06/95]
Push the ªAUDIOº button repeatedly until
the display reads ªTREB.º Push the right (+)
side of the ªVOLUMEº button to increase
treble (more ªhighsº), and push the left (S)
side to decrease treble (less ªhighsº).
*
[AS43890(MBC )02/96]
q
Adjusting speaker balance
*
[AS43900(MBC )02/96]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBAL.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the right
speakers, and push the left (S) side to shift
the sound to the left speakers.
