1997 FORD MUSTANG Owners Manual

71
%*
[CF30300( ALL)03/96]
Hazard Flasher
*
[CF30400( ALL)05/96]
The hazard flasher serves as a warning to other
drivers to be careful when approaching or
passing your vehicle.
[CF30600(M )05/96]
one third page art:0011229-A
The control for the hazard flashers
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

72
%*
[CF30700( ALL)05/96]
Horn
*
[CF30800( ALL)01/96]
To sound the horn, push the center pad area of
the steering wheel.
[CF31000(M )12/95]
half page art:0011165-B

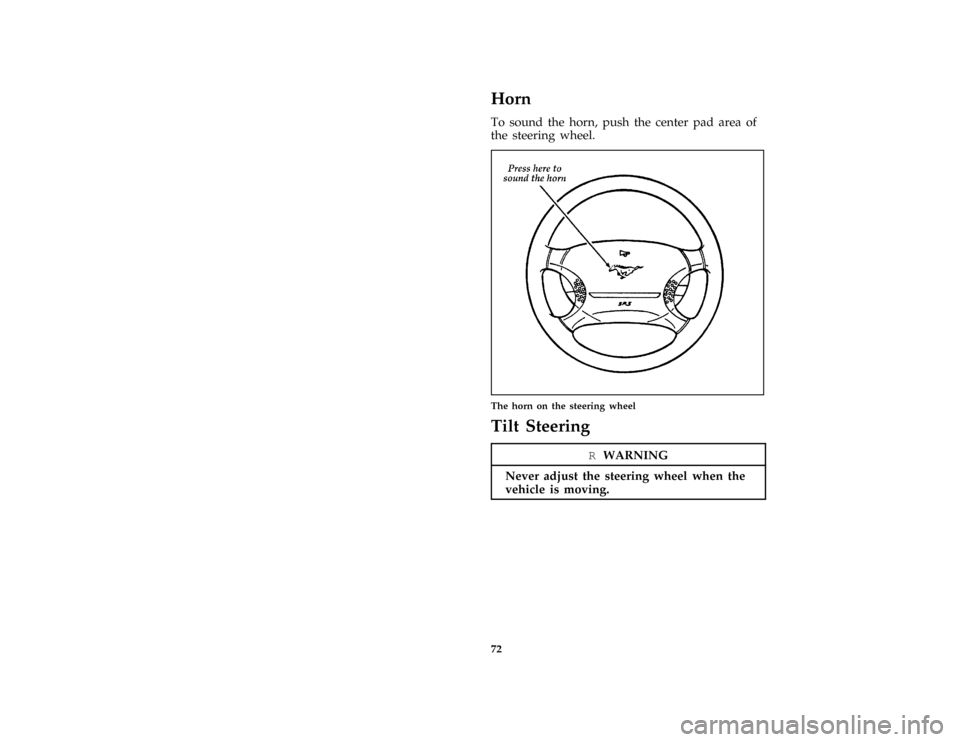

The horn on the steering wheel
%*
[CF31200( ALL)01/96]
Tilt Steering
*
[CF31300( ALL)02/96]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

73 [CF31400(MBC )12/95]
half page art:0010088-B

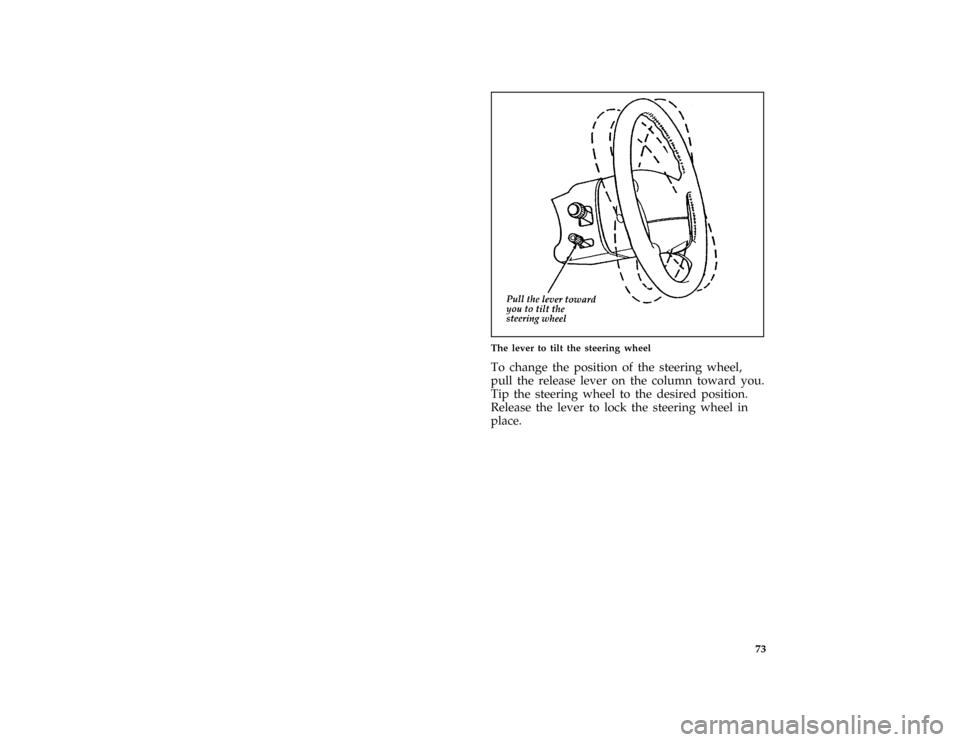

The lever to tilt the steering wheel
*
[CF31600( ALL)01/96]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

74
%*
[CF31700( ALL)03/96]
Speed Control (If equipped)
[CF31730(MBC )03/96]
half page art:0001014-B

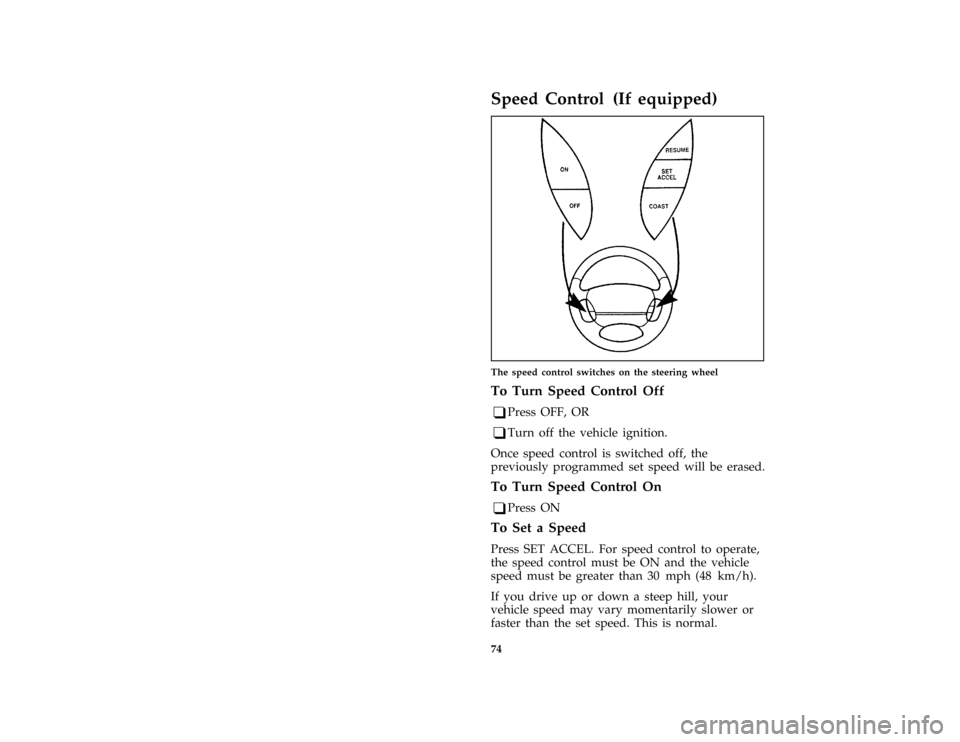

The speed control switches on the steering wheel
%*
[CF31800( ALL)05/96]
To Turn Speed Control Off
*
[CF31900( ALL)05/96]
q
Press OFF, OR
*
[CF32000( ALL)05/96]
q
Turn off the vehicle ignition.
*
[CF32100( ALL)05/96]
Once speed control is switched off, the
previously programmed set speed will be erased.
*
[CF32200( ALL)05/96]
To Turn Speed Control On
*
[CF32300( ALL)05/96]
q
Press ON
*
[CF32400( ALL)05/96]
To Set a Speed
*
[CF32500( ALL)05/96]
Press SET ACCEL. For speed control to operate,
the speed control must be ON and the vehicle
speed must be greater than 30 mph (48 km/h).
*
[CF32600( ALL)05/96]
If you drive up or down a steep hill, your
vehicle speed may vary momentarily slower or
faster than the set speed. This is normal.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

75
*
[CF32700( ALL)05/96]
Speed control cannot reduce the vehicle speed if
it increases above the set speed on a downhill. If
your vehicle speed is faster than the set speed
while driving on a downhill inj(Overdrive),
you may want to shift to the next lower gear to
reduce your vehicle's speed.
[CF32800( ALL)05/96]
If your vehicle slows down more than 10 mph
(16 km/h) below your set speed on an uphill,
your speed control will disengage. This is
normal. Pressing RESUME will re-engage it.
*
[CF32900( ALL)05/96]
RWARNING
To keep your vehicle under control, do
not use speed control in heavy traffic or
on roads that are winding, slippery, or
unpaved.
*
[CF33000( ALL)05/96]
To Set a Higher Set Speed
*
[CF33100( ALL)05/96]
q
Press and hold SET ACCEL. Release the
switch when the desired vehicle speed is
reached. OR
*
[CF33200( ALL)05/96]
q
Press and release SET ACCEL. Each press
will increase the set speed by 1 mph
(1.6 km/h). OR
*
[CF33300( ALL)05/96]
q
Accelerate with your accelerator pedal, then
press SET ACCEL.
*
[CF33400( ALL)05/96]
You may accelerate with the accelerator pedal at
any time during speed control usage. Releasing
the accelerator pedal will return your vehicle
speed to the previously programmed set speed.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

76
*
[CF33500( ALL)05/96]
To Set a Lower Set Speed
*
[CF33600( ALL)05/96]
q
Press and hold COAST. Release the switch
when the desired vehicle speed is reached.
OR
*
[CF33700( ALL)05/96]
q
Press and release COAST. Each press will
decrease the set speed by 1 mph (1.6 km/h).
OR
*
[CF33800( ALL)05/96]
q
Depress the brake pedal. When the desired
vehicle speed is reached, press SET ACCEL.
*
[CF33900( ALL)05/96]
To Disengage Speed Control
[CF34005(M )05/96]
q
Depress the brake pedal. OR
[CF34050(M )05/96]
q
Depress the clutch pedal.
*
[CF34100( ALL)05/96]
Disengaging the speed control will not erase the
previously programmed set speed.
*
[CF34200( ALL)05/96]
To Return to a Set Speed
[CF34300( ALL)04/96]
q
Press RESUME. For RESUME to operate, the
vehicle speed must be faster than 30 mph
(48 km/h).
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

77
[CF35500( ALL)03/96]
Map and Reading Lamps
*
[CF35600( ALL)12/95]
Your vehicle has two map lamps for the
passenger and the driver. To turn on the map
lamps, push the switch next to each lamp.
[CF35800(M )12/95]
one third page art:0010651-C

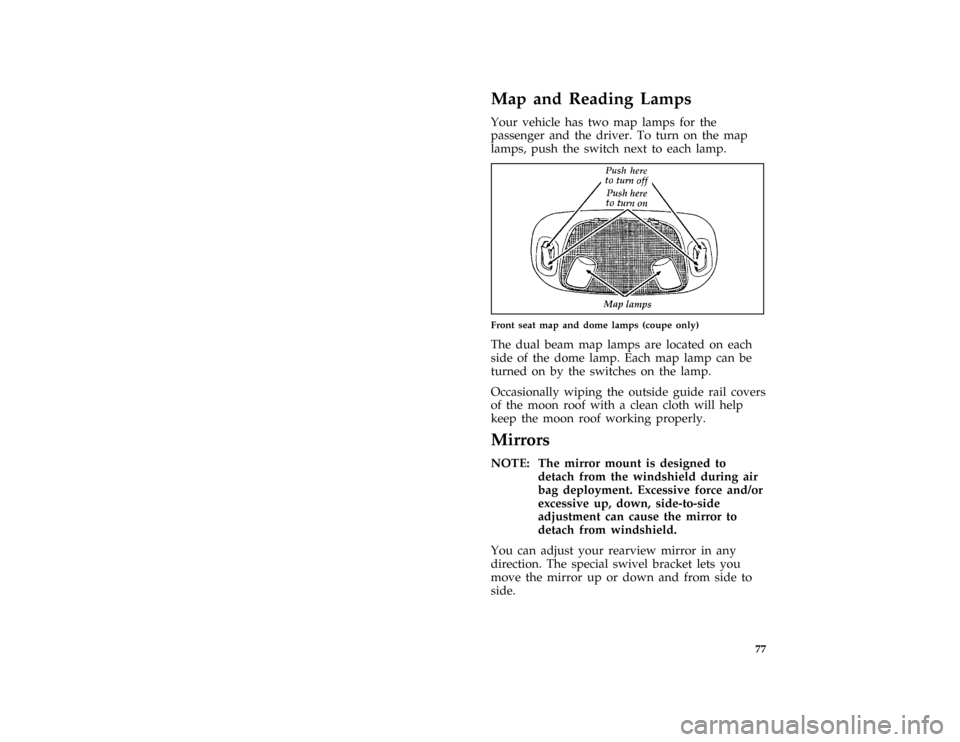

Front seat map and dome lamps (coupe only)
*
[CF36200( ALL)12/95]
The dual beam map lamps are located on each
side of the dome lamp. Each map lamp can be
turned on by the switches on the lamp.
*
[CF37800(MBC )01/96]
Occasionally wiping the outside guide rail covers
of the moon roof with a clean cloth will help
keep the moon roof working properly.
%
*
[CF38400( ALL)03/96]
Mirrors
[CF38500(M )04/96]
NOTE: The mirror mount is designed to
detach from the windshield during air
bag deployment. Excessive force and/or
excessive up, down, side-to-side
adjustment can cause the mirror to
detach from windshield.
[CF38600( ALL)04/96]
You can adjust your rearview mirror in any
direction. The special swivel bracket lets you
move the mirror up or down and from side to
side.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

78
*
[CF38700( ALL)01/96]
RWARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not block
your vision. If you cannot see through the
mirror, it could result in a collision,
injuring yourself and others.
% [CF38800(M )12/95]
Rearview Mirror and Lamp Assembly
(convertible only)
[CF38900(M )12/95]
This rearview mirror contains two lamps which
function as courtesy lamps when the doors are
open. These lamps also function as map lamps
when the doors are closed and the rocker switch
is activated.
[CF39000(M )01/96]
one third page art:0010266-B

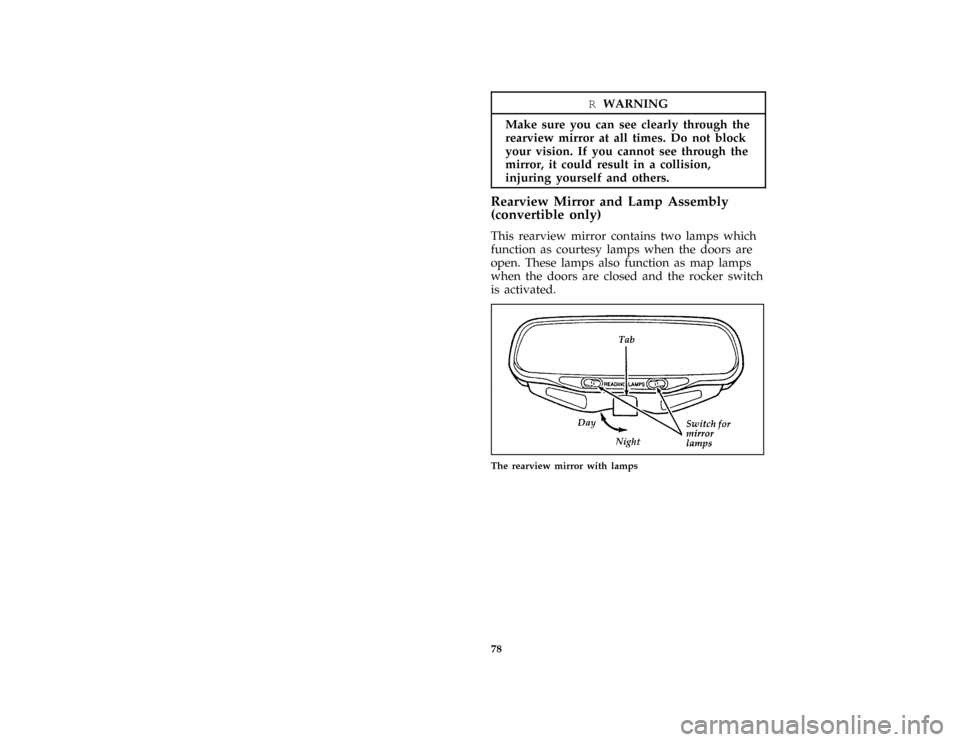

The rearview mirror with lamps
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997
