1995 NISSAN ALMERA N15 Manual trans

PERIODICMAINTENANCE (ExceptforEurope)
Maintenance UnderSevere DrivingConditions

The maintenance intervalsshownonthe preceding pagesarefornormal operating conditions. Ifthe
vehicle ismainly operated undersevere drivingconditions asshown below, morefrequent maintenance •
must beperformed onthe following itemsasshown inthe table. •

SEVERE DRIVING CONDITIONS

A -Driving underdustyconditions
B -Driving repeatedly shortdistances
C -Towing atrailer orcaravan
D -Extensive idling
E -Driving inextremely adverseweather con-
ditions orinareas where ambient temper-
atures areeither extremely lowor
extremely high F
-Driving inhigh humidity areasorinmoun-
tainous areas
G -Driving inareas usingsaltorother corro-
sive materials
H -Driving onrough and/or muddy roadsorin
the desert
- Driving withfrequent useofbraking orin
mountainous areas
Driving
condition Maintenance
item Maintenance
operation Maintenance
interval Reference
page
GA
SR

A Aircleaner filter
Dry paper type
Clean MA
23
-

All types ReplaceMorefrequently MA
2333
PCV filter Replace MA26
-

A BC D
Engineoil
&
oil filter ReplaceEvery
5,000km
MA2424
(3,000 miles) or3months
A E Fuel
filter Replace
Every20,000 km MA
2232
F Brakefluid Replace(12,000
miles)or12 months
MA-47
C
H
Automatic

&
manual transaxle Replace Every40,000 km
MA-46,45
oil (24,000
miles)or24 months
G
H
Steering
gear
&
linkage, axle
&
Check
Every10,000 km MA-50
suspension parts
&
drive shafts
(6,000miles) or6months FA-5,
7
RA-4
A C G
H

I
Brake pads,discs
&
other brake Check Every
5,000km
MA-48
components (3,000
miles) or3months
A C
G
H

1
Brake
linings, drums
&
other
Check Every
10,000 km
MA-49
brake components (6,000
miles) or6months
G Lock,
hinges
&
hood latch Lubricate
Every5,000km
MA-51
(3,000 miles) or3months
Maintenance operation:Check
=
Check. Correct orreplace
if
necessary.

MA-9

PERIODICMAINTENANCE (ForEurope)
Chassis andBody Services

Abbreviations: R
=
Replace. Inspect,andcorrect orreplace asnecessary.

MAINTENANCE OPERATION

MAINTENANCEINTERVAL
Steering gear
&
linkage, axle
&
suspension parts
&
exhaust system*

OutsideandInside

Wheel alignment (Ifnecessary, rotate
&
balance wheels)
Brake pads,disc
&
other brake components*
Brake linings, drums
&
other components*
Headlamp aiming
Foot brake, parking brake
&
clutch (Forfreeplay, stroke
&
operation)
Annually120
Reference page

(72)

48
MA-47,45MA-46
R MA-47
MA-48
MA-50
MA-47,45 MA-45
MA-50, 45,FA-5,
RA-4
FA-7
MA-49, FA-6
MA-48
MA-49 EL-75
BR-11, 37,CL-5
MA-52 RS-11

90
(54)
36

R

60

See NOTE (1)

(36)
24
30
(18)

12

km
x1,000
(Miles x1,000)
Months

Underhood andunder vehicle

Perform
eitheratnumber ofkilometers (miles)ormonths,
whichever comesfirst.
Brake booster vacuum hoses,connections
&
check valve
Brake

&
clutch oil(For level
&
leaks)*
Automatic transaxlefluid(Forlevel
&
leaks)*
Brake f1uid*

CHASSIS
ANDBODY

Power steering fluid
&
lines (Forlevel
&
leaks)
Brake
&
clutch systems
Manual transaxle oil(For leaks)*
Drive shafts*
Air bag system
Body
corrosion

NOTE:
*
Maintenance itemswith
"*"
should beperformed morefrequently accordingto"Maintenance undersevere driving
conditions" .
(1) Inspect atthe first 10years andthen every 2years.
MA-12

PERIODICMAINTENANCE (ForEurope)
Maintenance UnderSevere Driving Conditions

The maintenance intervalsshownonthe preceding pagesarefornormal operating conditions. Ifthe
vehicle ismainly operated undersevere drivingconditions asshown below,morefrequent maintenance •
must beperformed onthe following itemsasshown inthe table. •

SEVERE DRIVING CONDITIONS

A -Driving underdustyconditions
B -Driving repeatedly shortdistances
C -Towing atrailer
D -Extensive idling
E -Driving inextremely adverseweather con-
ditions orinareas where ambient temper-
atures areeither extremely lowor
extremely high F
-Driving inhigh humidity areasorinmoun-
tainous areas
G -Driving inareas usingsaltorother corro-
sive materials
H -Driving onrough and/or muddy roadsorin
the desert
- Driving withfrequent useofbraking orin
mountainous areas

Driving
MaintenanceMaintenance
MaintenanceReference
condition itemoperationintervalpage
A B
C D Engine
oil
&
oil filter
Gasoline engine ReplaceEvery
7.500km(4,500 miles) MA-24
or 6months
Diesel engine ReplaceEvery5.000km(3,000 miles) or MA-41
3 months
A Aircleaner IiIter
&
PCV filter Replace MA-23,
41
A E Fuel
filter ReplaceMA-22,41
Every 30,000 km(18,000 miles)
F Brakefluid Replaceor
12months MA-47
G H
Steering gear
&
linkage, axle
&
suspension parts
&
exhaust Check MA-50,45
system FA-5
RA-4
C H
Automatic
&
manual transaxle oil Replace
Every60,000 km(36,000 miles) MA-46,45
or 24 months
A C GH

I
Brake pads,discs
&
other brake components Check MA-48
Every 15,000 km(9,000 miles)
A C GH

I
Brake
lining,drums
&
other brake components Check
or6months MA-49
C H
Driveshaft CheckFA-7

Maintenance operation:Check
=

Check. Correct orreplace
if
necessary.

MA-13

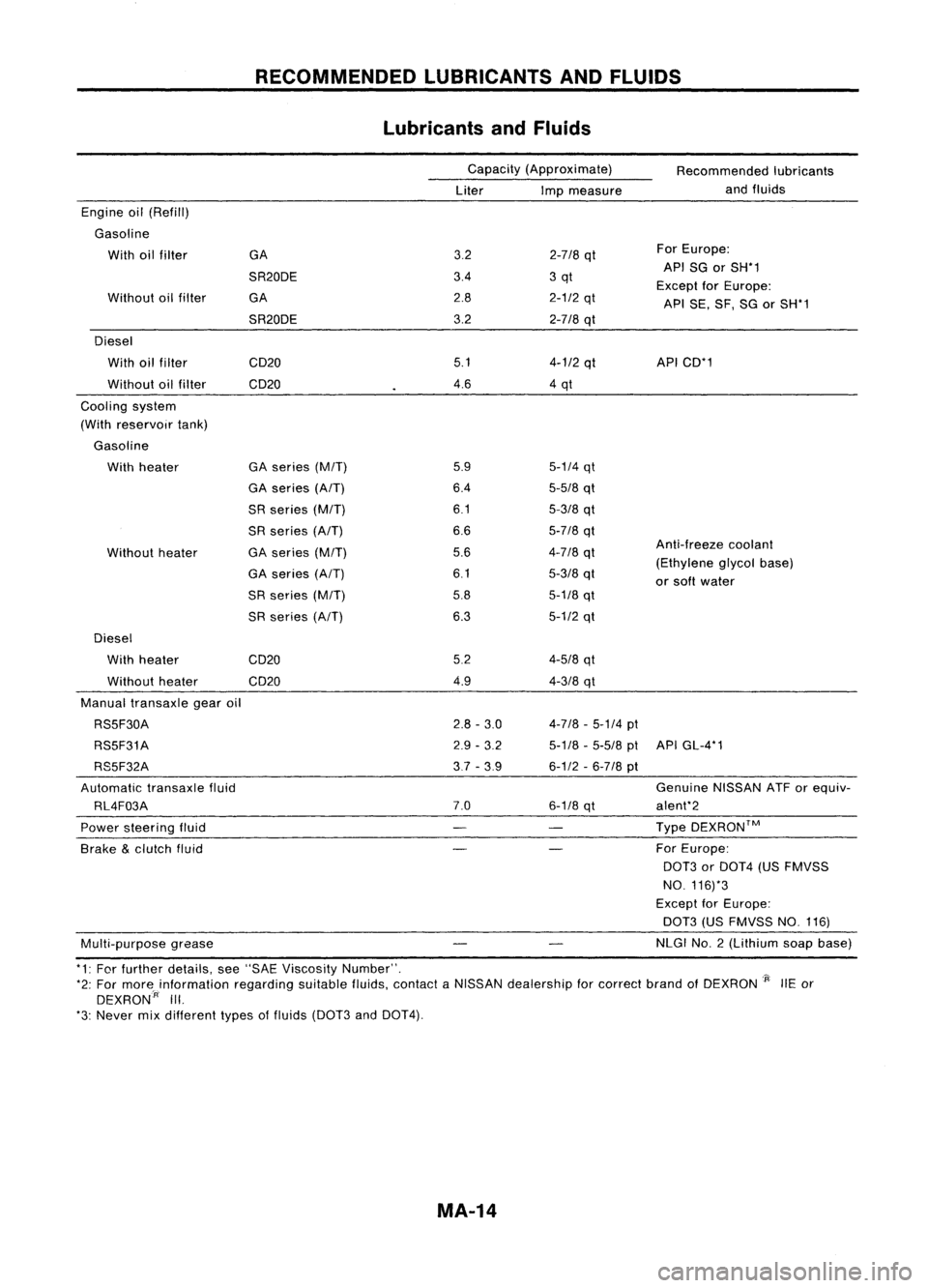

RECOMMENDEDLUBRICANTSANDFLUIDS
Lubricants andFluids
Capacity (Approximate)
Liter Impmeasure Recommended
lubricants
and fluids
Anti-freeze coolant
(Ethylene glycolbase)
or soft water

5-1/4

qt

5-5/8
qt

5-3/8
qt

5-7/8
qt

4-7/8
qt

5-3/8
qt

5-1/8
qt

5-1/2
qt

3.2

2-7/8
qt For
Europe:
3.4 3qt API
SGorSH*1
Except forEurope:
2.8
2-1/2
qt
APISE,SF,SGorSH*1
3.2
2-718
qt
5.1
4-1/2
qt API
CD*1
4.6 4qt
5.9

6.4

6.1

6.6

5.6
6.1
5.8

6.3

GA
SR20DE GA
SR20DE
GA series
(M/T)

GA series
(A/T)

SR series
(M/T)

SR series
(A/T)

GA series
(M/T)

GA series
(A/T)

SR series
(M/T)

SR series (AfT)
Without
heater
Without
oilfilter
Engine
oil(Refill)
Gasoline With oilfilter
Diesel With oilfilter CD20
Without oilfilter CD20
Cooling system
(With reservoir tank)
Gasoline With heater
Diesel With heater
Without heater CD20
CD20 5.2

4.9
4-5/8

qt

4-3/8
qt

Manual transaxle gearoil
RS5F30A
RS5F31A
RS5F32A
Automatic transaxlefluid
RL4F03A
Power steering fluid
Brake
&
clutch fluid
Multi-purpose grease
2.8
-3.0

2.9 -3.2
3,7 -3.9

7.0
4-7/8
-5-1/4
pt

5-1/8 -5-5/8
ptAPIGL-4*1

6-1/2 -6-7/8
pt

Genuine NISSANATForequiv-

6-1/8
qt alent*2
Type DEXRON™
For Europe:

0013
orDOT4 (USFMVSS
NO. 116)*3
Except forEurope:
DOT3 (USFMVSS NO.116)
NLGI NO.2 (Lithium soapbase)
*1: For further details, see"SAE Viscosity Number". _
*2: For morainformation regardingsuitablefluids,contact aNISSAN dealership forcorrect brandofDEXRON
'P:
liE or
DEXRON:
A
III.
*3: Never mixdifferent typesoffluids (DOT3 and
0014).

MA-14

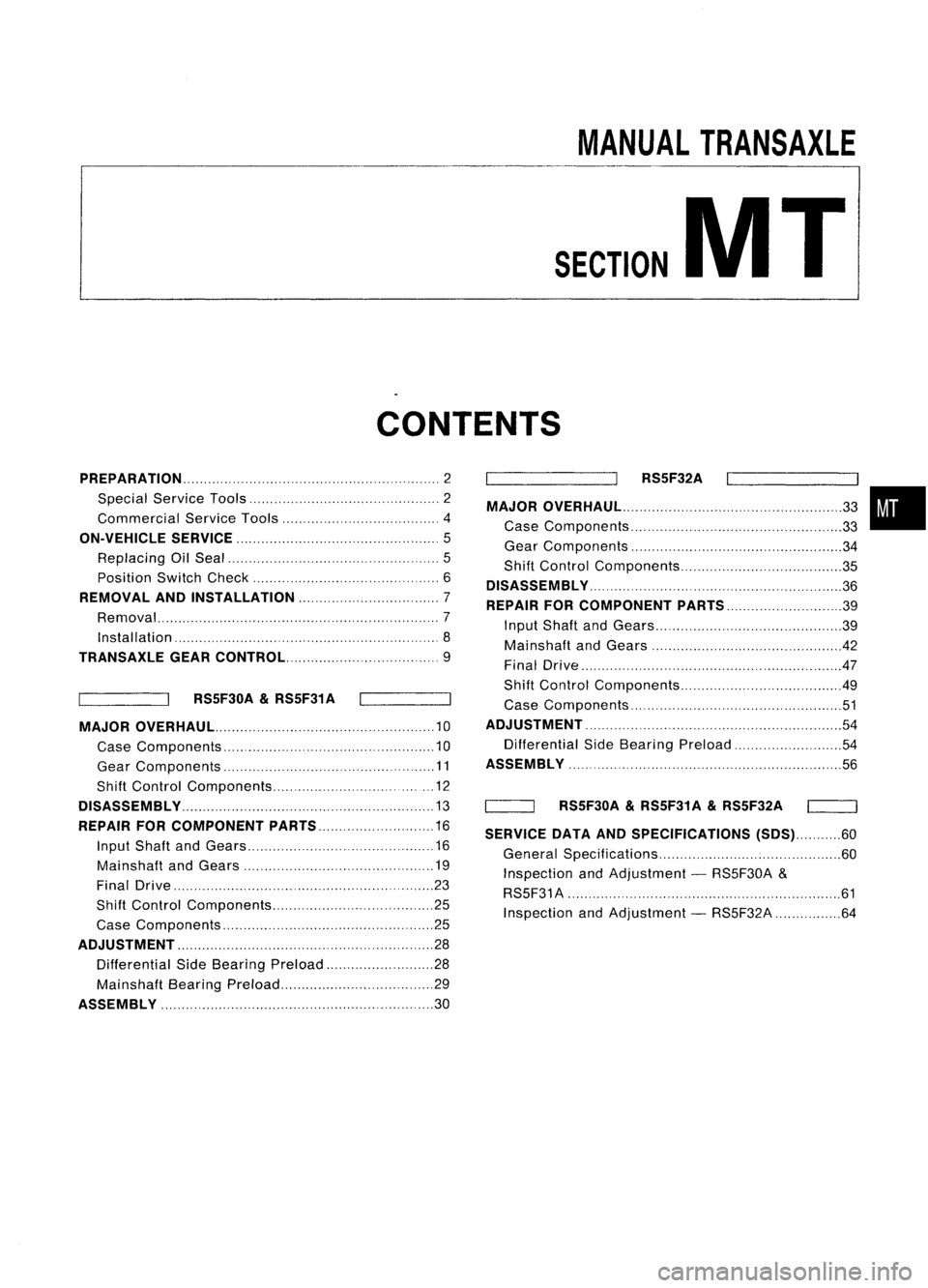

MANUALTRANSAXLE
SECTION
MT
CONTENTS
PREPARATION 2
Special Service Tools 2
Commercial ServiceTools 4
ON-VEHICLE SERVICE
5

Replacing OilSeal 5
Position SwitchCheck 6
REMOVAL ANDINSTAllATION 7
Removal ,7
Installation '8
TRANSAXlE GEARCONTROL 9
RS5F30A
&
RS5F31 A
MAJOR OVERHAUL 10
Case Components 10
Gear Components ,11
Shift Control Components , 12
DiSASSEMBly ,13
REPAIR FORCOMPONENT PARTS 16
Input Shaft andGears 16
Mainshaft andGears 19
Final Drive ,,23
Shift Control Components 25
Case Components ,25
ADJUSTMENT ,,.. , 28
Differential SideBearing Preload 28
Mainshaft BearingPreload ,29
ASSEMBly ,30 RS5F32A
MAJOR OVERHAUl ,,,
33

Case Components , 33
Gear Components 34
Shift Control Components 35
DiSASSEMBly ",.,., , ,36
REPAIR FORCOMPONENT PARTS 39
Input Shaft andGears 39
Mainshaft andGears 42
Final Drive .47
Shift Control Components 49
Case Components ' 51
ADJUSTMENT ,, ", 54
Differential SideBearing Preload ,54
ASSEMBLY ',
56

'----_-JI RS5F30A
&
RS5F31A
&
RS5F32A
SERVICE DATAANDSPECIFICATIONS (SDS)60
General Specifications 60
Inspection andAdjustment -RS5F30A &
RS5F31 A ' 61
Inspection andAdjustment -RS5F32A 64
•

PRECAUTIONSANDPREPARATION
Precautions
SUPPLEMENTAL RESTRAINTSYSTEM(SRS)"AIRBAG"
(Dual AirBag System)

The Supplemental RestraintSystem"AirBag" usedalong withaseat belt,helps toreduce therisk or
severity ofinjury tothe driver andfront passenger inafrontal collision. TheSupplemental Restraint
System consists ofair bag modules (locatedinthe center ofthe steering wheelandonthe instrument
panel onthe passenger side),adiagnosis sensorunit,warning lamp,wiring harness andspiral cable.
Information necessarytoservice thesystem safelyisincluded inthe
RSsection
ofthis Service Manual.

WARNING: • Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS unless instructed tointhis
Service Manual. SRSwiring harnesses arecovered withyellow insulation eitherjustbefore the
harness connectors orfor the complete harness,foreasy identification.
SUPPLEMENTAL RESTRAINTSYSTEM(SRS)"AIRBAG"
(Single AirBag System)

The Supplemental RestraintSystem"AirBag" andused along withaseat belt,helps toreduce therisk
or severity ofinjury tothe driver inafrontal collision. TheSupplemental RestraintSystemconsists of
an air bag module (located inthe center ofthe steering wheel),adiagnosis sensorunit,warning lamp,
wiring harness andspiral cable. Information necessarytoservice thesystem safelyisincluded inthe

RS section
ofthis Service Manual.

WARNING: • Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS unless instructed tointhis
Service Manual.
STEERINGSYSTEM
• Before disassembly, thoroughlycleantheoutside ofthe unit.
• Disassembly shouldbedone inaclean workarea. Itis important toprevent theinternal partsfrom
becoming contaminated bydirt orother foreign matter.
• Place disassembled partsinorder, onaparts rack,fore"asier andproper assembly.
• Use nylon cloths orpaper towels toclean theparts; common shopragscanleave lintthat might
interfere withtheir operation.
• Before inspection orreassembly, carefullycleanallparts withageneral purpose, non-flammable
solvent.
• Before assembly, applyacoat ofrecommended ATF*tohydraulic parts.Vaseline maybeapplied to
O-rings andseals. Donot use any grease.
• Replace allgaskets, sealsandO-rings. Avoiddamaging O-rings,sealsandgaskets duringinstalla-
tion. Perform functional testswhenever designated.

*:
Automatic transmission fluid
ST-2
