1995 CHEVROLET CORVETTE Owners Manual

Downloaded from www.Manualslib.com manuals search engine 1. Heater, A/C Programmer
2. Bl@k
3. Windshield Wipermasher Switch Assembly
4, Radio Receiver (Ignition)
5. Heated Mirrors, Heater and A/C Control Head,
Heater and NC Programmer
6. Light Switch, Daytime Running Lamps Module
7. Horn Relay
8. Hazard Flashers; Brake Switch
9. Crank-Air Bag
10. Crank-ParWNeutral Switch (Automatic); Clutch
Switch (Manual)
1 1. RH Illumination
12. LH Illumination
13. Console Illumination
14. Fuel Pump 1
15. Fuel Pump 2 (LT5)
16. Central Control Module; Daytime R
Module unning Lamps 17. Generator;
Automatic Transmission Vacuum Pump
(LT5); Valet Mode (LT5); EGR Circuit (LT5);
Oxygen Sensors (LT5)
18. A/C Compressor Clutch; Heater and A/C Control
Head; Heater and NC Programmer; Rear Defog
Relay
19. Accessory Plug
20. Heated Oxygen Sensors (LT1)
21. Fuel Pump Relay #2 (LT5); Selective Ride Control
Module; ABS Module; Brake Switch (Automatic);
Air Pump Relay; Air Bypass Valve (LT5)
22. Injectors #1,4,6,7 (LTl); Primary Injectors #1-8
(LT5); Ignition Coil (LT5)
23. Injectors #2,3,5, 8 (LTl); Secondary SF1 Control
Modules (LT5)
24. Turn Signal Flashers
25. Ignition Coil and Ignition Coil Module (LT1)
26. Passive Keyless Entry Module
27. Instrument Cluster; Driver Information Center;
Air Bag Denn; Acceleration Slip Regulation
Switch (LT5)

Downloaded from www.Manualslib.com manuals search engine 28. Back-up Lamps Switch; Transmission Position
Switch; One to Four Shift Solenoid
29. Cooling Fan Relay Coil
#I, #2, #3
30. Camshaft Sensor (LT5); Canister Purge Solenoid;
Throttle Position Sensor Buffer Module (LT5);
EGR Circuit (LT1); Secondary Air Inlet Solenoid
(LT5); Ignition Control Module (LT5); HVAC
Solenoid Assembly; Mass Airflow Sensor (LT 1);
One
to Four Shift Relay
3 1. Power Mirror Adjuster Control; Lighted Rearview
Mirror; Visor Vanity Mirrors
32. Cruise Control Engage Switch; Daytime Running
Lamps Module; Low Tire Pressure Warning
Module; Cruise Control Cut-Off Relay
33. Engine Control Module
34. Air Bag System
35. Central Control Module
36. Footwell Courtesy Lamps; Door Courtesy Lamps;
Glove Compartment Lamps; Lighted Rearview
Mirror
37, Bose@ Amplifier Relay; Power Antenna Relay;
Cargo Compartment Lamps
38. Instrument Cluster; Tone Generator; Dome Lamp
Relay
39. Central Control Module
40, Radio Receiver (Battery); Radio Control Head;
Passive Keyless Entry Module
41. Sport Seats
42. Power Door Lock Switches; Driver Information
Center; Passive Keyless Entry Module
43. Heater and A/C Programmer
44. Cigarette Lighter; Accessory Plug
45. Hatch or Deck Lid Release Relay
K. Power Seats
L. Blank
M. Power Windows
N. Blank
P. Blank
6-71

Downloaded from www.Manualslib.com manuals search engine Forward Lamp Fuse Block -
INTERIOR LIGHTING
PRIMARY COOLING FAN
LH HDLP
MOTOR
RH HDLP MOTOR
EXTERIOR LIGHTING
POWER
ACCSY
AIR PUMP
1. Interior Lighting
2. Primary Cooling Fan
3. LH Headlamp Motor
4. RH Headlamp Motor
5. Secondary Cooling Fan
6. Exterior Lighting
7. Power Accessory (Power Locks, Hatch, Lighter,
Seats)
8. Air Pump
6-72

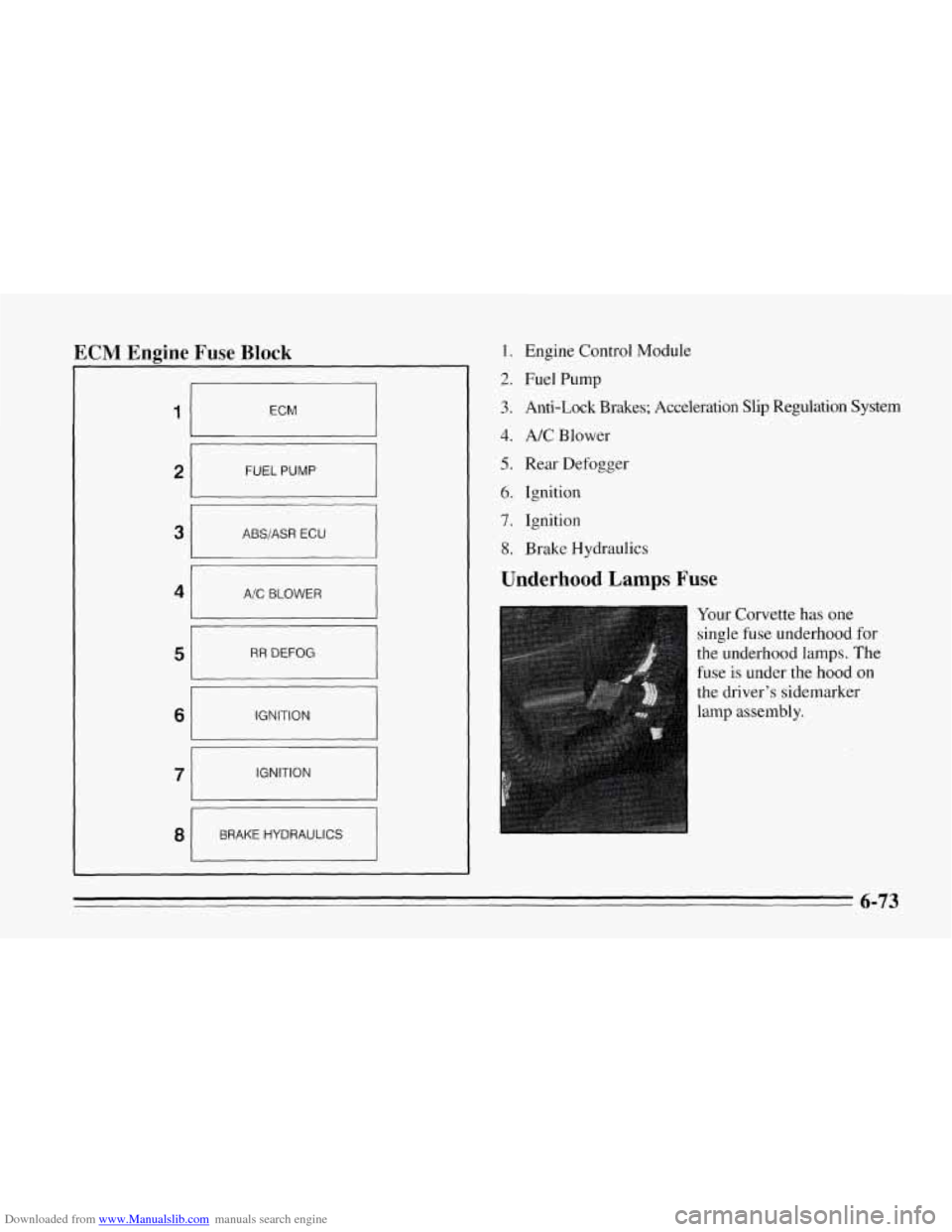

Downloaded from www.Manualslib.com manuals search engine ECM Engine Fuse Block v
FUEL PUMP
ABWASR ECU
A/C BLOWER
RR DEFOG
IGNITION
IGNITION
BRAKE HYDRAULICS
1.
2.
3.
4.
5.
6.
7.
8.
Engine Control Module
Fuel
Pump
Anti-Lock Brakes; Acceleration Slip Regulation System
A/C Blower
Rear Defogger
Ignition
Ignition
Brake Hydraulics
Underhood Lamps Fuse
Your Corvette has one
single fuse underhood for
the underhood
lamps. The
fuse is under the hood
on
the driver’s sidemarker
lamp assembly.
6-73

Downloaded from www.Manualslib.com manuals search engine Leaving your hood open and your underhood lamps on
can drain your battery
. If you need to keep the hood
open for an extended period
of time. remove the
underhood lamps fuse
.
Replacement Bulbs
Air Conditioningmeater Control ................ 37
Automatic Transmission Indicator
........... 194NA
Back-up
................................. 1156
Center High-Mounted Stoplamp (except ZR-
1) ... 1156
Center High-Mounted Stoplamp (ZR-
1) ........ 89 1
Console
.................................. 564
Cornering
................................. 1156
Door Courtesy
........................... .21 2-2
DoorFlood
................................ 73
* These bulbs are not owner.serviceab1e . See your dealer.
Driver Information Center * ......................
Floor Courtesy ............................. 562
Fog
...................................... 896
Front Parkingmurn Signal
................. 2057NA
Headlamp ............................. HP6054
Instrument Cluster
License
................................... 24
MirrorFlood
............................... 74
* ............................
Mirror Reading ............................ 168
Rear Courtesy (Convertible)
.................. 562
Rear Courtesy (except Convertible)
............ 906
Sidemarker
................................ 24
Tail/Stop/Turn
............................ 2057
Visor Vanity Mirror
.......................... 74
Radio
* ......................................
Underhood ................................. 2-2
6-74

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine
Type ........................................................................\
.............. V8
FueI Delivery ................................................ Sequential Multiport Fuel Injection (SFI)
Valve Arrangement
VIN Engine Code J .......................................................... Dual Overhead Cam
VIN Engine Code P ............................................................. Overhead Valve
Piston Displacement ............................................................... 350 CID (5.7L)
Bore
VIN Engine Code J .............................................................. 3.90” (99 mm)
VIN Engine Code P .......................................................... 4.00” (101.6 mm)
VINEngineCodeJ .............................................................. 3.66”(93mm)
VIN Engine Code P
............................................................ 3.48” (88.39 mm)
VINEngineCodeJ ..................................................................... 11.O:l
VINEngineCodeP ..................................................................... 10.5:l
Firing Order ................................................................... 1-8-4-3-6-5-7-2
Thermostat Temperature Specification ................................................ 180°F (82 “C)
Stroke
Compression Ratio
6-75

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ......................................
Battery
VIN Engine Code J ....................................
............................... A1097C
GM
Part No. 25096933 or equivalent
................................752-72
..................................................................... VIN Engine Code P 75B-72
Coolant High Fill Reservoir Cap ............................ RC36/GM Part No. 6410785 or equivalent
Crankcase Ventilation Valve
VIN Engine Code J ........................................................ CV746CB and CV9 13C
GM
Part No. 25042723 and GM Part No. 25098197or equivalent
VIN Engine Code
P CV895C
GM
Part No. 25095452 or equivalent
VIN Engine Code
J PF97OC (black)
GM
Part No. 25014155 or equivalent
VIN Engine Code
P ........ ............................................................
GM Part No. 25010908 or equivalent
....................................................................
Engine Oil Filter
..............................................................
PCV Valve (LT1) .............................. ......................... AC Type CV895C
PCV Valve (LT5) ........................... ................. ~.. AC Type CV746CB
AC Type CV913C
6-76

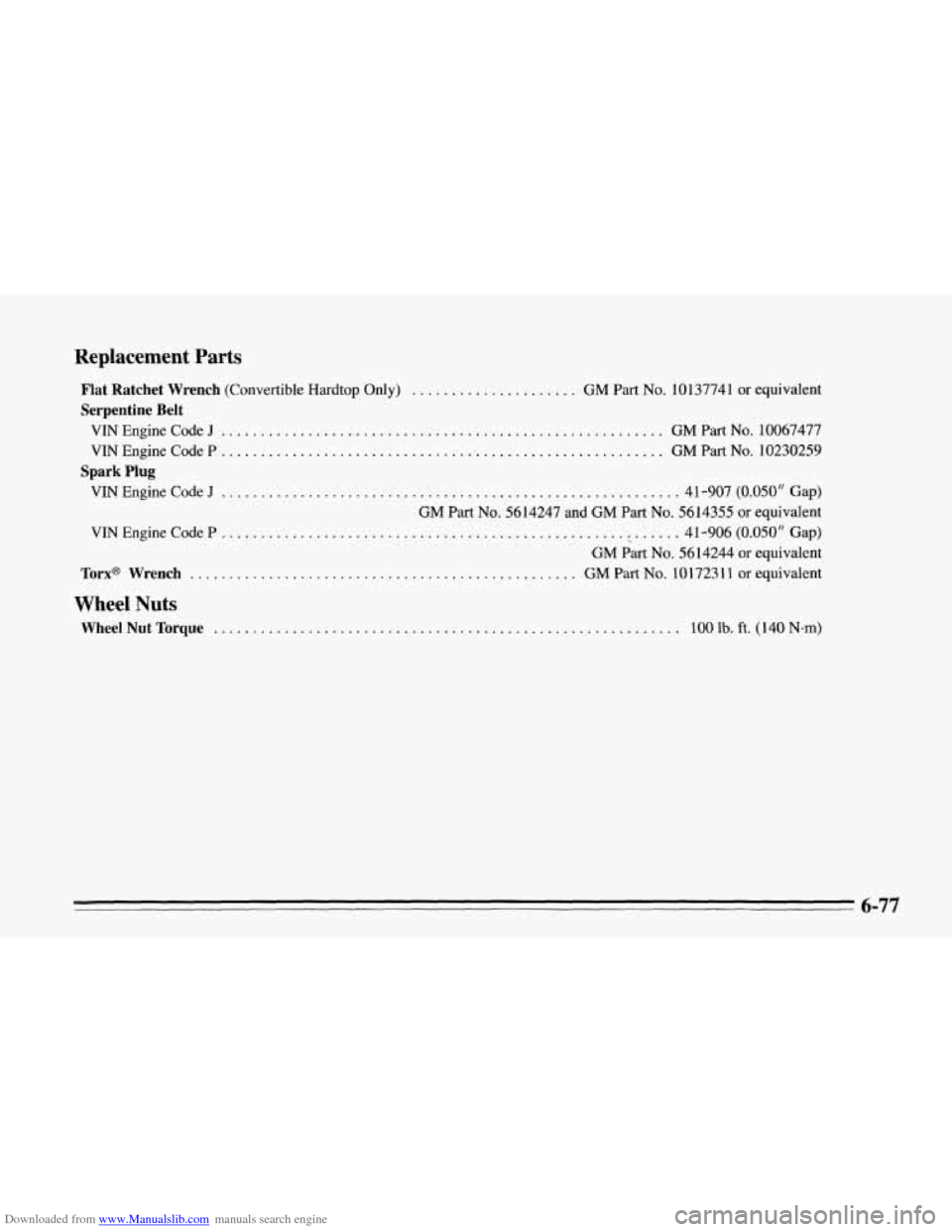

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Flat Ratchet Wrench (Convertible Hardtop Only) ................... GM Part No. 10137741 or equivalent
Serpentine Belt
VIN Engine Code J ........................................................ GM Part No. 10067477
VIN Engine Code P
........................................................ GM Part No. 10230259
VIN Engine Code
J .......................................................... 4 1-907 (0.050" Gap)
GM Part No. 5614247 and GM Part No. 5614355 or equivalent
VIN Engine Code
P .......................................................... 41 -906 (0.050" Gap)
GM
Part No. 5614244 or equivalent
Tom@ Wrench ................................................. GM Part No. 1017231 1 or equivalent
Spark Plug
Wheel Nuts
Wheel Nut Torque ........................................................... 100 1b. ft. (140 Nam)
