1995 CHEVROLET CORVETTE Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fog Lamp
You can reach the fog lamps from under the front
bumper.
1. Remove the screw in the access door. Open the door.
2. Turn the bulb base counterclockwise 118 turn and
pull it out.
3. Disconnect the bulb base from the wiring harness.
4. Reverse the steps with a new bulb.
6. Remove the four screws from the retainer near each
comer of the headlamp. Don’t move the large-head
adjusting screws
or your headlamp will not be aimed
properly.
Hold the headlamp and remove the retainer.
7. Remove the headlamp and unplug the electrical
8. Reverse the steps with a new headlamp.
connector.

Downloaded from www.Manualslib.com manuals search engine Front Turn Signal
1. Open the hood.
2. Find the socket at the front of the engine
compartment.
3. Turn the socket counterclockwise 1/4 turn and pull it
out.
4. Push the bulb in, turn it counterclockwise, then pull
5. Reverse the steps with a new bulb. The socket has
it out.
three large tabs and one small tab. Be sure to line
up
the small tab with the small notch in the housing.
6-39

Downloaded from www.Manualslib.com manuals search engine Rear Turn Signal and Taillamp
I
I
1. Remove the screws.
2.
3.
4.
Pull the lens out.
Push the bulb in, turn it counterclockwise, then pull
it out.
Reverse the steps with a new bulb.
To prevent water
from getting inside the lens, make sure the lens seal
is properly positioned.
6-40

Downloaded from www.Manualslib.com manuals search engine Back-up Lamp
You can reach the back-up lamps by removing the
license plate and reachmg through the opening.
1. Push the tab on the socket and turn it
counterclockwise.

2. Push the bulb in, turn it counterclockwise, then pull
it out.
3. Reverse the steps with a new bulb.
6-41

Downloaded from www.Manualslib.com manuals search engine Sidemarker 1. Turn the socket counterclockwise 1/4 turn and
pull it out.
You can reach the front sidemarker from inside the
engine compartment.
Reach
the rear sidemarker from under the vehicle.
2. Pull the bulb straight out.
3. Reverse the steps with a new bulb.
6-42

Downloaded from www.Manualslib.com manuals search engine Cornering Lamp
You can reach the front cornering lamp from inside the
engine compartment.
Reach the rear cornering lamp from under the vehicle.
1. Press the tab on the socket, turn it counterclockwise
1/4 turn and pull it out.
2. Push the bulb in, turn it counterclockwise, then pull
it out.
3. Reverse the steps with a new bulb.
6-43

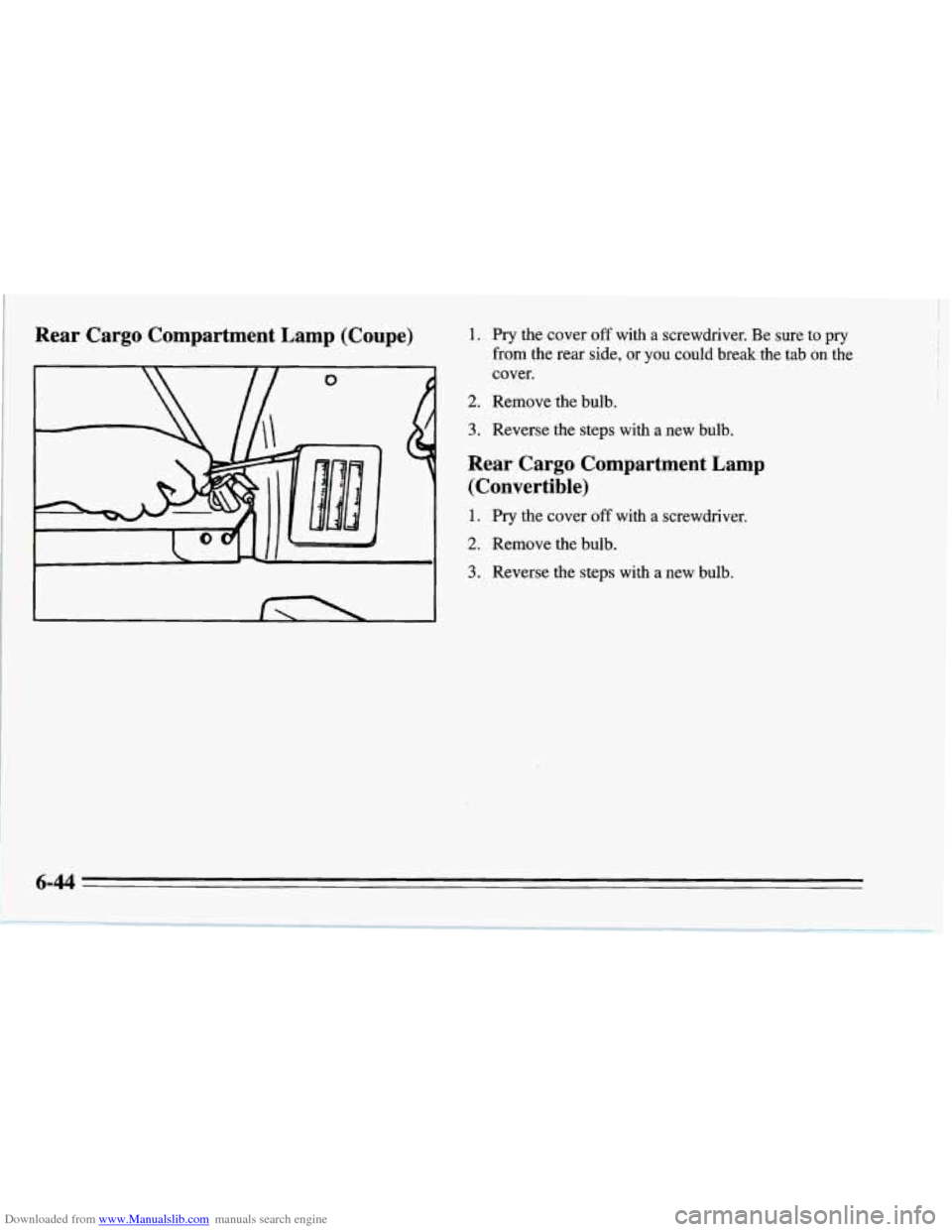

Downloaded from www.Manualslib.com manuals search engine Rear Cargo Compartment Lamp (Coupe) 1.
2.
3.
Pry the cover off with a screwdriver. Be sure to pry
from the rear side, or you could break the tab on the
cover.
Remove the bulb. Reverse the steps with a new bulb.
Rear, Cargo Compartment Lamp
(Convertible)
1.
2.
3.
Pry the cover off with a screwdriver.
Remove the bulb.
Reverse the steps with a new bulb.
6-44

Downloaded from www.Manualslib.com manuals search engine Center High-Mounted Stoplamp
(Except
ZR-1)
1. Turn the socket counterclockwise 1/4 turn and
pull it out.
You can reach the center high-mounted stoplamp by
removing the license plate and reaching through the
opening.
2. Push the bulb in, turn it counterclockwise, then pull
3. Reverse the steps with a new bulb.
it
out.
6-45
