1995 CHEVROLET CORVETTE Owners Manual

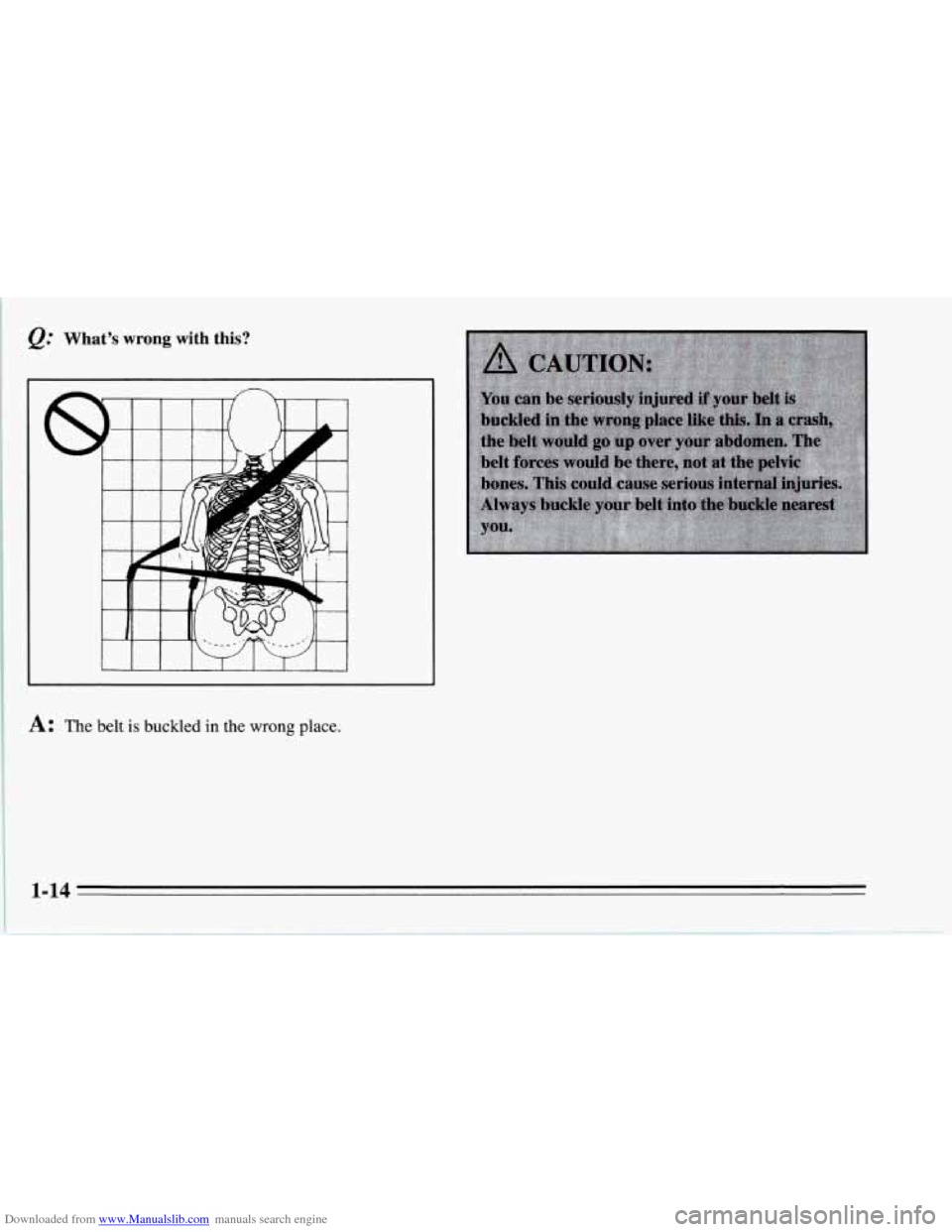

Downloaded from www.Manualslib.com manuals search engine @ What’s wrong with this?
n
A: The belt is buckled in the wrong place.
1-14

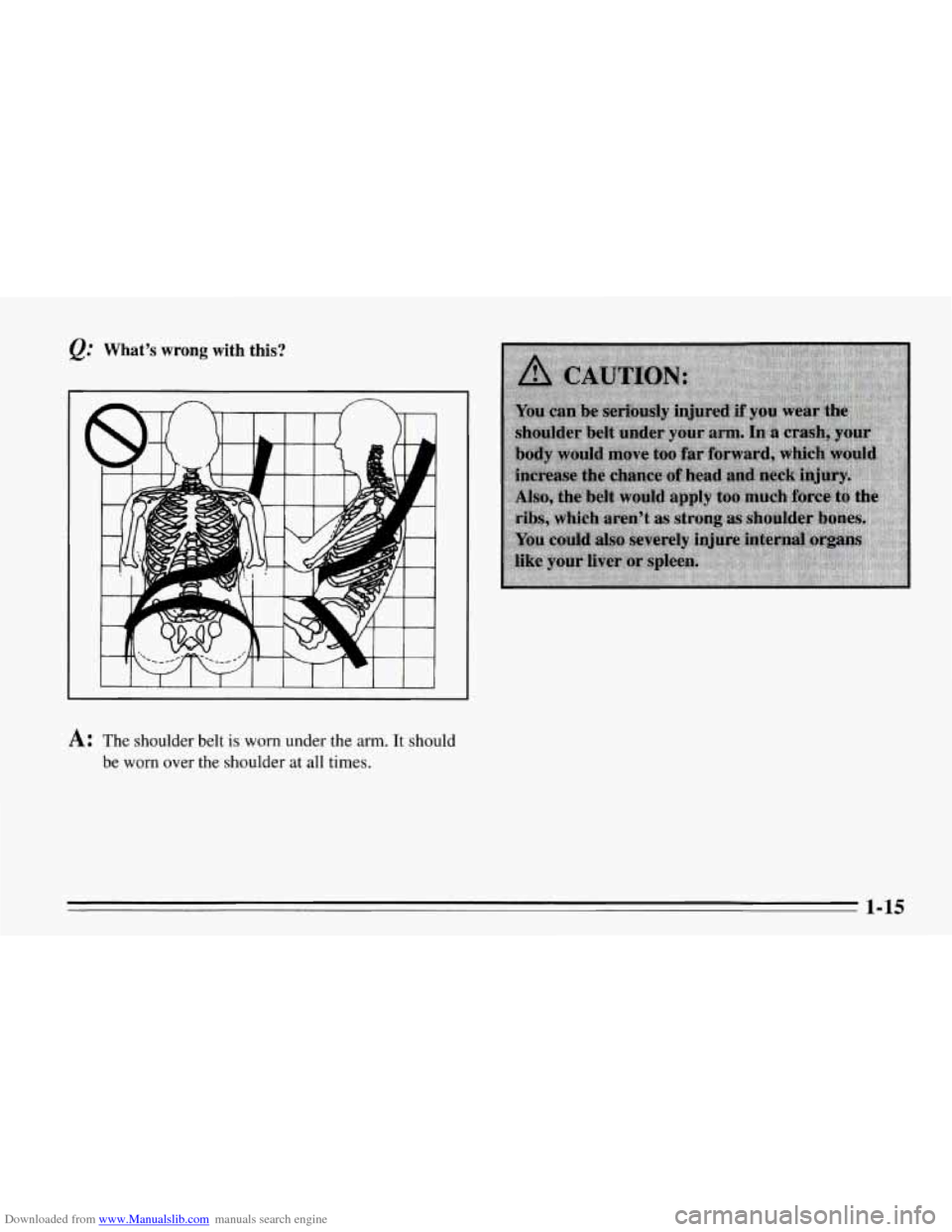

Downloaded from www.Manualslib.com manuals search engine What’s wrong with this?
A: The shoulder belt is worn under the arm. It should
be
worn over the shoulder at all times.
1-15

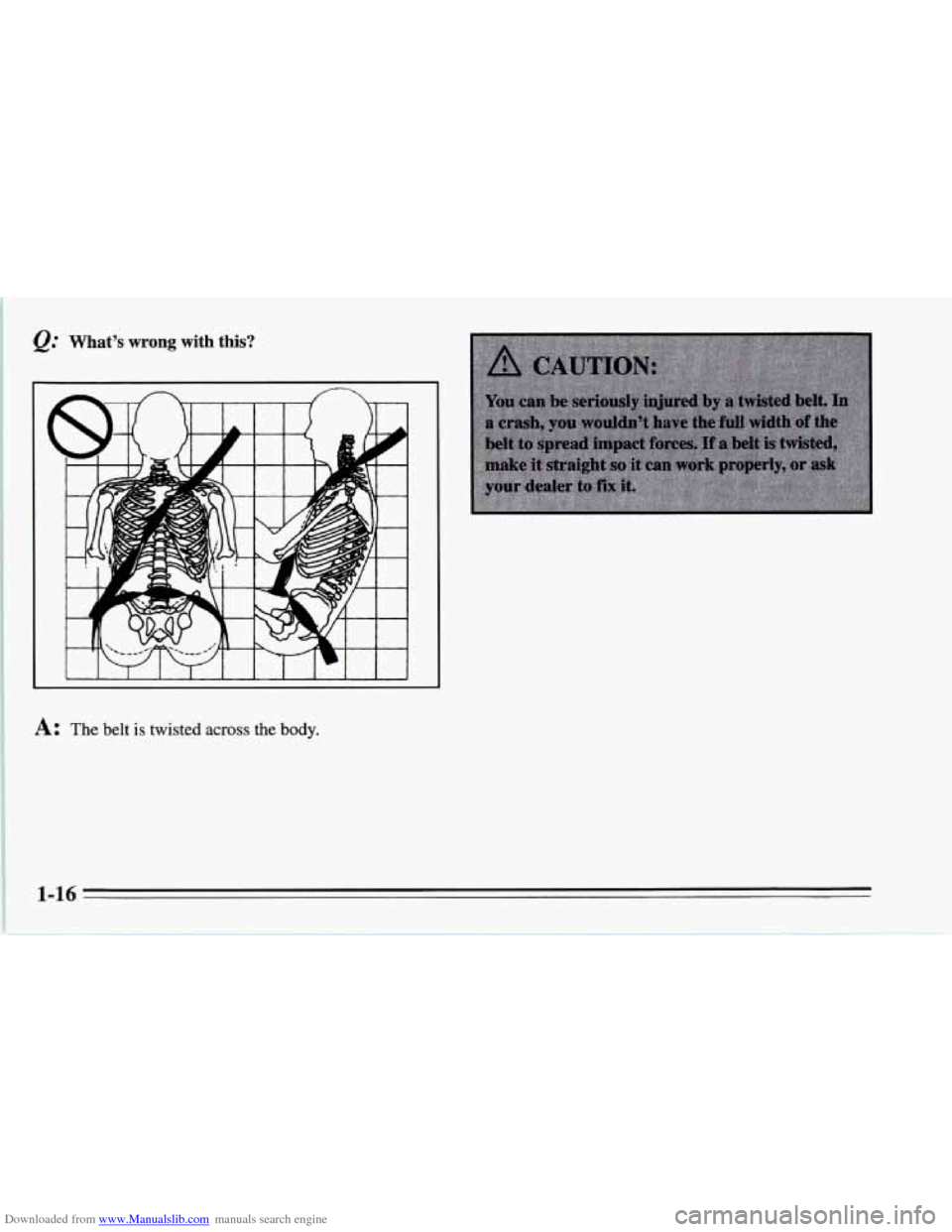

Downloaded from www.Manualslib.com manuals search engine @ What's wrong with this?
A: The belt is twisted across the body.
1-16

Downloaded from www.Manualslib.com manuals search engine To unlatch the belt, just push the button on the buckle.
The belt should go back out
of the way.
Before you close the door, be sure the belt
is out of the
way.
If you slam the door on it, you can damage both the
belt and your vehicle.
Air Bag System
This part explains the air bag system.
Your Corvette has two air bags
-- one air bag for the
driver and another air bag for the passenger.
Here are the most important things
to know about the air
bag system:
1-17

Downloaded from www.Manualslib.com manuals search engine There is an air bag readiness light on the instrument
panel, which shows
AIR BAG . The system checks the
air bag’s electrical system for malfunctions. The light
tells you if there is an electrical problem. See “Air Bag
Readiness Light” in the Index for more information.
How the Air Bag System Works
1-18

Downloaded from www.Manualslib.com manuals search engine Where is the air bag?
The driver's air bag is in the middle of the steering
wheel. The passenger's air bag is in the instrument panel
on the passenger's side.
1-19

Downloaded from www.Manualslib.com manuals search engine When should an air bag inflate?
The air bag is designed to inflate in moderate to severe
frontal or near-frontal crashes. The air bag will inflate
only
if the impact speed is above the system’s designed
“threshold level.” If your vehicle goes straight into a
wall that doesn’t move or deform, the threshold level is
about
9 to 15 mph (14 to 24 km/h). The threshold level
can vary, however, with specific vehicle design,
so that
it can be somewhat above or below
this range. If your
vehicle strikes something that will move or deform, such
as a parked car, the threshold level will be higher. The
air bag is not designed to inflate in rollovers, side
impacts, or rear impacts, because inflation would not
help the occupant.
It is possible that in a crash only one of the two air bags
in your Corvette will deploy.
This is rare, but can
happen in a crash just severe enough to make an air bag
inflate.
In any particular crash, no one can say whether an air
bag should have inflated simply because of the damage
to a vehicle or because of what the repair costs were.
Inflation is determined by the angle of the impact and
the vehicle’s deceleration. Vehicle damage is only one
indication of this.
What makes an air bag inflate?
In a frontal or near-frontal impact of sufficient severity,
the air bag sensing system detects that the vehicle is
suddenly stopping as a result
of a crash. The sensing
system triggers a chemical reaction of the sodium azide
sealed in the inflator. The reaction produces nitrogen
gas, which inflates the air bag. The inflator, air bag, and
related hardware are all part of the air bag modules
packed inside the steering wheel and in the instrument
panel in front of the passenger.
How does an air bag restrain?
In moderate to severe frontal or near-frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. The air bag supplements the
protection provided by safety belts. Air bags distribute
the force of the impact more evenly over the occupant’s
upper body, stopping the occupant more gradually. But
air bags would not help you in many types of collisions,
including rollovers and rear and side impacts, primarily
because an occupant’s motion
is not toward the air bag.
Air bags should never be regarded
as anything more
than a supplement to safety belts, and then only in
moderate to severe frontal or near-frontal collisions.
1-20

Downloaded from www.Manualslib.com manuals search engine What will you see after an air bag inflates?
After the air bag inflates, it quickly deflates. This occurs
so quickly that some people may not even realize the air
bag inflated. Some components of the air bag module in
the steering wheel hub for the driver’s air bag, or the
instrument panel for the passenger’s bag, will be hot for
a short time, but the part of the bag that comes into
contact with you will not be hot to the touch. There will
be some smoke and dust coming from vents in the
deflated air bags. Air bag inflation will not prevent the
driver from seeing or from being able to steer the
vehicle, nor will it stop people from leaving the vehicle. In many crashes severe enough to
inflate an air bag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
passenger air bag.
0
0
0
The air bags are designed to inflate only once. After
they inflate, you’ll need some new parts for your air
bag system. If you don’t get them, the air bag system
won’t be there to help protect you in another crash.
A new system will include air bag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.
Your vehicle is equipped with a diagnostic module,
which records information about the air bag system.
The module records information about the readiness
of the system, when the sensors are activated and
driver’s safety belt usage at deployment.
Let only qualified technicians work
on your air bag
system. Improper service can mean that your air bag
system won’t work properly. See your dealer for
service.
1-21
