1995 CHEVROLET CORVETTE Owners Manual

Downloaded from www.Manualslib.com manuals search engine Lamps
0
0
The headlamp knob controls these lamps:
Headlamps
Taillamps
0 Parking lamps
0 Sidemarker lamps Turn the knob to
0, to turn on your
headlamps and
other operating lamps.
Turn the knob to
other operating lamps without your headlamps.
Turn the knob to
OFF to turn off the lamps.
Your digital display will dim at dusk to remind you to
turn on your headlamps.
To read your odometer and
fuel level with the ignition
off, turn on your parking
lamps.
Lamps On Reminder
If you turn the ignition OFF and leave the lamps on, you
will hear a chime.
Brightness Control
The DIMMER switch controls the brightness of your
instrument panel lamps when your headlamps or parking
lamps are on. Move the switch up
or down to brighten
or dim the lamps. If you turn the switch all the way
up,
your courtesy, reading, map and cargo area lamps will
come
on. Be sure to turn off the lamps when you leave
your vehicle.
-‘a-
2-46

Downloaded from www.Manualslib.com manuals search engine Headlamp Doors
The headlamp doors are designed to open when you
turn the headlamps on and close when you turn the
headlamps and parking lamps off. If you turn the
headlamps on, then turn the headlamp switch back to
the parking lamps setting, the headlamp doors will stay
open. You
can open the doors manually using the knob next to
the headlamp assembly. Turn the knob counterclockwise
until the doors are open.
The headlamp doors should be open when driving in icy
or snowy conditions to prevent the doors from freezing
closed and when washing the vehicle to help clean the
headlamps.
Daytime Running Lamps (Canada Only)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn’t covered.
The DRL system will make your front turn signal lamps
come on when:
The ignition is on,
The headlamp switch is off, and
0 The parking brake is released.
2-47

Downloaded from www.Manualslib.com manuals search engine When the DRL are on, only your front turn signal lamps
will be
on. The taillamps, sidemarker and other lamps
won’t
be on. Your instrument panel won’t be lit up either.
When it’s dark enough outside, your front turn signal
lamps will go out and your headlamps will come on.
The other lamps that come on with your headlamps will
also come on.
When it’s bright enough outside, the regular lamps will
go off, and your front turn signal lamps come on.
As with any vehicle, you should turn on the regular
headlamp system any time you need
it.
Fog Lamps
Use your fog lamps for
better vision in foggy or
misty conditions. Your
parking lamps
or
low-beam headlamps must
be on or your fog lamps
won’t work.
To turn the fog lamps on, push the button. Push the
button again
to turn the fog lamps off. A light above the
button will come on when the fog lamps are on.
2-48

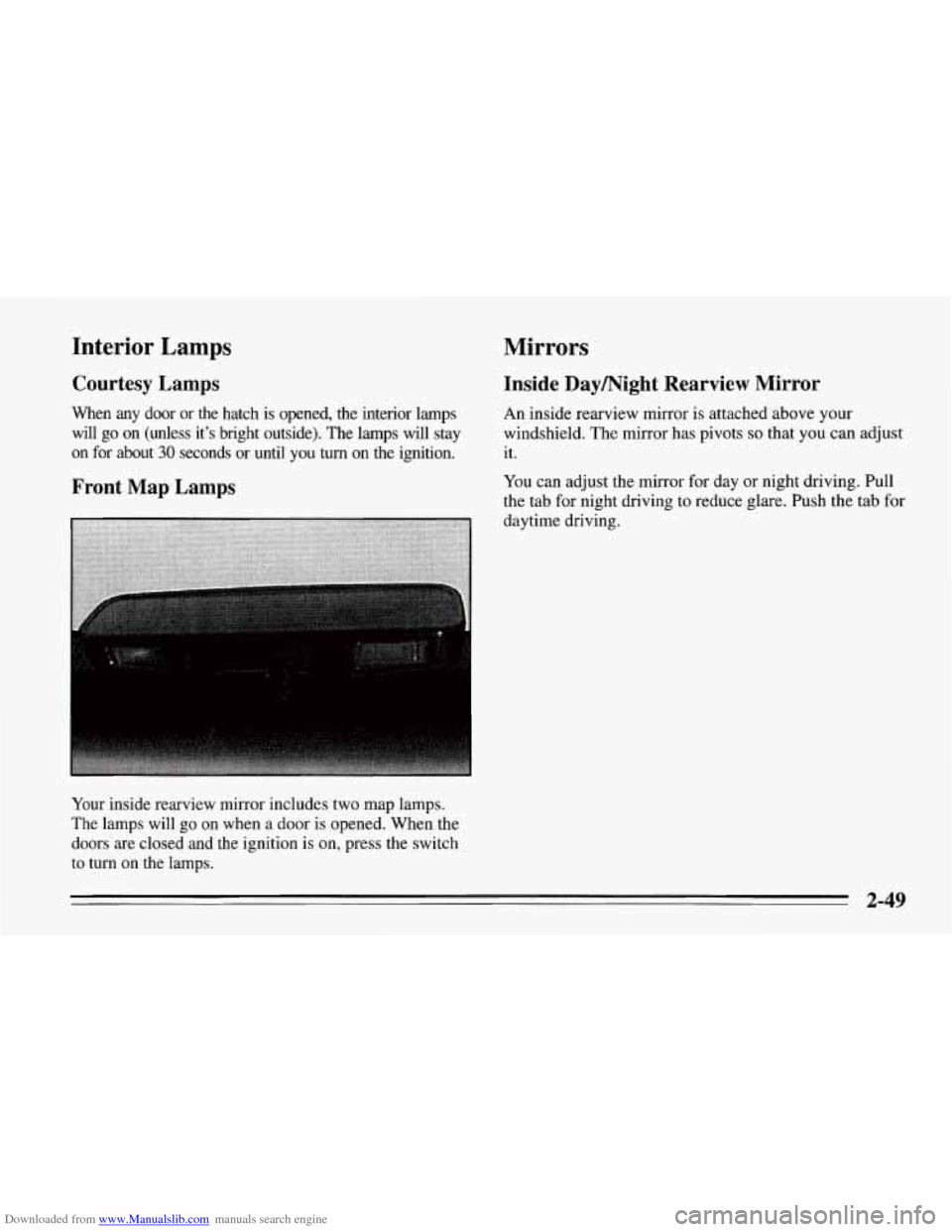

Downloaded from www.Manualslib.com manuals search engine Interior Lamps Mirrors
Courtesy Lamps
When any door or the hatch is opened, the interior lamps will go on (unless it’s bright outside). The lamps will
stay
on for about 30 seconds or until you turn on the ignition.
Front Map Lamps
Your inside rearview mirror includes two map lamps.
The lamps will go on when a door is opened. When the
doors are closed and the ignition is
on, press the switch
to turn
on the lamps.
Inside Daymight Rearview Mirror
An inside rearview mirror is attached above your
windshield. The mirror has pivots
so that you can adjust
it.
You can adjust the mirror for day or night driving.
Pull
the tab for night driving to reduce glare. Push the tab for
daytime driving.
2-49

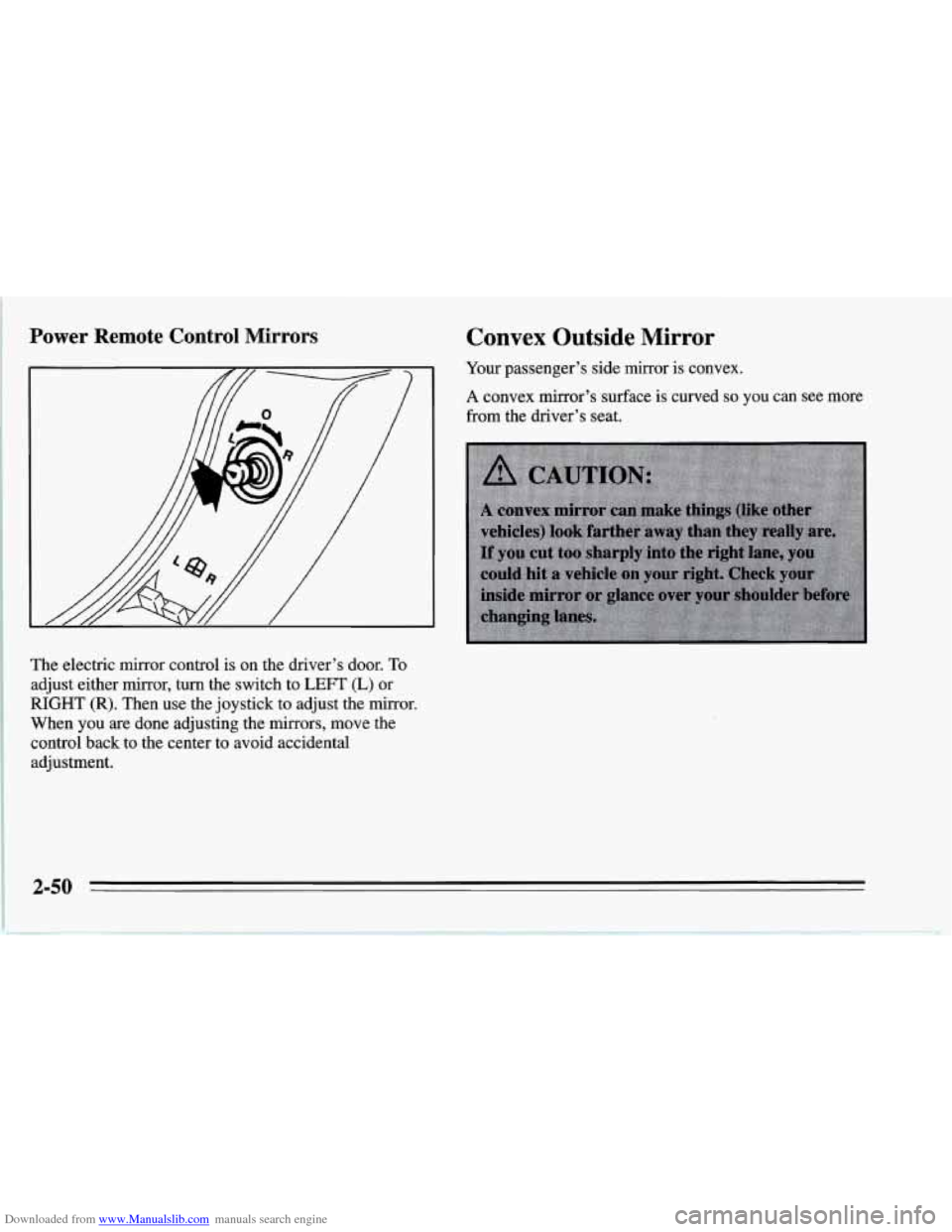

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors
The electric mirror control is on the driver’s door. To
adjust either mirror, turn the switch to LEFT (L) or
RIGHT (R). Then use the joystick to adjust the mirror.
When you are done adjusting the mirrors, move the
control back to the center to avoid accidental
adjustment.
Convex Outside Mirror
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more
from the driver’s seat.
2-50

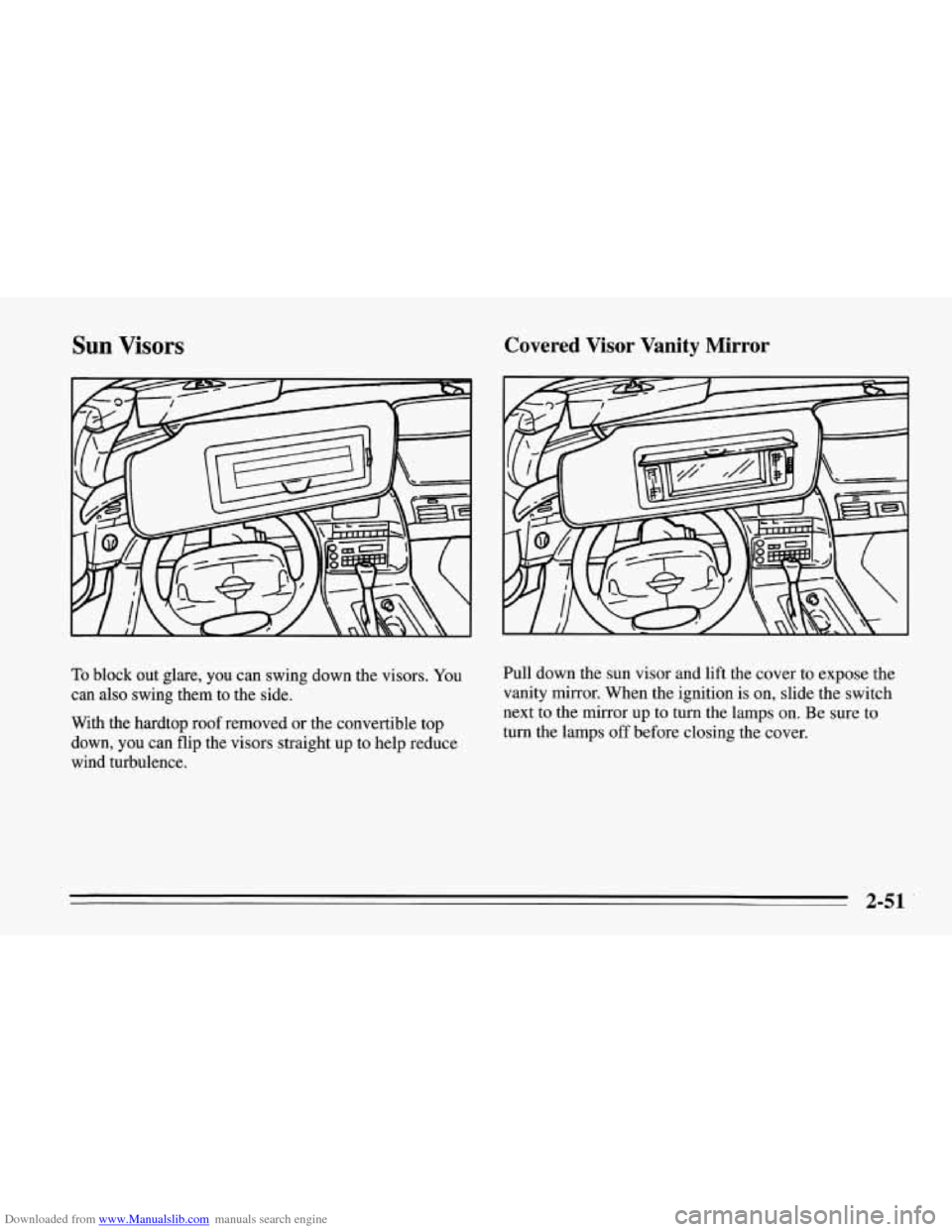

Downloaded from www.Manualslib.com manuals search engine Sun Visors Covered Visor Vanity Mirror
To block out glare, you can swing down the visors. You
can also swing them to the side.
With the hardtop roof removed
or the convertible top
down, you can flip the visors straight up to help reduce
wind turbulence. Pull down the sun visor and lift
the cover to expose the
vanity mirror. When the ignition is on, slide the switch
next to the mirror up to turn the lamps on. Be sure to
turn the lamps off before closing the cover.
2-51

Downloaded from www.Manualslib.com manuals search engine Roof Panel (Coupe)
Until you are sure you can remove the panel alone, have
someone help you.
Removing the Roof Panel
2. Remove the ratchet from the console.
1. Park on a level surface, set the parking brake firmly
and shift an automatic transmission into PARK
(P).
Shift a manual transmission into REVERSE (R).
Lower both windows, turn the ignition key to LOCK
and move both sunshades to the side.
2-52

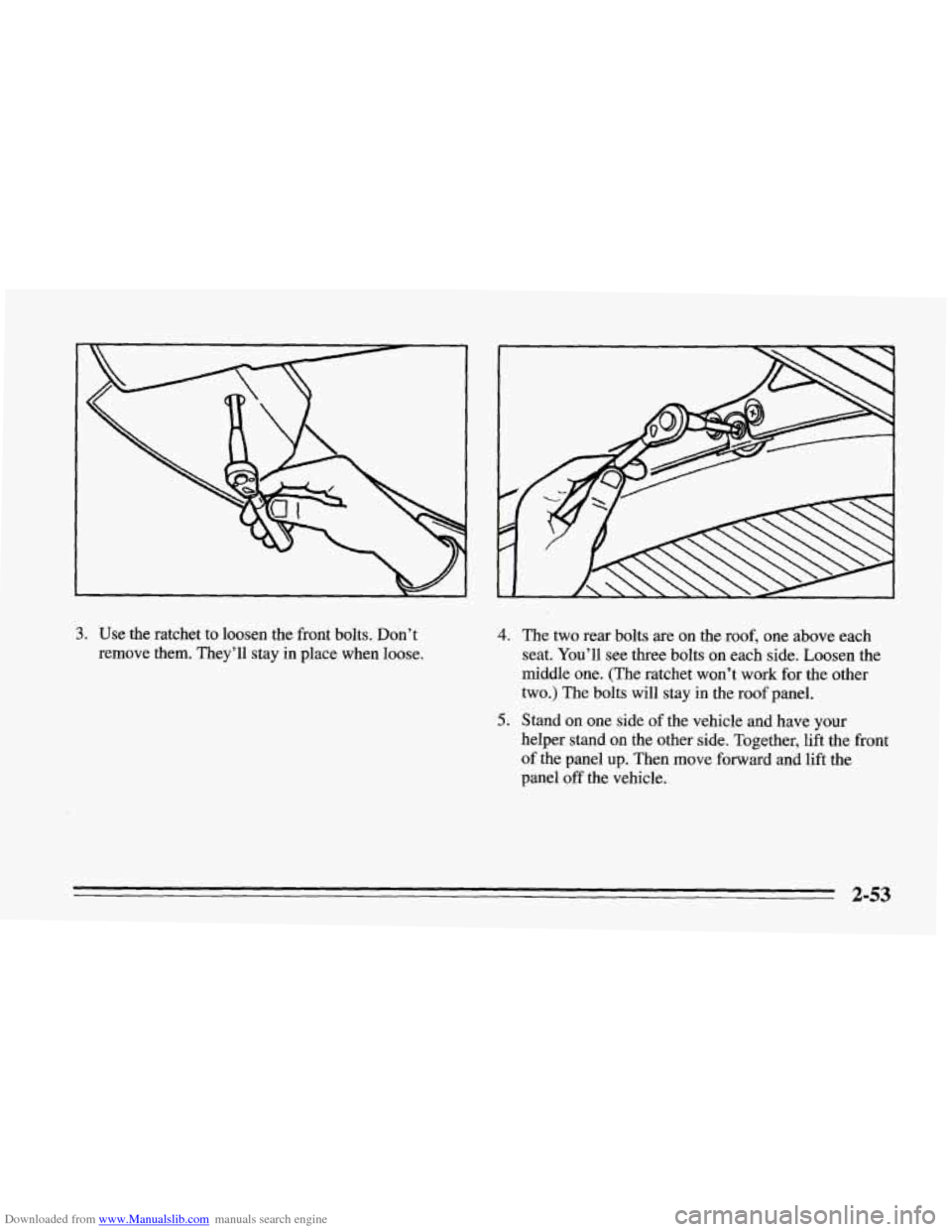

Downloaded from www.Manualslib.com manuals search engine 3. Use the ratchet to loosen the front bolts. Don’t
remove them. They’ll stay in place when loose. 4. The two rear bolts are on the roof, one above each
seat. You’ll see three bolts on each side. Loosen the
middle one. (The ratchet won’t work for the other
two.) The bolts will stay in the roof panel.
5. Stand on one side of the vehicle and have your
helper stand on the other side. Together,
lift the front
of the panel up. Then move forward and lift the
panel off the vehicle.
2-53
