1994 JEEP CHEROKEE front

INTERIOR COMPONENTS
INDEX
page page
Assist HandleÐXJ Vehicles................ 118
B/C-Pillar and Liftgate Pillar Trim CoversÐ
XJ Vehicles.......................... 116
Bucket Seat Cushion and Cover............. 98
Bucket Seat Platform and Tracks........... 105
Bucket Seatback Cover and Frame.......... 100
Bucket Seatback Reconditioning............ 102
Carpets and Floor Mats................... 129
Dash Panel Insulation Panel................ 95
Front Bucket Seats....................... 97
Front Carpet/MatÐXJ Vehicles............. 129
Front Inner Scuff Plate/Cowl Side Trim PanelÐ
XJ Vehicles.......................... 114
Front Shoulder Belt/BuckleÐXJ Vehicles...... 119
Full Floor ConsoleÐXJ Vehicles............ 125
Headliner.............................. 121
I/P Ash Receiver Tray Lamp................ 92
I/P Tweeter Speaker/Courtesy Lamp Support
Bracket.............................. 95
Instrument Cluster Bezel................... 91
Instrument Cluster/Switch/Lighter/Radio/Hevac . . . 91
Instrument Panel......................... 93
Interior Trim Panels and Scuff PlatesÐXJ Vehicles. 112
Jack StorageÐXJ Vehicles................ 127
Mini-Floor ConsoleÐXJ Vehicles............ 124
Outer Scuff PlatesÐXJ Vehicles............ 118
Power Bucket Seat Components............ 106
Quarter and Wheelhouse Trim PanelsÐ
XJ Vehicles.......................... 115
Quarter Trim Panel ExtensionÐXJ Vehicles . . . 115
Rear Carpet/MatÐXJ Vehicles.............. 130
Rear Seat Cushion CoverÐXJ Vehicles...... 107
Rear Seat Cushion ReconditioningÐXJ Vehicles . 108
Rear Seat CushionÐXJ Vehicles............ 107
Rear Seatback CoverÐXJ Vehicles.......... 111
Rear Seatback Latch Striker and BumperÐ
XJ Vehicles.......................... 111
Rear Seatback ReconditioningÐXJ Vehicles . . . 111
Rear SeatbackÐXJ Vehicles............... 109
Rear Shoulder/Lap Belt/BuckleÐXJ Vehicles . . . 120
Spare Tire/Wheel Holddown and Floor BracketsÐ
XJ Vehicles.......................... 128
Sunvisors............................. 124
Windshield Side MouldingÐXJ Vehicles...... 114
INSTRUMENT CLUSTER BEZEL
REMOVAL
(1) Remove the bezel retaining screws (Fig. 1).
(2) Separate the bezel from the U-clips and remove
it from the upper section of the instrument panel.
(3) If necessary, remove or install rocker switch
cover plates (Fig. 2).
INSTALLATION
(1) Position the bezel on the upper instrument
panel and engage it with the U-clips.
(2) Install the bezel retaining screws. Tighten the
screws with 1 Nzm (11 in-lbs) torque.
INSTRUMENT CLUSTER/SWITCH/LIGHTER/RADIO/
HEVAC
REMOVAL
(1) Remove the screws and instrument cluster be-
zel from instrument panel (Fig. 3).
(2) As applicable, remove the instrument cluster or
other I/P component screws.
(3) Disconnect wire harness connector(s) from cluster
or other I/P component. Refer to Group 8ÐElectrical.
(4) Remove the cluster or other I/P component
from the upper section of instrument panel (Fig. 9).
Fig. 1 Instrument Cluster Bezel Removal/Installation
Fig. 2 Instrument Cluster Bezel Removal/Installation
JBODY COMPONENTSÐXJ VEHICLES 23 - 91

(5) Install the defroster tubes on the ducts.
(6) Install the instrument panel on the dash panel.
If necessary, refer to the installation procedure.
FRONT BUCKET SEATS
REMOVAL
Bucket seat platforms are attached to the floor
panel with studs and nuts. The trim covers are at-
tached to the platform with either push-on fasteners
(manual seats) or screws (power seats).
(1) Remove the seat platform trim cover push-on
fasteners/screws and remove the trim covers from the
seat platform.
(2) For power seats, disconnect the wire harness
connector.(3) Remove the seat frame retaining nuts.
(4) Remove the seat from the floor panel.
INSTALLATION
(1) Position the seat on the floor panel.
Fig. 25 Heater and A/C Evaporator Unit Removal/
Installation
Fig. 26 Insulation Panel Removal/Installation
Fig. 27 Floor Panel Studs and Washer Seals
Fig. 28 Manual Bucket Seat Outer Trim
CoverÐRight Seat
Fig. 29 Power Bucket Seat Front Trim Cover
JBODY COMPONENTSÐXJ VEHICLES 23 - 97

(5) Engage the headrest release lever and remove
the headrest by pulling it up and out of the cylinders
in the seatback.
(6) Remove the headrest latch release lever knob
spring pin and remove the knob from the lever.
(7) Remove the headrest latch release lever bezel re-
taining screw and remove the bezel from the seatback.
(8) Pry the seatback insert upward to release the
insert clips.
(9) Detach the Velcro flap from the front of the
cover or elastic band at the bottom of the cover.
(10) Remove the cover retainer clips and remove
the cover from the seatback.
(11) For power seats, remove the retaining screws and
remove the seat control from the seat track/platform.
Fig. 45 Bucket Seat Components
Fig. 46 Seatback Insert Removal/Installation
Fig. 47 Seatback Velcro Flap
Fig. 48 Seatback Cover Retainer Clips
Fig. 49 Power Seat Control
JBODY COMPONENTSÐXJ VEHICLES 23 - 101

(12) Remove the retaining screws and nuts, and re-
move the seat frame from the seat track/platform.
INSTALLATION
(1) Position the seat frame on the seat track/plat-
form and install screws and nuts.
(2) For power seats, position the seat control on the
seat track/platform install screws. Tighten screws se-
curely.
(3) Position the cover on the seatback and install
the cover retainer clips.
(4) Attach the cover bottom elastic band or attach
the Velcro flap to the front of the cover:
²folding seatback Ð tilt the seatback forward and
attach the Velcro flap to the front of the cover; and
²
non-folding seatback Ð slip the Velcro flap through
the frame and attach the Velcro flap to the front of the
cover.
(5) For non-folding seatbacks, install the seatback
cover-to-frame wire rods.
(6) Install the seatback insert.
(7) Install the headrest latch release lever bezel
and the retaining screw.(8) Install the headrest latch release lever knob on
the lever with the spring pin.
(9) Install the headrest by pushing it down into
the seatback cylinders.
(10) For two-door vehicles, install the folding seat-
back release lever bezel with the retaining screws.
Install the knob and spring pin on the lever.
(11) If equipped, install the reclining seatback re-
lease handle by positioning it on the shaft and push-
ing inward.
(12) Install the cushion on the frame. If necessary,
refer to the installation procedure.
(13) Install the seat in the vehicle.
(14) For power seats, test the seat operation.
BUCKET SEATBACK RECONDITIONING
ASSEMBLY
(1) If equipped, install the reclining seatback latch
cover.
(2) For wingback bucket seats, install the pivot
bracket covers.
Fig. 50 Manual Seat Frame (Rocker) Removal/
Installation
Fig. 51 Power Seat Frame Removal/Installation
Fig. 52 Seatback Cover-To-Frame Wire Rod Installation
Fig. 53 Reclining Seatback Latch Cover Installation
23 - 102 BODY COMPONENTSÐXJ VEHICLESJ

(10) Attach the Velcro flap to the front of the
cover:
²folding seatback Ð tilt the seatback forward and
attach the Velcro flap to the front of the cover; and
²non-folding seatback Ð slip the Velcro flap
through the frame and attach the Velcro flap to the
front of the cover.
(11) For non-folding seatbacks, install the seatback
cover-to-frame wire rods.
(12) Install the seatback insert.
(13) Install the headrest latch release lever bezel
and the retaining screw.
(14) Install the headrest latch release lever knob
on the lever with the spring pin.
(15) Install the headrest by pushing it down into
the seatback cylinders.
(16) For two-door vehicles, install the folding seat-
back release lever bezel with screws. Install the knob
and spring pin on the lever.(17) If equipped, install the reclining seatback re-
lease handle by positioning it on the shaft and push-
ing inward.
(18) Install the cushion on the frame. If necessary,
refer to the installation procedure.
(19) Install the seat in the vehicle.
(20) For power seats, test the seat operation.
BUCKET SEAT PLATFORM AND TRACKS
REPLACEMENT
Bucket seat platforms and tracks are not repair-
able. If the seat platform or the tracks is/are dam-
aged or defective, replace the platform and the tracks
Fig. 66 Seatback Velcro Flap Installation
Fig. 67 Seatback Cover-To-Frame Wire Rod
Installation
Fig. 68 Seatback Insert Installation
Fig. 69 Bucket Seat Components
JBODY COMPONENTSÐXJ VEHICLES 23 - 105

REAR SEAT CUSHIONÐXJ VEHICLES
REMOVAL
(1) Disengage the seat cushion at the rear by pull-
ing upward on the release strap.
(2) Tilt the seat cushion forward.
(3) Disengage the seat cushion latch with the re-
lease lever knob. Separate the right side latch and
then the left side seat bracket from the floor anchor
bolts, and remove the cushion from the vehicle.
INSTALLATION
(1) Position the seat cushion in the vehicle.
(2) Insert the left pivot in the anchor grommet.(3) Force the right side latch onto the anchor bolt
and pivot the seat cushion to the horizontal position.
(4) Lock the seat cushion in-place by pressing
firmly on the center of the cushion until the latch en-
gages.
REAR SEAT CUSHION COVERÐXJ VEHICLES
REMOVAL
(1) Remove the seat cushion from the vehicle.
(2) Remove the cover side, front and rear retaining
clips from the wire retainers with an appropriate re-
moval tool.
(3) Remove the serrated retainers from the front
ends of the cover with a trim panel removal tool.
(4) Remove the seat cover from the cushion.
INSTALLATION
(1) Position the replacement cover on the cushion.
(2) Compress the cover and attach the retaining
clips to the front and rear wire retainers.
Fig. 75 Seat Cushion Disengagement At Rear
Fig. 76 Seat Cushion Disengagement At Front
Fig. 77 Rear Seat Cushion Removal/Installation
Fig. 78 Seat Cushion Cover Retaining Clip Removal
JBODY COMPONENTSÐXJ VEHICLES 23 - 107

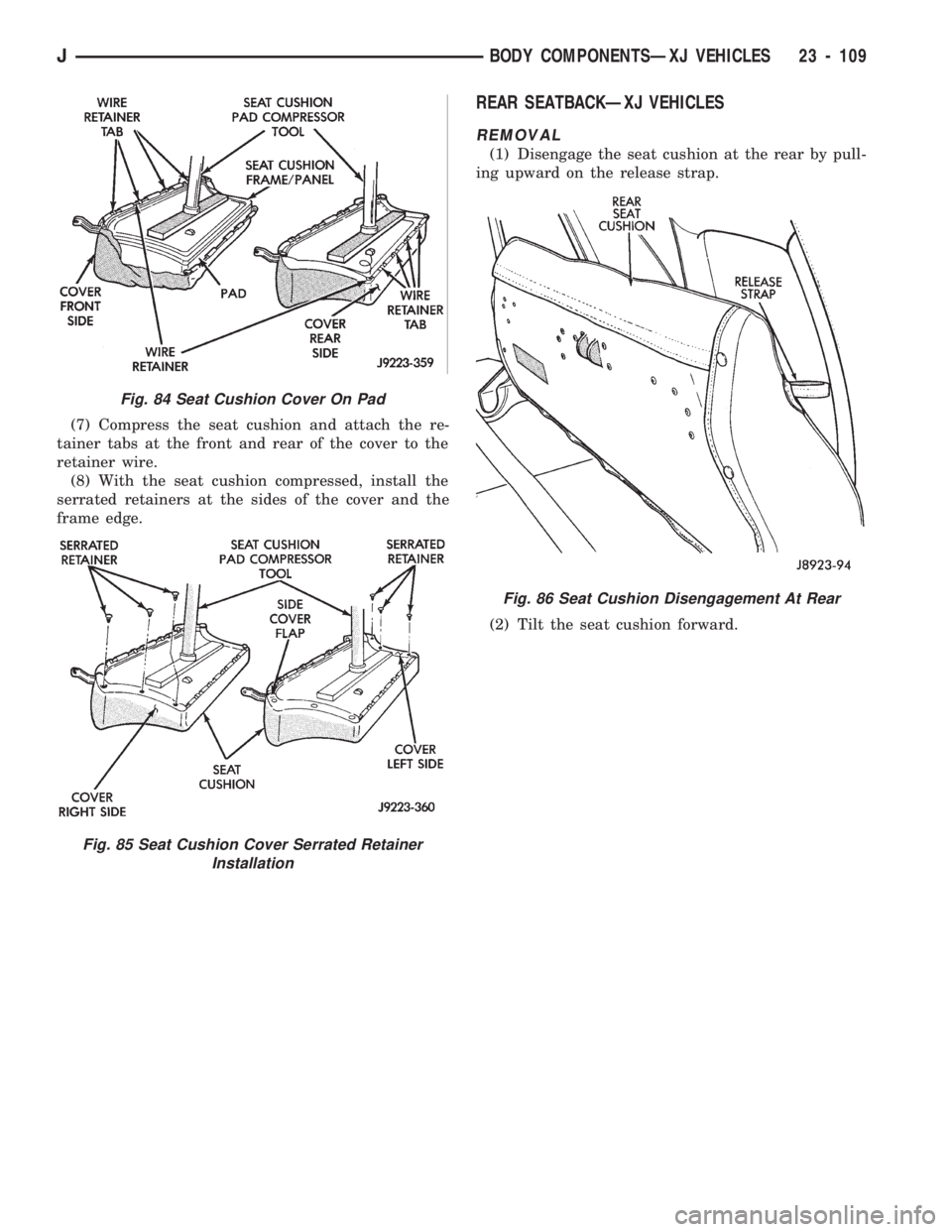

(7) Compress the seat cushion and attach the re-
tainer tabs at the front and rear of the cover to the
retainer wire.
(8) With the seat cushion compressed, install the
serrated retainers at the sides of the cover and the
frame edge.
REAR SEATBACKÐXJ VEHICLES
REMOVAL
(1) Disengage the seat cushion at the rear by pull-
ing upward on the release strap.
(2) Tilt the seat cushion forward.
Fig. 84 Seat Cushion Cover On Pad
Fig. 85 Seat Cushion Cover Serrated Retainer
Installation
Fig. 86 Seat Cushion Disengagement At Rear
JBODY COMPONENTSÐXJ VEHICLES 23 - 109

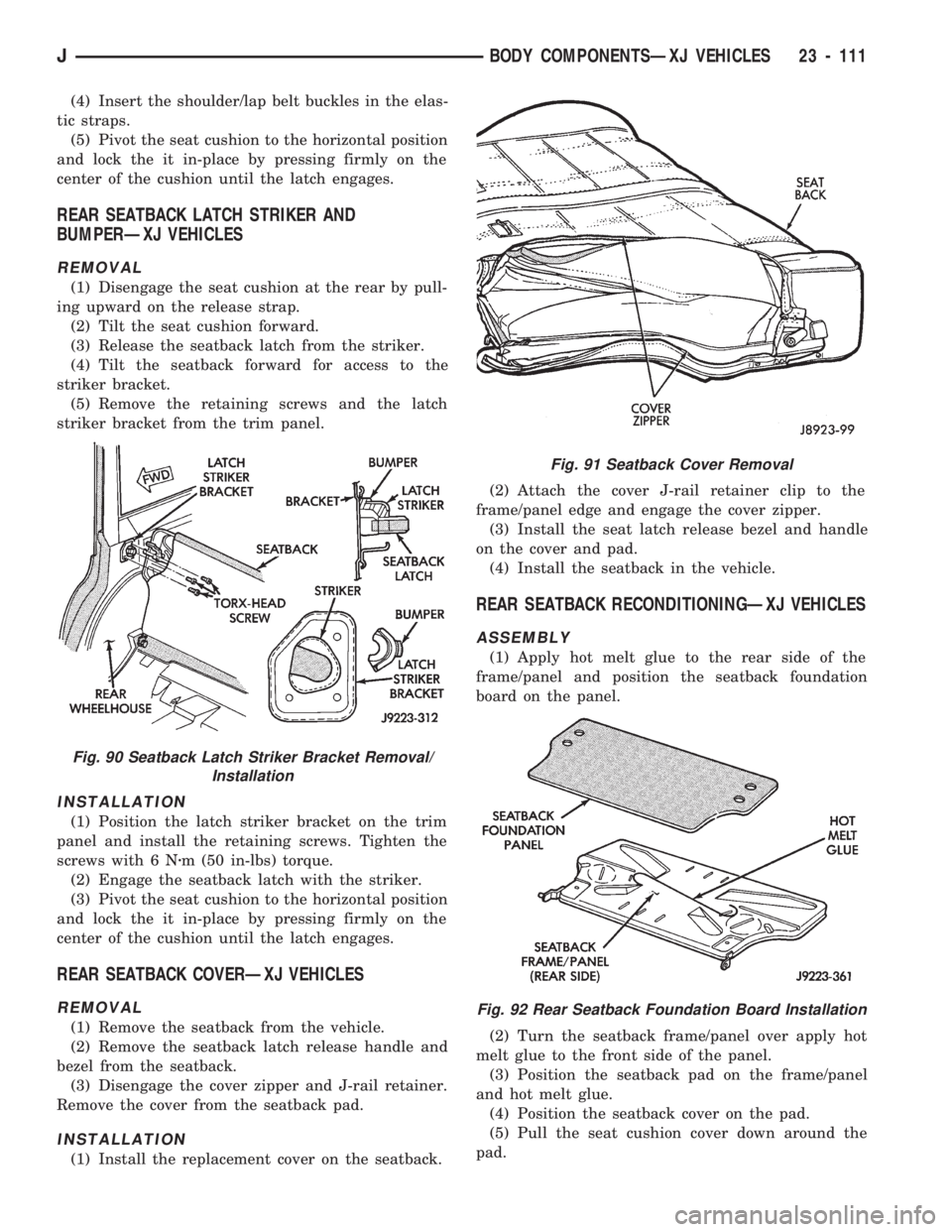

(4) Insert the shoulder/lap belt buckles in the elas-
tic straps.
(5) Pivot the seat cushion to the horizontal position
and lock the it in-place by pressing firmly on the
center of the cushion until the latch engages.
REAR SEATBACK LATCH STRIKER AND
BUMPERÐXJ VEHICLES
REMOVAL
(1) Disengage the seat cushion at the rear by pull-
ing upward on the release strap.
(2) Tilt the seat cushion forward.
(3) Release the seatback latch from the striker.
(4) Tilt the seatback forward for access to the
striker bracket.
(5) Remove the retaining screws and the latch
striker bracket from the trim panel.
INSTALLATION
(1) Position the latch striker bracket on the trim
panel and install the retaining screws. Tighten the
screws with 6 Nzm (50 in-lbs) torque.
(2) Engage the seatback latch with the striker.
(3) Pivot the seat cushion to the horizontal position
and lock the it in-place by pressing firmly on the
center of the cushion until the latch engages.
REAR SEATBACK COVERÐXJ VEHICLES
REMOVAL
(1) Remove the seatback from the vehicle.
(2) Remove the seatback latch release handle and
bezel from the seatback.
(3) Disengage the cover zipper and J-rail retainer.
Remove the cover from the seatback pad.
INSTALLATION
(1) Install the replacement cover on the seatback.(2) Attach the cover J-rail retainer clip to the
frame/panel edge and engage the cover zipper.
(3) Install the seat latch release bezel and handle
on the cover and pad.
(4) Install the seatback in the vehicle.
REAR SEATBACK RECONDITIONINGÐXJ VEHICLES
ASSEMBLY
(1) Apply hot melt glue to the rear side of the
frame/panel and position the seatback foundation
board on the panel.
(2) Turn the seatback frame/panel over apply hot
melt glue to the front side of the panel.
(3) Position the seatback pad on the frame/panel
and hot melt glue.
(4) Position the seatback cover on the pad.
(5) Pull the seat cushion cover down around the
pad.
Fig. 90 Seatback Latch Striker Bracket Removal/
Installation
Fig. 91 Seatback Cover Removal
Fig. 92 Rear Seatback Foundation Board Installation
JBODY COMPONENTSÐXJ VEHICLES 23 - 111
