15. INSTALL EXTENSION HOUSING
(a) Coat the O±ring with gear oil.
(b) Install the O±ring to the extension housing.
(c) Install the extension housing to the driven pinion bear-
ing cage.
(e) Install and torque the four bolts.
Torque: 260kg±cm (19 ft±Ib, 25 N±m)
17. INSTALL DIFFERENTIAL LOCK SHIFT FORK
SHAFT
(a) Install the differential lock sleeve with shift fork.
(b) Install and torque the set bolt.
Torque: 160 kg±cm (12 ft±Ib, 16 N±m)
16. INSTALL DYNAMIC DANPER
Install and torque the four bolts.
Torque: 260 kg±cm (19 ft±Ib, 25 N±m)
(c) Using SST, install and torque the plug.
SST 09043±36100
Torque: 400 kg±cm (29 ft±Ib, 39 N±m)
(c) Install and torque the three bolts.
Torque: 160 kg±cm (12 ft±Ib, 16 N±M)
± MANUAL TRANSAXLEComponent Parts (Transfer Assembly E56F5)MT±188
Page 2173 of 2389
2. DISCONNECT PROPELLER SHAFT
(a) Place the matchmarks on the both flanges.
(b) Remove the four bolts, washers and nuts.
(c) Disconnect the propeller shaft from the differential.
REPLACEMENT OF FRONT OIL SEAL
1. REMOVE REAR CROSSMEMBER
DIFFERENTIAL
On±Vehicle Repair
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±27
Page 2174 of 2389
4. REMOVE FRONT OIL SEAL AND OIL SLINGER
(a) Using SST, remove the front oil seal.
SST 09308±10010
(b) Remove the oil slinger.
5. REMOVE FRONT BEARING AND BEARING SPACER
(a) Using SST, remove the front bearing.

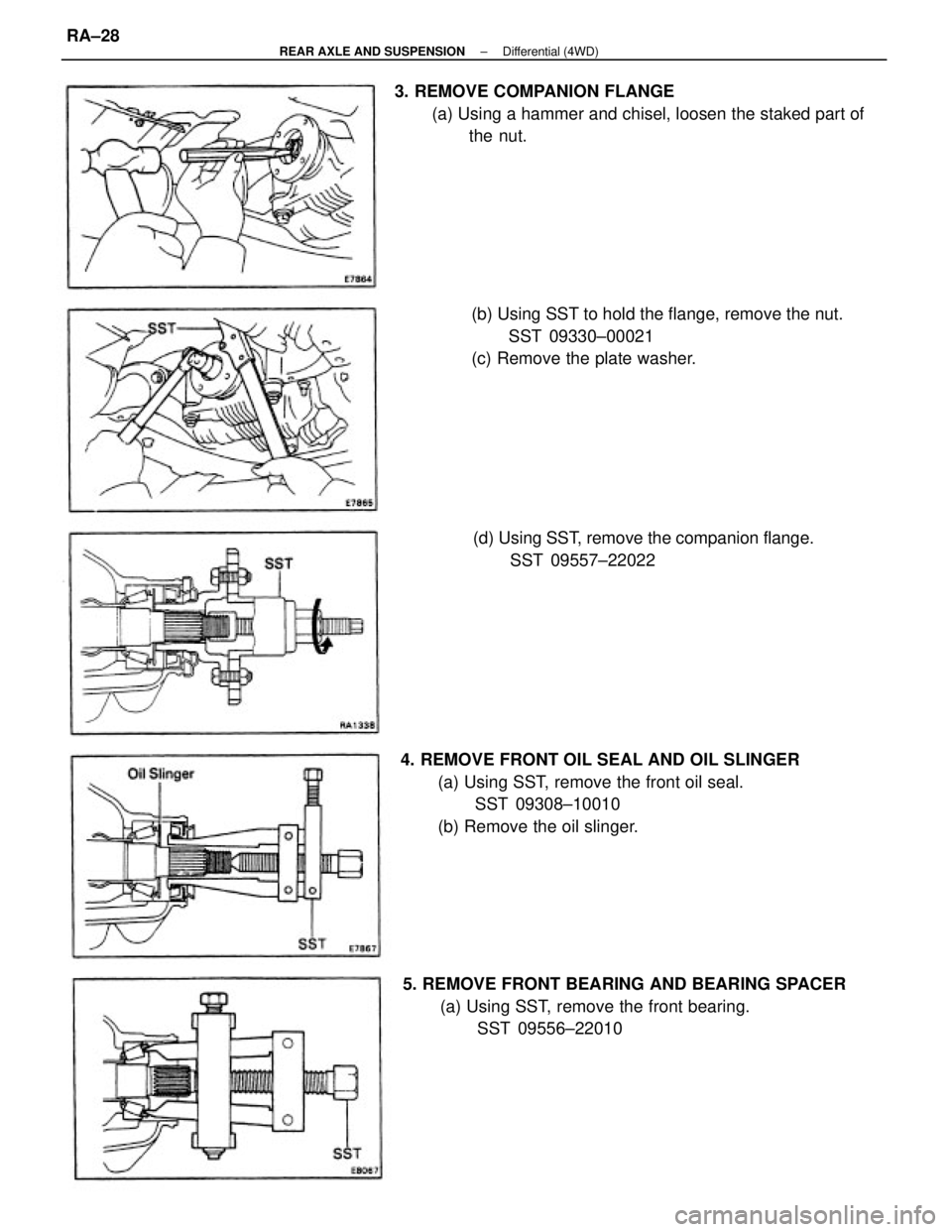

SST 09556±22010 3. REMOVE COMPANION FLANGE
(a) Using a hammer and chisel, loosen the staked part of
the nut.
(b) Using SST to hold the flange, remove the nut.
SST 09330±00021
(c) Remove the plate washer.
(d) Using SST, remove the companion flange.
SST 09557±22022
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±28
Page 2175 of 2389

(b) Install the plate washer.
W Coat the threads of a new nut with gear oil.
(d) Using SST to hold the flange, tighten the nut.
SST 09330±0002 1
Torque: 1,100 kg±cm (80 ft±Ib, 108 N±m)
9. CHECK DRIVE PINION BEARING PRELOAD
Using a torque wrench, measure the preload of the
backlash between the drive pinion and ring gear.
Preload (at starting) :
New bearing 10 ± 16 kg±cm
(8.7 ± 13.9 in.±Ib, 1.0 ± 1.6 N±m)
Reused bearing 5 ± 8 kg±cm
(4.3 ± 6.9 in.±Ib, 0.5 ± 0.8 N±m)
wIf preload is greater than specification, replace the
bearing spacer.
wIf preload is less than specification, retighten the nut
130 kg±cm (9 ft±Ib, 13 N±m) at a time until the speci-
fied preload is reached.
1f the maximum torque is exceed while retightening the
nut, replace the bearing spacer and repeat the preload
procedure. Do not back off the pinion nut to reduce the
preload.
Maximum torque: 2,400 kg±cm (174 ft±lb, 235 N±m)(b) Remove the bearing spacer.
6. INSTALL NEW BEARING SPACER AND FRONT
BEARING
(a) Install a new bearing spacer on the shaft.
(b) Install the front bearing on the shaft.
7. INSTALL OIL SLINGER AND NEW OIL SEAL
(a) Install the oil slinger on the shaft.
(b) Using SST, drive in a new oil seal.
SST 09554±22010
Oil seat drive in depth: 2.0 mm (0.079 in)
(c) Apply MP grease to the oil seal lip.
8. INSTALL COMPANION FLANGE
(a) Using SST, install the companion flange.
SST 09557±22022
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±29
Page 2176 of 2389
11. CONNECT PROPELLER SHAFT
(a) Align the matchmarks on the flanges and connect the
propeller shaft with the four bolts, washers and nuts.
(b) Torque the bolts and nuts.
Torque: 760 kg±cm (54 ft±Ib, 74 N±m)
13. CHECK OIL LEVEL
Oil grade: AN GL±5 hypoid gear oil
Viscosity: Above ± 18
°C (0°F) SAE 90
Below ± 18°C (0°F) SAE 80 W ± 90
Capacity: 1.1 liters (1.2 US qts, 1.0 Imp.qts)
12. INSTALL REAR CROSSMEMBER
Torque: 730 kg±cm (53 ft±Ib, 72 N±m)
10. STAKE DRIVE PINION NUT
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±30
Page 2177 of 2389

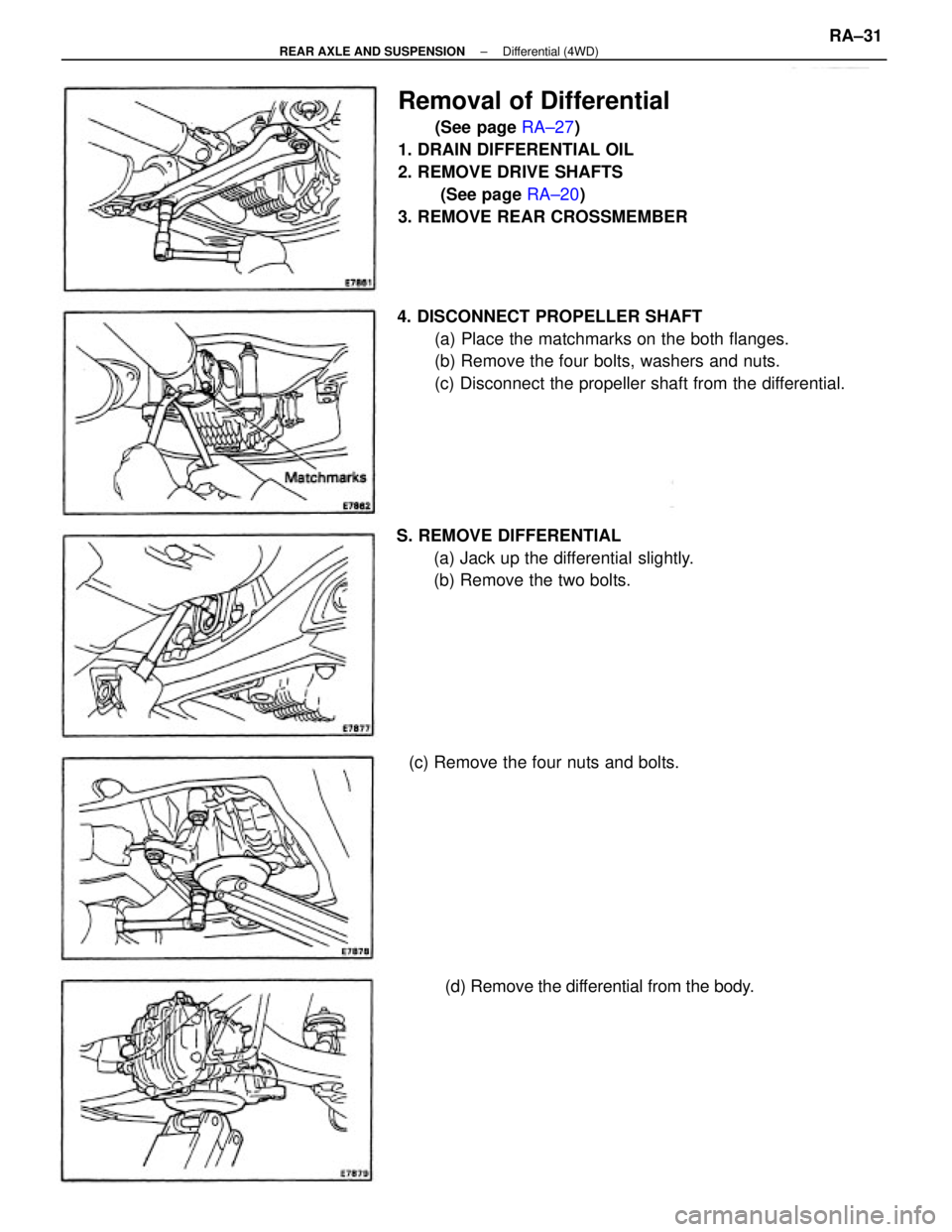

Removal of Differential
(See page RA±27)
1. DRAIN DIFFERENTIAL OIL
2. REMOVE DRIVE SHAFTS
(See page RA±20)
3. REMOVE REAR CROSSMEMBER
4. DISCONNECT PROPELLER SHAFT
(a) Place the matchmarks on the both flanges.
(b) Remove the four bolts, washers and nuts.
(c) Disconnect the propeller shaft from the differential.
S. REMOVE DIFFERENTIAL
(a) Jack up the differential slightly.
(b) Remove the two bolts.
(d) Remove the differential from the body. (c) Remove the four nuts and bolts.
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±31
Page 2178 of 2389

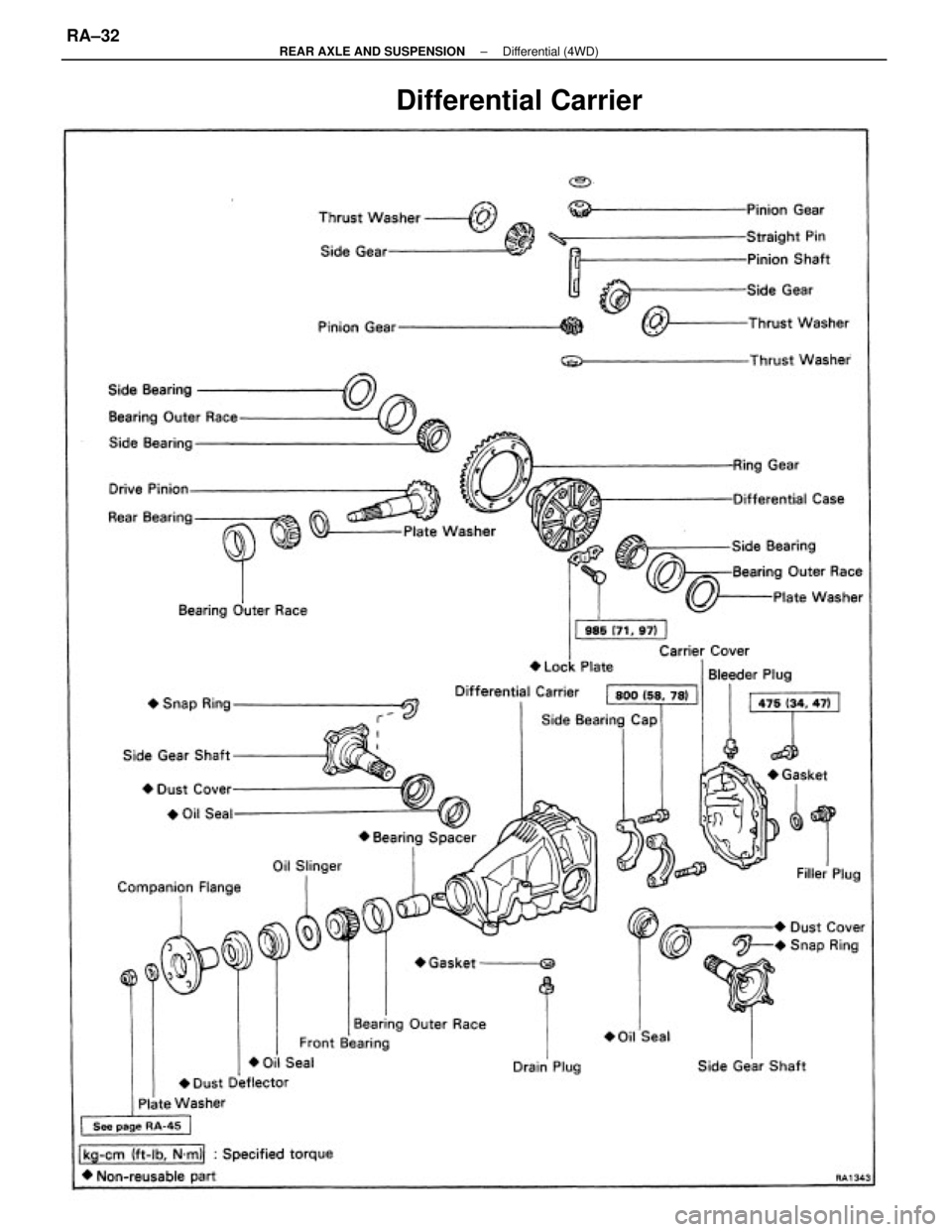

Differential Carrier
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±32
Page 2179 of 2389
2. CHECK COMPANION FLANGE RUNOUT
Using a dial indicator, measure the lateral and radial
runout of the companion flange.
Maximum lateral runout: 0.10 mm (0.0039 in.)
Maximum radial runout: 0.10 mm (0.0039 in.)
If the runout is greater than the maximum, replace the
companion flange.
4. CHECK RING GEAR BACKLASH
Using a dial indicator, check the backlash of the ring
gear.
Backlash: 0.13 mm ± 0.18 mm (0.0051 ± 0.0071 in.)
If the backlash is not within specification, adjust the
side bearing preload. 3. CHECK RING GEAR RUNOUT
Using a dial indicator, measure the runout of the ring
gear.
Maximum runout: 0.07 mm (0.0028 in.)
If the runout is greater than the maximum, replace the
ring gear.

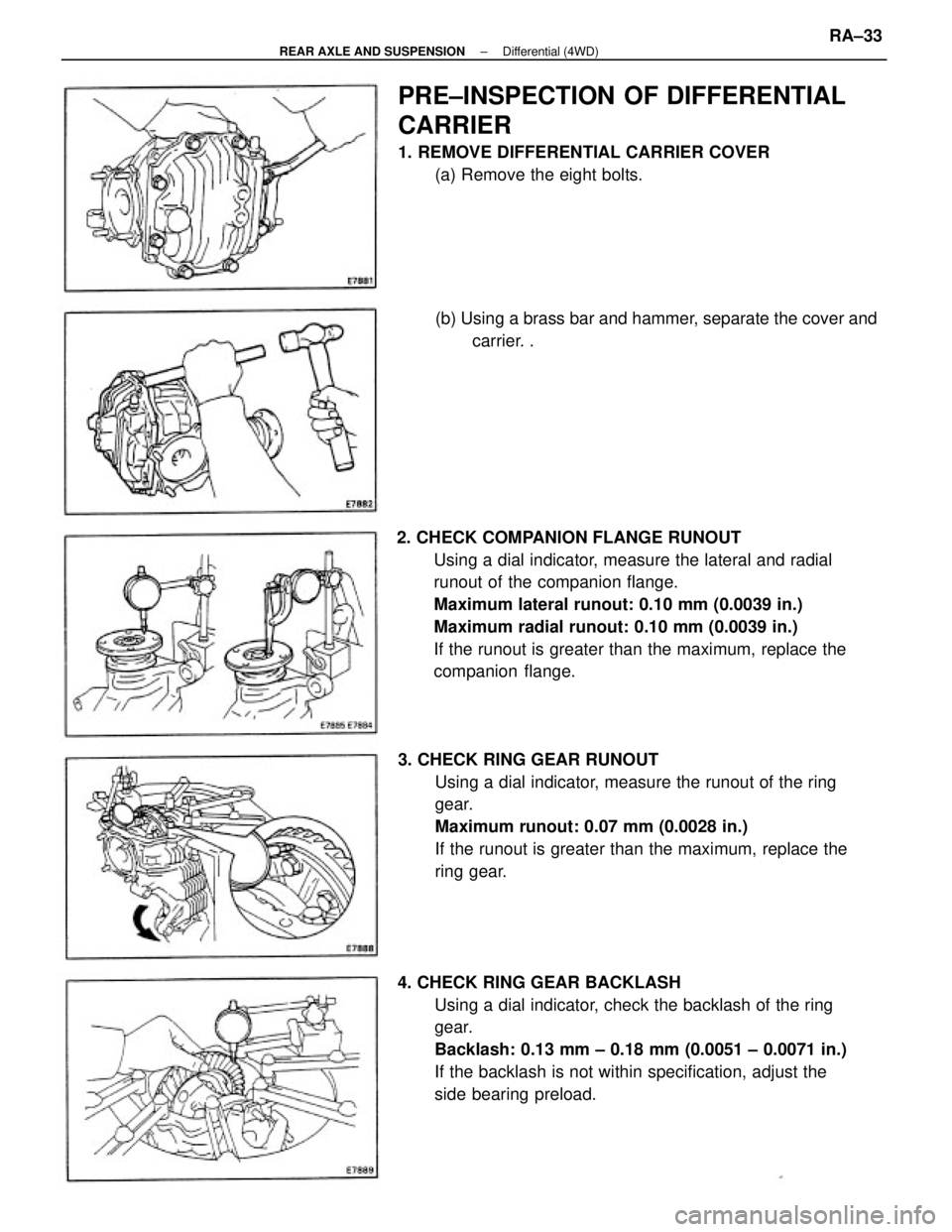

PRE±INSPECTION OF DIFFERENTIAL
CARRIER
1. REMOVE DIFFERENTIAL CARRIER COVER
(a) Remove the eight bolts.
(b) Using a brass bar and hammer, separate the cover and
carrier. .
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±33
