6. CHECK SIDE GEAR BACKLASH
Using a dial indicator, check the backlash of the side gear
while holding one pinion gear toward the differential case.
Backlash: 0.05 ± 0.20 n nm (0.0020 ± 0.0079 in.)
If the backlash is not within specification, install the side
gear thrust washers of different thickness.
8. CHECK TOTAL PRELOAD
Using a torque wrench, measure the total preload.
Total preload (at starting):
In addition to drive pinion preload
3 ± 5 kg±cm (2.6 ± 4.3 in.±Ib, 0.3 ± 0.5 N±m)
If necessary disassembly and inspect a differential. 7. MEASURE DRIVE PINION PRELOAD
Using a torque wrench, measure the preload of the
backlash between the drive pinion and ring gear.
Preload (at staring):
5±8kg±cm (4.3±6.9in.±Ib,0.5±0.8N±n) 5. CHECK TOOTH CONTACT (See page RA±45)
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±34
Page 2181 of 2389

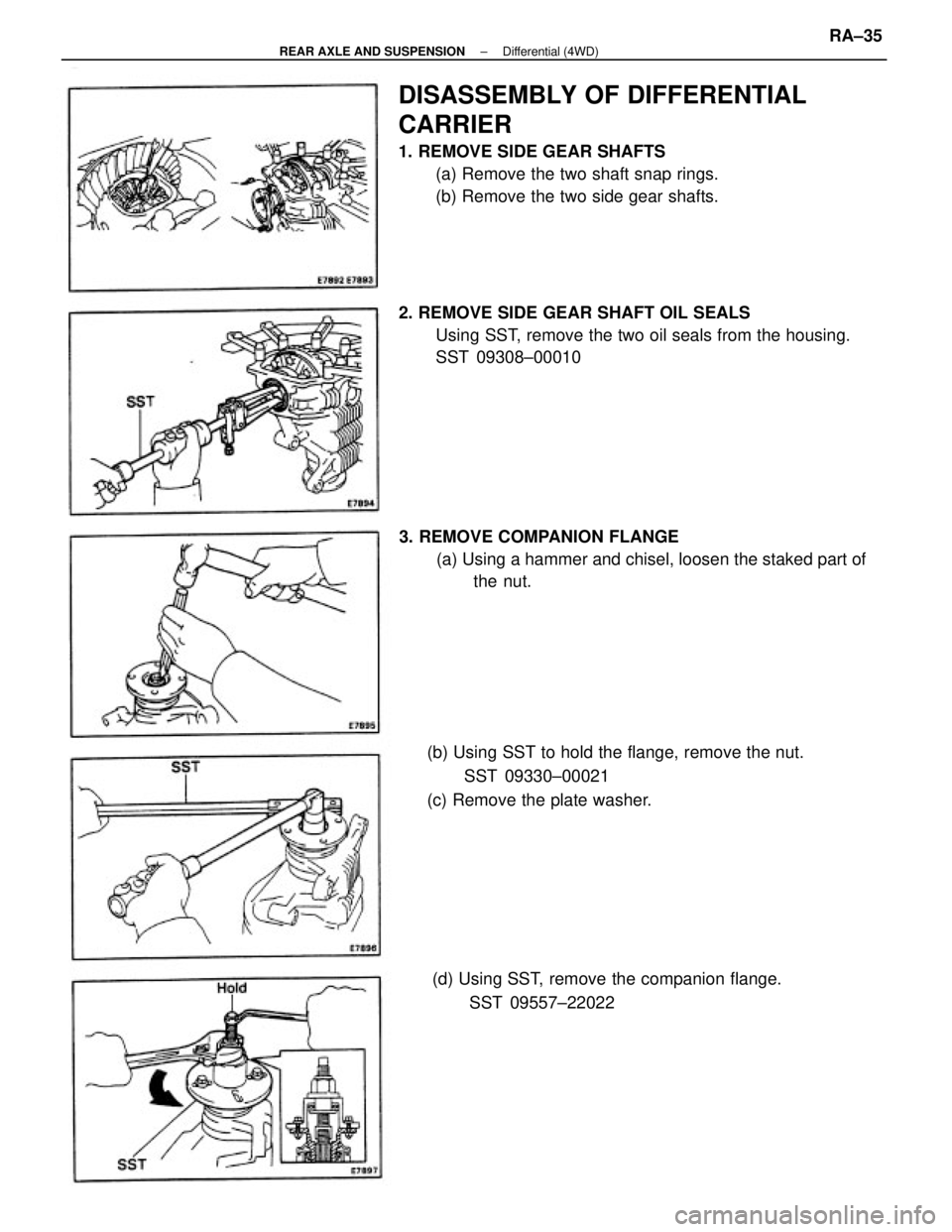

DISASSEMBLY OF DIFFERENTIAL
CARRIER
1. REMOVE SIDE GEAR SHAFTS
(a) Remove the two shaft snap rings.
(b) Remove the two side gear shafts.
2. REMOVE SIDE GEAR SHAFT OIL SEALS
Using SST, remove the two oil seals from the housing.
SST 09308±00010
3. REMOVE COMPANION FLANGE
(a) Using a hammer and chisel, loosen the staked part of
the nut.
(b) Using SST to hold the flange, remove the nut.
SST 09330±00021
(c) Remove the plate washer.
(d) Using SST, remove the companion flange.
SST 09557±22022
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±35
Page 2182 of 2389

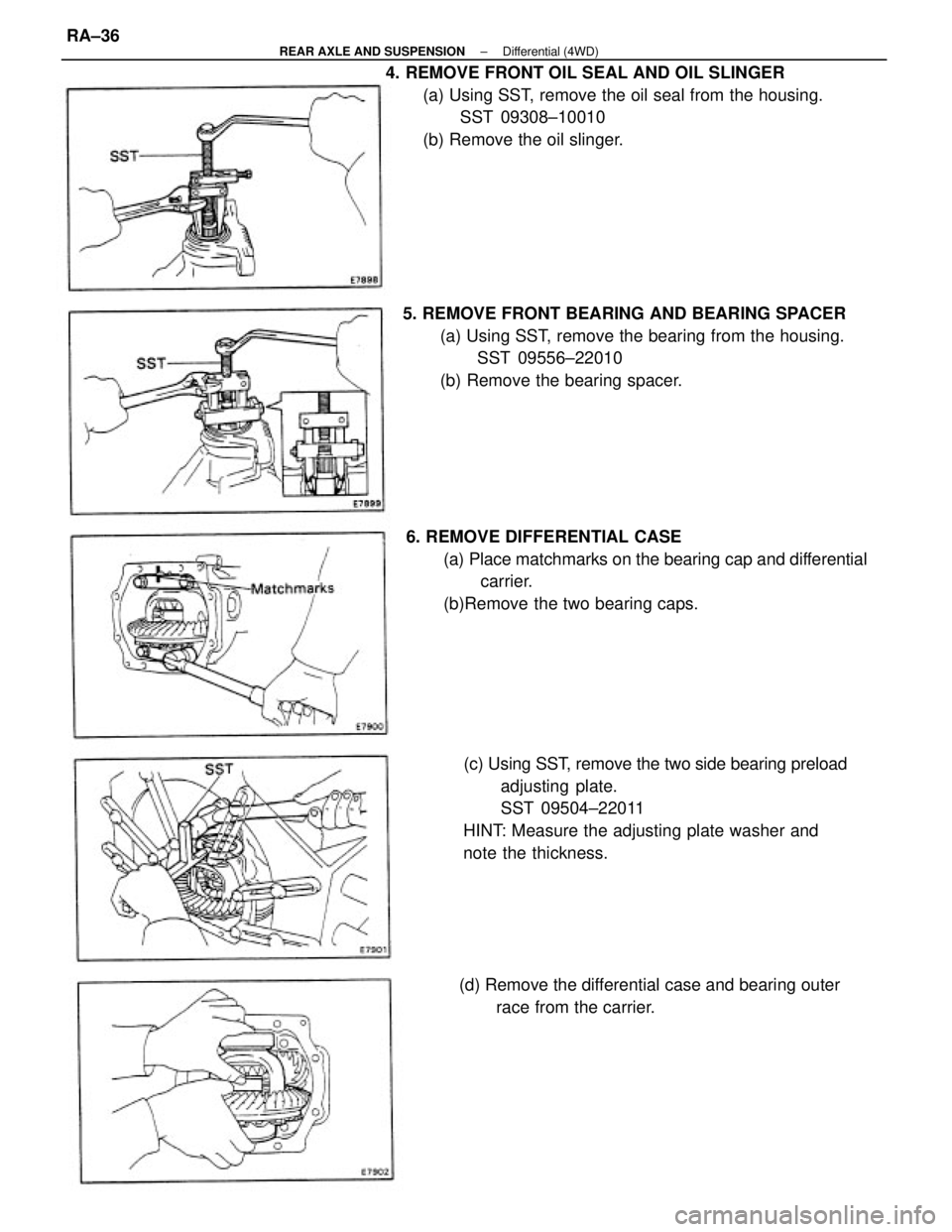

4. REMOVE FRONT OIL SEAL AND OIL SLINGER
(a) Using SST, remove the oil seal from the housing.
SST 09308±10010
(b) Remove the oil slinger.
(c) Using SST, remove the two side bearing preload
adjusting plate.
SST 09504±22011
HINT: Measure the adjusting plate washer and
note the thickness. 5. REMOVE FRONT BEARING AND BEARING SPACER
(a) Using SST, remove the bearing from the housing.
SST 09556±22010
(b) Remove the bearing spacer.
6. REMOVE DIFFERENTIAL CASE
(a) Place matchmarks on the bearing cap and differential
carrier.
(b)Remove the two bearing caps.
(d) Remove the differential case and bearing outer
race from the carrier.
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±36
Page 2183 of 2389

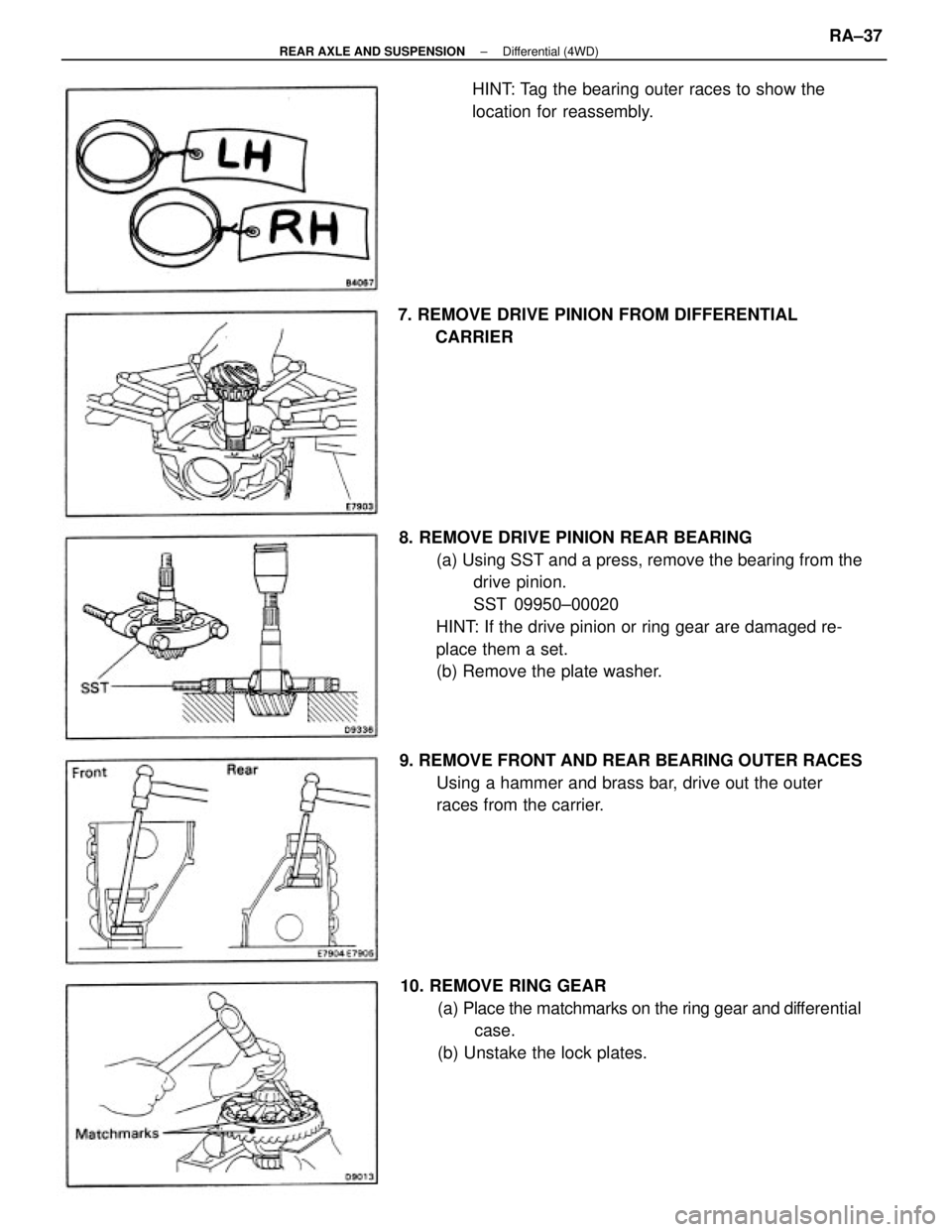

8. REMOVE DRIVE PINION REAR BEARING
(a) Using SST and a press, remove the bearing from the
drive pinion.
SST 09950±00020
HINT: If the drive pinion or ring gear are damaged re-
place them a set.
(b) Remove the plate washer.
10. REMOVE RING GEAR
(a) Place the matchmarks on the ring gear and differential
case.
(b) Unstake the lock plates. 9. REMOVE FRONT AND REAR BEARING OUTER RACES
Using a hammer and brass bar, drive out the outer
races from the carrier.HINT: Tag the bearing outer races to show the
location for reassembly.
7. REMOVE DRIVE PINION FROM DIFFERENTIAL
CARRIER
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±37
Page 2184 of 2389
(b) Remove the following parts from differential
case:
wPinion shaft
wTwo pinion gears
wTwo side gears
wFour thrust washers
11. REMOVE SIDE BEARINGS
Using SST, remove the two side bearings from differential
case.
SST 09950±24017

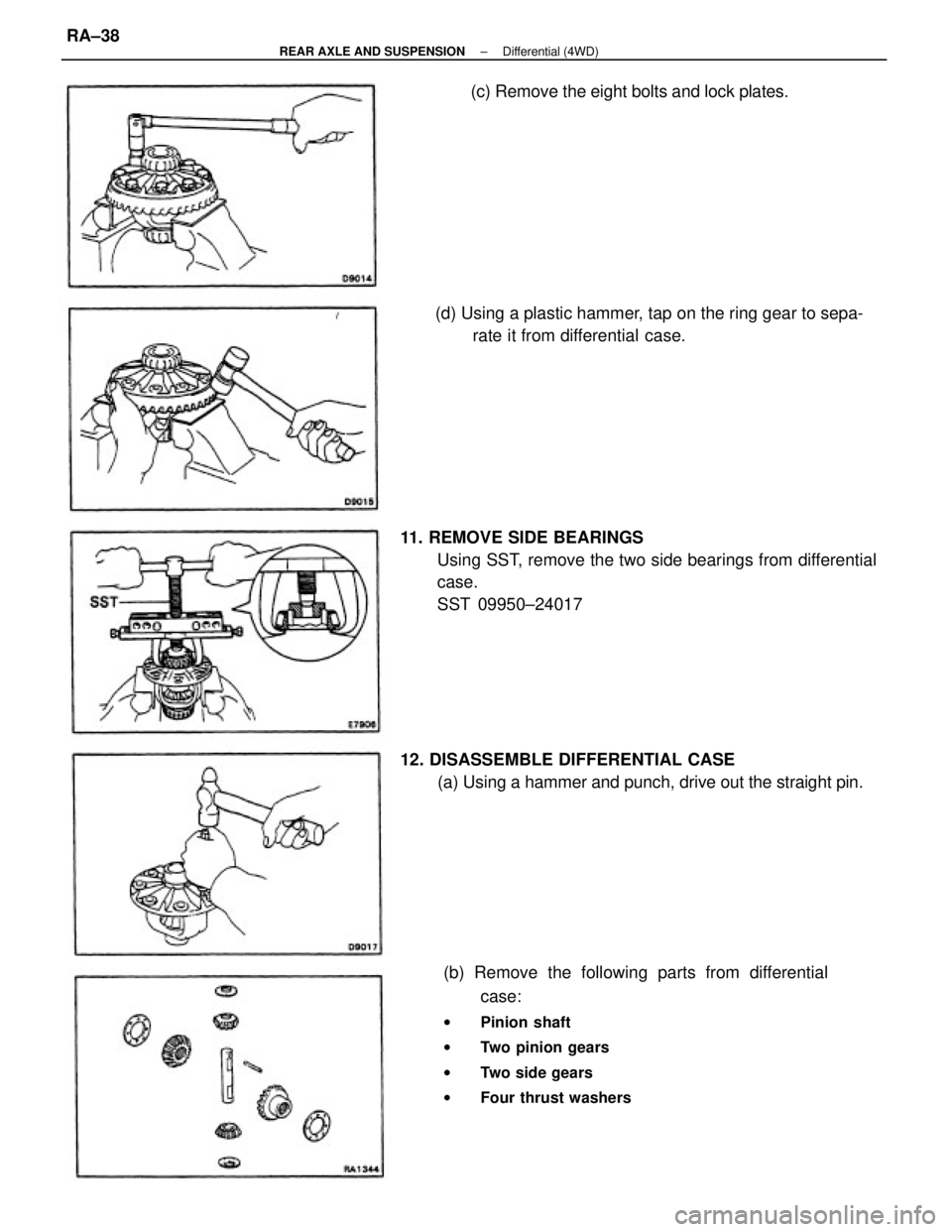

12. DISASSEMBLE DIFFERENTIAL CASE
(a) Using a hammer and punch, drive out the straight pin. (d) Using a plastic hammer, tap on the ring gear to sepa-
rate it from differential case. (c) Remove the eight bolts and lock plates.
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±38
Page 2185 of 2389
(d) Check the side gear backlash.
Measure the side gear backlash while holding
one pinion gear toward the case.
Backlash: 0.05 ± 0.20 mm (0.0020 ± 0.079 in.)
If the backlash is not within specification, install the
side gear thrust washers of different thickness.
ASSEMBLY OF DIFFERENTIAL
CARRIER
1. ASSEMBLE DIFFERENTIAL CASE
(a) Install the thrust washers to the side gears.
(b) Install the side gears with thrust washers and pin-
ion gears with thrust washers.
(c) Install the pinion shaft.
HINT: Use washers of same thickness on both the
right and left sides.
(e) Using a hammer and punch, drive in the straight
pin through the case and hole in the pinion shaft.
Thrust washer thickness
(f) Stake the case.mm
(in.)
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±39
Page 2186 of 2389

2. INSTALL RING GEAR ON DIFFERENTIAL CASE
(a) Clean the contact surface of the differential case.
(b) Heat the ring gear to about 100
°C (2120F) in an oil bath.
NOTICE: Do not heat the ring gear above 110°C (230°F).
(c) Clean the contact surface of the ring gear with cleaning
solvent.
(d) Then quickly install the ring gear on the differential
case.
(e) Align the matchmarks on the ring gear and differential
case.
(f) Coat the ring gear set bolts with gear oil.
(g) Temporarily install the lock plates and set bolts.
(h) After the ring gear cools down enough, tighten the set
bolts uniformly and a little at a time.
Torque: 985 kg±cm (71 ft±Ib, 97 N±m)
4. CHECK RING GEAR RUNOUT
(a) Install the differential case onto the carrier and install
the plate washers to where there is no play in the
bearing (See page RA±42)
(b) Install bearing caps. (See page RA±44)
(c) Using a dial indicator, measure the runout of ring gear.
Maximum runout: 0.07 mm (0.0028 in.) Using a hammer and drift punch, stake the lock
plates.
HINT: Stake one claw flush with the flat surface of
the nut. For the claw contacting the protruding por-
tion of the nut, stake only the half on the tightening
side.
3. INSTALL SIDE BEARINGS
Using a press and SST, drive in the side bearings into
the differential case.
SST 09710±22020 (09710±01030)
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±40
Page 2187 of 2389
7. TEMPORARILY ADJUST DRIVE PINION PRELOAD
(a) Install the following parts:
w Drive pinion
w Front bearing
HINT: Assemble the spacer, oil slinger and oil seal after
adjusting the gear contact pattern. 6. INSTALL REAR BEARING TO DRIVE PINION
(a) install the plate washer on the drive pinion with the
chamfered end facing toward the pinion gear.
(b) Using a press and SST, install the rear bearing onto the
drive pinion.
SST 09506±30012 5. INSTALL FRONT AND REAR BEARING OUTER RACES
Using a press and SST, drive in the front and rear bear-
ing outer races.
SST 09608±30012
Front (09608±04020 and 09608±00060)
Rear (09608±04020 and 09608±04100)
(c) Adjusting the drive pinion preload by tightening the
companion flange nut.
Using SST to hold the flange, tighten the nut.
SST 09330±00021 (b) Install the companion flange with SST.
SST 09557±22022
± REAR AXLE AND SUSPENSIONDifferential (4WD)RA±41
