2023 HYUNDAI ELANTRA Owners Manual

Driver Assistance System7-114

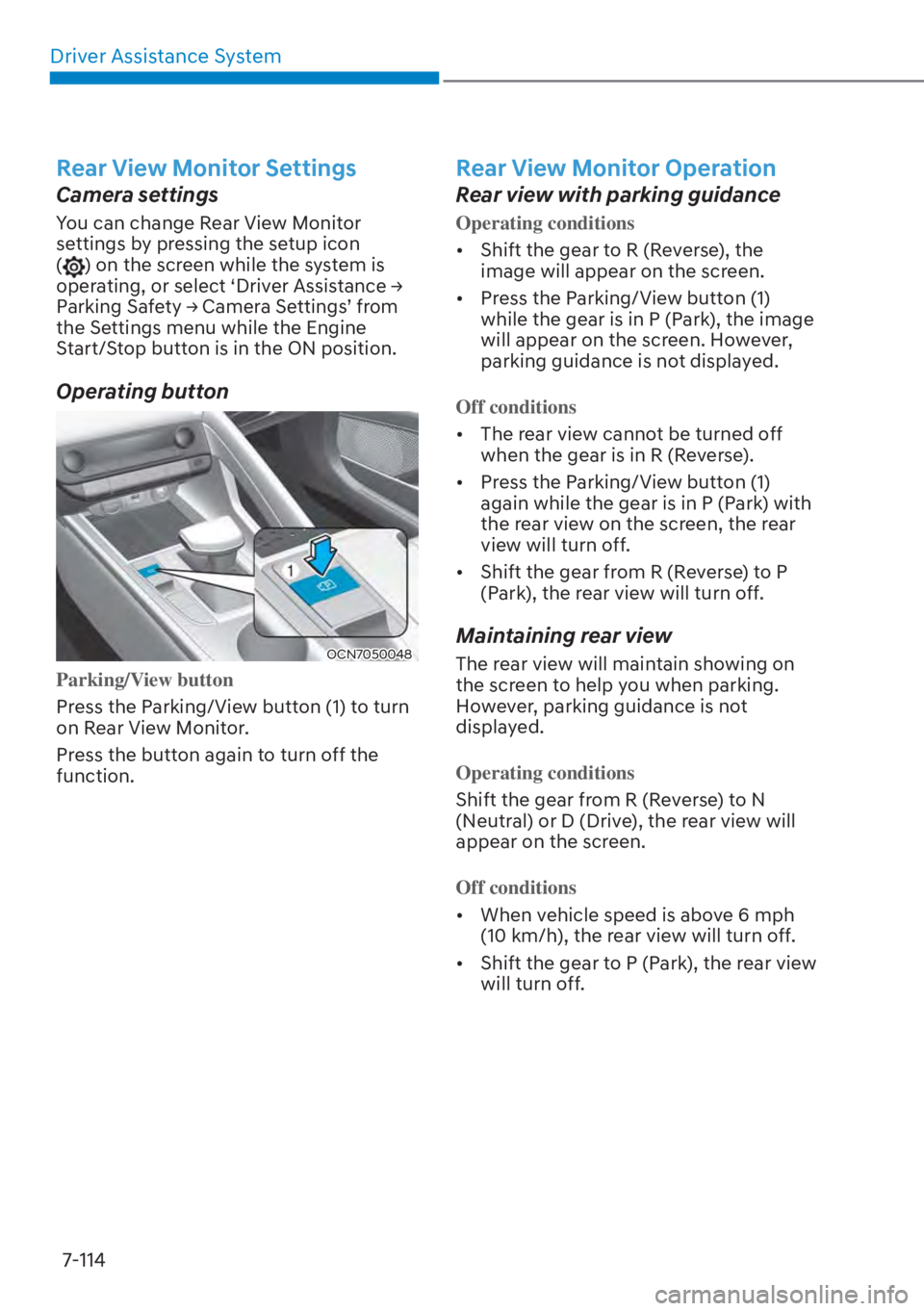

Rear View Monitor Settings
Camera settings
You can change Rear View Monitor
settings by pressing the setup icon
(
) on the screen while the system is
RSHUDWLQJRUVHOHFW
S'ULYHU$VVLVWDQFH

07
7-115
Driving rear view
OCN7050048
OCN7070062L
The driver is able to check the rear view
on the screen while driving, it is to assist
with backing up.
Operating conditions
Press the Parking/View button (1) while
the gear is in D (Driv
e) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions

[ Pr
ess the Parking/View button (1)
again, the driving rear view will turn
off.

[ Press one of the infotainment system
button (2), the driving rear view will
turn off.

[ Shift the gear to P (Park), the driving
rear view will turn off. When operating

[
If the gear is shift
ed to R (Reverse),
while Driving rear view is displayed on
the screen, the screen will change to
rear view with parking guidance.

[ When Driving rear view is displayed
on the screen, an icon (
) will appear
on the upper right side of the screen
indicating that the rear view is being
displayed.

Driver Assistance System7-116
Rear top view
OCN7060147L
When you touch the icon (1), the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-117
(48,33('

Driver Assistance System7-118

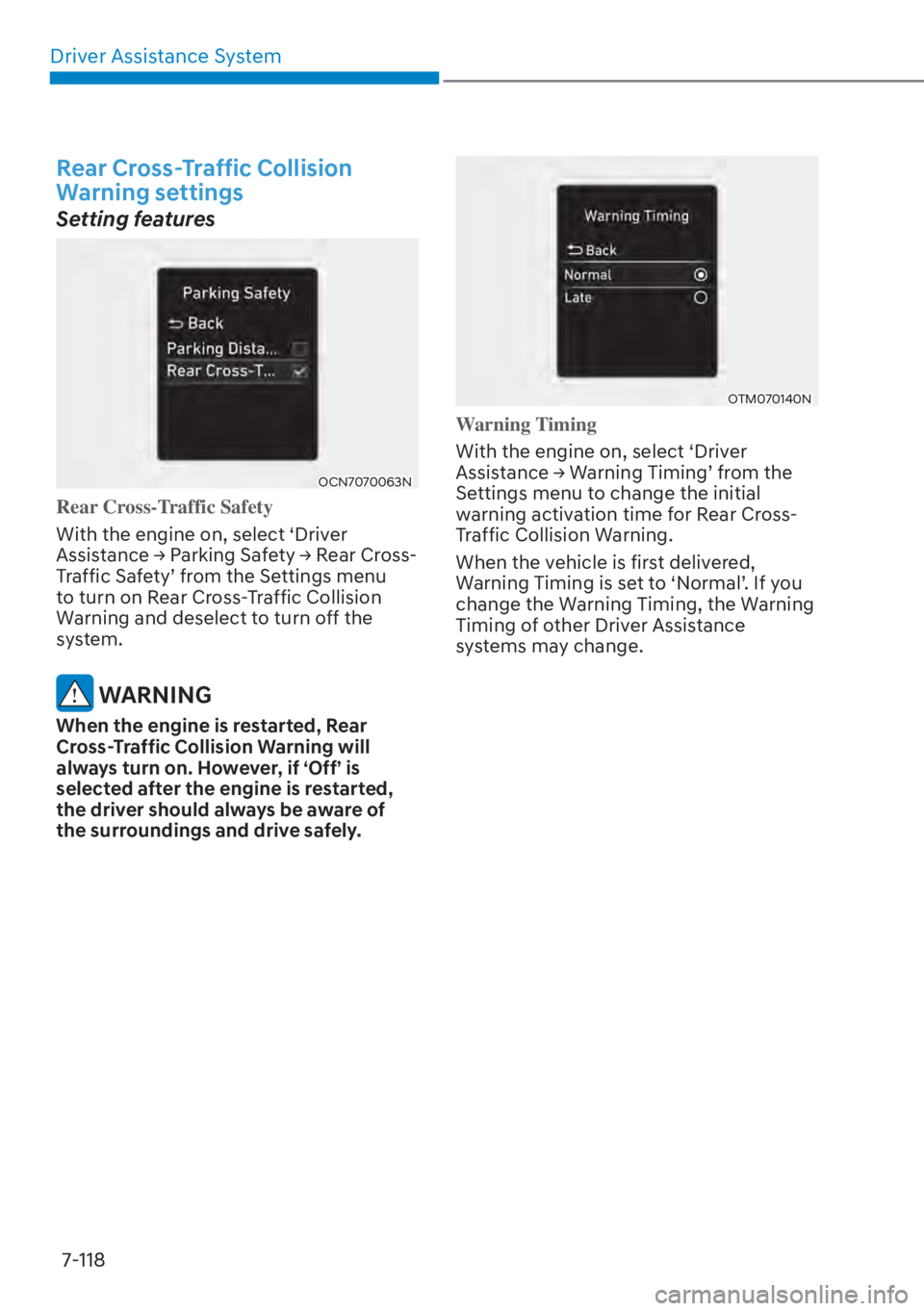

Rear Cross-Traffic Collision
Warning settings
Setting features
OCN7070063N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-119
OCN7071027L

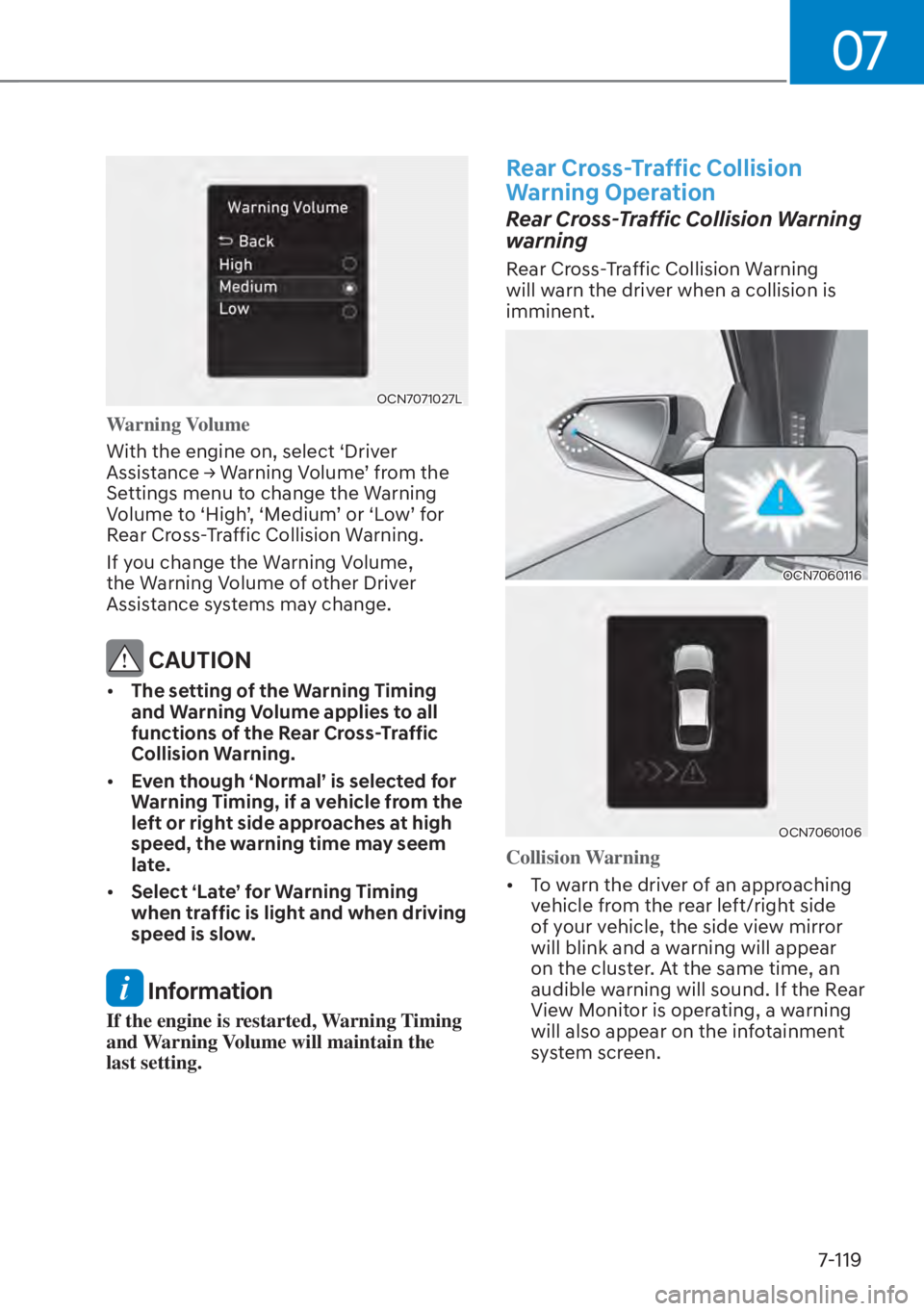

Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-120

[ The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
WARNING
Take the following precautions when
using Rear Cross-Traffic Collision
Warning:

[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Collision Warning’s warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning
sound of Rear Cross-Traffic Collision
Warning if the surrounding is noisy.

[ Rear Cross-Traffic Collision Warning
may warn the driver late or may not
warn the driver depending on the
road and driving conditions.

[ The driver has the responsibility to
control the vehicle. Do not solely
depend on Rear Cross-Traffic
Collision Warning. Rather, maintain
a safe braking distance, and if
necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

07
7-121
Rear Cross-Traffic Collision
Warning Malfunction and
Limitations
Rear Cross-Traffic Collision Warning
malfunction
OCN7070064L
When Rear Cross-Traffic Collision
Warning is not working properly, the

S&KHFN5HDU&URVV7UDIILF6DIHW\V\VWHP
T
warning message will appear on the
cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
OCN7070040L
When the side view mirror mirror
warning light is not working properly,
the ‘Check side view mirror warning
OLJKW
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Rear Cross-Traffic Collision Warning
disabled
OCN7070065L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision Warning.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\V\VWHPGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
Rear Cross-Traffic Collision Warning
will operate properly when such foreign
material or trailer, etc., is removed.
If Rear Cross-Traffic Collision Warning
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
