2023 HYUNDAI ELANTRA Owners Manual

Driver Assistance System7-106
Highway Driving Assist is designed to
help detect vehicles and lanes ahead,
and help maintain distance from the
vehicle ahead, maintain the set speed,
and help center the vehicle in the lane
while driving on the highway.
OADAS035SD
Information

[ Highway Driving Assist is available
only on controlled access road of
certain highways.

à Controlled access road indicates
roads with limited entrances and
exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
Available highway
(Controlled access road)
USA Select Interstate Highway
and U.S. (Federal) and State Highways
Canada Select Provincial and
Territorial Highways

[ Additional highways may be expanded
by future navigation updates.
Information
Highway Driving Assist operates on
main roads of highways (or motorways),
and does not operate on interchanges or
junctions.
Detecting sensor
OCN7061030L
OCN7060029[1] : Front view camera,
[2] : Front radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of
the detecting sensors, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
+,*+:$<'5,9,1*$66,67

07
7-107

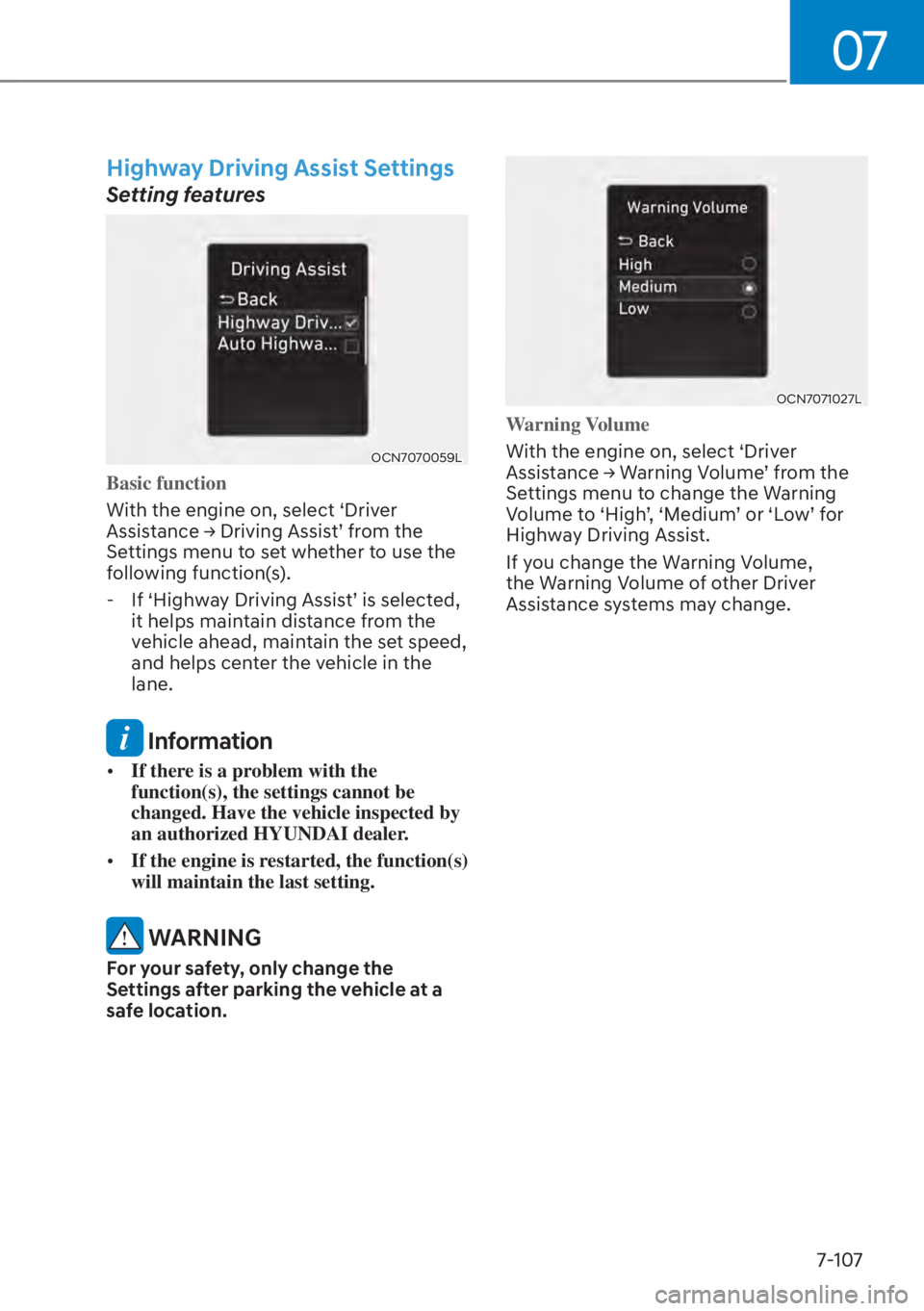

Highway Driving Assist Settings
Setting features
OCN7070059L
Basic function
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-108
Highway Driving Assist
Operation
Basic function
Display and control
You can see the status of the Highway
Driving Assis
t operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Highway Driving Assist will be displayed
as below depending on the status of the
system.
„Operating state „"Driving Assist" screen selected
OCN7060180NOCN7060182N
„Standby state
OCN7060184N
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead
and the selected distance level are
displayed.

à Highway Driving Assist indicator
- Green
: Operating state
- White
: Standby state (2) Set speed
(3) Lane Following Assist indicator
(4) Whether there is a vehicle ahead and
the selected vehicle distance
(5) Whether the lane is detected or not
Information
For more details on the display refer
to “Smart Cruise Control (SCC)” and
“Lane Following Assist (LFA)” sections in
chapter 7.
Function operating
Highway Driving Assist will operate when
entering or driving on the main road of
highways, and satisfying all the following
conditions: - Lane Following Assist is operating
- Smart Cruise Control is operating
Information

[ While driving on the highway, if
Smart Cruise Control starts operating,
Highway Driving Assist will operate.

[ When entering the main roads of
highways, Highway Driving Assist will
not turn on if the Lane Following Assist
is turned off even when Smart Cruise
Control is operating.

07
7-109

[Restarting after stopping
OCN7070054L
When Highway Driving Assist is
operating, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving
within 30 seconds after the stop, your
vehicle will start as well. In addition,
after the vehicle has stopped and 30
seconds have passed, the ‘Use switch
RUSHGDOWRDFFHOHUDWH
TPHVVDJH
will appear on the cluster. Depress
the accelerator pedal or push the +
switch, - switch or
switch to start
driving.
[
Hands-off warning
OCN7070035L
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
ZKHHO
TZDUQLQJPHVVDJHZLOODSSHDU
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning

Driver Assistance System7-110

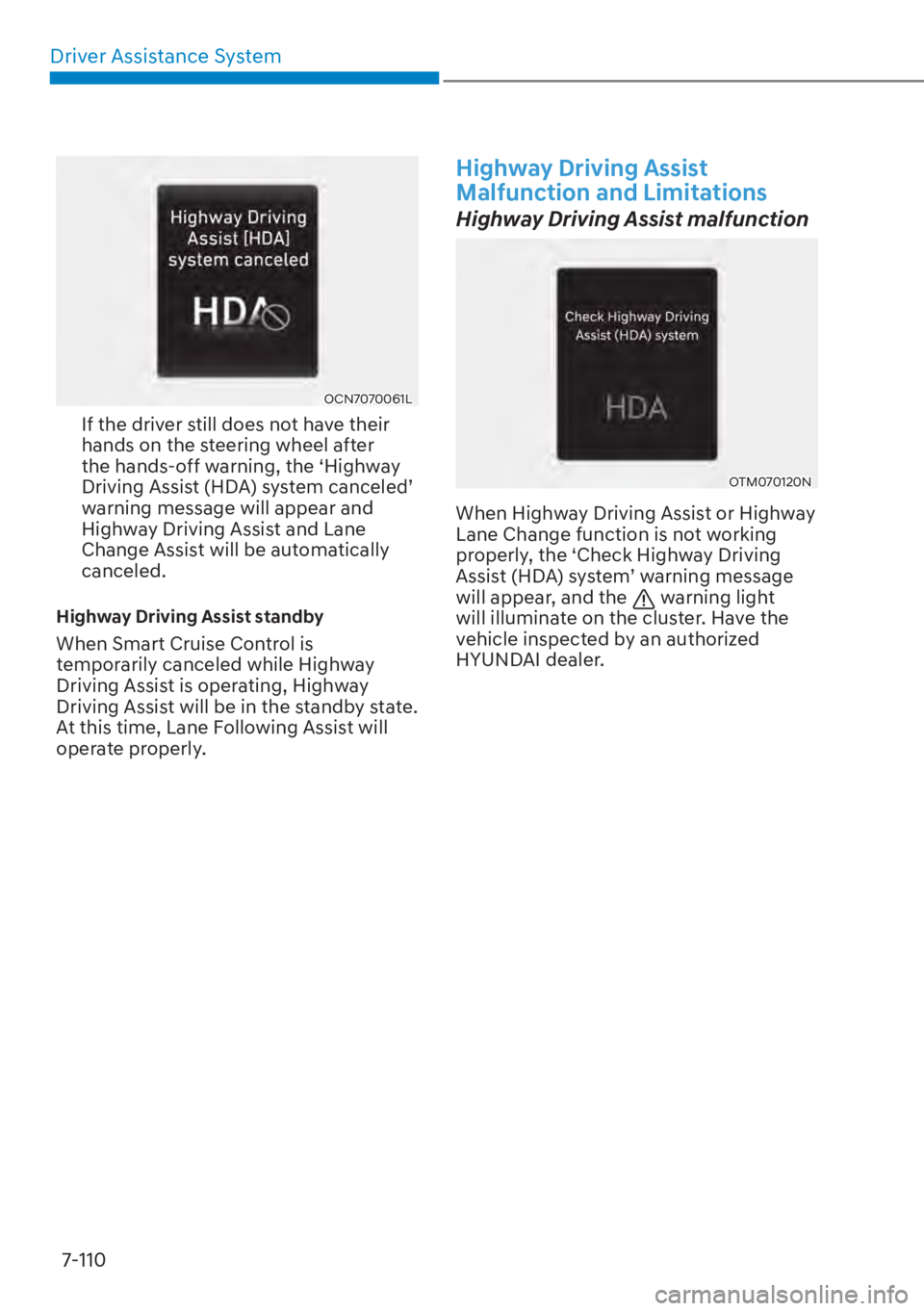

OCN7070061L
If the driver still does not have their
hands on the steering wheel after
the hands-off warning, the ‘Highway
'ULYLQJ$VVLVW+'$V\VWHPFDQFHOHG
T
warning message will appear and
Highway Driving Assist and Lane
Change Assist will be automatically
canceled.
Highway Driving Assist standby
When Smart Cruise Control is
temporarily canceled while Highway
Driving Assist is operating, Highway
Driving Assist will be in the standby state.
At this time, Lane Following Assist will
operate properly.
Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist malfunction
OTM070120N
When Highway Driving Assist or Highway
Lane Change function is not working
properly, the ‘Check Highway Driving
$VVLVW+'$V\VWHP
TZDUQLQJPHVVDJH
will appear, and the
warning light
will illuminate on the cluster. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

07
7-111
WARNING

[The driver is responsible for
controlling the vehicle for safe
driving.

[ Always have your hands on the
steering wheel while driving.

[ Highway Driving Assist is a
supplemental function that assists
the driver in driving the vehicle
and is not a complete autonomous
driving system. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[ Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Highway Driving Assist may not
be able to recognize all traffic
situations. The function may not
detect possible collisions due to
limitations of Highway Driving Assist.
Always be aware of the limitations
of the system. Obstacles such as
vehicles, motorcycles, bicycles,
pedestrians, unspecified objects,
structures, etc., that may collide with
the vehicle may not be detected.

[ Highway Driving Assist will turn off
automatically under the following
situations:
- Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
- The navigation does not operate
properly such as when the
navigation is being updated or
restarted
[
Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[ Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[ You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[ If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[ When you are towing a trailer or
another vehicle, we recommend that
Highway Driving Assist is turned off
due to safety reasons.

[ The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[ For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[ Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.

Driver Assistance System7-112
Limitations of Highway Driving
Assist
Highway Driving Assist may not operate
properly, or may not operate under the
following circumstances:

[ The map information and the
actual road is different because the
navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The infotainment system is overloaded
by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.

[ GPS signals are blocked in areas such
as a tunnel

[ The driver goes off course or the
route to the destination is changed or
canceled by resetting the navigation

[ The vehicle enters a service station or
rest area

[ Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ White single dotted lane line or road
edge cannot be detected

[ The road is temporarily controlled due
to construction, etc.

[ There is no structure, such as a
medium strip, guardrails, etc., on the
road

[ There is a changeable lane in the
direction of lane change
Information
For more details on the limitations of
the front view camera, front radar, front
corner radar and rear corner radar, refer
to “Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-113
OCN7051046L
OCN7050047
Rear View Monitor will shows the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OCN7051143L[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
