2023 HYUNDAI ELANTRA Owners Manual

Instrument Cluster4-44
Warning message group
When the warning message light
appears, check the detailed information
in warning message group.
User Settings Mode
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Theme selection
8. Other
9. Language
10. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle. Shift to P to edit settings / Engage parking
brake to edit settings
This warning message illuminates if
you try to select an item from the User
Settings mode while driving.

[
Intelligent variable transmission
For your safety

, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).

[ Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

04
4-45

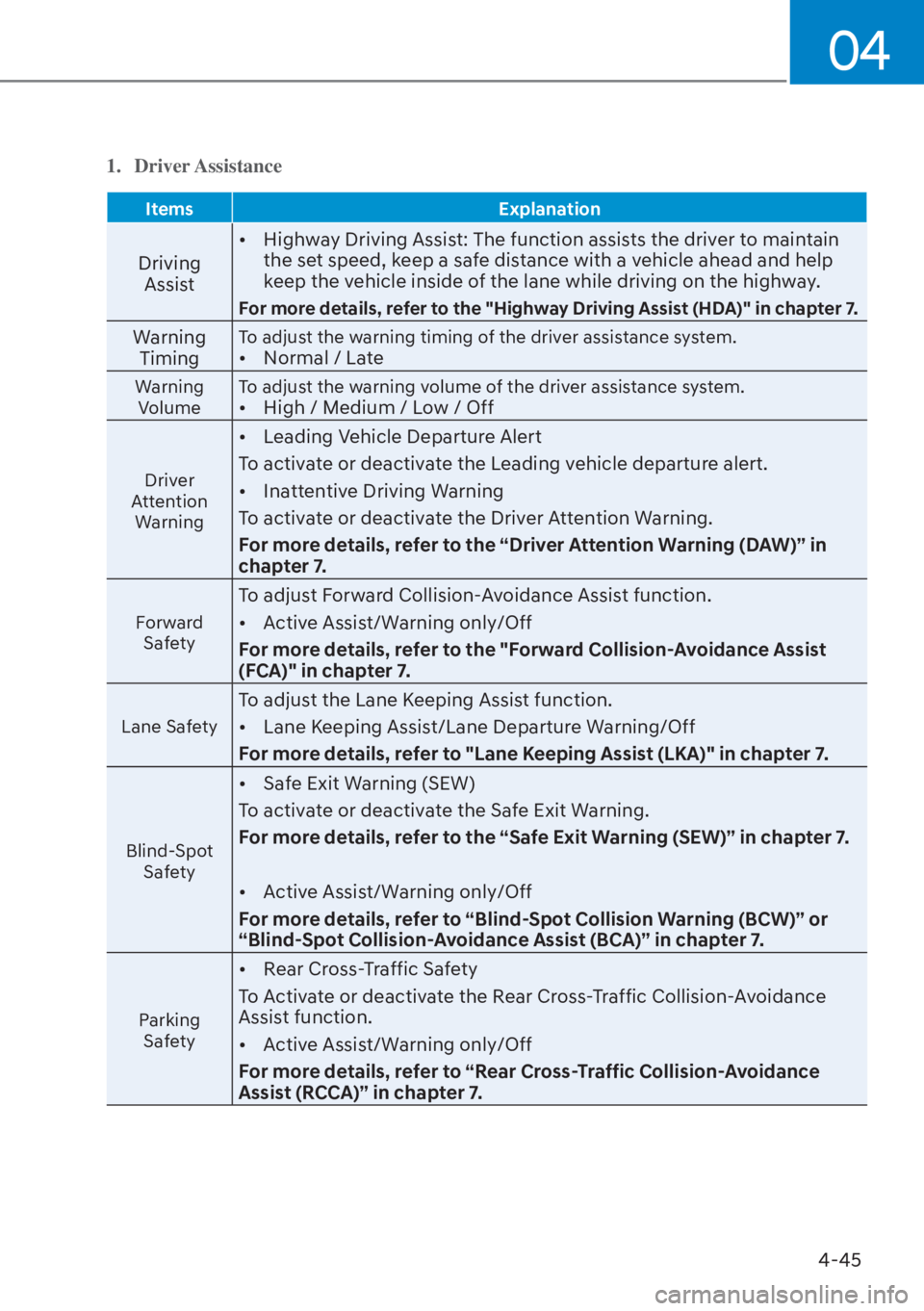

1. Driver Assistance
ItemsExplanation
Driving
Assist
[
Highway Driving Assist: The function assists the driver to maintain
the set speed, keep a safe distance with a vehicle ahead and help
keep the vehicle inside of the lane while driving on the highway.
For more details, refer to the "Highway Driving Assist (HDA)" in chapter 7.
Warning
TimingTo adjust the warning timing of the driver assistance system.
[ Normal / Late
Warning
Volume To adjust the warning volume of the driver assistance system.
[
High / Medium / Low / Off
Driver
Attention Warning

[ Leading Vehicle Departure Alert
To activate or deactivate the Leading vehicle departure alert.

[ Inattentive Driving Warning
To activate or deactivate the Driver Attention Warning.
For more details, refer to the “Driver Attention Warning (DAW)” in
chapter 7.
Forward Safety
To adjust Forward Collision-Avoidance Assist function.

[ Active Assist/Warning only/Off
For more details, refer to the "Forward Collision-Avoidance Assist
(FCA)" in chapter 7.
Lane Safety
To adjust the Lane Keeping Assist function.

[ Lane Keeping Assist/Lane Departure Warning/Off
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
Blind-Spot Safety

[ Safe Exit Warning (SEW)
To activate or deactivate the Safe Exit Warning.
For more details, refer to the “Safe Exit Warning (SEW)” in chapter 7.

[ Active Assist/Warning only/Off
For more details, refer to “Blind-Spot Collision Warning (BCW)” or
“Blind-Spot Collision-Avoidance Assist (BCA)” in chapter 7.
Parking Safety

[ Rear Cross-Traffic Safety
To Activate or deactivate the Rear Cross-Traffic Collision-Avoidance
Assist function.

[ Active Assist/Warning only/Off
For more details, refer to “Rear Cross-Traffic Collision-Avoidance
Assist (RCCA)” in chapter 7.

Instrument Cluster4-46
2. Door
Items Explanation
Auto Lock
[
Enable on Shift: All doors will be automatically locked if the shift
lever is moved from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (Only when the engine is running)

[ Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 15km/h (9.3mph).

[ Disable : The auto door lock operation will be deactivated.
Auto Unlock
[
On Shift to P: All doors will be automatically unlocked if the shift
lever is moved to P (Park) position. (Only when the engine is
running)

[ On key out/Vehicle Off : All doors will be automatically
unlockedwhen the ignition key is removed from the ignition switch
or the Engine Start/Stop button is set to the OFF position.

[ Disable : The auto door unlock operation will be canceled.
Two Press
Unlock

[ Off: The two press unlock function will be deactivated. Therefore, all
doors will unlock if the door unlock button is pressed.

[ On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn
Feedback
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the
lock button on the remote key, and pressing it again within 4 seconds,
the horn feedback sound will operate once to indicate that all doors
are locked (if equipped with remote key).
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to “Smart trunk” in chapter 5.

04
4-47
3. Lights
ItemsExplanation
IlluminationTo adjust the illumination level.
- Level 1~20
One Touch
Turn Signal
[
Off: The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight Delay
[ To activate or deactivate the headlight delay function.
For more details, refer to “Lighting” in chapter 5.
High Beam Assist
[ To activate or deactivate the High Beam Assist function.
For more details, refer to “High Beam Assist (HBA)” in chapter 5.

Instrument Cluster4-48
4. sound
Items Explanation
Cluster
Voice
Guidance Volume To adjust the cluster voice guidance volume.
Welcome sound To activate or deactivate the welcome sound.
5. Convenience
Items Explanation
Seat Easy
Access
[
Off: The seat easy access function is deactivated.

[ Normal/Extended: When you turn off the engine, the driver’s seat
will automatically move rearward short (Normal) or long (Extended)
for you to enter or exit the vehicle more comfortably.
For more details, refer to “Driver Position Memory System” in
chapter 5.
Rear
Occupant Alert
[
To activate or deactivate the rear occupant alert system.
For more details, refer to the “Rear Occupant Alert (ROA)" in chapter
5.
Welcome Light
[
On door unlock: The welcome light turns on automatically when the
doors are unlocked.

[ On driver approach: The welcome light turns on automatically when
the vehicle is approached with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
Charging System To activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system”
in chapter 5.
Traffic
Information To activate or deactivate the traffic information.
When activated, the traffic information will be displayed on the LCD
display. (for cluster type B)
Tunnel Entry Assist Automatically adjusts climate controls upon entering a tunnel.
Icy Road Warning To activate or deactivate the icy road warning function.

04
4-49
6. Service interval
ItemsExplanation
Enable
Service
Interval To activate or deactivate the service interval function.
To use the service interval menu, consult an authorized HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on. - Service in
: Displayed to inform the driver the remaining mileage and days to service.
- Service required
: Displayed when the mileage and days to service has been reached or passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect. - The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
7. Theme selection
To select the style of instrument cluster graphic style and setting.

[ Theme A / Theme B / Theme C

[ Link t

o Drive Mode

Instrument Cluster4-50
8. Other
Items Explanation
Reset fuel
economy
[
At vehicle start : This displays the average fuel economy after
restarting.

[ After refueling : This displays the average fuel economy after
refueling.

[ Manually : You can calculate the accumulated average fuel
economy manually.
Fuel Econ. Reset
[
Off: The average fuel economy will not reset automatically
whenever refueling.

[ After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[ After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped) To select the speed unit. (km/h, MPH)
Fuel Econ. Unit To select the fuel economy unit. (km/L, L/100km, MPG)
Temperature Unit To select the temperature unit. (°C,°F)
Tire Pressure Unit To select the tire pressure unit. (psi, kPa, bar)
9. Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotainment
system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.

5. Convenience Features
Accessing Your Vehicle ........................................................................\
.......... 5-4Remote Key ........................................................................\
....................................... 5-4
Smart Key ........................................................................\
...........................................5-7
Immobilizer System ........................................................................\
........................ 5-14
Hyundai Digital Key ........................................................................\
......................... 5-15
Door Locks ........................................................................\
............................ 5-31Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks ........................................................................\
.. 5-35
Rear Occupant Alert (ROA) .....................................................................\
.... 5-36Rear Occupant Alert Operation ........................................................................\
..... 5-36
Theft-Alarm System ........................................................................\
............ 5-37
Steering Wheel ........................................................................\
..................... 5-38
Electric Power Steering (EPS) ........................................................................\
........ 5-38
Tilt Steering / Telescope Steering ........................................................................\
. 5-39
Horn........................................................................\
.................................................5-40
Mirrors ......................................................................\
.....................................5-41Inside Rearview Mirror ........................................................................\
....................5-41
Side View Mirrors ........................................................................\
........................... 5-49
Windows ......................................................................\
..................................5-51Power Windows ........................................................................\
.............................. 5-52
Sunroof ......................................................................\
................................... 5-55Sunshade ...............................................................\
................................................. 5-55
Tilt Open/Close........................................................................\
............................... 5-56
Slide Open/Close .......................................................\
............................................ 5-56
Automatic Reversal ........................................................................\
....................... 5-57
Resetting the Sunroof ........................................................................\
.................... 5-58
Sunroof Open Warning ........................................................................\
.................. 5-58
Hood ....................................................................\
......................................... 5-59
Trunk ...................................................................\
.......................................... 5-61
Emergency Trunk Safety Release ........................................................................\
.. 5-62
Smart Trunk Release ........................................................................\
...................... 5-63
5
