2022 HONDA CRV Owners Manual

127
uuGauges and Driver Information Interface uGauges
Instrument Panel

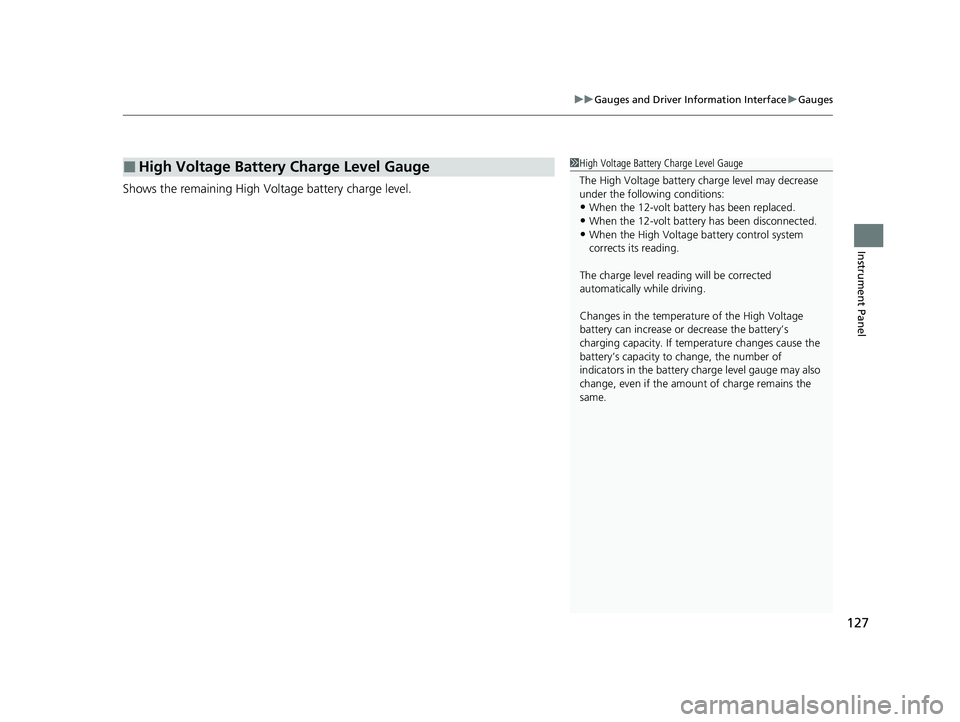

Shows the remaining High Voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the High Voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.
22 CR-V HEV ELP-31TPG6200.book 127 ページ ２０２１年６月３０日　水曜日　午前１１時６分

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows in formation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
■Main displays
Press the (display/information) button, and then press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
(Display/
Information)
Button
Press , or .
Press ENTER . Eco Drive
Display
Audio
*Phone*
Speed Unit & Disp OFF
Warning
Messages Average
Fuel
Economy Records
Driver
Attention Monitor
Range &
Fuel Average
Speed &
Elapsed Time Navigation*
& Compass*
Customize*
Power Flow Monitor
AWD Torque Distribution Monito r
Main
tenance
MinderTM
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 128 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued129
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Odometer
■Trip Meter
Odometer Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
22 CR-V HEV ELP-31TPG6200.book 129 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy Gauge
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 140, 369
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 140, 369
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 140, 369
22 CR-V HEV ELP-31TPG6200.book 130 ページ ２０２１年６月３０日　水曜日　午前１１時６分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 581
Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Maintenance MinderTM
■Average Fuel Economy Records
22 CR-V HEV ELP-31TPG6200.book 131 ページ ２０２１年６月３０日　水曜日　午前１１時６分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Moderate
Deceleration Slow
Acceleration/
DecelerationModerate
Acceleration
22 CR-V HEV ELP-31TPG6200.book 132 ページ ２０２１年６月３０日　水曜日　午前１１時６分

133
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

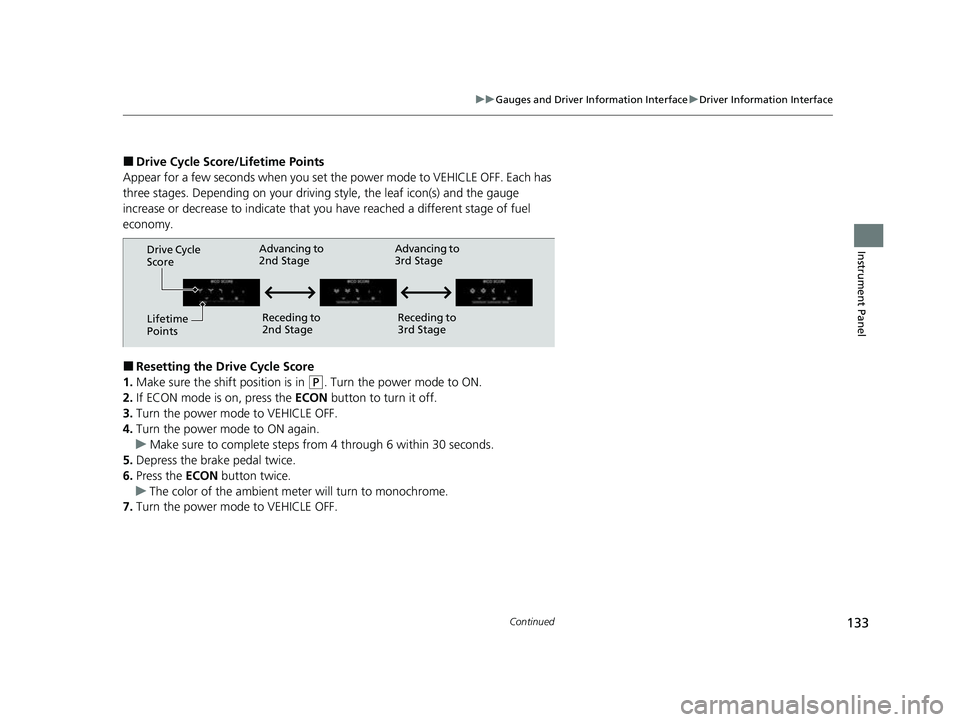

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that yo u have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF.
Drive Cycle
Score
Lifetime
Points Advancing to
2nd Stage
Receding to
2nd Stage Advancing to
3rd Stage
Receding to
3rd Stage
22 CR-V HEV ELP-31TPG6200.book 133 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
134
Instrument Panel
Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
Power is supplied by
the motor and the
engine.
The motor is charging
the High Voltage
battery. The engine is running
and the motor is
charging the High
Voltage battery.
RegenerationPower is being
supplied by the engine
only.
Hybrid (HV)
Engine ON
Engine OFF
Power is supplied by
the motor.
Electric Vehicle (EV)
The engine is running
and the motor is charging
the High Voltage battery.
Engine (Direct Drive)
Power Flow Engine
