2022 HONDA CRV Owners Manual

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
12-volt Battery
Charging
System Indicator●Comes on when there is a
problem with the charging
system.●Stop in a safe place and have your vehicle
checked by a dealer immediately.
2If the 12-volt Battery Charging
System Indicator Comes On P. 652
Shift Position
Indicator●Indicates the current shift
position.
2Shifting P. 477—
Transmission
System Indicator
●The indicated current shift
position blinks if there is a
problem with th e transmission
system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●The indicated current shift
position or all the shift positions
blink if you cannot select
(P due
to the transmission system failure.
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle
selector is pulled.
●Blinks when the deceleration does
not occur while pulling the paddle
selector.
●Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 484—
22 CR-V HEV ELP-31TPG6200.book 95 ページ ２０２１年６月３０日　水曜日　午前１１時６分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
SPORT Mode
Indicator●Comes on when you press the
SPORT button.●The ambient meter remains lit up in red as
long as sport mode is on.
2SPORT Mode P. 483
Seat Belt
Reminder
Indicator
●Blinks and the beep er sounds for a
few seconds if you are not
wearing a seat belt when you set
the power mode to ON, then the
indicator comes on.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if you and/or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you and/or the front
passenger has fastened the seat belt(s)
- A detection error ma y have occurred in
the sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 49
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.1
U.S. gal/8.0 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your ve hicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
22 CR-V HEV ELP-31TPG6200.book 96 ページ ２０２１年６月３０日　水曜日　午前１１時６分

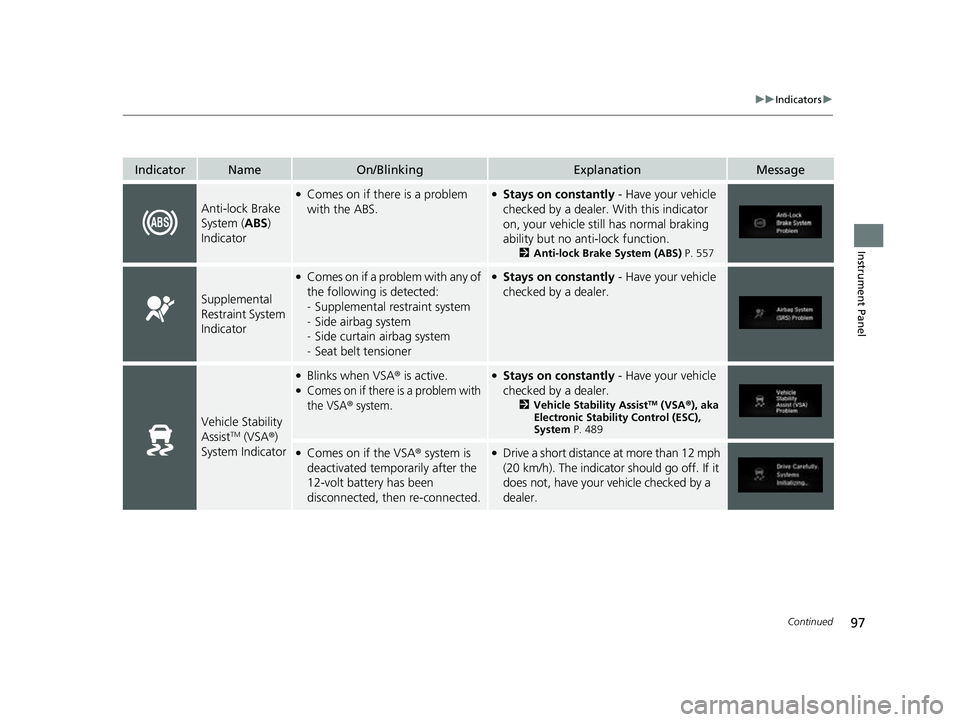

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on if there is a problem
with the ABS.●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 557
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle
checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
System Indicator
●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA
® system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 489
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
22 CR-V HEV ELP-31TPG6200.book 97 ページ ２０２１年６月３０日　水曜日　午前１１時６分

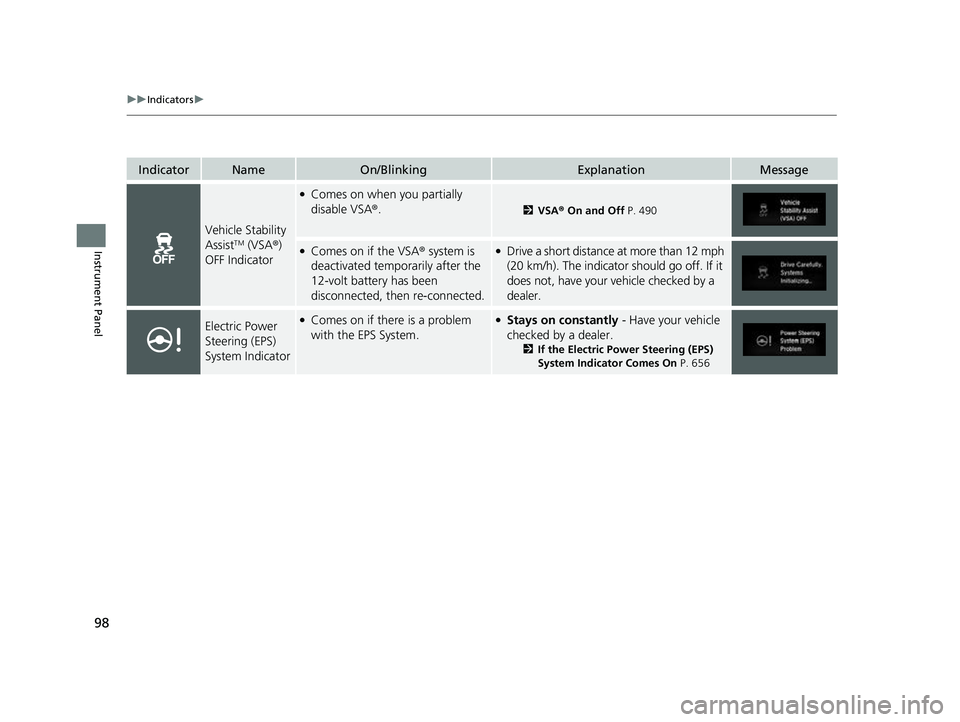

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 490
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System Indicator●Comes on if there is a problem
with the EPS System.●Stays on constantly - Have your vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 656
22 CR-V HEV ELP-31TPG6200.book 98 ページ ２０２１年６月３０日　水曜日　午前１１時６分

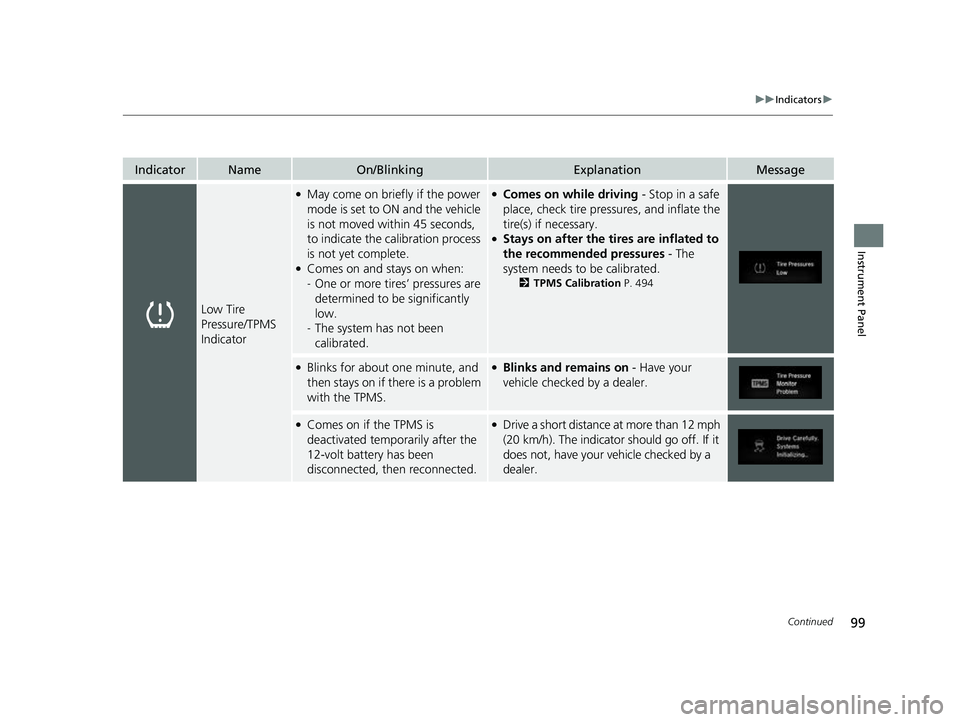

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds,
to indicate the calibration process
is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 494
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.●Blinks and remains on - Have your
vehicle checked by a dealer.
●Comes on if the TPMS is
deactivated temporarily after the
12-volt battery has been
disconnected, then reconnected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
22 CR-V HEV ELP-31TPG6200.book 99 ページ ２０２１年６月３０日　水曜日　午前１１時６分

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface.
Respond to the message accordingly.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button is
pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
- Have your vehicle checked by a dealer.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
22 CR-V HEV ELP-31TPG6200.book 100 ページ ２０２１年６月３０日　水曜日　午前１１時６分

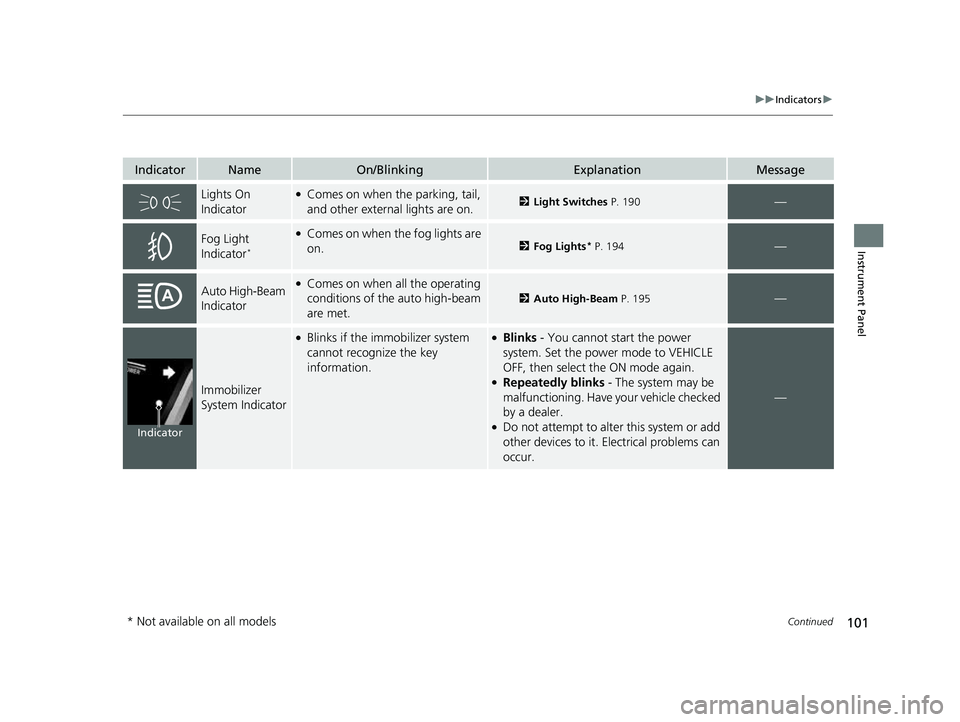

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator●Comes on when the parking, tail,
and other external lights are on.2Light Switches P. 190—
Fog Light
Indicator*
●Comes on when the fog lights are
on.2Fog Lights* P. 194—
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the auto high-beam
are met.
2Auto High-Beam P. 195—
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Indicator
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 101 ページ ２０２１年６月３０日　水曜日　午前１１時６分

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm* P. 178—
ECON Mode
Indicator●Comes on when the ECON mode
is on.
2ECON Mode P. 487
Blind spot
information
System
Indicator
*
●Stays on while the blind spot
information system is turned off.2Blind spot information System*
P. 499
●Comes on when mud, snow, or
ice accumulates in the vicinity of
sensor.●Comes on while driving - Remove the
obstacle in the vicinity of the sensor.
2 Blind spot information System*
P. 499
●Comes on if there is a problem
with the system.●Comes on while driving - Have your
vehicle checked by a dealer.
Indicator
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 102 ページ ２０２１年６月３０日　水曜日　午前１１時６分
