2022 HONDA CRV Owners Manual

15
Quick Reference Guide
●Regenerative Energy and Regenerative BrakingWhen decelerating without the accelerator being depressed or the brake pedal being applied, or
while driving downhill, the electric motor acts as a generator that recovers a portion of the
electrical energy that was used to accelerate the vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle. You can control the
rate of deceleration by using the deceleration paddle selector.
●Auto Engine Stop/Start
Your vehicle’s gasoline engine automatically stops running during vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, auto engine stop may not activate.
•The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.
•The climate control system is in heavy use.
•The High Voltage battery temperature is high or low.•The High Voltage battery is too low on charge.
●Sounds Unique to the SPORT HYBRID i-MMD System
When you first start driving this vehicle, you will likely hear so me unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of thes e sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent f rom a
vehicle of this design. These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any
new or unusual noise should one develop.
After shutting off the engine, you ma y hear certain noises coming from the vehicle. Here’s the lowdown:
●Noise from Under Vehicle: This noise is caused by the vacuum pump inside the fuel evaporation leakage check module (ELCM).
Depending on conditions, the pump will come on for about 15 minutes about 5 to 10 hours after engine shutoff. This noise is just normal
vehicle operation and doesn’t indicate a vehicle problem.
When regenerative braking is in
operation
Motor
High
Voltage
Battery
22 CR-V HEV ELP-31TPG6200.book 15 ページ ２０２１年６月３０日　水曜日　午前１１時６分

16
Quick Reference Guide

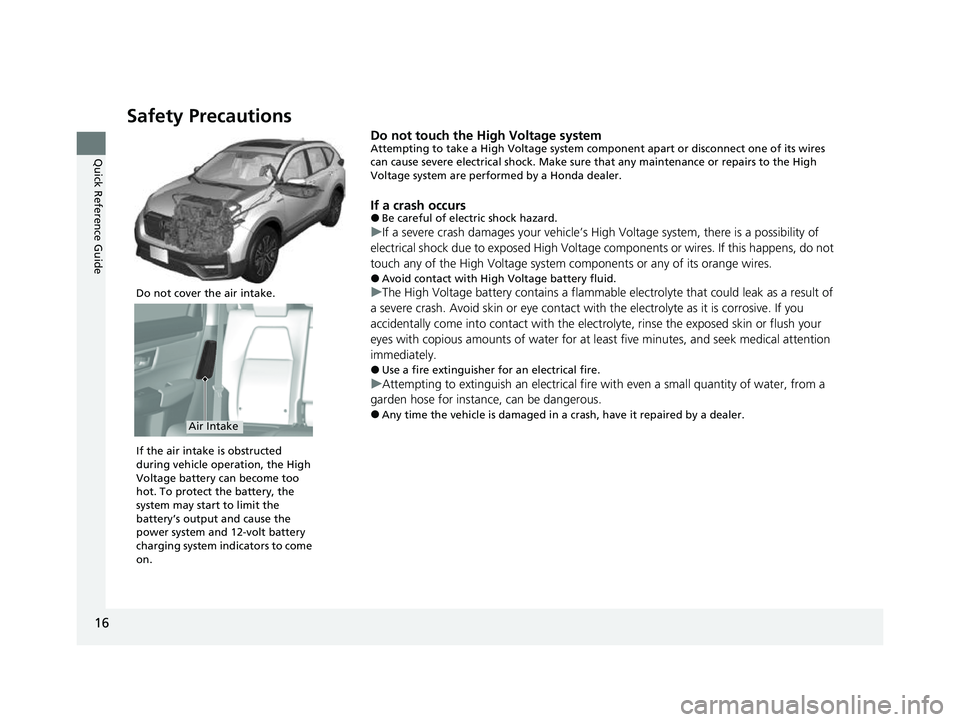

Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system are performed by a Honda dealer.
If a crash occurs●Be careful of electric shock hazard.
uIf a severe crash damages your vehicle’s Hi gh Voltage system, there is a possibility of
electrical shock due to exposed High Voltage components or wires. If this happens, do not
touch any of the High Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
u The High Voltage battery contains a flammable electrolyte that could leak as a result of
a severe crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you
accidentally come into contac t with the electrolyte, rinse the exposed skin or flush your
eyes with copious amounts of water for at least five minutes, and seek medical attention
immediately.
●Use a fire extinguisher for an electrical fire.
u Attempting to extinguish an electrical fire with even a small quantity of water, from a
garden hose for instance, can be dangerous.
●Any time the vehicle is damaged in a crash, have it repaired by a dealer.
Do not cover the air intake.
If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery’s output and cause the
power system and 12-volt battery
charging system indicators to come
on.
Air Intake
22 CR-V HEV ELP-31TPG6200.book 16 ページ ２０２１年６月３０日　水曜日　午前１１時６分

17
Quick Reference Guide
Emergency Shutdown System for the High Voltage SystemIf the vehicle is involved in a crash, the emergency shutdown system will activate depending on the severity of the impact. When the system
activates, the High Voltage system automatica lly shuts down, and the vehicle can no longer move under its own power. To return the High
Voltage system back to normal operation, consult a dealer.
Honda collects and recycles High Voltage batteries used in its vehicles – consult a dealer for more information.
22 CR-V HEV ELP-31TPG6200.book 17 ページ ２０２１年６月３０日　水曜日　午前１１時６分

18
Quick Reference Guide

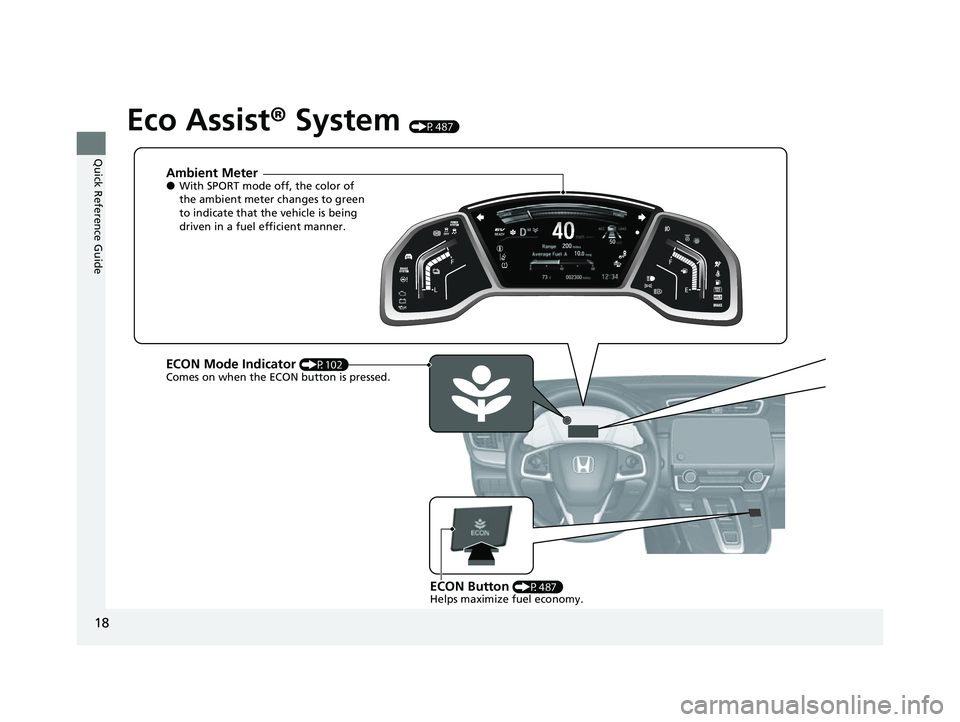

Eco Assist® System (P487)
Ambient Meter●With SPORT mode off, the color of
the ambient meter changes to green
to indicate that the vehicle is being
driven in a fuel efficient manner.
ECON Button (P487)
Helps maximize fuel economy.
ECON Mode Indicator (P102)
Comes on when the ECON button is pressed.
22 CR-V HEV ELP-31TPG6200.book 18 ページ ２０２１年６月３０日　水曜日　午前１１時６分

19
Quick Reference GuideDrive Cycle Score/Lifetime Points
●Comes on when the power mode is in VEHICLE OFF.
Eco Drive Display (P132)
●Keep the vehicle icon near the center of the circle.Aggressive Deceleration
Fuel economy is: Best Drive Cycle Score
Lifetime Points
Worse Worse
Better Better
Moderate
DecelerationSlow Acceleration/
DecelerationAggressive AccelerationModerate
Acceleration
22 CR-V HEV ELP-31TPG6200.book 19 ページ ２０２１年６月３０日　水曜日　午前１１時６分

20
Quick Reference Guide
Safe Driving (P41)
Airbags (P56)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P72)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P86)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P46)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P47)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
22 CR-V HEV ELP-31TPG6200.book 20 ページ ２０２１年６月３０日　水曜日　午前１１時６分

21
Quick Reference Guide

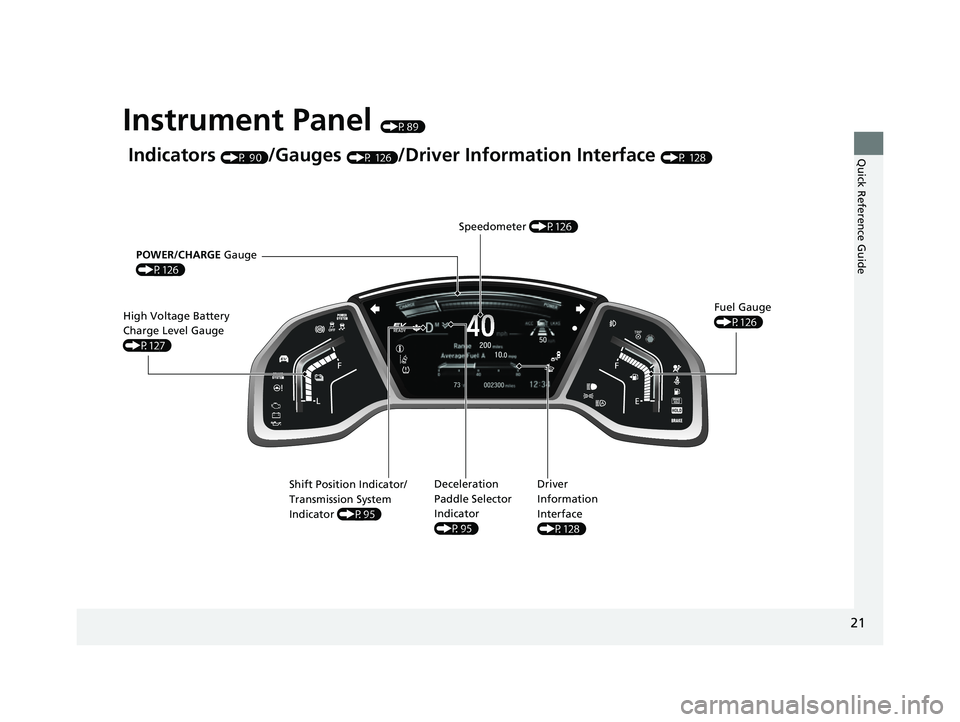

Instrument Panel (P89)
Indicators (P 90)/Gauges (P 126)/Driver Information Interface (P 128)
Speedometer (P126)
POWER/CHARGE Gauge
(P126)
High Voltage Battery
Charge Level Gauge
(P127) Fuel Gauge
(P126)
Shift Position Indicator/
Transmission System
Indicator (P95) Deceleration
Paddle Selector
Indicator
(P95) Driver
Information
Interface
(P128)
22 CR-V HEV ELP-31TPG6200.book 21 ページ ２０２１年６月３０日　水曜日　午前１１時６分

22
Quick Reference Guide
Controls (P149)
Clock (P150)
aPress and hold the MENU/CLOCK
button, then select Adjust Clock.
bRotate to change hour, then press
.
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The clock is automatically updated through
the audio system.
You can also adjust the time manually.
aSelect the (Home) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with Display Audio
34
POWER Button (P186)
Press the button to change the vehicle’s
power mode.
22 CR-V HEV ELP-31TPG6200.book 22 ページ ２０２１年６月３０日　水曜日　午前１１時６分
