2022 HONDA CRV Owners Manual

455
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

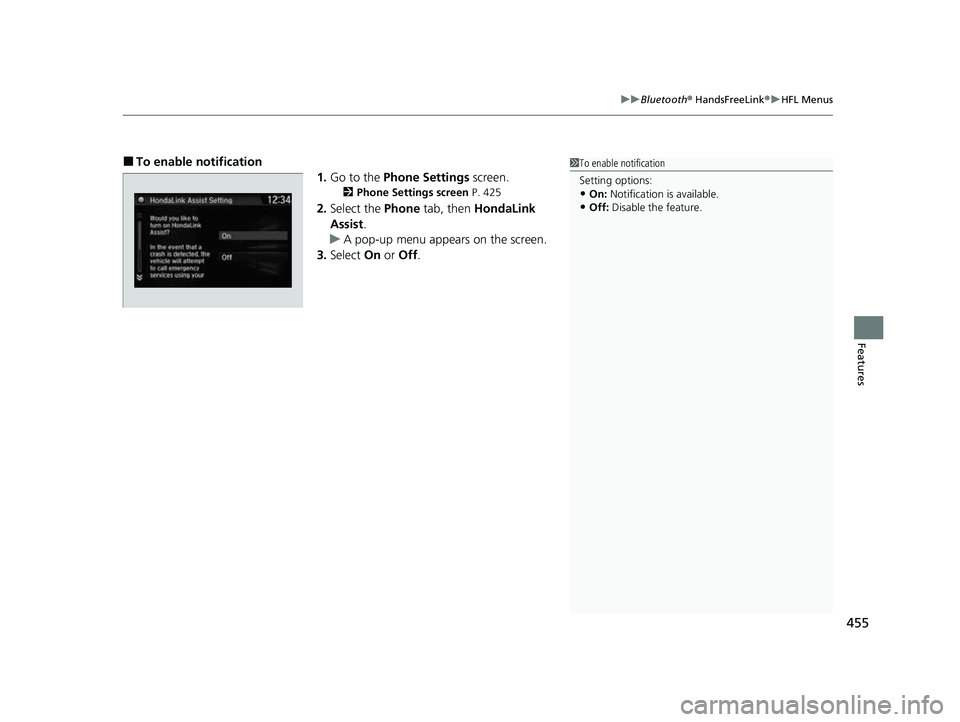

■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 425
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
22 CR-V HEV ELP-31TPG6200.book 455 ページ ２０２１年６月３０日　水曜日　午前１１時６分

456
Features
Compass*
When you set the power mode to ON, the compass self-calibrates, and the compass
display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.
1.Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Calibration, then press
.
4. When the display changes to Push CAL
Start, press .
5. Drive the vehicle slowly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass:
•The (Back) button returns to the previous
screen.
Compass Setting Menu Items
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 456 ページ ２０２１年６月３０日　水曜日　午前１１時６分

457
uuCompass*uCompass Zone Selection
Features
Compass Zone Selection
1. Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Zone, then press .
The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
Zone Number
Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
22 CR-V HEV ELP-31TPG6200.book 457 ページ ２０２１年６月３０日　水曜日　午前１１時６分

458

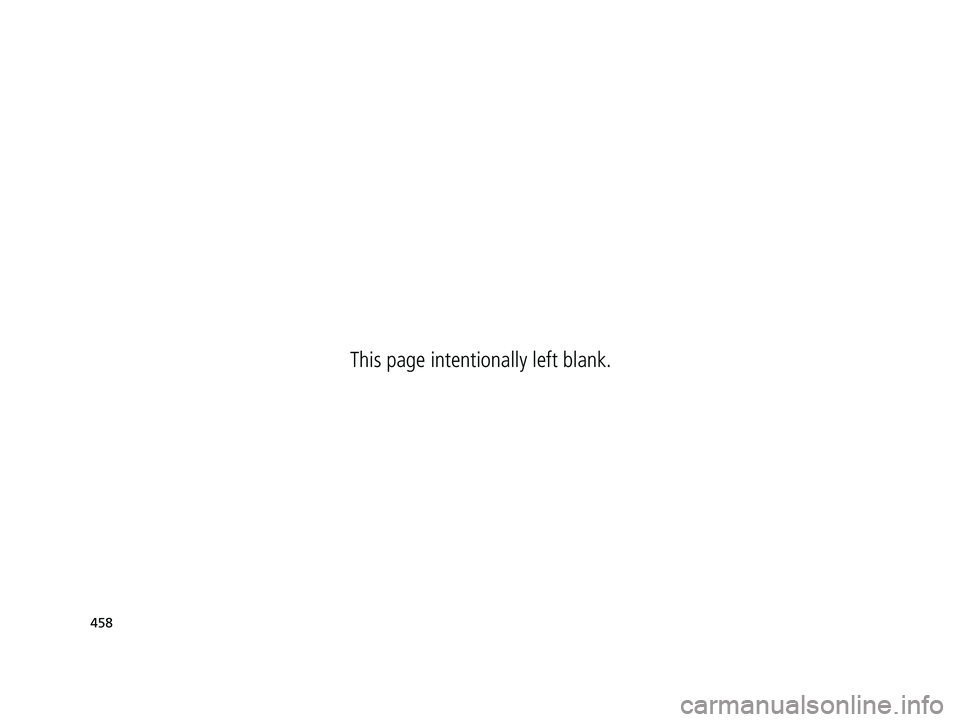

22 CR-V HEV ELP-31TPG6200.book 458 ページ ２０２１年６月３０日　水曜日　午前１１時６分This page intentionally left blank.

459
Driving
This chapter discusses driving and refueling.
Before Driving................................... 460
Towing a Trailer ................................ 465
Towing Behind a Motorhome .......... 466
Off-Highway Driving Guidelines General Information ......................... 467
Important Safety Precautions............ 467
Avoiding Trouble ............................. 468
When Driving Turning on the Power ...................... 469
Precautions While Driving................. 475
Transmission .................................... 476
Shifting ............................................ 477
SPORT Mode.................................... 483 Deceleration Paddl
e Selector ............ 484
ECON Mode .................................... 487
Acoustic Vehicle Alerting System...... 488
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 489
Agile Handling Assist ....................... 491
Real Time AWD with Intelligent Control System
TM........................................ 492Tire Pressure Monitoring System (TPMS) .. 493Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 497
Blind spot information System*........... 499High Voltage Battery ........................ 502 Honda Sensing®
................................ 503
Collision Mitigation Braking SystemTM (CMBSTM) .... 506Adaptive Cruise Control (ACC) with Low Speed Follow ....... 517Lane Keeping Assist System (LKAS) .. 534Road Departure Mitigation (RDM) System.... 543Front Sensor Camera ....................... 548
Radar Sensor ................................... 550
Braking Brake System ................................... 551
Anti-lock Brake System (ABS) ........... 557
Brake Assist System ......................... 558
Parking Your Vehicle ........................ 559
Multi-View Rear Camera .................. 570
Refueling ........................................... 572
Fuel Economy and CO
2 Emissions .... 575
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 459 ページ ２０２１年６月３０日　水曜日　午前１１時６分

460
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 606
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
22 CR-V HEV ELP-31TPG6200.book 460 ページ ２０２１年６月３０日　水曜日　午前１１時６分

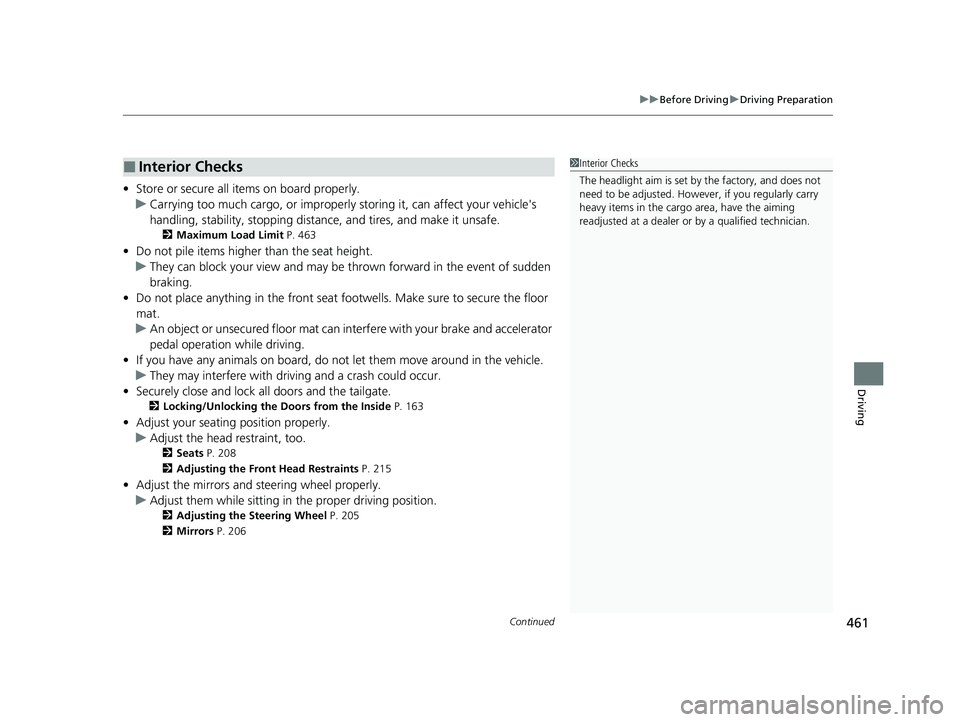

Continued461
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 463
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 163
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Seats P. 208
2 Adjusting the Front Head Restraints P. 215
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 205
2 Mirrors P. 206
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
22 CR-V HEV ELP-31TPG6200.book 461 ページ ２０２１年６月３０日　水曜日　午前１１時６分

462
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 90
22 CR-V HEV ELP-31TPG6200.book 462 ページ ２０２１年６月３０日　水曜日　午前１１時６分
