2022 HONDA CRV Owners Manual

87
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully.
If a label comes off or becomes hard to read (except for the dashboard label which may be removed by the owner), contact a deal er for a
replacement.
Sun Visor
High Voltage System
Components
Inverter Coolant Filler
Tank Cap
Dashboard
Air Conditioner System
Sun Visor
Radiator Cap
22 CR-V HEV ELP-31TPG6200.book 87 ページ ２０２１年６月３０日　水曜日　午前１１時６分

88
22 CR-V HEV ELP-31TPG6200.book 88 ページ ２０２１年６月３０日　水曜日　午前１１時６分This page intentionally left blank.

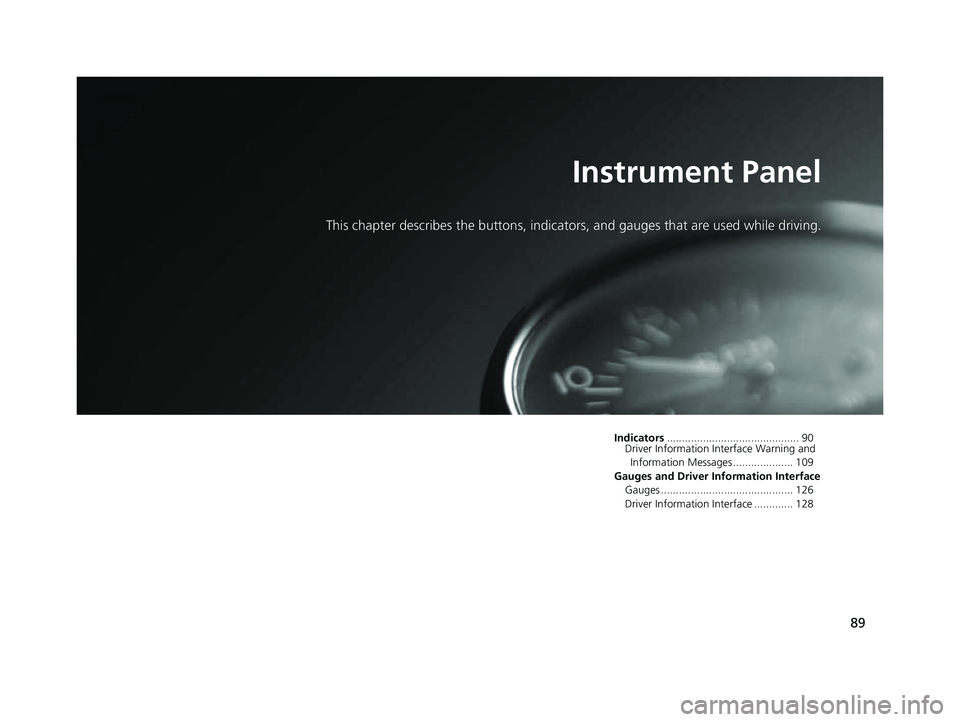

89
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 90
Driver Information Interface Warning and
Information Messages .................... 109
Gauges and Driver Information Interface Gauges ............................................ 126
Driver Information Interface ............. 128
22 CR-V HEV ELP-31TPG6200.book 89 ページ ２０２１年６月３０日　水曜日　午前１１時６分

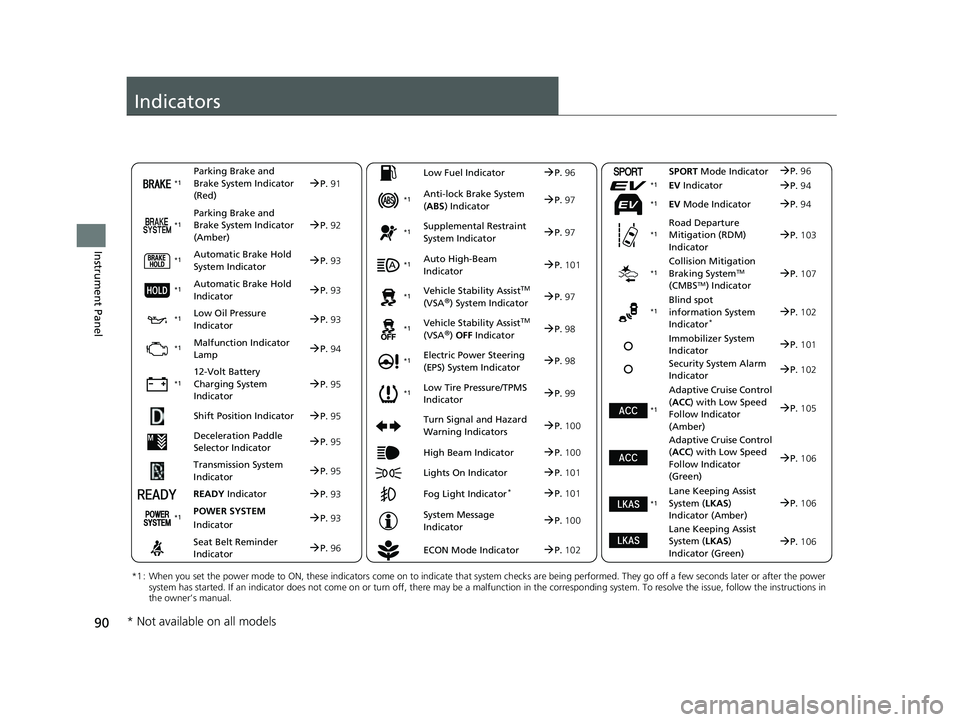

90
Instrument Panel
Indicators
Deceleration Paddle
Selector IndicatorP.95
1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN
*OEJDBUPS

3FE

1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN
*OEJDBUPS

"NCFS

"VUPNBUJD
#SBLF
)PME

4ZTUFN
*OEJDBUPS
"VUPNBUJD
#SBLF
)PME

*OEJDBUPS
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 91*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message
Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System ( LKAS)
Indicator (Amber)
P. 92
P.93
P.93
P.94
P.95
*1
*1
*1 *1
*1
*1
Shift Position IndicatorP. 95
Transmission System
Indicator
P. 95
READY Indicato
rP.93
POWER SYSTEM
Indicator
P. 93
P.96
P.96
P.97
P.97
P.101
P.97
*1
*1
*1
*1
P.98
*1P.98
P.101
P.105
P.100
P.100
P.102
P.101
P.102
P.100
P.96
P.106
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator
(Green)
P. 106
Lane Keeping Assist
System

(LKAS )
Indicator (Green)P. 106
*1
EV IndicatorP.94*1
EV Mode IndicatorP.94*1
*1
Immobilizer System
Indicator P.101
Security System Alarm
Indicator
Low Oil Pressure
IndicatorP. 93*1
Road Departure
Mitigation (RDM)
IndicatorP.103*1
Collision Mitigation
Braking SystemTM
(CMBSTM) IndicatorP. 107*1
Blind spot
information System
Indicator
*P.102*1
Low Tire Pressure/TPMS
IndicatorP.99*1
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 90 ページ ２０２１年６月３０日　水曜日　午前１１時６分

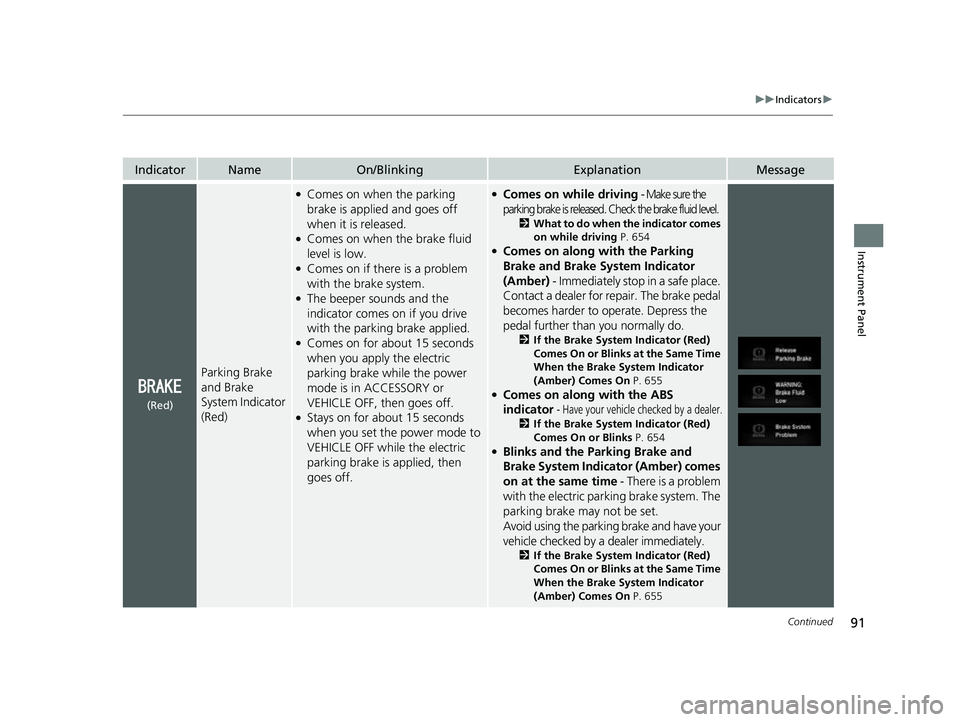

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on when the parking
brake is applied and goes off
when it is released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake applied.
●Comes on for about 15 seconds
when you apply the electric
parking brake while the power
mode is in ACCESSORY or
VEHICLE OFF, then goes off.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is applied, then
goes off.
●Comes on while driving - Make sure the
parking brake is released. Check the brake fluid level.
2 What to do when the indicator comes
on while driving P. 654
●Comes on along with the Parking
Brake and Brake System Indicator
(Amber) - Immediately stop in a safe place.
Contact a dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.
2If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 655
●Comes on along with the ABS
indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 654
●Blinks and the Parking Brake and
Brake System Indicator (Amber) comes
on at the same time - There is a problem
with the electric parking brake system. The
parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 655
(Red)
22 CR-V HEV ELP-31TPG6200.book 91 ページ ２０２１年６月３０日　水曜日　午前１１時６分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on while driving - Avoid high
speeds and sudden braking. Take the
vehicle to a dealer immediately.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.●Stays on constantly - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if the brake system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Comes on if there is a problem
with the radar sensor.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 463●Stays on constantly - Have your vehicle
checked by a dealer.
—
(Amber)
22 CR-V HEV ELP-31TPG6200.book 92 ページ ２０２１年６月３０日　水曜日　午前１１時６分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 555
Automatic Brake
Hold Indicator●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 555—
Low Oil Pressure
Indicator
●Comes on when the engine oil
pressure is low.●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 652
Power System
Indicator
●Comes on if there is a problem
with the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes
high.
●Stays on constantly - Have your vehicle
checked by a dealer immediately.
READY
Indicator●Comes on when the vehicle is
ready to drive.
2 Turning on the Power P. 469
22 CR-V HEV ELP-31TPG6200.book 93 ページ ２０２１年６月３０日　水曜日　午前１１時６分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
EV Indicator
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator●Comes on when the vehicle is in
EV mode.2 SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive) P. 11
Malfunction
Indicator Lamp
●After you have set the power
mode to ON, the vehicle performs
system checks.
However, if the readiness codes
have not been set by that time,
this indicator will blink five times
and then go off.
●Comes on if there is a problem
with the emissions control systems
or electric vehicle system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 673●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on when there is no gasoline in the
fuel tank, and goes off after vehicle is
refueled, power mode is turned on,
vehicle is driven, and the power system is
turned off multiple times. If it does not go
off, have your vehicl e checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2If the Malfunction Indicator Lamp
Comes On or Blinks P. 653
