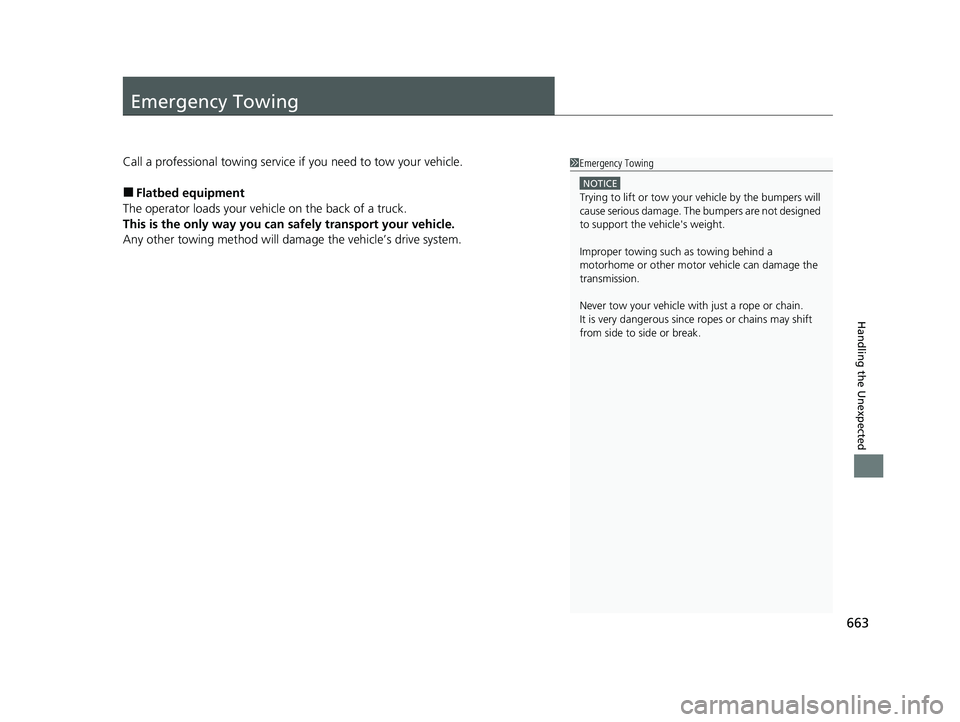

2022 HONDA CRV Owners Manual

663
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmissionM
Never tow your vehicle with just a rope or chainM
It is very dangerous since ropes or chains may shift
from side to side or breakM
22 CR-V HEV ELP-31TPG6200.book 663 ページ ２０２１年６月３０日　水曜日　午前１１時６分

664
Handling the Unexpected

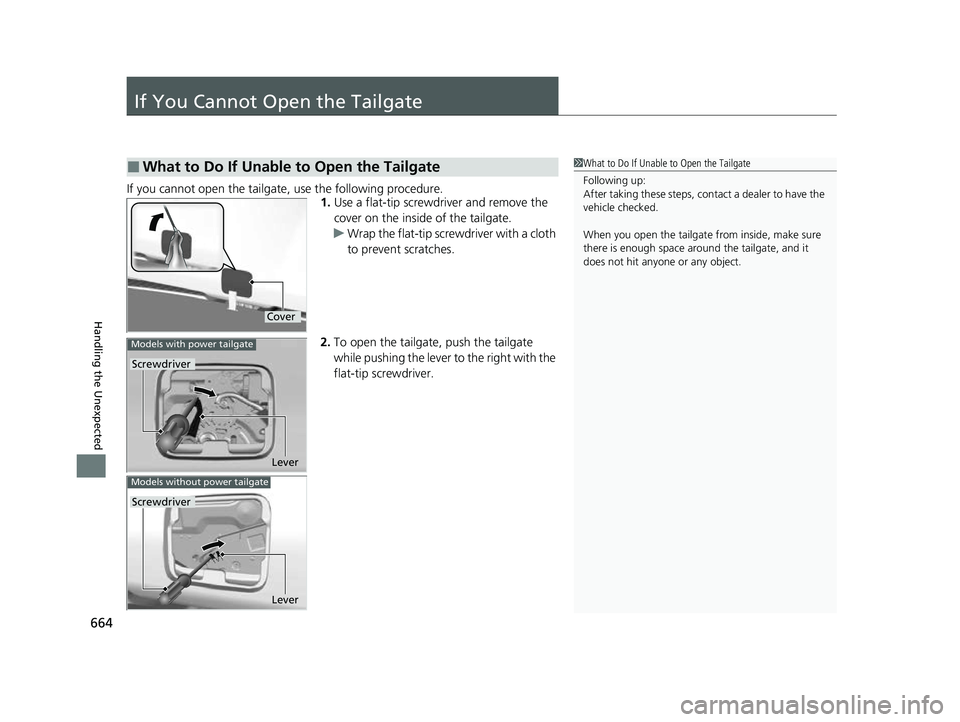

If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
22 CR-V HEV ELP-31TPG6200.book 664 ページ ２０２１年６月３０日　水曜日　午前１１時６分

665
Handling the Unexpected

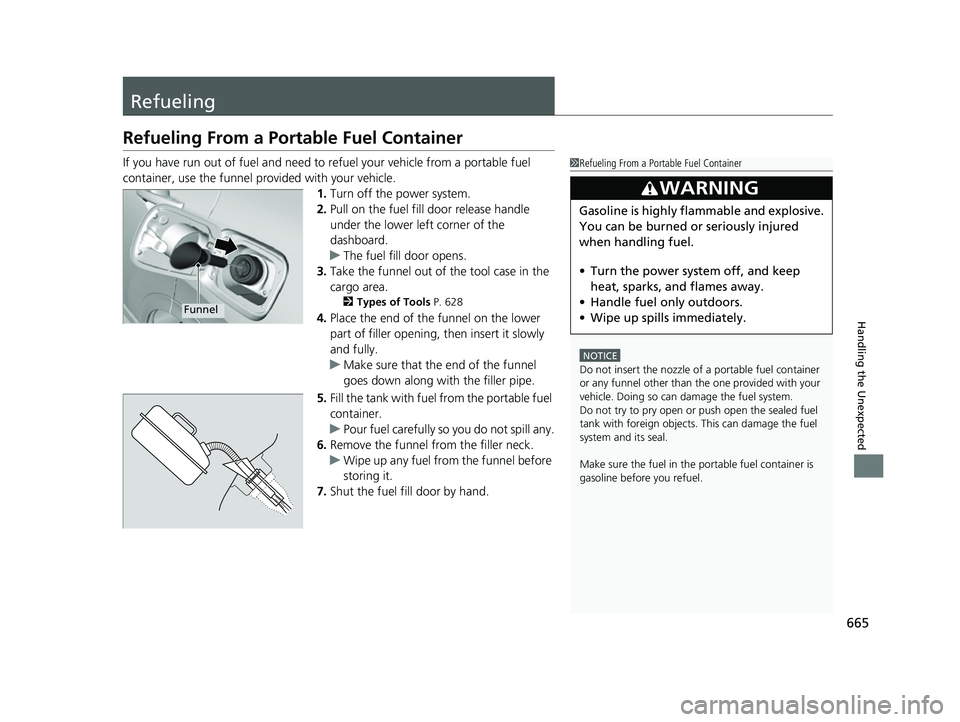

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 628
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power sy stem off, and keep
heat, sparks, and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
22 CR-V HEV ELP-31TPG6200.book 665 ページ ２０２１年６月３０日　水曜日　午前１１時６分

666

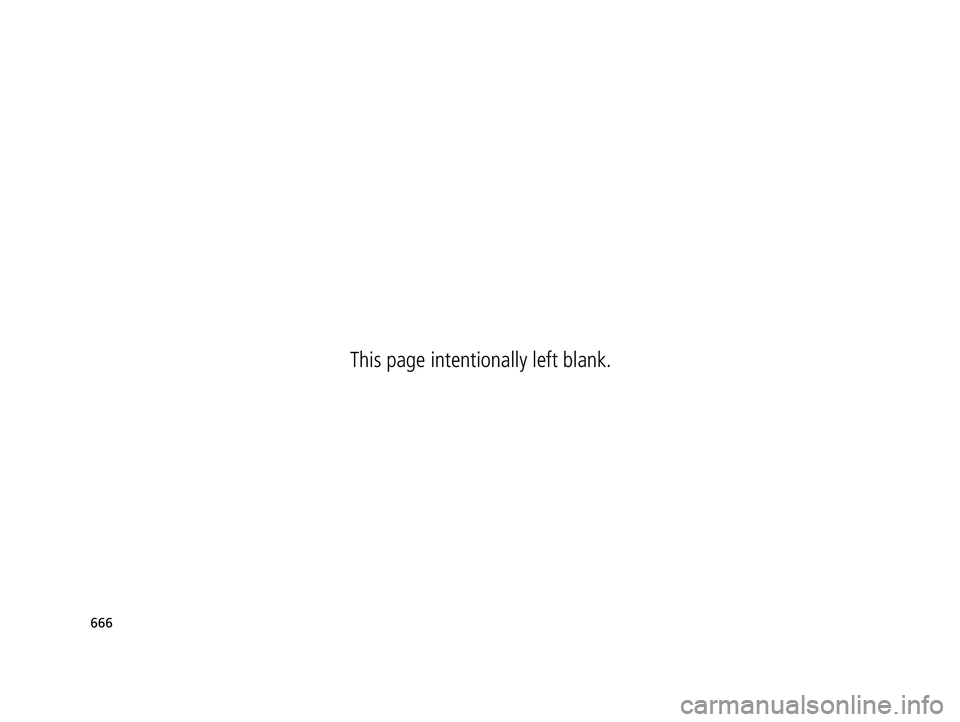

22 CR-V HEV ELP-31TPG6200.book 666 ページ ２０２１年６月３０日　水曜日　午前１１時６分This page intentionally left blank.

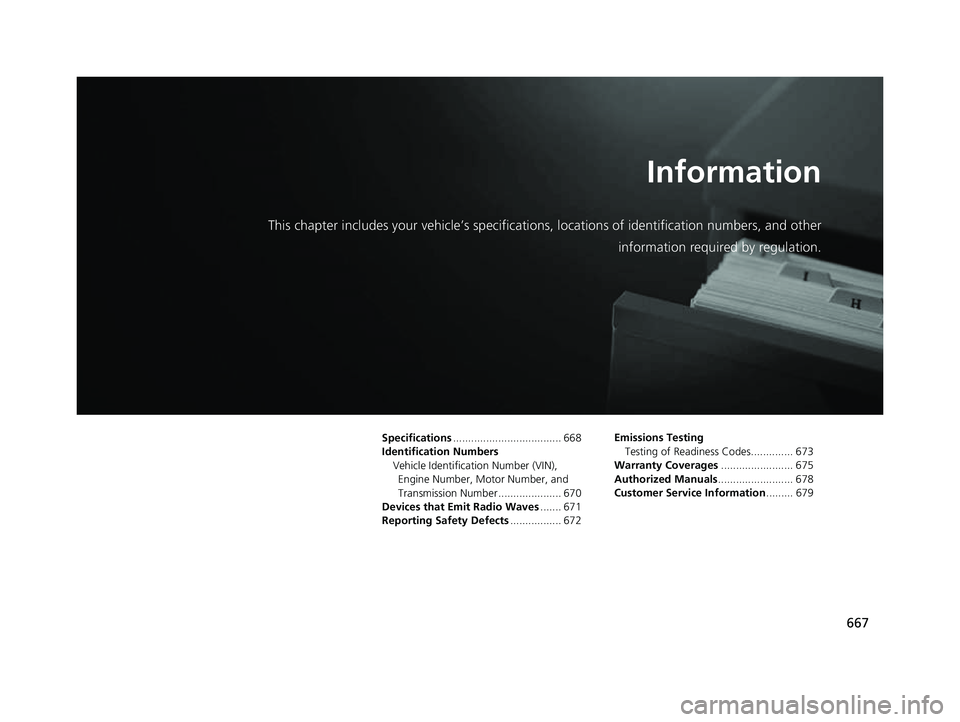

667
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 668
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number ..................... 670
Devices that Emit Radio Waves ....... 671
Reporting Safety Defects ................. 672Emissions Testing
Testing of Readiness Codes.............. 673
Warranty Coverages ........................ 675
Authorized Manuals ......................... 678
Customer Service Information ......... 679
22 CR-V HEV ELP-31TPG6200.book 667 ページ ２０２１年６月３０日　水曜日　午前１１時６分

668
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 668 ページ ２０２１年６月３０日　水曜日　午前１１時６分

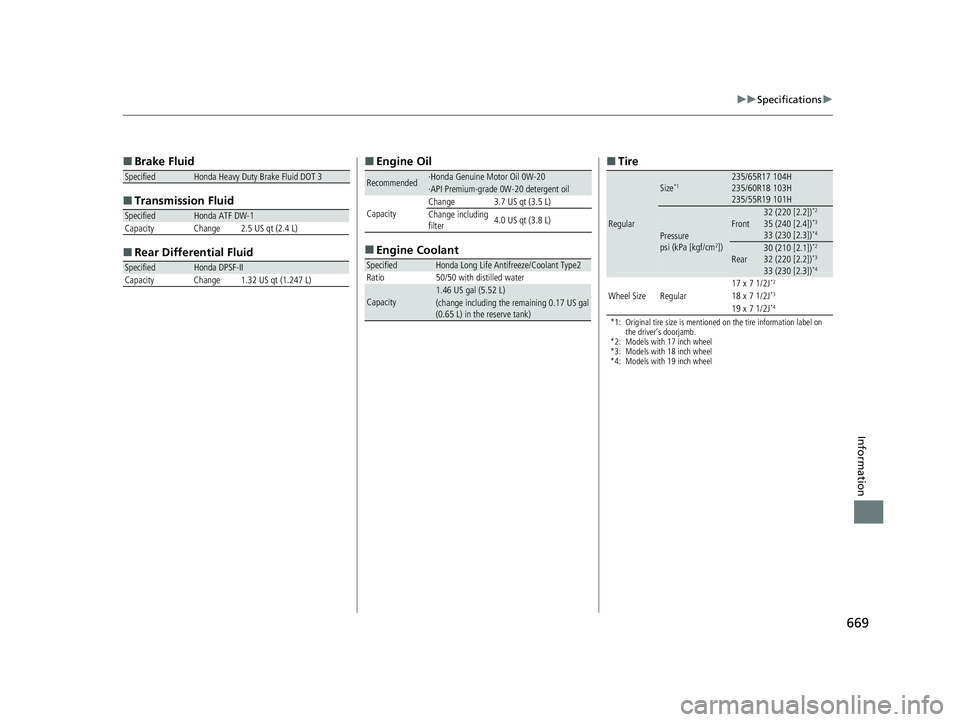

669
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
■ Rear Differential Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.5 US qt (2.4 L)
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange3.7 US qt (3.5 L)
Change including
filter 4.0 US qt (3.8 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.46 US gal (5.52 L)(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel
Regular
Size*1235/65R17 104H
235/60R18 103H
235/55R19 101H
Pressure
psi (kPa [kgf/cm2])
Front32 (220 [2.2])*2
35 (240 [2.4])*3
33 (230 [2.3])*4
Rear30 (210 [2.1])*2
32 (220 [2.2])*3
33 (230 [2.3])*4
Wheel SizeRegular17 x 7 1/2J*2
18 x 7 1/2J*3
19 x 7 1/2J*4
22 CR-V HEV ELP-31TPG6200.book 669 ページ ２０２１年６月３０日　水曜日　午前１１時６分

670
Information

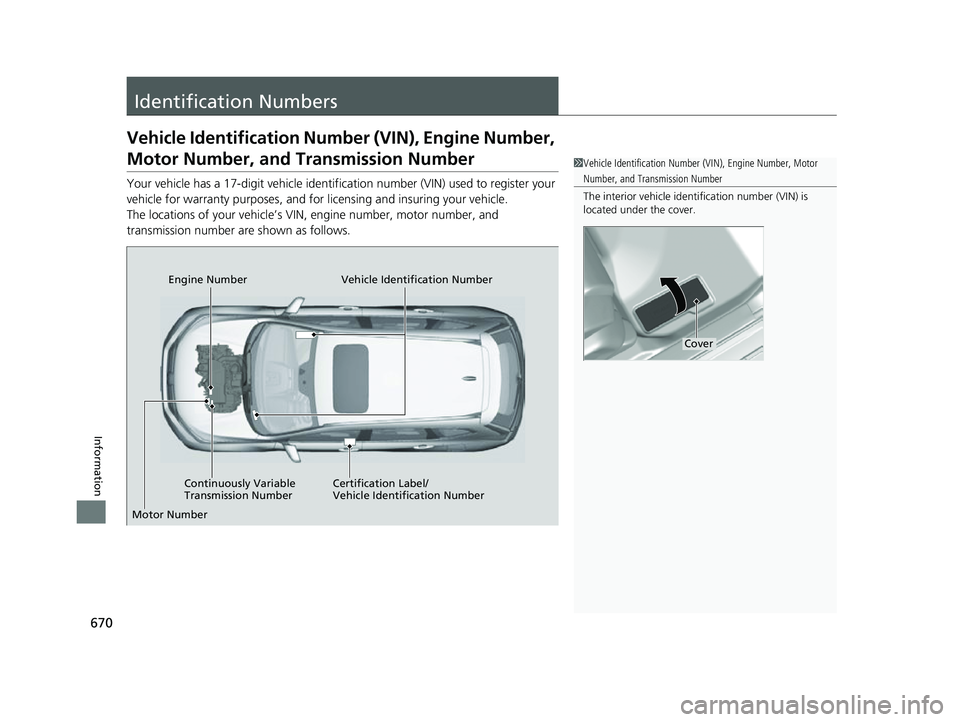

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
Motor Number
22 CR-V HEV ELP-31TPG6200.book 670 ページ ２０２１年６月３０日　水曜日　午前１１時６分
