2022 HONDA CRV Owners Manual

575
Driving
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Use engine oil with the viscosity recommended.
2 Recommended Engine Oil P. 588
•Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
Miles driven Gallons of
fuel Miles per
Gallon
100 LiterKilometers L per 100 km
22 CR-V HEV ELP-31TPG6200.book 575 ページ ２０２１年６月３０日　水曜日　午前１１時６分

576

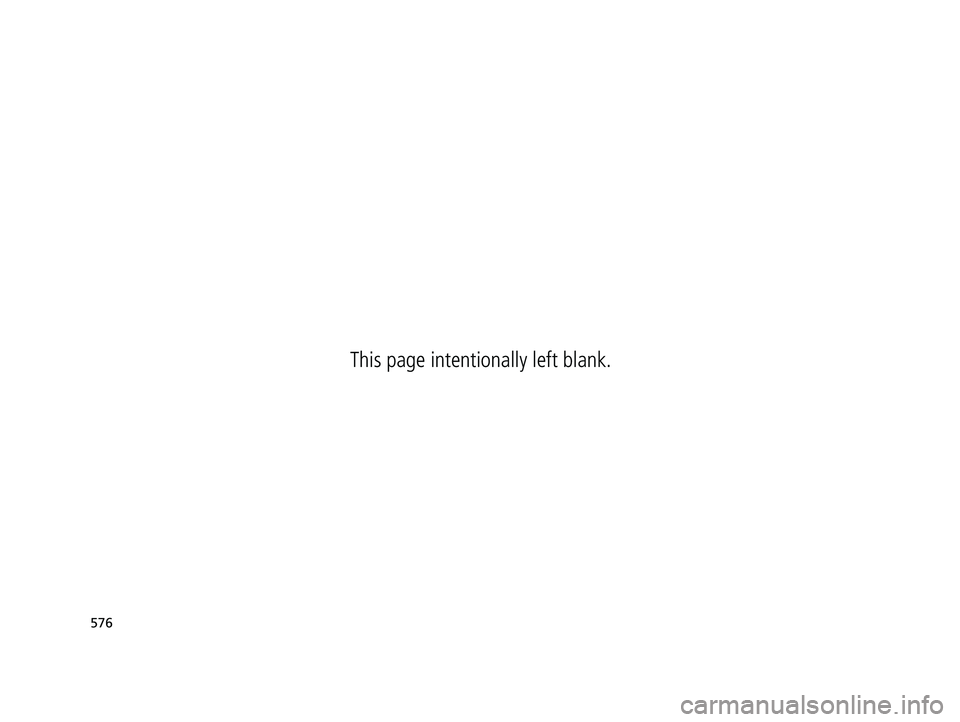

22 CR-V HEV ELP-31TPG6200.book 576 ページ ２０２１年６月３０日　水曜日　午前１１時６分This page intentionally left blank.

577
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 578
Safety When Performing Maintenance ..579Parts and Fluids Used in Maintenance Service ........................................... 580
Maintenance Minder
TM..................... 581
Maintenance Under the Hood Maintenance Items Under the Hood .. 586
Opening the Hood ........................... 587
Recommended Engine Oil ................ 588
Oil Check ......................................... 589
Adding Engine Oil ............................ 590
Changing the Engine Oil and Oil Filter ...591
Cooling System ................................ 593
Transmission Fluid ............................ 595
Brake Fluid ....................................... 596
Refilling Window Wa sher Fluid......... 597
Replacing Light Bulbs ....................... 598
Checking and Maintaining Wiper Blades.. 601Checking and Maintaining Tires
Checking Tires ................................. 606
Tire and Loading Information Label ...... 607Tire Labeling .................................... 607DOT Tire Quality Grading (U.S. Vehicles).. 609Wear Indicators................................ 611
Tire Service Life ................................ 611 Tire and Wheel Replacement ........... 612
Tire Rotation .................................... 613
Winter Tires ..................................... 614
12-volt Battery .................................. 615
Remote Transmitter Care Replacing the Remote Battery .......... 617
Climate Control System Maintenance .. 618Cleaning
Interior Care .................................... 619
Exterior Care.................................... 621
Accessories and Modifications .......... 624
22 CR-V HEV ELP-31TPG6200.book 577 ページ ２０２１年６月３０日　水曜日　午前１１時６分

578
Maintenance

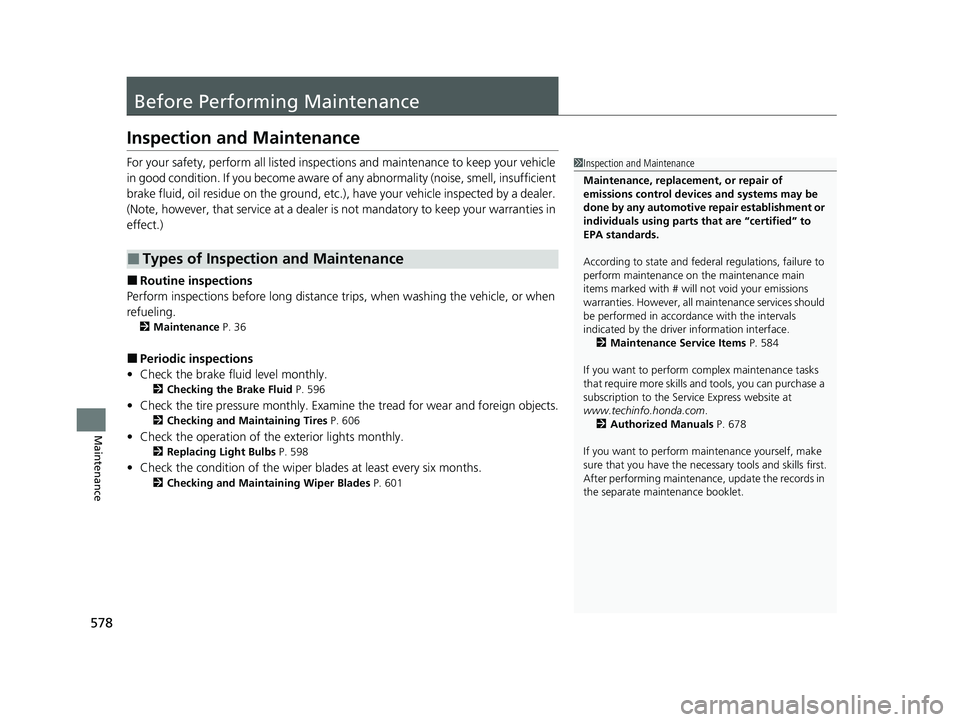

Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Routine inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
2 Maintenance P. 36
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 596
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 606
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 598
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 601
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 584
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 678
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
22 CR-V HEV ELP-31TPG6200.book 578 ページ ２０２１年６月３０日　水曜日　午前１１時６分

579
uuBefore Performing Maintenance uSafety When Performing Maintenance
Continued
Maintenance

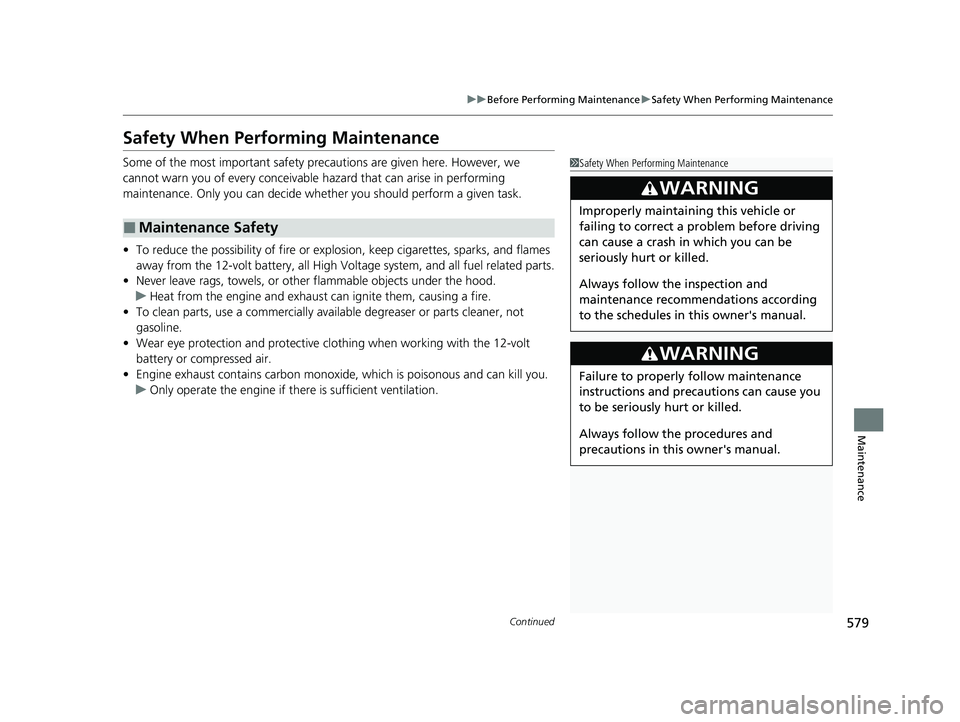

Safety When Performing Maintenance
Some of the most important safety pr ecautions are given here. However, we
cannot warn you of every conceivable hazard that can arise in performing
maintenance. Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Volt age system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreas er or parts cleaner, not
gasoline.
• Wear eye protection and protective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
■Maintenance Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner's manual.
3WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner's manual.
22 CR-V HEV ELP-31TPG6200.book 579 ページ ２０２１年６月３０日　水曜日　午前１１時６分

580
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance

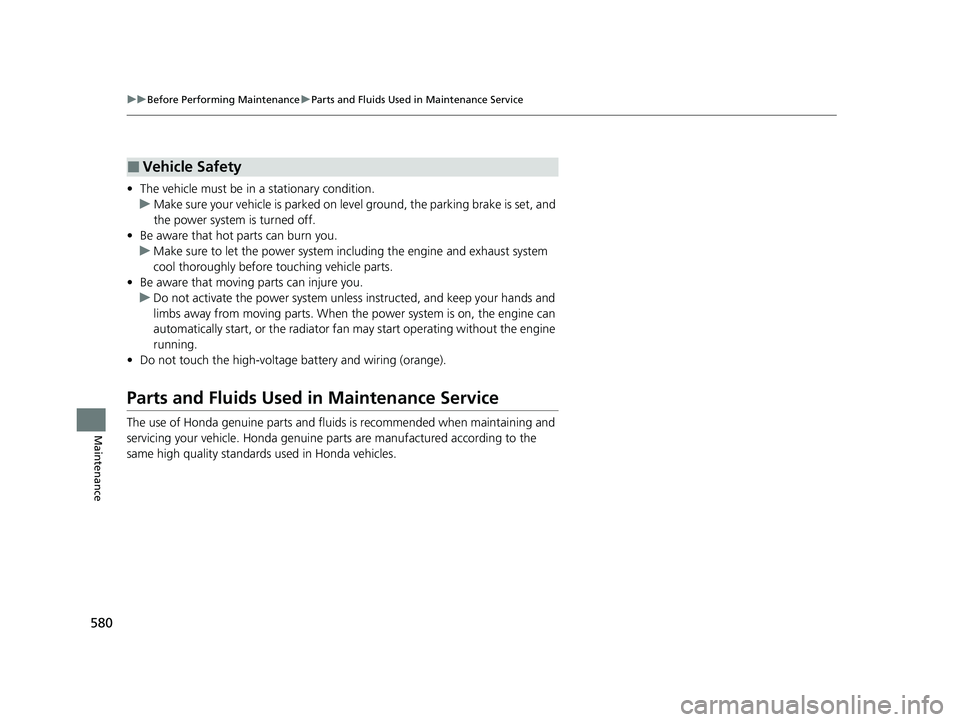

• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on leve l ground, the parking brake is set, and
the power system is turned off.
• Be aware that hot parts can burn you.
u Make sure to let the power system incl uding the engine and exhaust system
cool thoroughly before touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not activate the power system unle ss instructed, and keep your hands and
limbs away from moving parts. When the power system is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.
• Do not touch the high -voltage battery and wiring (orange).
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.
■Vehicle Safety
22 CR-V HEV ELP-31TPG6200.book 580 ページ ２０２１年６月３０日　水曜日　午前１１時６分

581
Maintenance

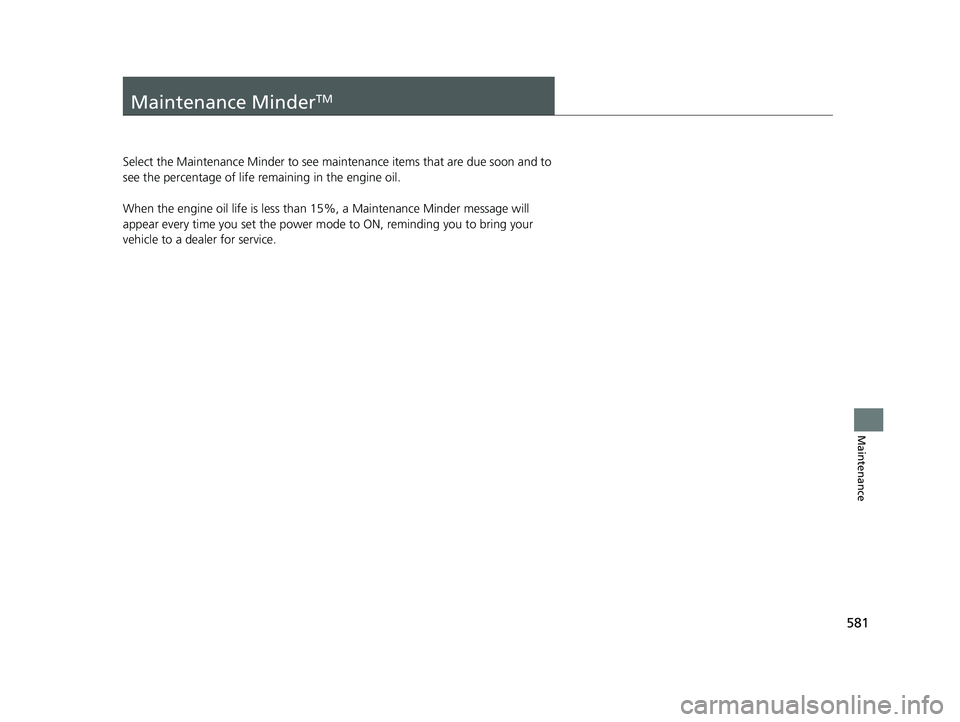

Maintenance MinderTM
Select the Maintenance Minder to see maintenance items that are due soon and to
see the percentage of life remaining in the engine oil.
When the engine oil life is less than 15%, a Maintenance Minder message will
appear every time you set the power mode to ON, reminding you to bring your
vehicle to a dealer for service.
22 CR-V HEV ELP-31TPG6200.book 581 ページ ２０２１年６月３０日　水曜日　午前１１時６分

582
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To Use Maintenance MinderTM
Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver information interface.
You can view them on the Maintenance Minder screen at any time.
1. Set the power mode to ON.
2. Press the button several times until is displayed.
3. Press ENTER to go to the Maintenance Minder sc reen. The engine oil life appears
on the driver information interface al ong with maintenance items due soon.
■Displaying the Maintenance Minder Information1Displaying the Maintena nce Minder Information
Based on the engine ope rating conditions, the
remaining engine oi l life is calculated and displayed
as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 584
Displayed Engine Oil
Life (%)Calculated Engine Oil Life (%)
100 100 to 91
9090 to 81
80 80 to 71
7070 to 61
60 60 to 51
5050 to 41
40 40 to 31
3030 to 21
20 20 to 16
1515 to 11
10 10 to 6
55 to 1
0 0
Sub Item
Engine Oil Life
Main Item
ENTER Button Button
22 CR-V HEV ELP-31TPG6200.book 582 ページ ２０２１年６月３０日　水曜日　午前１１時６分
