2022 HONDA CRV Owners Manual

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention on the driver information interface.
When the (display/information) button
is pressed, bars in the Driver Information
Interface light up in white to indicate the
degree of the driver's attention.
2 Switching the Display P. 128
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
ENTER
(Display/ Information) Button
Level
22 CR-V HEV ELP-31TPG6200.book 135 ページ ２０２１年６月３０日　水曜日　午前１１時６分

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

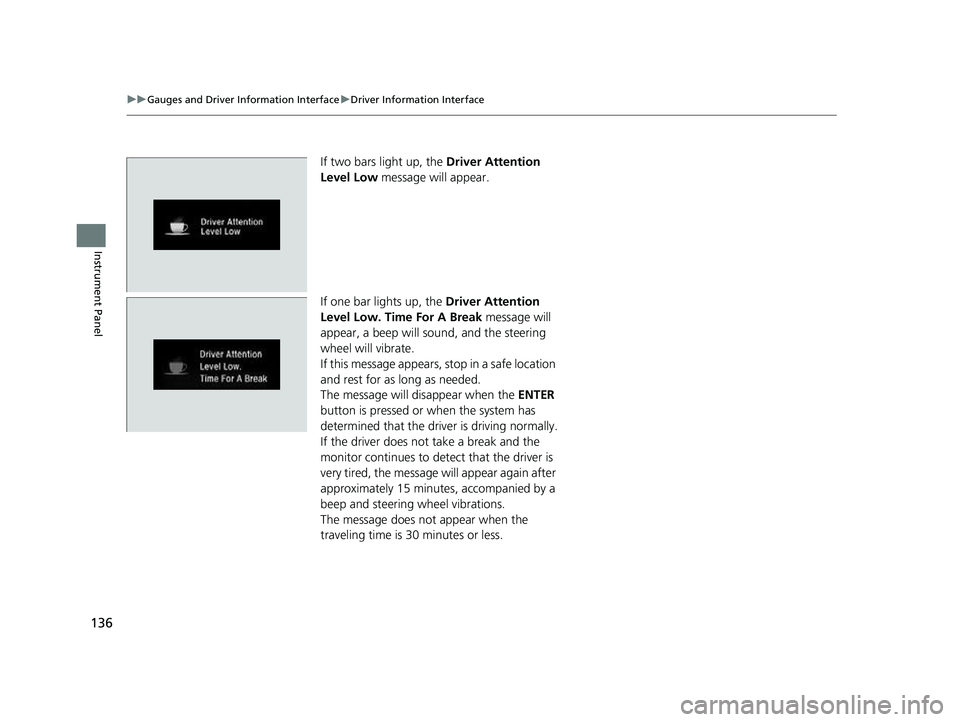

If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the ENTER
button is pressed or when the system has
determined that the driver is driving normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
22 CR-V HEV ELP-31TPG6200.book 136 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued137
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

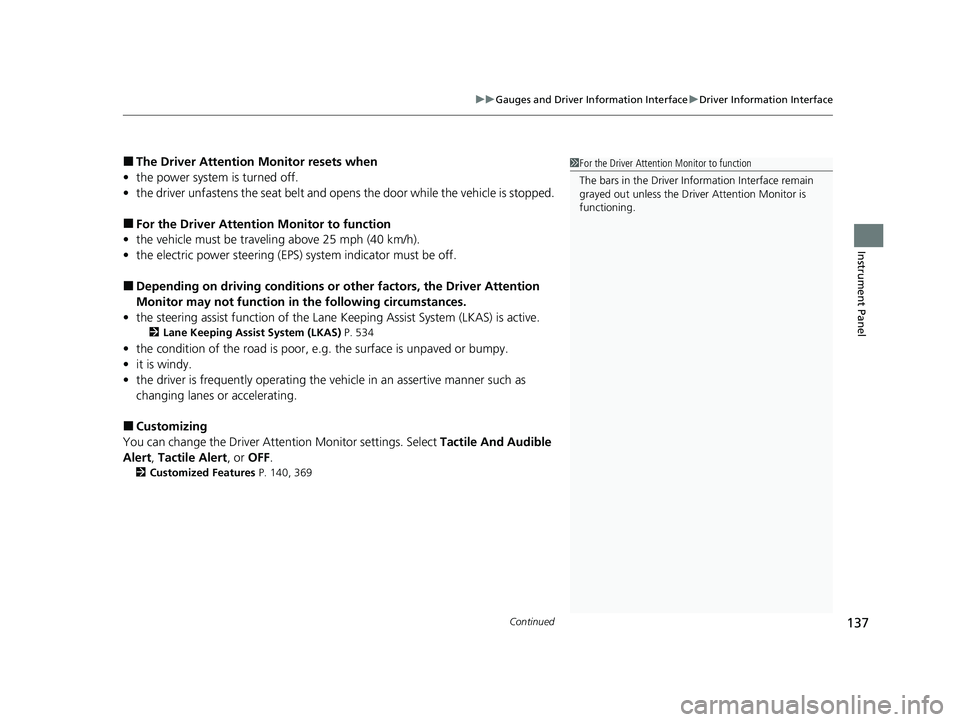

■The Driver Attention Monitor resets when
• the power system is turned off.
• the driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■For the Driver Attention Monitor to function
• the vehicle must be traveling above 25 mph (40 km/h).
• the electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances.
• the steering assist function of the Lane K eeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 534
•the condition of the road is poor, e.g. the surface is unpaved or bumpy.
• it is windy.
• the driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Attention Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 140, 369
1For the Driver Attention Monitor to function
The bars in the Driver Information Interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
22 CR-V HEV ELP-31TPG6200.book 137 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
138
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM P. 492
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature read ing by up to ±5°F if the temperature reading seems
incorrect.
■AWD Torque Distribution Monitor
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Customized Features P. 140, 369
22 CR-V HEV ELP-31TPG6200.book 138 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 336
Show the current audio information.
2Audio System Basic Operation P. 272
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 422
■Navigation*
■Audio*
■Phone*
1 Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 369
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 139 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
140
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Select the screen by pressing the button while the power mode is in ON,
and the vehicle is at a complete stop, and the shift position is in
(P. Select , then
press the ENTER button.
■Customized Features
Models with color audio system
1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 143
2 Example of customization settings P. 147
Put the transmission into
( P before you attempt to
change any customized setting.
34
ENTER Button
Press to set your
selection.
Button
Press to go to Vehicle
Settings. Button
Press to go to the next
display.4
Button
Press to go back to the
previous display.3
22 CR-V HEV ELP-31TPG6200.book 140 ページ ２０２１年６月３０日　水曜日　午前１１時６分

141
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTER
TPMS Calibration
Vehicle Settings
Lane Keeping Assist Suspend Beep
Forward Collision Warning Distance
Road Departure Mitigation Setting
Driver Attention Monitor
Driver Assist System SetupENTER
ACC Forward Vehicle Detect Beep
“Trip B” Reset Timing
Language Selection
“Trip A” Reset Timing
Adjust Alarm Volume
Speed/Distance Units
Reverse Alert Tone
Meter SetupENTER
Adjust Outside Temp. Display
3
4
3
4
3
4
3
4
3
4
3
4
ENTER
Fuel Efficiency Backlight
22 CR-V HEV ELP-31TPG6200.book 141 ページ ２０２１年６月３０日　水曜日　午前１１時６分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
22 CR-V HEV ELP-31TPG6200.book 142 ページ ２０２１年６月３０日　水曜日　午前１１時６分
