2021 TOYOTA AYGO Owners Manual

4157-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E
Wireless remote control/electronic key
battery

●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
Vehicles without a smart entry & start system
Lift the cover.
Insert the flathead screwdriver in
the slot and push down.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.
Remove the cover.
Insert the flathead screwdriver in
the bottom of key and push down.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery

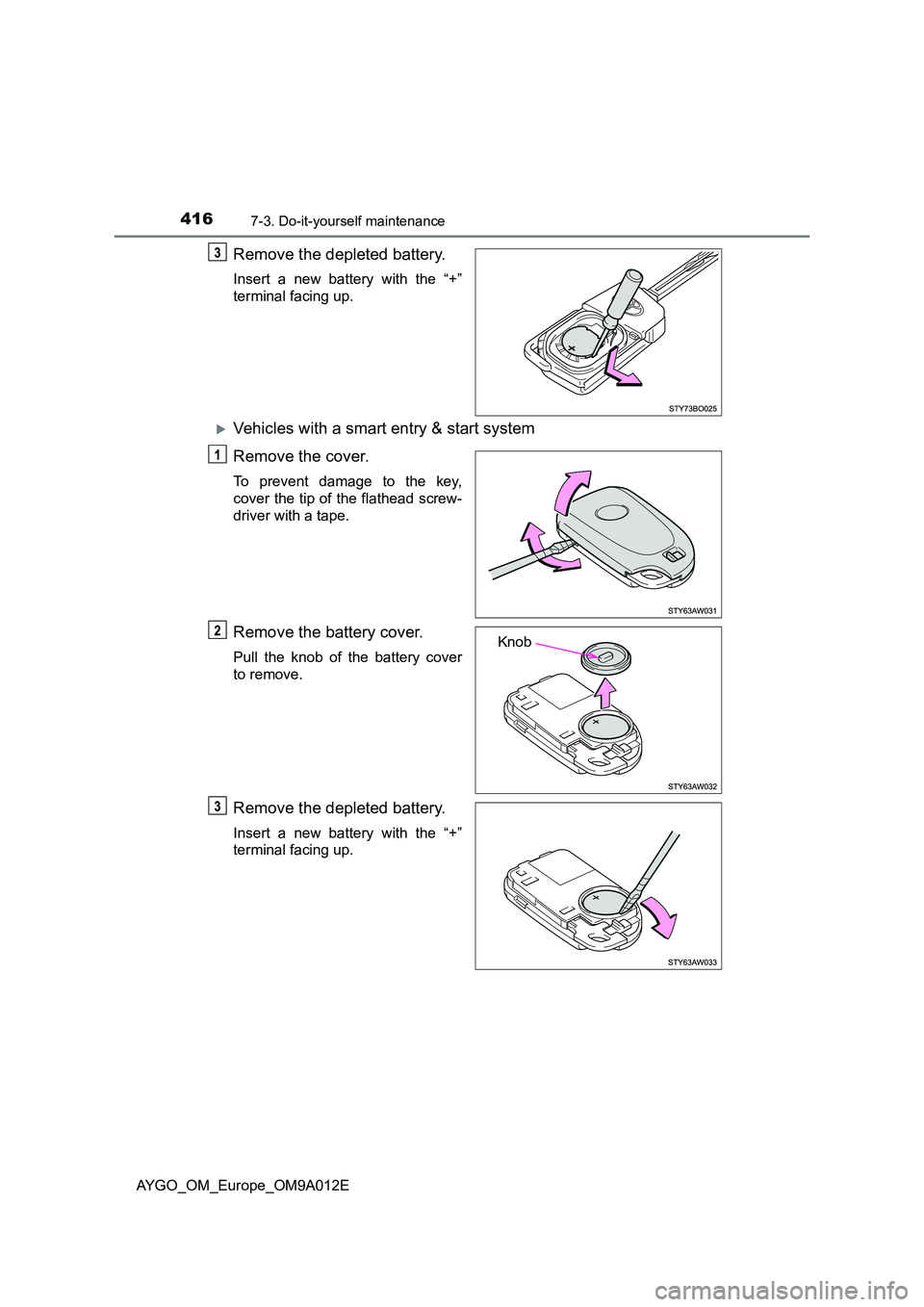

4167-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Vehicles with a smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a tape.
Remove the battery cover.
Pull the knob of the battery cover
to remove.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Knob

4177-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E
■Use a CR2016 (vehicles without a smart entry & start system), or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the electronic key battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

4187-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
Checking and replacing fuses
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (P. 420)
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the
cover off.
Driver’s side instrument panel
Remove the cover.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

4197-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B and C:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing.
Type D:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
1
2
Ty pe AType B
Ty pe CType D

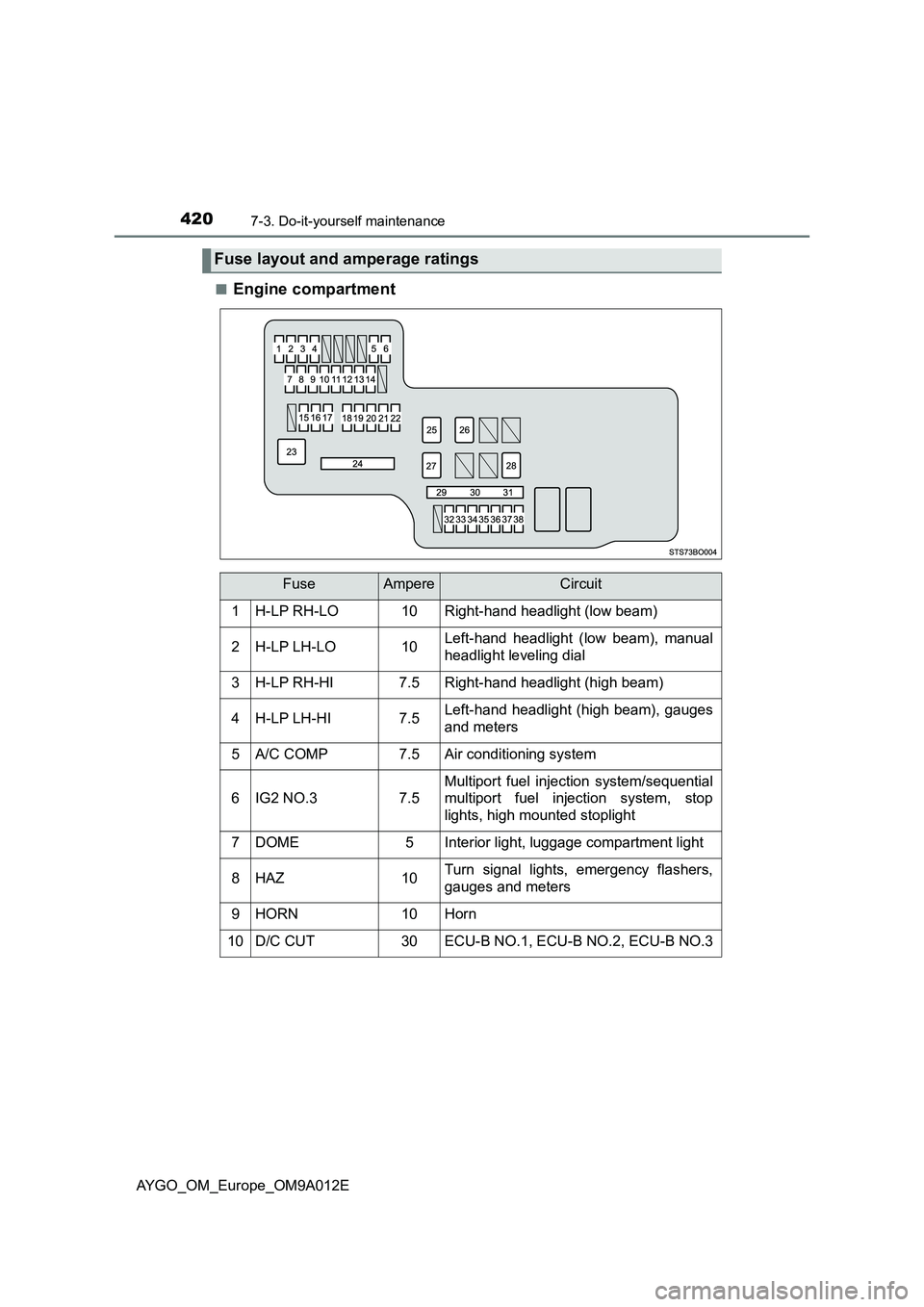

4207-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E■
Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1H-LP RH-LO10Right-hand headlight (low beam)
2H-LP LH-LO10Left-hand headlight (low beam), manual
headlight leveling dial
3H-LP RH-HI7.5Right-hand headlight (high beam)
4H-LP LH-HI7.5Left-hand headlight (high beam), gauges
and meters
5A/C COMP7.5Air conditioning system
6IG2 NO.37.5
Multiport fuel injection system/sequential
multiport fuel injection system, stop
lights, high mounted stoplight
7DOME5Interior light, luggage compartment light
8HAZ10Turn signal lights, emergency flashers,
gauges and meters
9HORN10Horn
10D/C CUT30ECU-B NO.1, ECU-B NO.2, ECU-B NO.3

4217-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E
11ECU-B NO.4*17.5Multi-mode manual transmission
12AM2 NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
13AM2 NO.37.5Smart entry & start system
14ICS*27.5Charging system
15ST30Starting system
16STRG LOCK7.5Steering lock system
17H-LP-MAIN25H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
18WIPER-S*27.5Multiport fuel injection system/sequential
multiport fuel injection system
19STA7.5
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, multi-mode manual transmis-
sion, Stop & Start system
20ECU-B NO.315Audio system, smart entry & start system
21ECU-B NO.17.5Gauges and meters
22ECU-B NO.27.5Vehicle stability control system
23J/B60Instrument fuse box
24ALT125
DEF, S/HTR F/R, S/HTR F/L, CANVAS
TOP, ABS NO.1, ABS NO.2, RDI NO.1,
FOG FR, DRL
25AMT*150Multi-mode manual transmission
BBC*240Stop & Start system
FuseAmpereCircuit

4227-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
*1: Vehicles with a multi-mode manual transmission
*2: Vehicles with a Stop & Start system
*3: Replace the fuse with one of the same ampere rating as the original
26EPS50Electric power steering system
27RDI NO.130*3
Electric cooling fan40*3
28ABS NO.150Anti-lock brake system, vehicle stability
control system
29SPARE10Spare fuse
30SPARE20Spare fuse
31SPARE30Spare fuse
32DEF20Rear window defogger, outside rear view
mirror defoggers
33ABS NO.230Anti-lock brake system, vehicle stability
control system
34FOG FR7.5Front fog lights, gauges and meters
35DRL7.5Daytime running lights
36S/HTR F/R15Seat heaters (right side)
37CANVAS TOP20Canvas top
38S/HTR F/L15Seat heaters (left side)
FuseAmpereCircuit
