3596-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM9A012E■
Change the airflow mode
To change the airflow, press
.
Air outlets are adjusted each
time the button is pressed.
Air flows to the upper body,
feet and the windshield
Air flows to the upper body
Air flows to the windshield
Air flows to the feet and the
windshield
Air flows to the feet
Air flows to the upper body and feet
Pressing changes automatic modes in the following order.
“AUTO” mode “FAST” mode
*1  “SOFT” mode*2
*1: Operates with the fan speed used effectively
*2: Operates with the fan speed controlled quietly
Adjust the temperature setting.
To stop the operation, continually press until all the lit blades
turn off.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
5
Using by automatic mode
6

3606-1. Using the air conditioning system and defogger
AYGO_OM_Europe_OM9A012E■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode ( not displayed)
and recirculated air mode ( displayed) each time the button is
pressed.
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set the outside/recirculated air mode button to outside air mode if the
recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
If the dehumidification function is not operating, press to operate
the dehumidification function.
■
Defogging the rear window and outside rear view mirrors
Vehicles without outside rear view mirror defoggers
Defogger is used to defog the rear window.
Vehicles with outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after approximately 15 minutes.
Vehicles with outside rear view mirror defoggers: Turning the rear win-
dow defogger on will turn the outside rear view mirror defoggers on.
Other functions

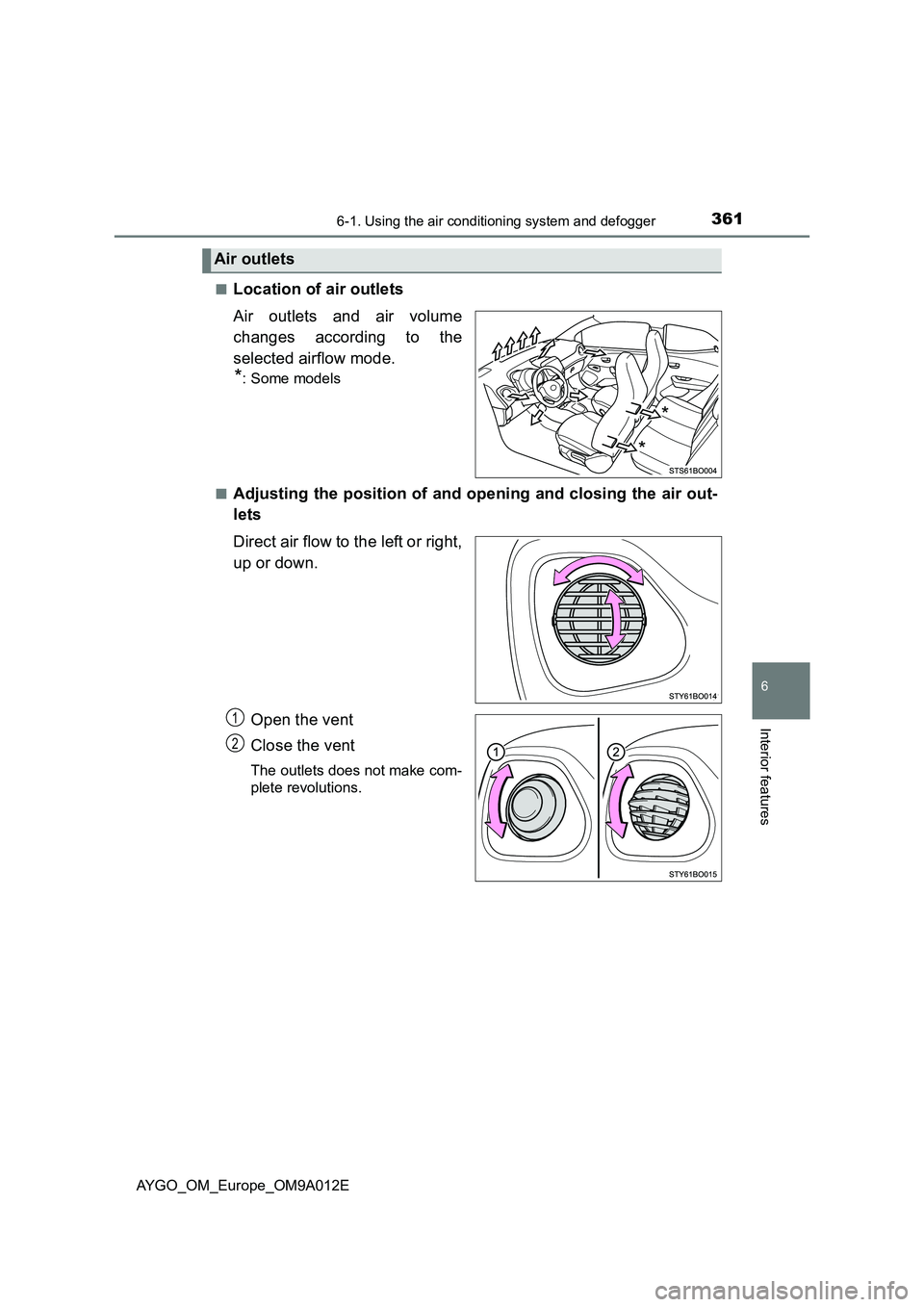

3616-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM9A012E■
Location of air outlets
Air outlets and air volume
changes according to the
selected airflow mode.
*: Some models
■
Adjusting the position of and opening and closing the air out-
lets
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
The outlets does not make com-
plete revolutions.
Air outlets
*
*
1
2

3626-1. Using the air conditioning system and defogger
AYGO_OM_Europe_OM9A012E
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.
■Outside/recirculated air mode
●Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
●Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■When the outside temperature falls to nearly 0C (32F)
The dehumidification function may not operate even when is selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.

3636-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM9A012E
■ An odor comes from the air conditioning system due to the Stop & Start
system operation (vehicles with a Stop & Start system)
When the engine is stopped due to the Stop & Start system, an odor caused
by moisture may be detected. This does not indicate a malfunction.
■ Air conditioning filter
 P. 414
WARNING
■To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns (vehicles with outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers to
defog.

3646-1. Using the air conditioning system and defogger
AYGO_OM_Europe_OM9A012E
Seat heaters
Turns seat heater on
The indicator light comes on.
■The seat heaters can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■When not in use
Turn the seat heater off by pressing the switch. The indicator light turns off.
: If equipped

3656-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM9A012E
WARNING
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■ To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

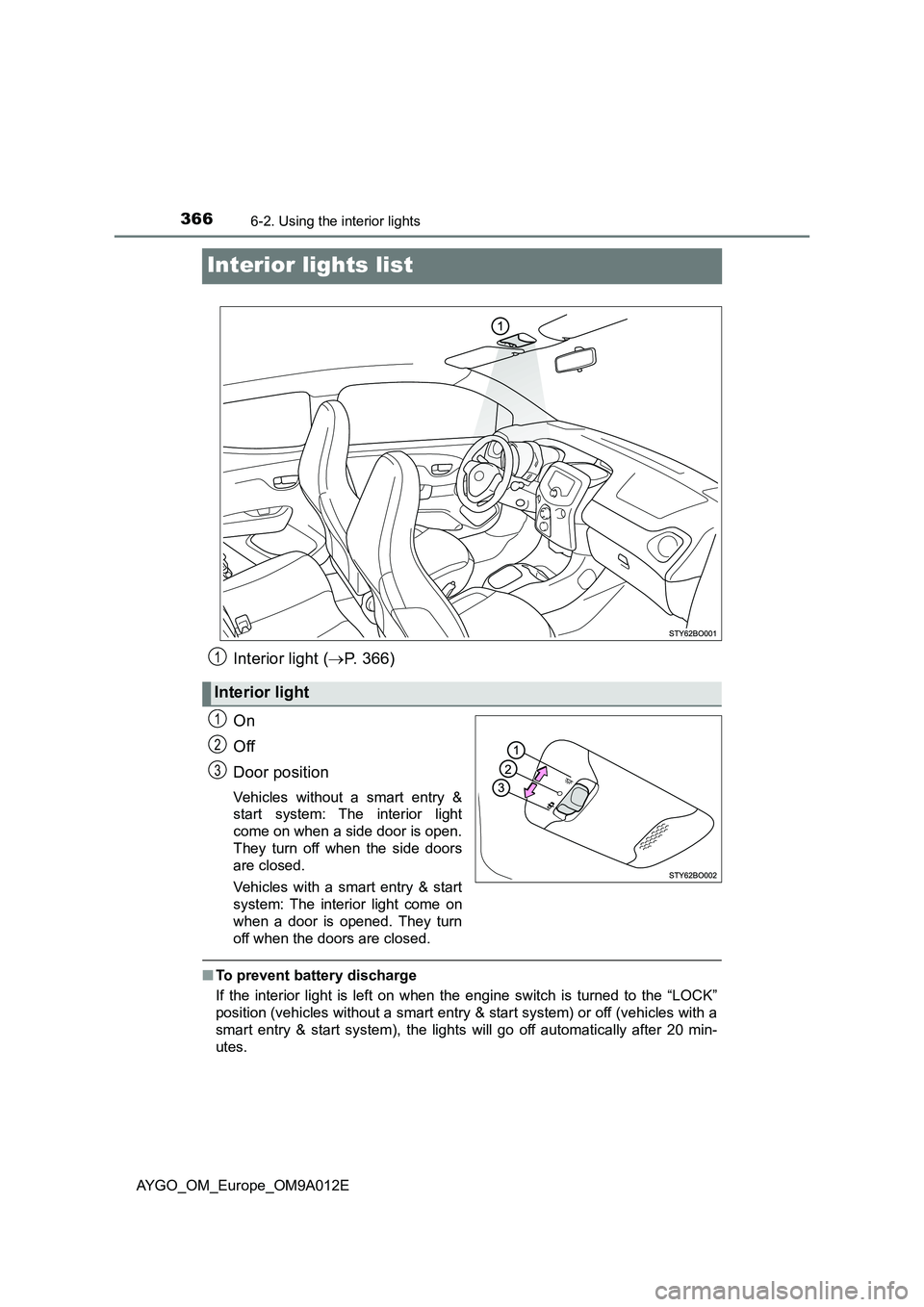

3666-2. Using the interior lights
AYGO_OM_Europe_OM9A012E
Interior lights list
Interior light (P. 366)
On
Off
Door position
Vehicles without a smart entry &
start system: The interior light
come on when a side door is open.
They turn off when the side doors
are closed.
Vehicles with a smart entry & start
system: The interior light come on
when a door is opened. They turn
off when the doors are closed.
■To prevent battery discharge
If the interior light is left on when the engine switch is turned to the “LOCK”
position (vehicles without a smart entry & start system) or off (vehicles with a
smart entry & start system), the lights will go off automatically after 20 min-
utes.
Interior light
1
1
2
3
