2021 TOYOTA AYGO Owners Manual

5199-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E
14-inch tires (type B)*
15-inch tires
Compact spare tires (if equipped)
*: The tire inflation pressure is indi-
cated on the left-side center pillar.
Tire size165/65R14 79T
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear: 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size14  4 1/2J
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size165/60R15 77H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front: Vehicles without a Stop & Start system
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Vehicles with a Stop & Start system
240 kPa (2.4 kgf/cm
2 or bar, 35 psi)
Rear: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel size15  4 1/2J
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT125/70R15 95M, T125/70D15 95M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size15  4B
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)

5209-1. Specifications
AYGO_OM_Europe_OM9A012E
Light bulbs
Light bulbsWTy p e
Exterior
Headlights55A
Front fog lights*19B
Front turn signal lights21C
Stop lights21C
Rear turn signal lights21D
Back-up light16E
Rear fog light21E
License plate lights5E
High mounted stoplight5E
InteriorInterior light5E
Luggage compartment light5F
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs (clear)
*: If equipped

5219-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E

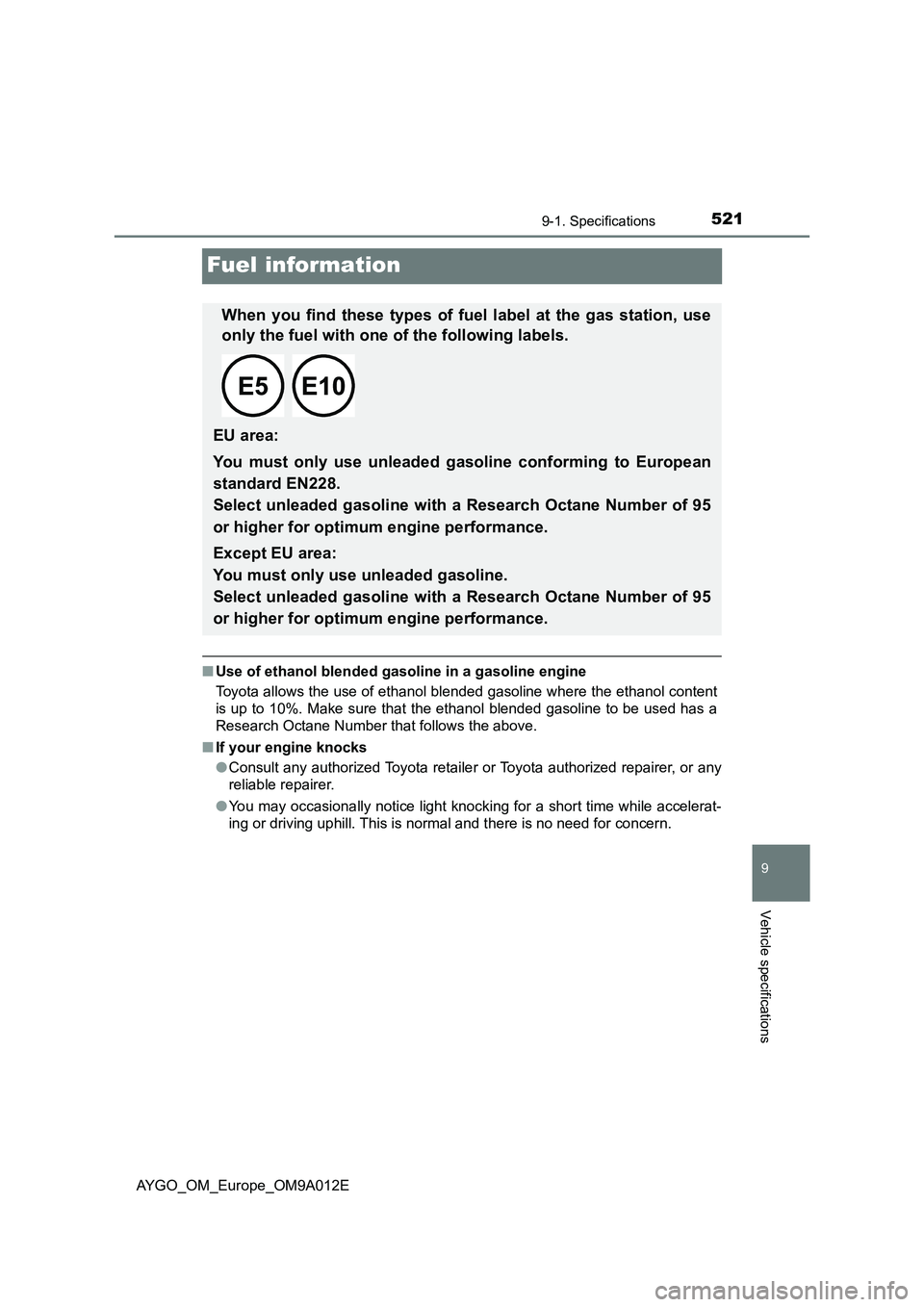

Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

5229-1. Specifications
AYGO_OM_Europe_OM9A012E

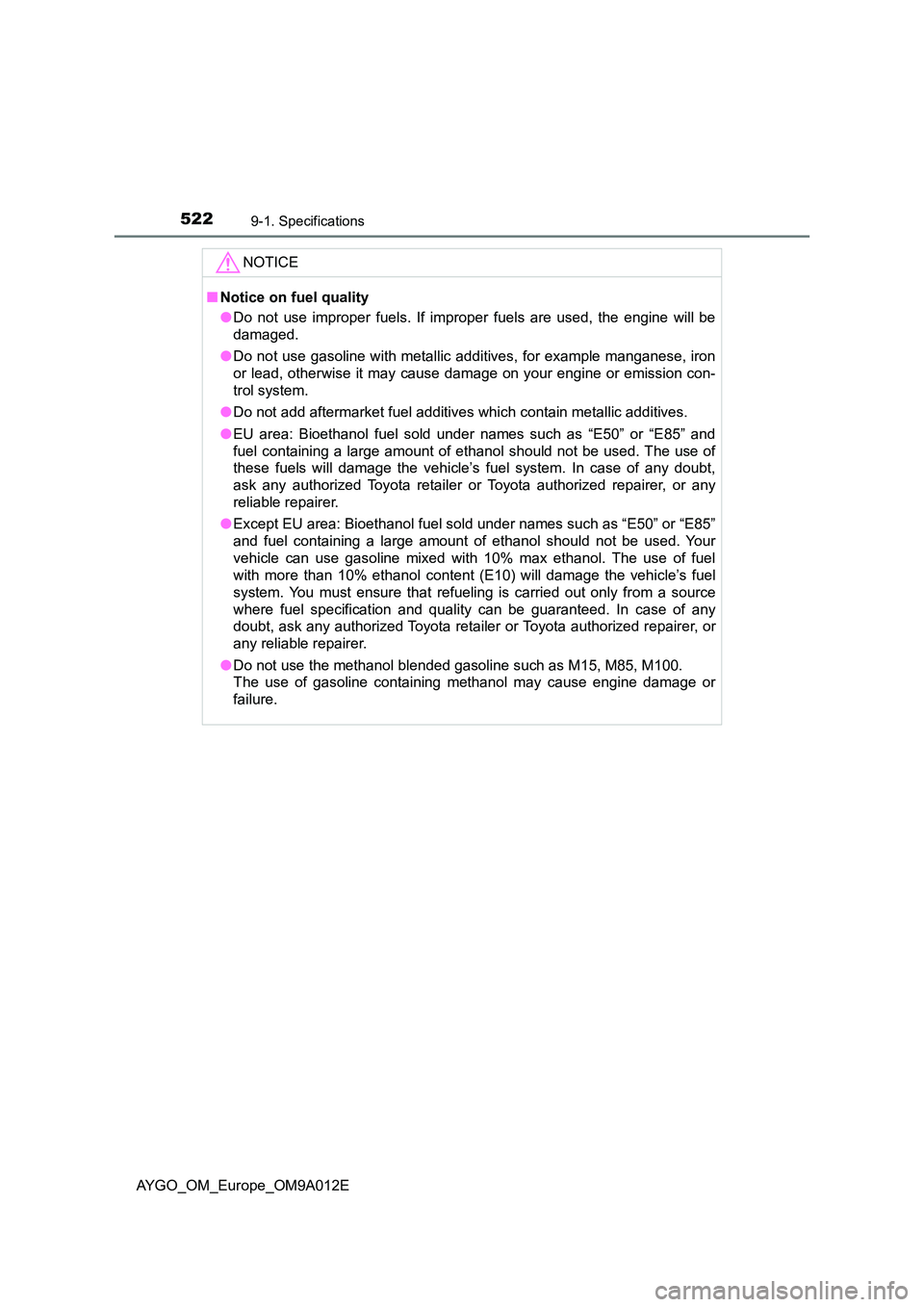

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

5239-2. Customization
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E
Customizable features
*: If equipped
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
ItemFunctionDefault
settingCustomized
setting
Smart entry & start
system
* (P. 143)Smart entry & start systemOnOff
Automatic light
control system
*
(P. 231)Light sensor sensitivityStandard-2 to 2

5249-3. Items to initialize
AYGO_OM_Europe_OM9A012E

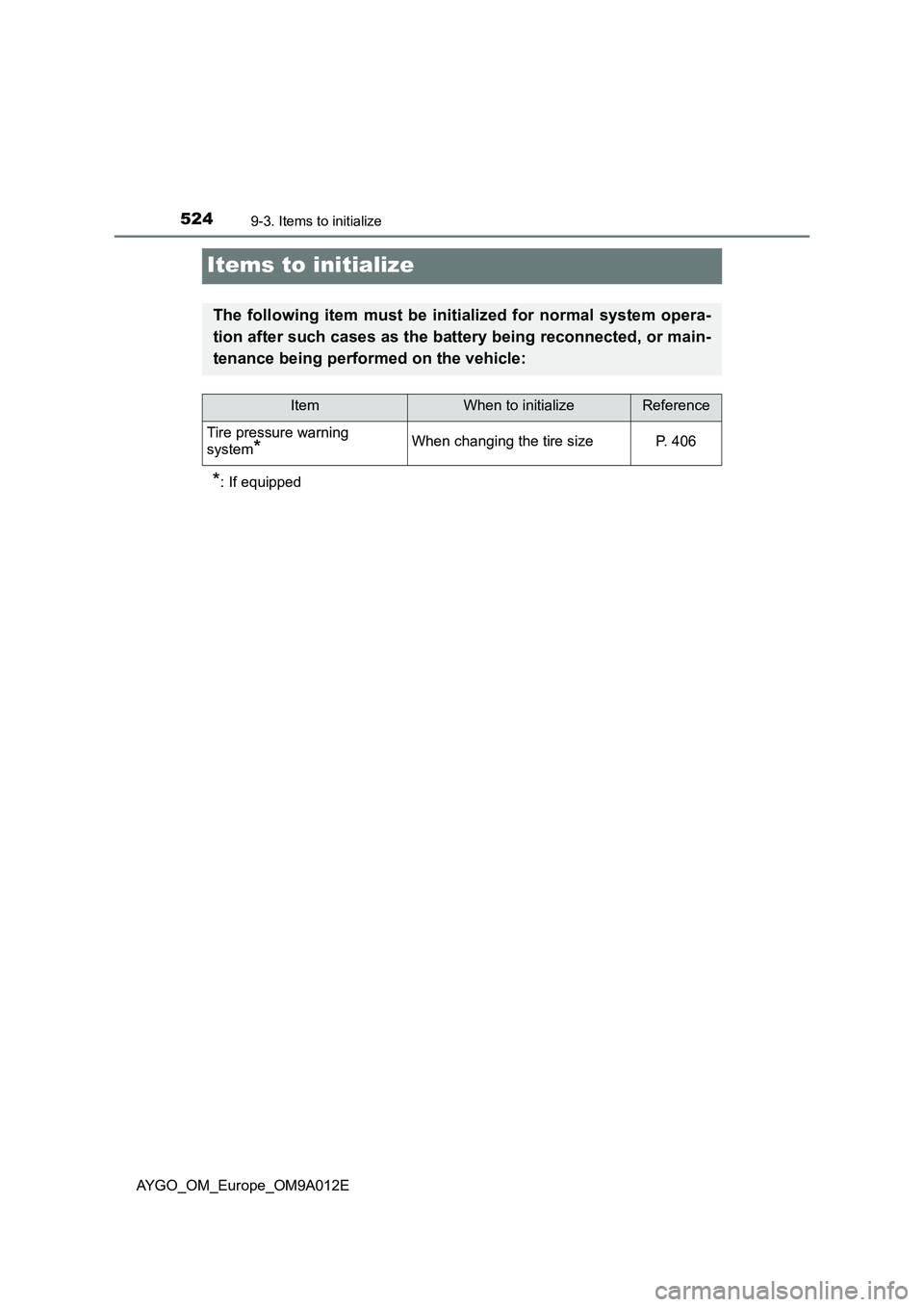

Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning
system
*When changing the tire sizeP. 406

525
Index
AYGO_OM_Europe_OM9A012EWhat to do if...
(Troubleshooting) ..................... 526
Alphabetical index ...................... 530
For vehicles with a multimedia system, refer to the
“Multimedia owner’s manual” for information regarding the
equipment listed below.
• Audio system
• Rear view monitor system

526What to do if... (Troubleshooting)
AYGO_OM_Europe_OM9A012E
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. (P. 1 1 4 )
●Vehicles with a smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. (P. 131)
●Is the key battery weak or depleted? (P. 415)
●Vehicles with a smart entry & start system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 219)
●Vehicles with a smart entry & start system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 136, 146)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 135)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened (5-door models)
