2021 TOYOTA AYGO Owners Manual

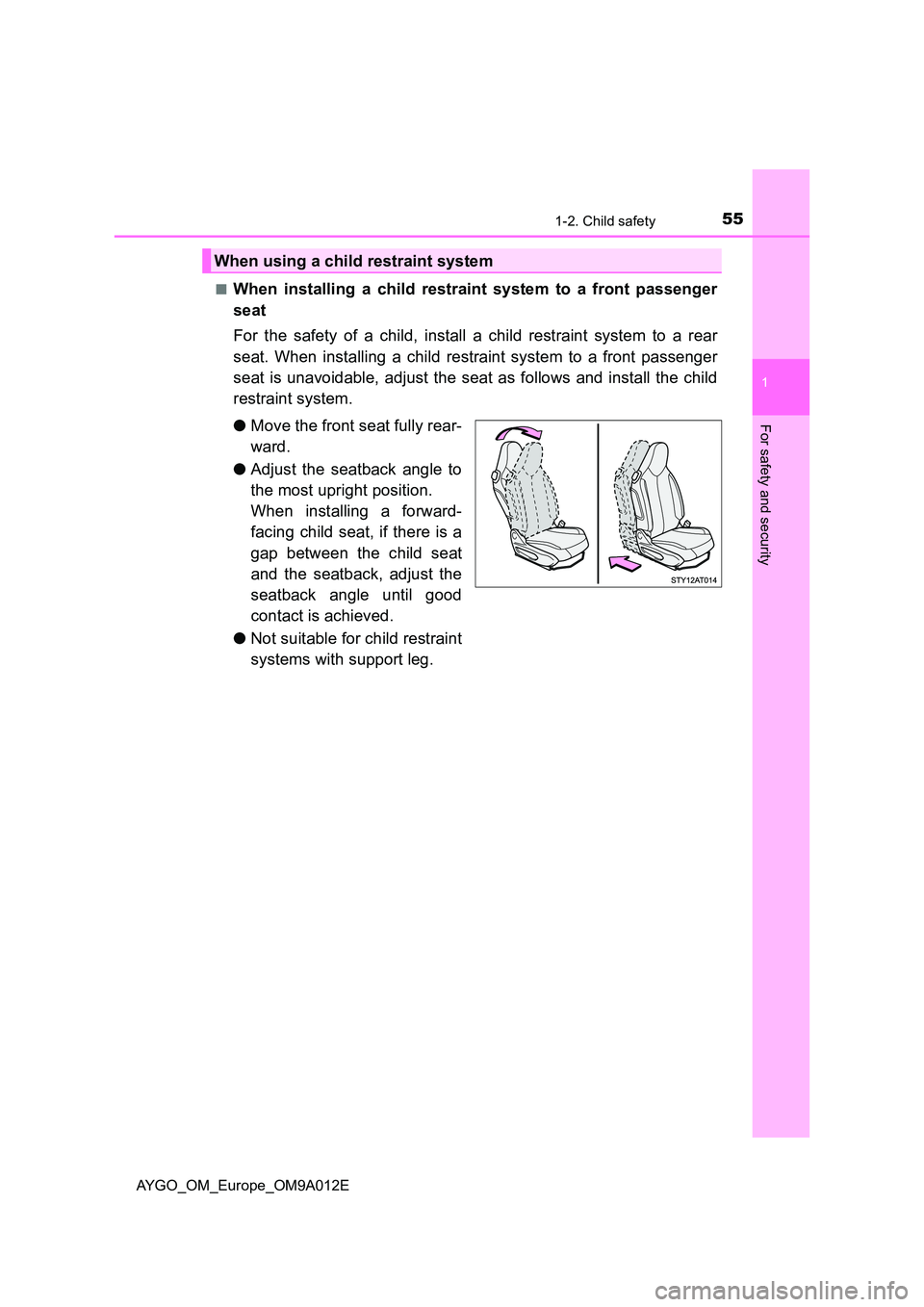

551-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
● Move the front seat fully rear-
ward.
● Adjust the seatback angle to
the most upright position.
When installing a forward-
facing child seat, if there is a
gap between the child seat
and the seatback, adjust the
seatback angle until good
contact is achieved.
● Not suitable for child restraint
systems with support leg.
When using a child restraint system

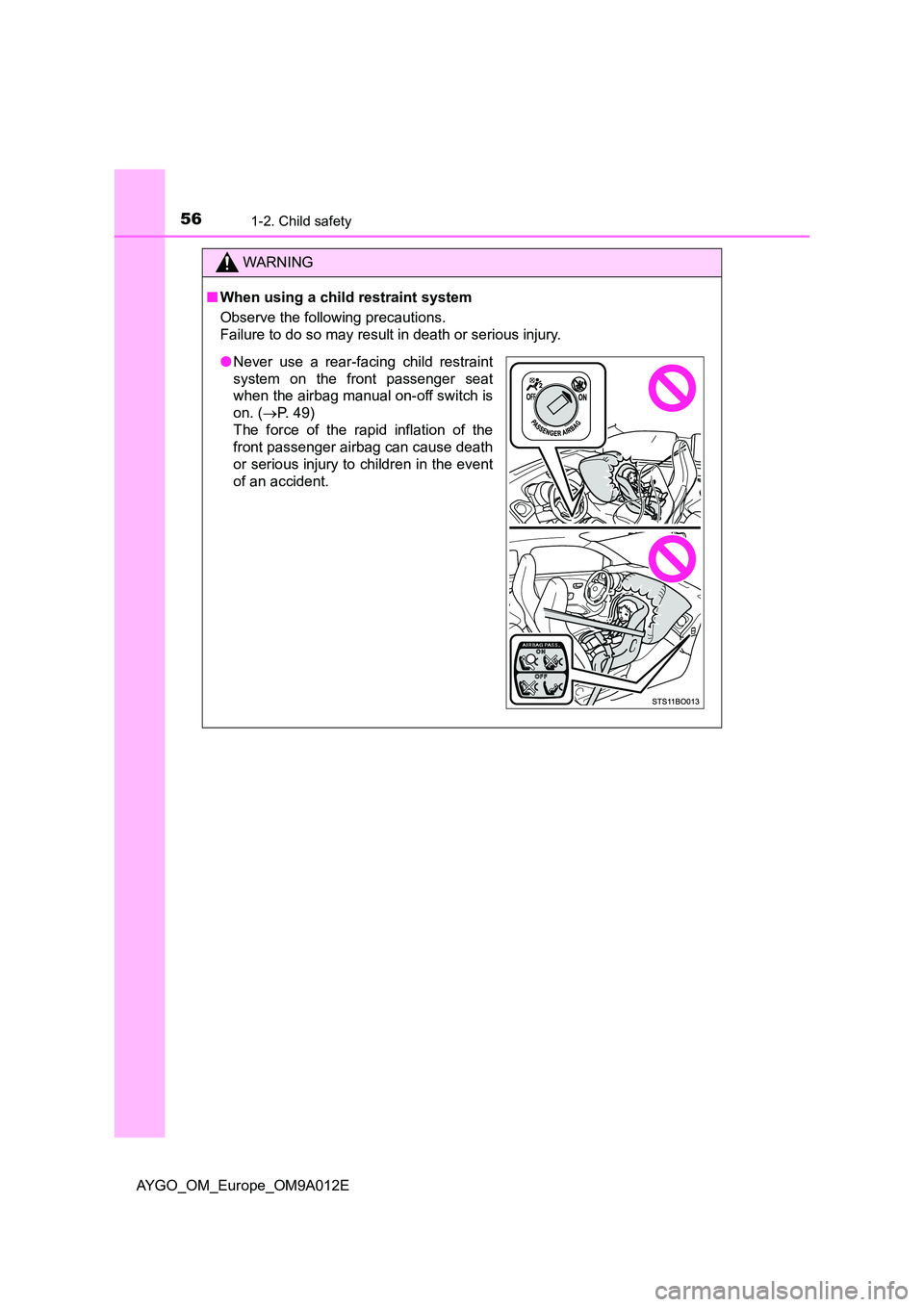

561-2. Child safety
AYGO_OM_Europe_OM9A012E
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 49)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

571-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
WARNING
■When using a child restraint system
●There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).

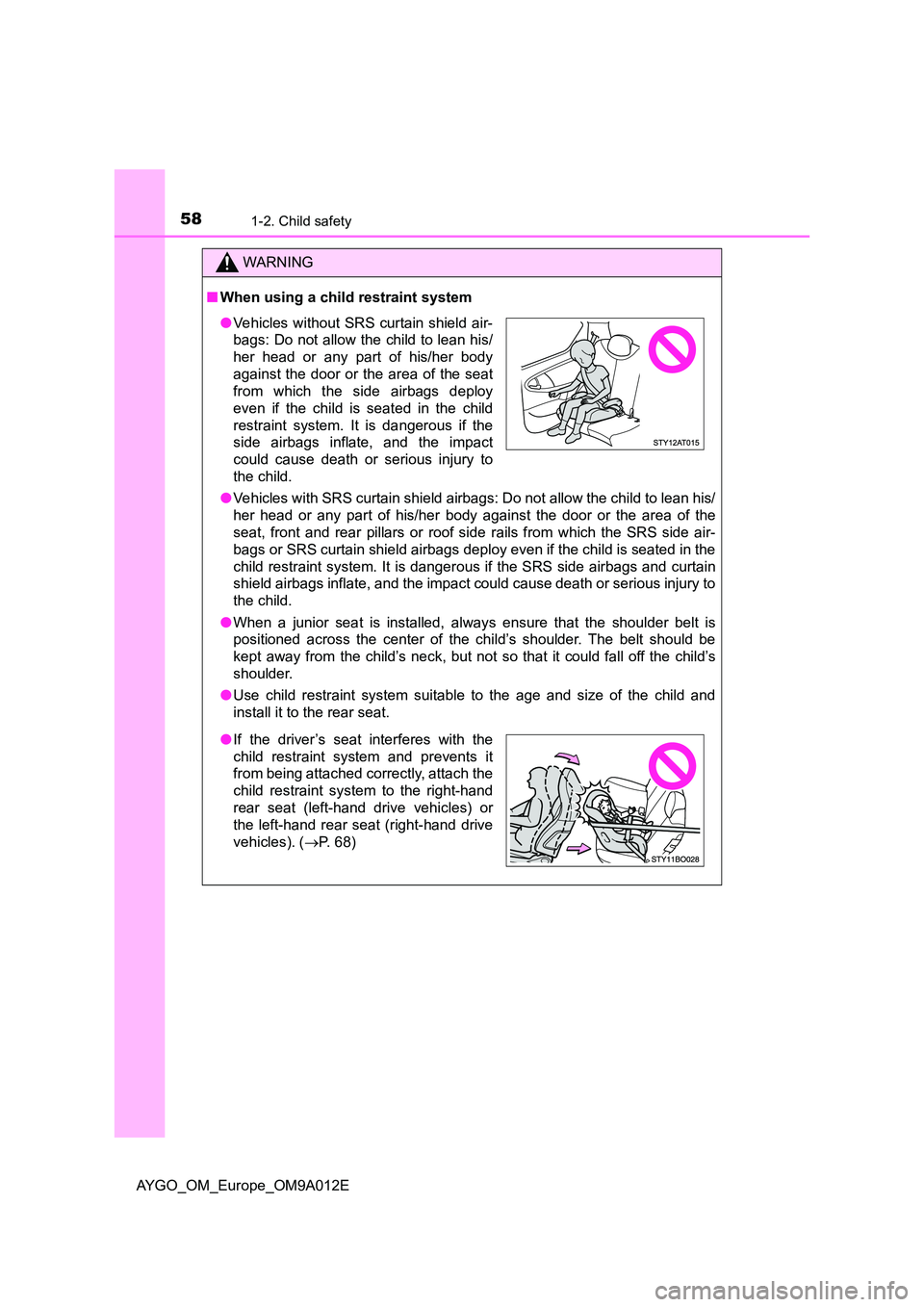

581-2. Child safety
AYGO_OM_Europe_OM9A012E
WARNING
■When using a child restraint system
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint system. It is dangerous if the SRS side airbags and curtain
shield airbags inflate, and the impact could cause death or serious injury to
the child.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● Vehicles without SRS curtain shield air-
bags: Do not allow the child to lean his/
her head or any part of his/her body
against the door or the area of the seat
from which the side airbags deploy
even if the child is seated in the child
restraint system. It is dangerous if the
side airbags inflate, and the impact
could cause death or serious injury to
the child.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( P. 6 8 )

591-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint systems
( P. 61) displays the type of child restraint systems that can be
used and possible seating positions for installation using symbols.
Also, the recommended child restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 6 5 )
Check the selected child restraint system together with the follow-
ing [Before confirming the compatibility of each seating position
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys-
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the child
who is applicable for an
UN(ECE) R44 approval mark
is indicated.
UN(ECE) R129 approval
mark*3
The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval
mark is indicated.
Child restraint system compatibility for each seating position
1
2

601-2. Child safety
AYGO_OM_Europe_OM9A012E
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suitable.
Also, if there are any uncertainties, check the user's guide
included with the child restraint system or contact the retailer of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”

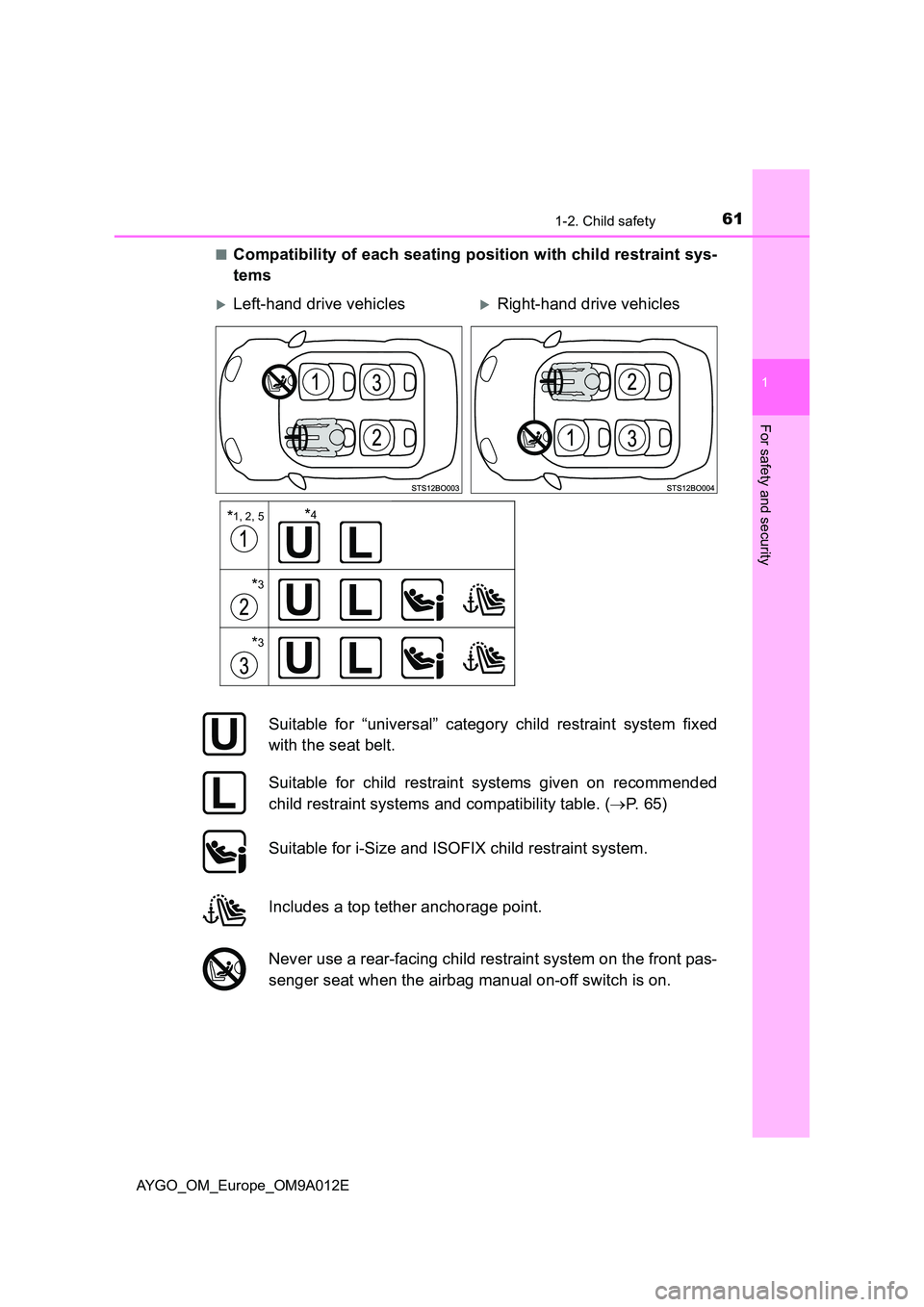

611-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
■Compatibility of each seating position with child restraint sys-
tems
Left-hand drive vehiclesRight-hand drive vehicles
*1, 2, 5
*3
*3
Suitable for “universal” category child restraint system fixed
with the seat belt.
Suitable for child restraint systems given on recommended
child restraint systems and compatibility table. ( P. 65)
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Never use a rear-facing child restraint system on the front pas-
senger seat when the airbag manual on-off switch is on.
*4

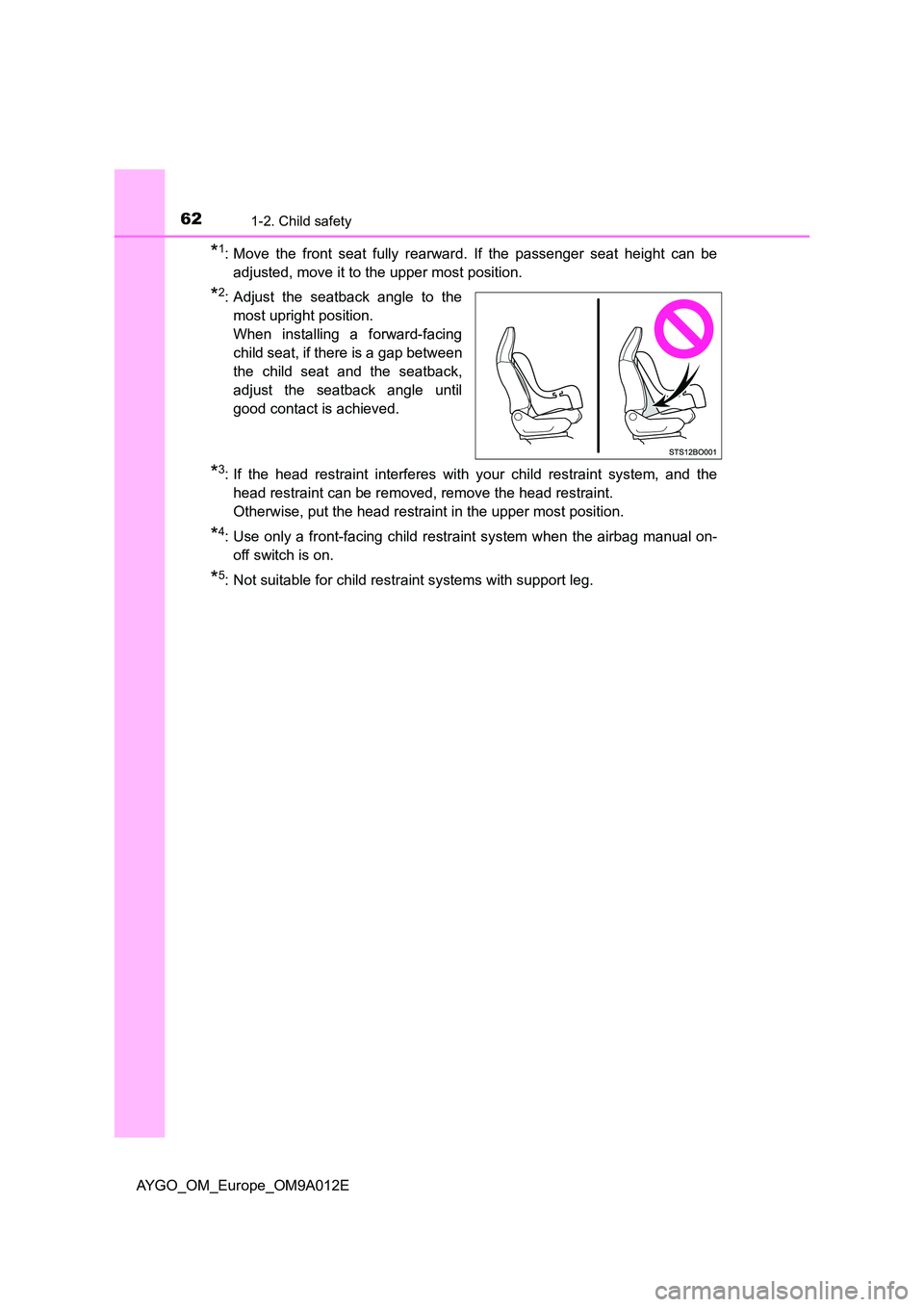

621-2. Child safety
AYGO_OM_Europe_OM9A012E
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when the airbag manual on-
off switch is on.
*5: Not suitable for child restraint systems with support leg.
