4237-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E■
Driver ’s side instrument panel
FuseAmpereCircuit
1IG1 NO.25
Back-up light, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, audio system, vehicle stability
control system
2WASHER15Windshield washer, rear window washer
3ECU-IG NO.15
Main body ECU, gauges and meters, air
conditioning system, rear window defog-
ger, outside rear view mirror defoggers,
seat heaters, canvas top, audio system,
PCS system
4ECU-IG NO.25Electric power steering system, Stop &
Start system
5WIPER RR15Rear window wiper
6IG1 NO.15Electric cooling fan, anti-lock brake sys-
tem, vehicle stability control system
7WIPER25Windshield wiper
8MIR HTR10Outside rear view mirror defoggers
9P/OUTLET15Power outlet
10ECU-ACC7.5Outside rear view mirrors, audio system,
Stop & Start system, gauges and meters

4247-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
11IG2 NO.25
Steering lock system, multiport fuel injec-
tion system/sequential multiport fuel
injection system, multi-mode manual
transmission
12A/BAG7.5SRS airbag system
13METER5Gauges and meters, Stop & Start system
14IG2 NO.115Multiport fuel injection system/sequential
multiport fuel injection system, stop lights
15EFI NO.17.5
Multiport fuel injection system/sequential
multiport fuel injection system, Stop &
Start system
16OBD7.5On-board diagnosis system
17STOP10
Stop lights, high mounted stoplight, multi-
port fuel injection system/sequential mul-
tiport fuel injection system, anti-lock
brake system, vehicle stability control
system, multi-mode manual transmis-
sion, smart entry & start system
18TA I L10
Position lights, license plate lights, rear
fog light, front fog lights, tail lights, switch
illumination, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, gauges and meters, audio sys-
tem
19HTR40Air conditioning system
20AM140HTR, OBD, A/C, TAIL, FOG RR, STOP,
P/W, DOOR F/L, DOOR F/R
21AM2 NO.130EFI NO.2, EFI-MAIN, D/L
22EFI NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
23EFI-MAIN20
EFI NO.1, multiport fuel injection system/
sequential multiport fuel injection system,
fuel pump
24D/L25Main body ECU, door lock system
25P/W30Power windows
FuseAmpereCircuit

4257-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles

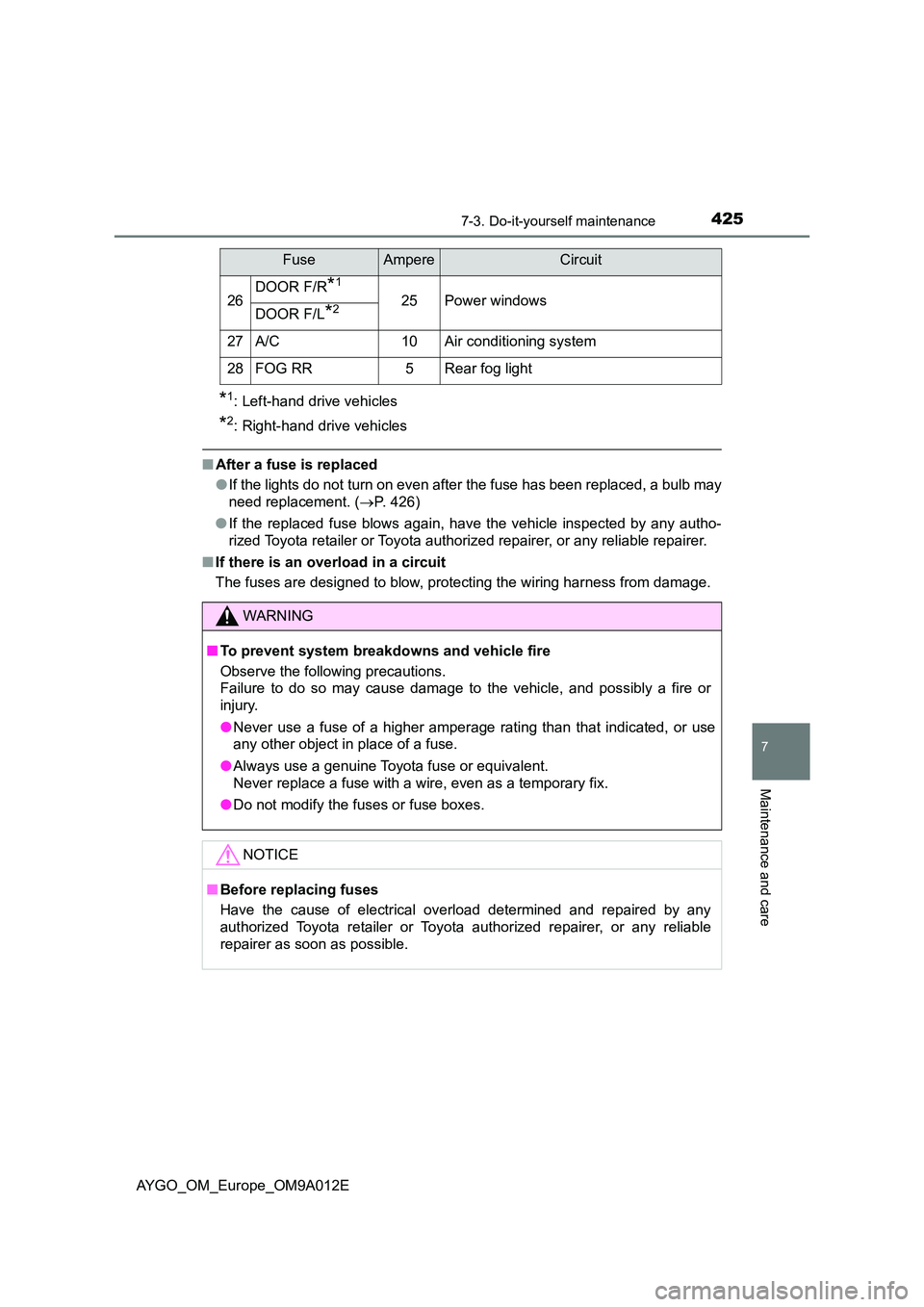

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 426)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
26DOOR F/R*1
25Power windowsDOOR F/L*2
27A/C10Air conditioning system
28FOG RR5Rear fog light
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
FuseAmpereCircuit

4267-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 520)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Headlights
Front turn signal lightsFront fog lights (if equipped)1
2
3

4277-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E■

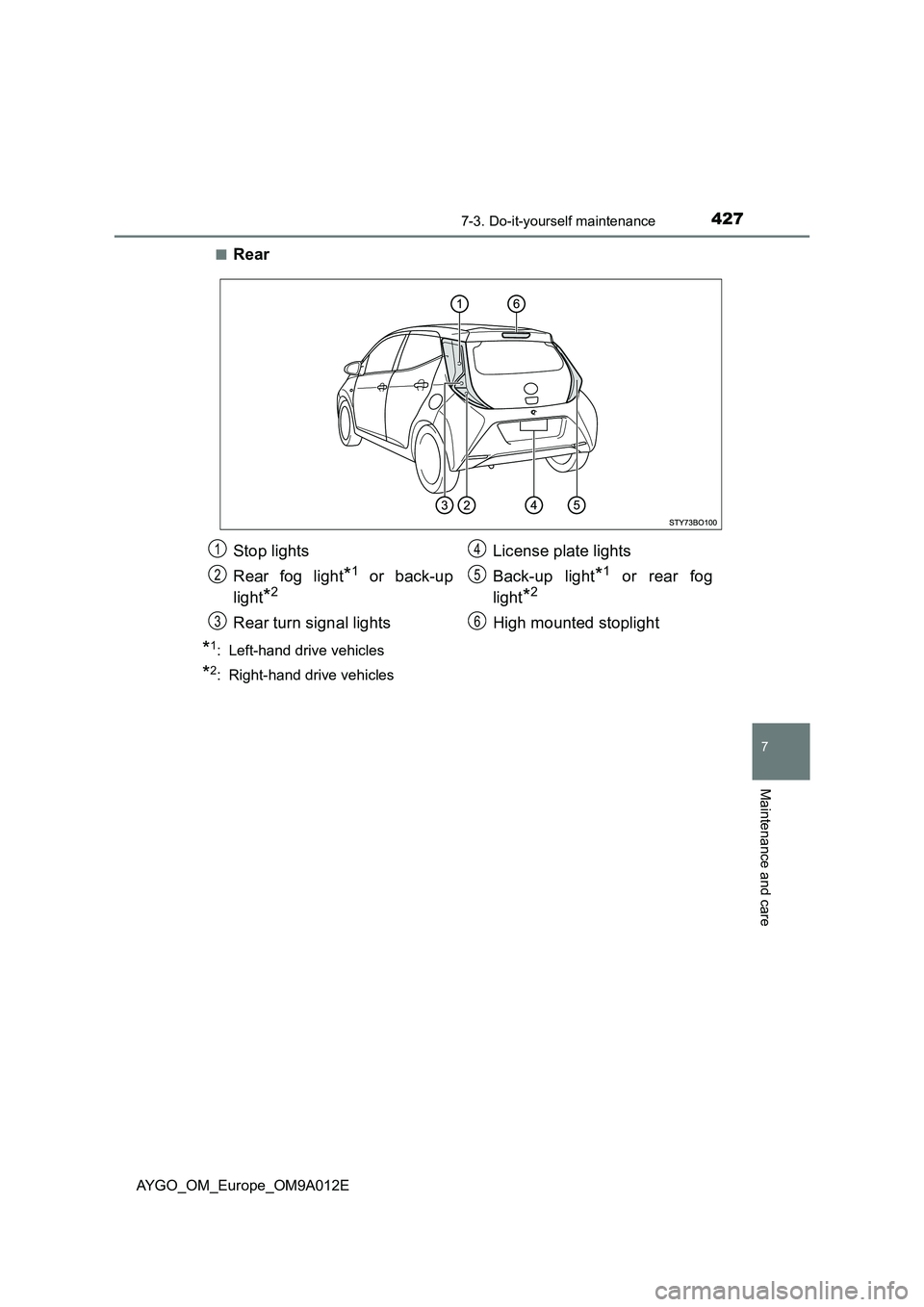

Rear
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Stop lights
Rear fog light
*1 or back-up
light
*2
Rear turn signal lightsLicense plate lights
Back-up light
*1 or rear fog
light
*2
High mounted stoplight
1
2
3
4
5
6

4287-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E■
Headlights
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs

4297-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E■

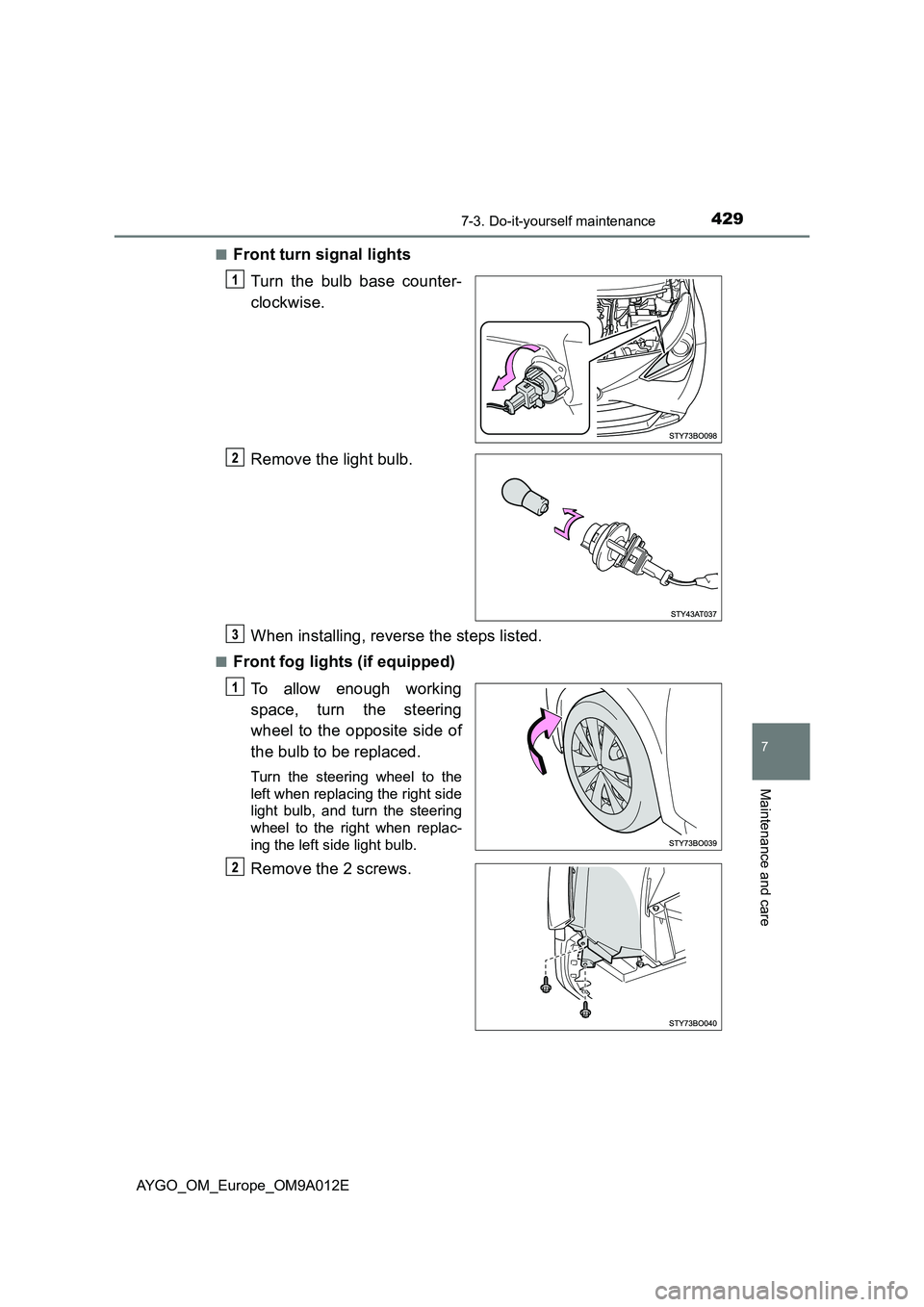

Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the 2 screws.

4307-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
Remove the fender liner clip
and open the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
