2021 TOYOTA AYGO steering wheel adjustment

189
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
AYGO_OM_Europe_OM9A012E

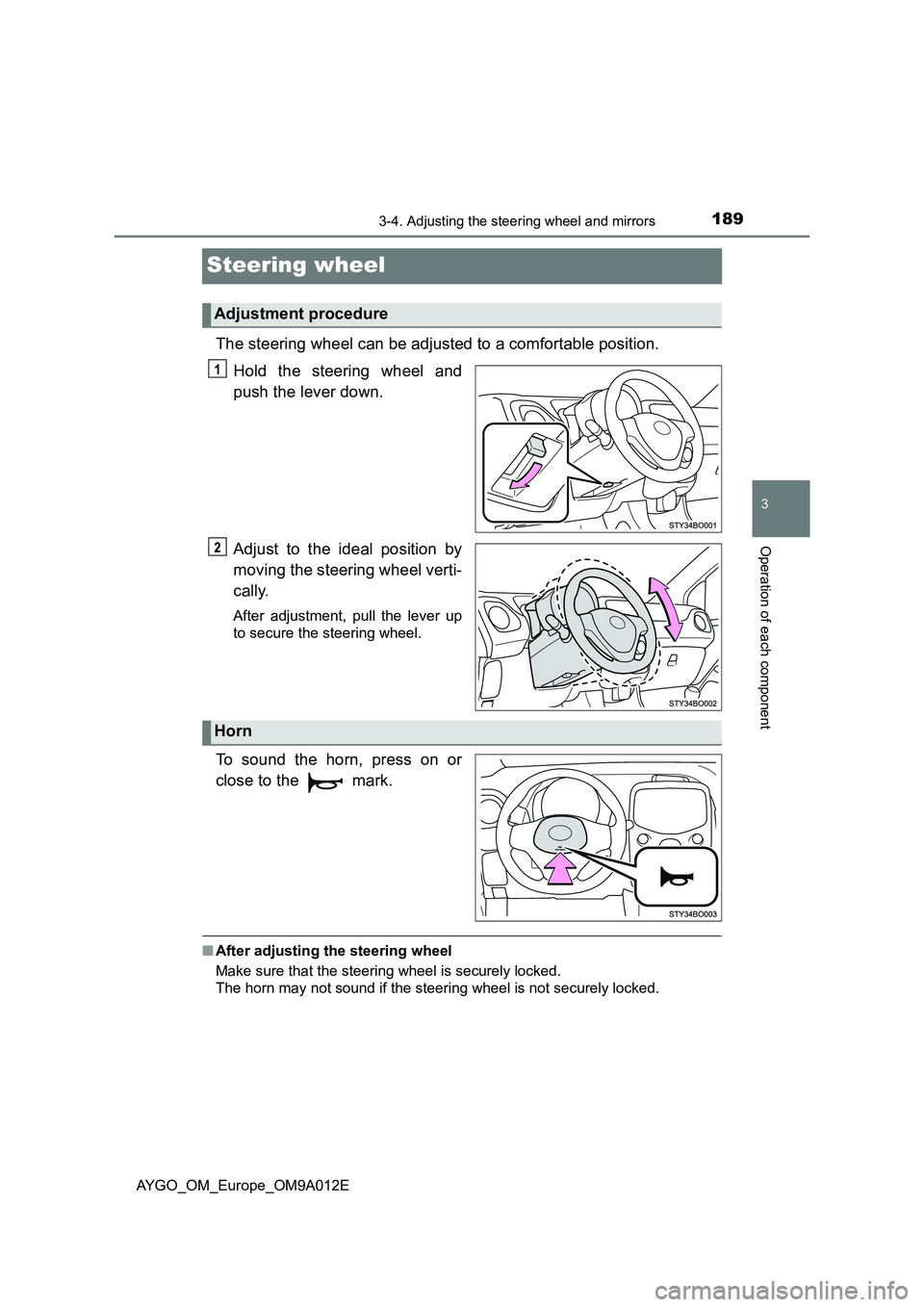

Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel verti-
cally.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
Horn

1923-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM9A012E
Outside rear view mirrors
Manual-adjustable type
Adjust the mirror up, down, in or
out using the lever.
Power-adjustable type
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Adjustment procedure
1
2
1
2
3
4

4568-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E
■ If the tire pressure warning light frequently comes on after blinking for
1 minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on (vehicles with the tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with the tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with the tire pressure warning system)
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

539Alphabetical index
AYGO_OM_Europe_OM9A012E
Sensor
Automatic headlight
system ................................ 233
LDA
(Lane Departure Alert) ........ 246
PCS (Pre-Collision
system) ............................... 246
Service reminder indicators ..... 98
Shift lever
If the shift lever cannot be
shifted ................................. 496
Manual transmission ............. 227
Multi-mode manual
transmission ....................... 222
Shift lock system ..................... 496
Shopping bag hooks ............... 371
Side airbags ............................... 36
Side mirrors.............................. 192
Adjusting and folding............. 192
Side turn signal lights ............. 229
Replacing light bulbs ............. 435
Turn signal lever ................... 229
Smart entry & start system ..... 143
Antenna location ................... 143
Entry functions .............. 133, 137
Starting the engine ................ 217
Warning light ................. 453, 457Snow tires ................................ 287
Spare tire .................................. 481
Inflation pressure .................. 518
Storage location .................... 482
Specifications .......................... 510
Speed limiter ............................ 269
Speedometer ............................ 103
Steering lock .................... 215, 220
Steering lock system
warning light ....................... 458
Steering wheel ......................... 189
Adjustment ............................ 189
Audio switches ...................... 292
Stop & Start system ................ 272
Stop/tail lights
Replacing light bulbs............. 432
Wattage ................................ 520
Storage feature ........................ 367
Stuck
If the vehicle becomes
stuck ................................... 507
Sun visors ................................ 373
*: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
