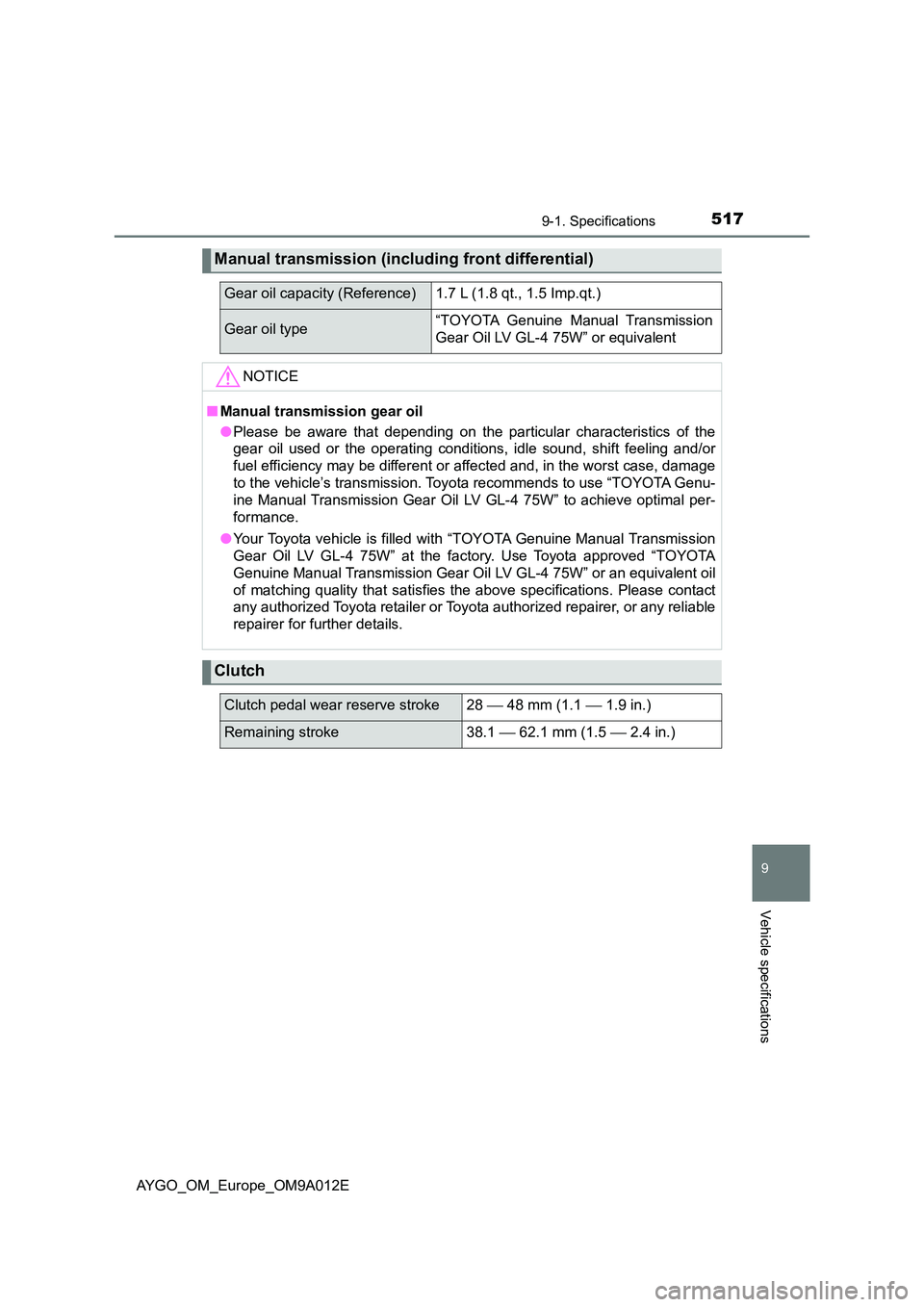

5179-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E
Manual transmission (including front differential)
Gear oil capacity (Reference)1.7 L (1.8 qt., 1.5 Imp.qt.)
Gear oil type“TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil
● Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission. Toyota recommends to use “TOYOTA Genu-
ine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal per-
formance.
● Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYOTA
Genuine Manual Transmission Gear Oil LV GL-4 75W” or an equivalent oil
of matching quality that satisfies the above specifications. Please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for further details.
Clutch
Clutch pedal wear reserve stroke28 48 mm (1.1 1.9 in.)
Remaining stroke38.1 62.1 mm (1.5 2.4 in.)
