2021 ACURA NSX Owners Manual

455
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the
temperature gauge pointer goes down.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
2 Checking the Coolant P. 400
uIf the coolant level in the reserve tank is
low, or no coolant in the tank, check that
the radiator is cool. Cover the reserve
tank cap with a heavy cloth and open the
cap. Add coolant until it reaches the
MAX mark, and put the cap back on.
■Last thing to do
Once the engine has cooled sufficiently, turn the power system on and check the
temperature gauge. If the temperature gauge pointer has gone down, resume
driving. If it has not gone down, contact an authorized Acura NSX dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact an authorized Acura
NSX dealer for repairs.
Use water as an emergency/temporary measure only.
Have an authorized Acura NSX dealer flush the
system with proper antifree ze as soon as possible.
3WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
Engine Coolant
Reserve Tank
MAX
MIN
21 ACURA NSX PMC-31T6N6400.book 455 ページ ２０２０年１０月８日　木曜日　午後３時７分

456
Handling the Unexpected
Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact an authorized Acura NSX dealer for
repairs.
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at an
authorized Acura NSX dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest authorized
Acura NSX dealer at 31 mph (50 km/h) or less. Have
your vehicle inspectedM
21 ACURA NSX PMC-31T6N6400.book 456 ページ ２０２０年１０月８日　木曜日　午後３時７分

457
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
Comes on if there is a problem with the EPS system.
■What to do when th e indicator comes on
Stop the vehicle in a safe place a nd turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by an author ized Acura NSX dealer.
1If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by an authorized Acura
NSX dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by an authorized Acura NSX dealer
immediately.U.S.
Canada
21 ACURA NSX PMC-31T6N6400.book 457 ページ ２０２０年１０月８日　木曜日　午後３時７分

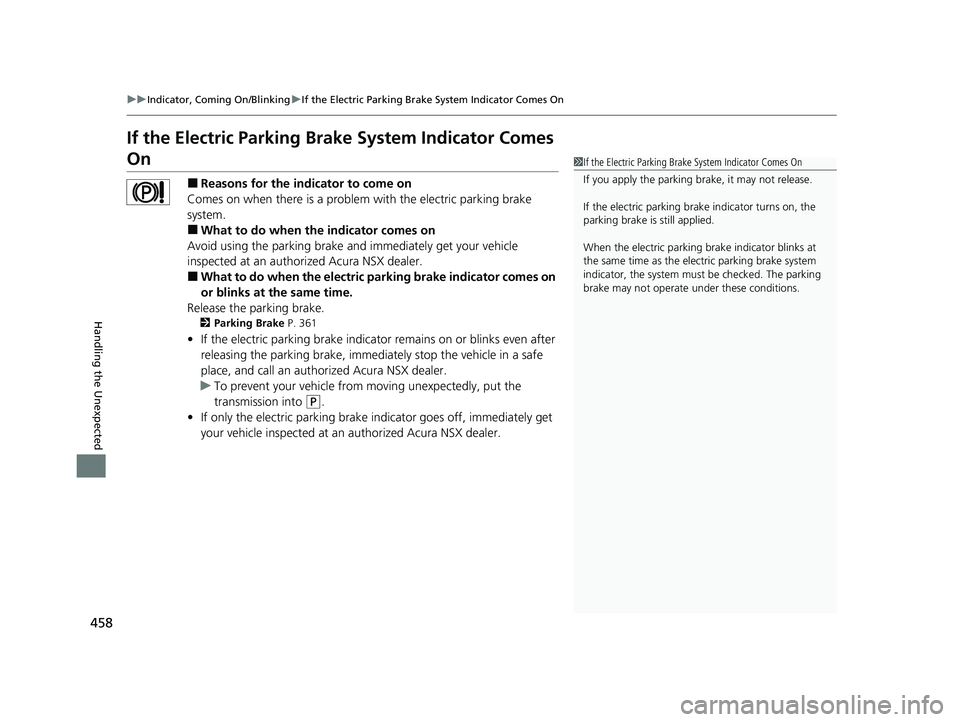

458
uuIndicator, Coming On/Blinking uIf the Electric Parking Brake System Indicator Comes On
Handling the Unexpected
If the Electric Parking Brake System Indicator Comes
On
■Reasons for the indicator to come on
Comes on when there is a proble m with the electric parking brake
system.
■What to do when the indicator comes on
Avoid using the parking brake and immediately get your vehicle
inspected at an author ized Acura NSX dealer.
■What to do when the electric pa rking brake indicator comes on
or blinks at the same time.
Release the parking brake.
2 Parking Brake P. 361
•If the electric parking brake indicator remains on or blinks even after
releasing the parking brake, immedi ately stop the vehicle in a safe
place, and call an authorized Acura NSX dealer.
u To prevent your vehicle from moving unexpectedly, put the
transmission into
(P.
• If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at an authorized Acura NSX dealer.
1If the Electric Parking Brake System Indicator Comes On
If you apply the parking brake, it may not release.
If the electric parking brake indicator turns on, the
parking brake is still applied.
When the electric parking br ake indicator blinks at
the same time as the electric parking brake system
indicator, the system must be checked. The parking
brake may not operate under these conditions.
21 ACURA NSX PMC-31T6N6400.book 458 ページ ２０２０年１０月８日　木曜日　午後３時７分

459
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
Tire pressure is significantly low in on e or more of the tires. If there is a
problem with the TPMS, the indicato r blinks for about one minute, and
then stays on.
■What to do when th e indicator comes on
Drive carefully, avoid abrupt or sh arp cornering, and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by an author ized Acura NSX dealer as soon as
possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
21 ACURA NSX PMC-31T6N6400.book 459 ページ ２０２０年１０月８日　木曜日　午後３時７分

460
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle insp ected by an authorized Acura NSX
dealer.
• Put the transmission into
(N when you turn the power system on.
u Check to verify the
(N position on the instrument panel is selected
and if the indicator on the
(N button is illuminating or blinking.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 325
If the Low Oil Level Symbol Appears
■Reasons for the symbol to appear
Appears when the engine oil level is low.
■What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
Check the oil level.
2 Oil Check P. 395
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 466
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with a low oil level can cause
serious mechanical damage almost immediatelyM
This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil levelM
If the symbol appears agai n, turn the power system
off, and contact an author ized Acura NSX dealer for
repairs immediately.
21 ACURA NSX PMC-31T6N6400.book 460 ページ ２０２０年１０月８日　木曜日　午後３時７分

461Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applic able fuse is blown.
There are two fuse boxes under the hood.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Fuse box A
Located near the radiator. Push the tabs to
open the box.
■Hood Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Cooling Fan50 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
AS F/B Main30 A
Main Fuse200 A
2
−(50 A)
F/B Main 1 60 A −(60A)
−(50A)
Left Electric Parking Brake Motor 30 A
Right Electric Parking Brake Motor 30 A
−( 40 A)
Heater Motor 2 30 A
Heater Motor 1 30 A −( 40 A)
3
E-OP30 A
−(30 A)
ADS30 A
AMP*(30 A)
4 Parking Light 10 A
5IGPS PCS7.5 A
6 Left Headlight High Beam 10 A
7VFP27.5 A
8 Left Headlight Low Beam 10 A
9Right Headlight High Beam10 A
10 Right Headlight Low Beam 10 A
11IGPS Fan7.5 A
12 FI Main 15 A
13FI Sub20 A
14 Back Up 7.5 A
15SBW ECU7.5 A
16 DBW1 15 A
17IG Coil15 A
18 DBW2 15 A
19Parking Light & Headlight Main20 A
20 Rear Defroster 20 A
21Front Washer20 A
22 ISC 15 A
23−−
24 ACC/IG2 Main 10 A
25Daytime Running Lights10 A
26 Horn 10 A
27Interior Lights7.5 A
28 IGP2 15 A
29Audio10 A
Circuit ProtectedAmps
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 461 ページ ２０２０年１０月８日　木曜日　午後３時７分

462
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Located near the 12-volt battery. Remove
the maintenance cover, then push the tabs
to open the box.
2 Checking the 12-Volt Battery P. 421
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
SBW60 A
−−
F/B Main 260 A
Wiper30 A
Passenger Power Window30 A
IG Main 130 A
Driver Power Window30 A
ESB40 A
2IG Main 230 A
3IMA Motor20 A
4BMS 7.5A
5Stop7.5 A
6 Turbo W/G 20 A
7Hazard7.5 A
8A/C W/P 10A
9−−
10 AEV 7.5 A
11FI-ECU Backup7.5 A
12 − −
13−−
14 − −
15−−
16 − −
17IMA Motor10 A
21 ACURA NSX PMC-31T6N6400.book 462 ページ ２０２０年１０月８日　木曜日　午後３時７分
