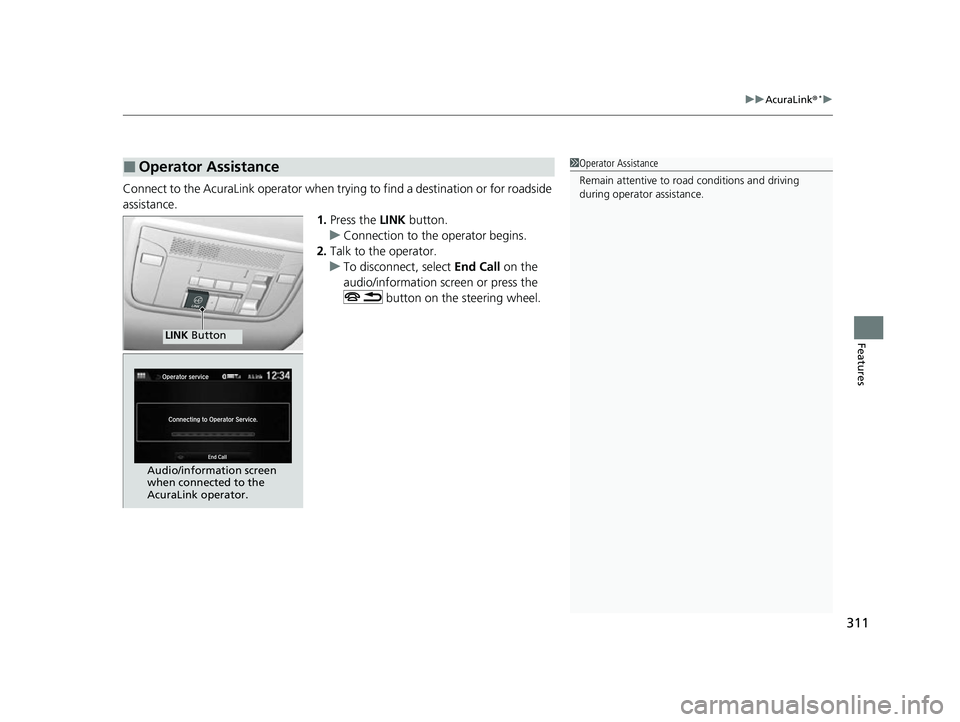

2021 ACURA NSX Owners Manual

311
uuAcuraLink ®*u
Features
Connect to the AcuraLink operator when trying to find a destination or for roadside
assistance.
1.Press the LINK button.
u Connection to the operator begins.
2. Talk to the operator.
u To disconnect, select End Call on the
audio/information screen or press the
button on the steering wheel.
■Operator Assistance1Operator Assistance
Remain attentive to road conditions and driving
during operator assistance.
LINK Button
Audio/information screen
when connected to the
AcuraLink operator.
21 ACURA NSX PMC-31T6N6400.book 311 ページ ２０２０年１０月８日　木曜日　午後３時７分

312
21 ACURA NSX PMC-31T6N6400.book 312 ページ ２０２０年１０月８日　木曜日　午後３時７分

313
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 314
Maximum Load Limit........................ 317
High-Performance Driving ................ 319
Towing a Trailer Towing Behind a Motorhome .......... 324
When Driving Turning on the Power ...................... 325
Precautions While Driving................. 328
Dual Clutch Transmission ................. 329
Shifting ............................................ 330
Acoustic Vehicle Al erting System ...... 339 Integrated Dynamics System ............ 340
Launch Control ................................ 345
Cruise Control ................................. 347
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 350
Agile Handling Assist ....................... 354
SPORT HYBRID Super Handling All-Wheel- DriveTM (SPORT HYBRID SH-AWD®) .... 355
Tire Pressure Monitoring System (TPMS) ...... 356
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 358
High Voltage Battery ........................ 360 Braking
Brake System ................................... 361
Anti-lock Brake System (ABS) ........... 366
Brake Assist System ......................... 367
Parking Your Vehicle When Stopped ................................ 368
Parking Sensor System
*................... 369
Multi-View Rear Camera .................. 373
Refueling
Fuel Information .............................. 375
How to Refuel ................................. 376
Fuel Economy and CO
2 Emissions .... 377
Turbo Engine Vehicle ....................... 378
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 313 ページ ２０２０年１０月８日　木曜日　午後３時７分

314
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 411
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
• Check the front bumper duct s and side intercooler ducts for mud, leaves, and
road debris that could build up and prevent proper cooling performance.
■Exterior Checks1 Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable materials left und er the hatch, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal.
Also check under the hatch for leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
21 ACURA NSX PMC-31T6N6400.book 314 ページ ２０２０年１０月８日　木曜日　午後３時７分

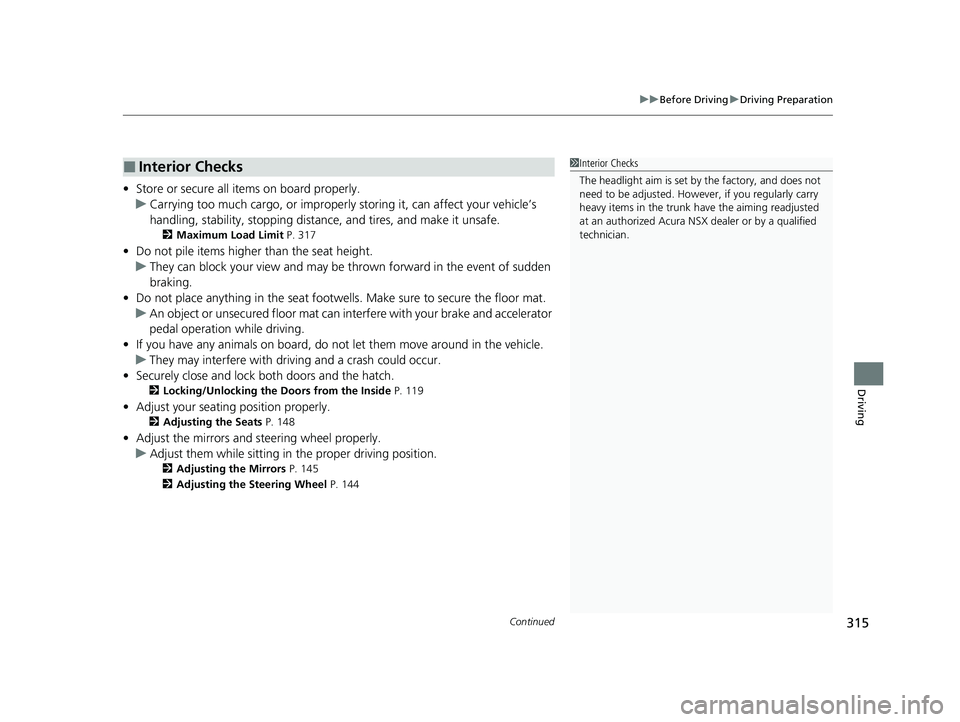

Continued315
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 317
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the seat footwe lls. Make sure to secure the floor mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock both doors and the hatch.
2 Locking/Unlocking the Doors from the Inside P. 119
•Adjust your seating position properly.
2 Adjusting the Seats P. 148
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 145
2 Adjusting the Steering Wheel P. 144
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk ha ve the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
21 ACURA NSX PMC-31T6N6400.book 315 ページ ２０２０年１０月８日　木曜日　午後３時７分

316
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the driver’s and passenger’s seats cannot
roll under the seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 41
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have an authorized Acura NSX d ealer check the vehicle if a problem is
indicated.
2 Indicators P. 74
21 ACURA NSX PMC-31T6N6400.book 316 ページ ２０２０年１０月８日　木曜日　午後３時７分

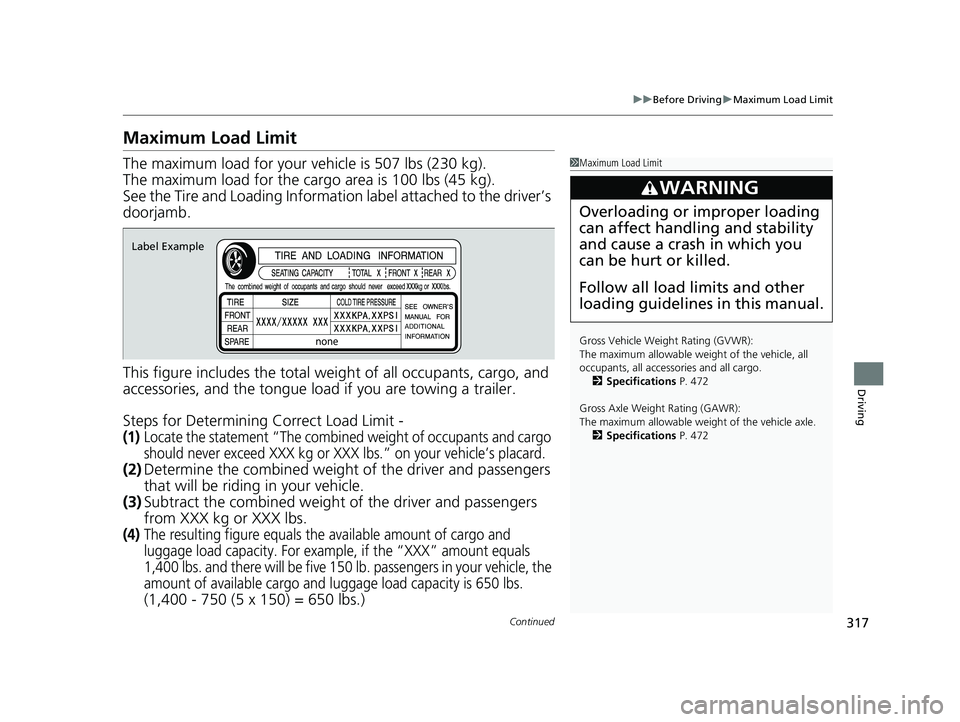

317
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your ve hicle is 507 lbs (230 kg).
The maximum load for the carg o area is 100 lbs (45 kg).
See the Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1)Locate the statement “The combined weight of occupants and cargo
should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
(2)Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4)The resulting figure equals the available amount of cargo and
luggage load capacity. For exampl e, if the “XXX” amount equals
1,400 lbs. and there will be five 150 lb. passengers in your vehicle, the
amount of available cargo and luggage load capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 472
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 472
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
21 ACURA NSX PMC-31T6N6400.book 317 ページ ２０２０年１０月８日　木曜日　午後３時７分

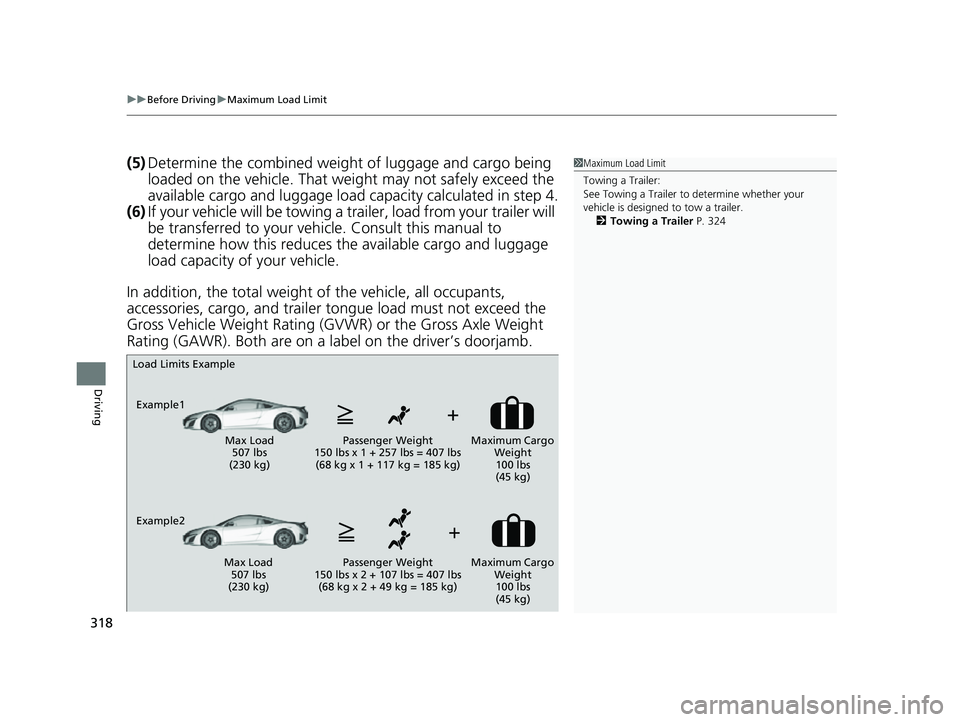

uuBefore Driving uMaximum Load Limit
318
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a trailer.
2 Towing a Trailer P. 324
Load Limits Example
Example1 Max Load 507 lbs
(230 kg) Passenger Weight
150 lbs x 1 + 257 lbs = 407 lbs (68 kg x 1 + 117 kg = 185 kg) Maximum Cargo
Weight 100 lbs
(45 kg)
Example2 Max Load 507 lbs
(230 kg) Passenger Weight
150 lbs x 2 + 107 lbs = 407 lbs (68 kg x 2 + 49 kg = 185 kg) Maximum Cargo
Weight 100 lbs
(45 kg)
