2021 ACURA NSX Owners Manual

463
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Passenger’s Door Handle10 A
2Door Lock15 A
3SMART7.5 A
4−−
5Front Accessory Power
Socket20 A
6Fuel Pump20 A
7MISS SOL15 A
8ENG7.5 A
9VSA/ABS7.5 A
10SRS10 A
11Power System 210 A
12−−
13Power System 110 A
14Fuel Lid7.5 A
15Driver’s Power Seat Reclining*(20 A)
16−(7.5 A)
17Seat Heater*(20 A)
18Driver’s Door Handle10 A
19−−
20Passenger’s Side Door Unlock7.5 A
21Daytime Running Lights7.5 A
22Key Lock7.5 A
23Air Conditioning7.5 A
24Feed Back IG1a7.5 A
25Instrument Panel Lights7.5 A
26Power Lumbar Support*(7.5 A)
27Parking Lights7.5 A
28Sub Main15 A
29Meter10 A
30DR27.5 A
31Sub Fuel Pump15 A
32SRS10 A
33Passenger’s Side Door Lock7.5 A
34Driver’s Door Lock7.5 A
35Driver’s Door Unlock7.5 A
36Driver’s Power Seat Sliding*(20 A)
37Right Daytime Running
Light7.5 A
38Left Daytime Running Light7.5 A
39Feed Back IG1b7.5 A
40ACC7.5 A
41−−
42−−
Circuit ProtectedAmps
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 463 ページ ２０２０年１０月８日　木曜日　午後３時７分

464
uuFuses uFuse Locations
Handling the Unexpected
Located inside the passenger’s side under
cover. Remove the clips using a Phillips-
head screwdriver, then open the under
cover.
Fuse locations are shown on the label on
the under cover.
Locate the fuse in question by the fuse
number and label number.
■Passenger’s Side Interior Fuse
Box
Fuse Box
Fuse Label
Under Cover
Clip
■Circuit protected and fuse rating
Circuit ProtectedAmps
aPassenger’s Power Seat
Sliding*(20 A)
bPassenger’s Power Seat Reclining*(20 A)
c−(10 A)
d−−
eWiper7.5 A
fEPS7.5 A
gDR17.5 A
hPower System 37.5 A
Located near the rear center speaker.
Fuse locations are shown on the hood fuse
box A cover.
Have an authorized Acura NSX dealer
inspect and replace the fuse.
■Circuit protected and fuse rating
■Rear Side Interior Fuse Box
Fuse Box
Circuit ProtectedAmps
1HCA-220 A
2−−
3−−
4−−
5HCA-120 A
6DI-INJ20 A
7−−
8TCU30 A
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 464 ページ ２０２０年１０月８日　木曜日　午後３時７分

465
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the hood.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the hood and the
vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 461
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the hood fuse
box A cover.
Combined
Fuse Blown Fuse
Fuse Puller
21 ACURA NSX PMC-31T6N6400.book 465 ページ ２０２０年１０月８日　木曜日　午後３時７分

466
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle

467
Handling the Unexpected

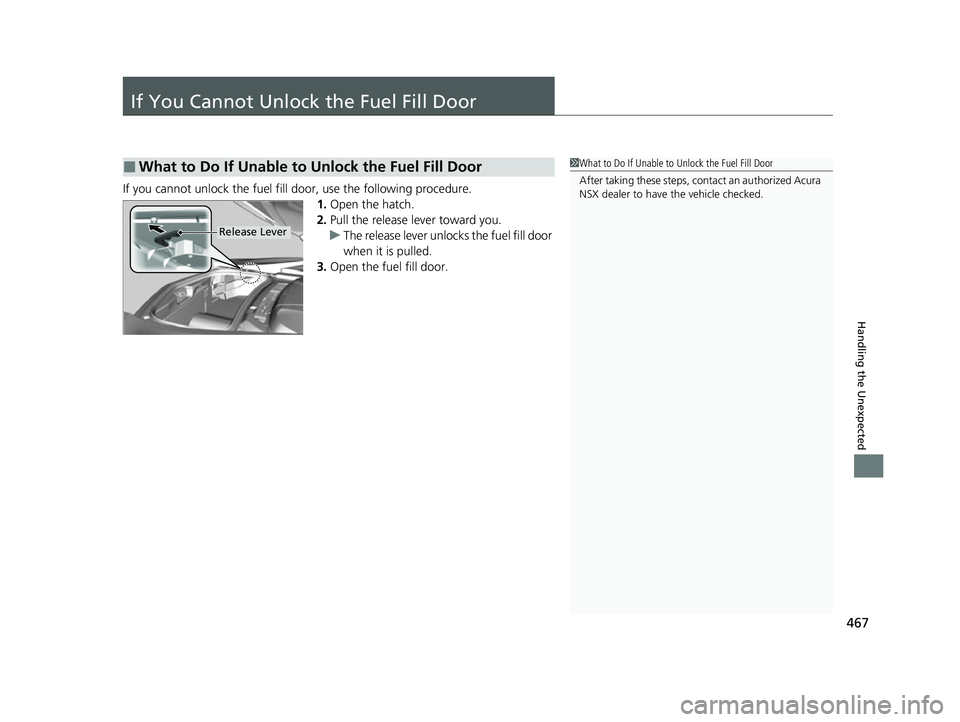

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the hatch.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, c ontact an authorized Acura
NSX dealer to have the vehicle checked.
Release Lever
21 ACURA NSX PMC-31T6N6400.book 467 ページ ２０２０年１０月８日　木曜日　午後３時７分

468
Handling the Unexpected
If You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Remove the built-in key.
2. Fully insert the key and turn it.
■What to Do If Unable to Open the Hatch1What to Do If Unable to Open the Hatch
After taking these steps, c ontact an authorized Acura
NSX dealer to have your vehicle checked.
If the security system alar m is set and open the hatch
with the built-in key, the alarm goes off.
2 Security System Alarm P. 126
21 ACURA NSX PMC-31T6N6400.book 468 ページ ２０２０年１０月８日　木曜日　午後３時７分

469
Handling the Unexpected

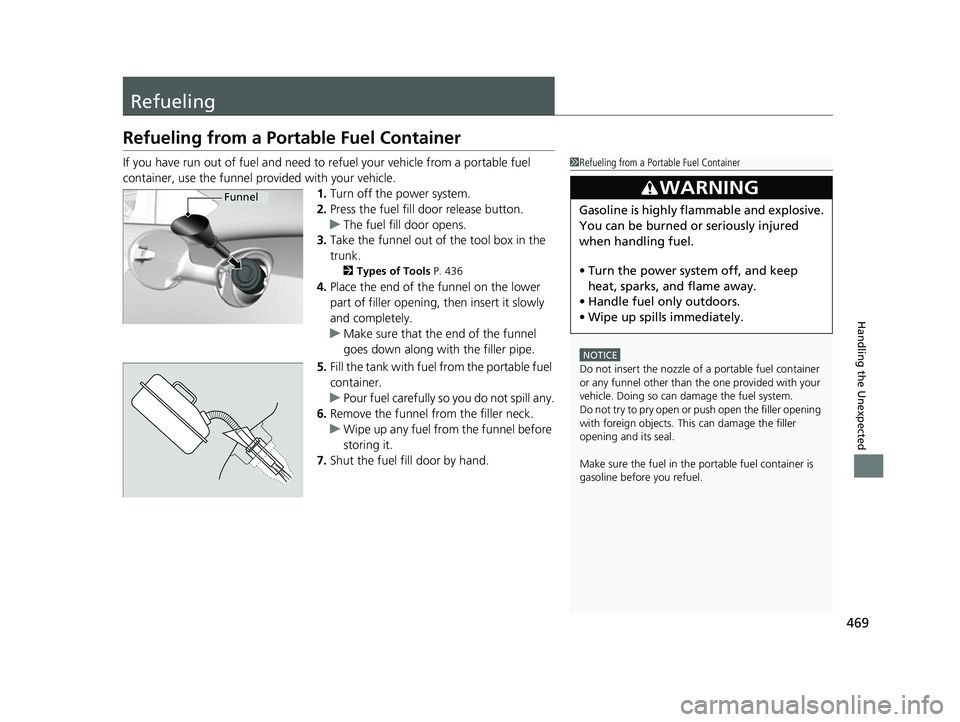

Refueling
Refueling from a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool box in the
trunk.
2 Types of Tools P. 436
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and completely.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling from a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the filler opening
with foreign objects. This can damage the filler
opening and its sealM
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
21 ACURA NSX PMC-31T6N6400.book 469 ページ ２０２０年１０月８日　木曜日　午後３時７分

470
