2021 ACURA NSX Owners Manual

447
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

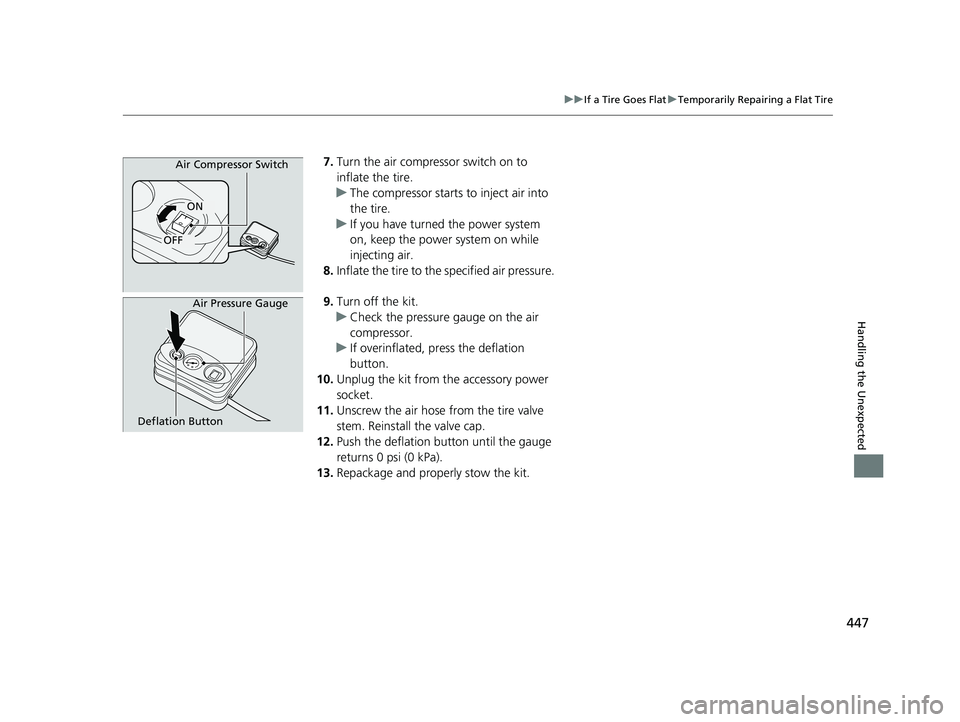

7. Turn the air compressor switch on to
inflate the tire.
u The compressor starts to inject air into
the tire.
u If you have turned the power system
on, keep the power system on while
injecting air.
8. Inflate the tire to the specified air pressure.
9. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the deflation
button.
10. Unplug the kit from the accessory power
socket.
11. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
12. Push the deflation button until the gauge
returns 0 psi (0 kPa).
13. Repackage and properly stow the kit.Air Compressor Switch
OFF
ON
Deflation Button Air Pressure Gauge
21 ACURA NSX PMC-31T6N6400.book 447 ページ ２０２０年１０月８日　木曜日　午後３時７分

448
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult an
authorized Acura NSX dealer.1 Handling of the Jack
Many types of jacks and jack stands, as well as
improper lifting procedures , may cause side sill and
underbody damage. Please consult an authorized
Acura NSX dealer about prop er lifting equipment and
methods.Jacking Points
Jacking Points
21 ACURA NSX PMC-31T6N6400.book 448 ページ ２０２０年１０月８日　木曜日　午後３時７分

449
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver informatio n interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 87
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 131
2If the Keyless Access Remote Battery is
Weak P. 450
The POWER SYSTEM indicator comes on.Have your vehicle checked by an authorized
Acura NSX dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 460
Check the brightness
of the interior lights. The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by an
authorized Acura NSX dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by
an authorized Acura NSX dealer.
2 Inspecting and Changing Fuses P. 465
Check the gear
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 If the 12-Volt Battery Is Dead P. 452
21 ACURA NSX PMC-31T6N6400.book 449 ページ ２０２０年１０月８日　木曜日　午後３時７分

450
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the ENGINE START/STOP button flashes, and the READY
indicator does not come on.
The To Start, Hold Remote Near Start Button message appears on the driver
information interface.
Turn on the power system as follows. 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 ACURA NSX PMC-31T6N6400.book 450 ページ ２０２０年１０月８日　木曜日　午後３時７分

451
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The ENGINE START/STOP button may be used to turn the power system off due to
an emergency situation even while driving. If you must turn the power system off,
do either of the following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the ENGINE START/STOP button while
driving unless it is absolutely necessary for the power
system to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
21 ACURA NSX PMC-31T6N6400.book 451 ページ ２０２０年１０月８日　木曜日　午後３時７分

452
Handling the Unexpected
If the 12-Volt Battery Is Dead
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood.1.Remove the maintenance cover.
2 Checking the 12-Volt Battery P. 421
2.Slide the terminal cover on your vehicle’s
12-volt battery positive + terminal as
shown.
3. Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
4. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
5. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1If the 12-Volt Battery Is Dead
Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
12-volt battery performa nce degrades in cold
conditions and may prevent the engine from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.Terminal Cover
Booster Battery
21 ACURA NSX PMC-31T6N6400.book 452 ページ ２０２０年１０月８日　木曜日　午後３時７分

453
uuIf the 12-Volt Battery Is Dead u
Handling the Unexpected
6.Connect the other end of the second
jumper cable to the front frame as shown.
Do not connect this jumper cable to any
other part.
7. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
8. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s 12-volt battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or an authorized Acura NSX
dealer.
■What to Do After the Engine Starts
21 ACURA NSX PMC-31T6N6400.book 453 ページ ２０２０年１０月８日　木曜日　午後３時７分

454
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge pointer is at the mark or the engine suddenly loses
power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
u Put the transmission into
(P and set the parking brake.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present : Keep the power system on and open the hatch.
u Steam or spray is present : Turn off the power system and wait until it
subsides. Then open the hatch.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
pointer at the mark may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hatch if steam is coming
out.
H
H
